MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HUAWIN
  • Model:
  • 020885 - HUAWIN WM 1560
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

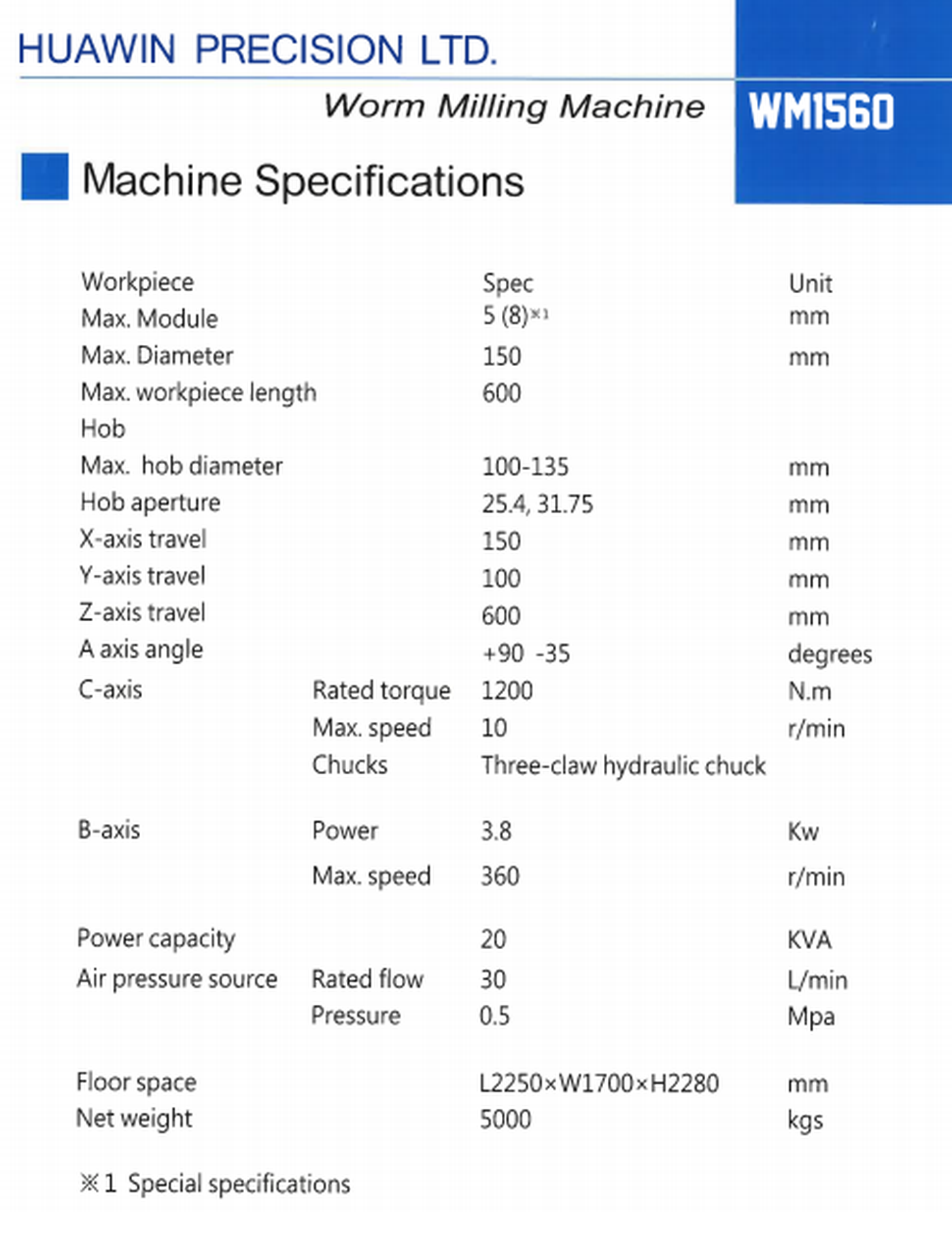

DESCRIPTION

max. diameter: 150 mm.
Max. work piece length: 600 mm.
Module max.: 5 mm.
Cutter diameter: 100 - 135 mm.
Bore: 25.4 / 31.75 mm.
Milling cutter speeds: 360 t/min.
Drive milling spindle: 4 kW.
X axis: 150 mm.
Y axis: 100 mm.
Z axis: 600 mm.
A axis: +90 / -35 °.
Work piece spindle speed: 10 t/min.
Torque max.: 1200 Nm.
Air connect: 5 bar.
Total power required: 20 kVA.
Machine's weight about: 5000 kg.
Length: 2250 mm.
Height: 1700 mm.
Width: 2280 mm.
