REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:

Model:

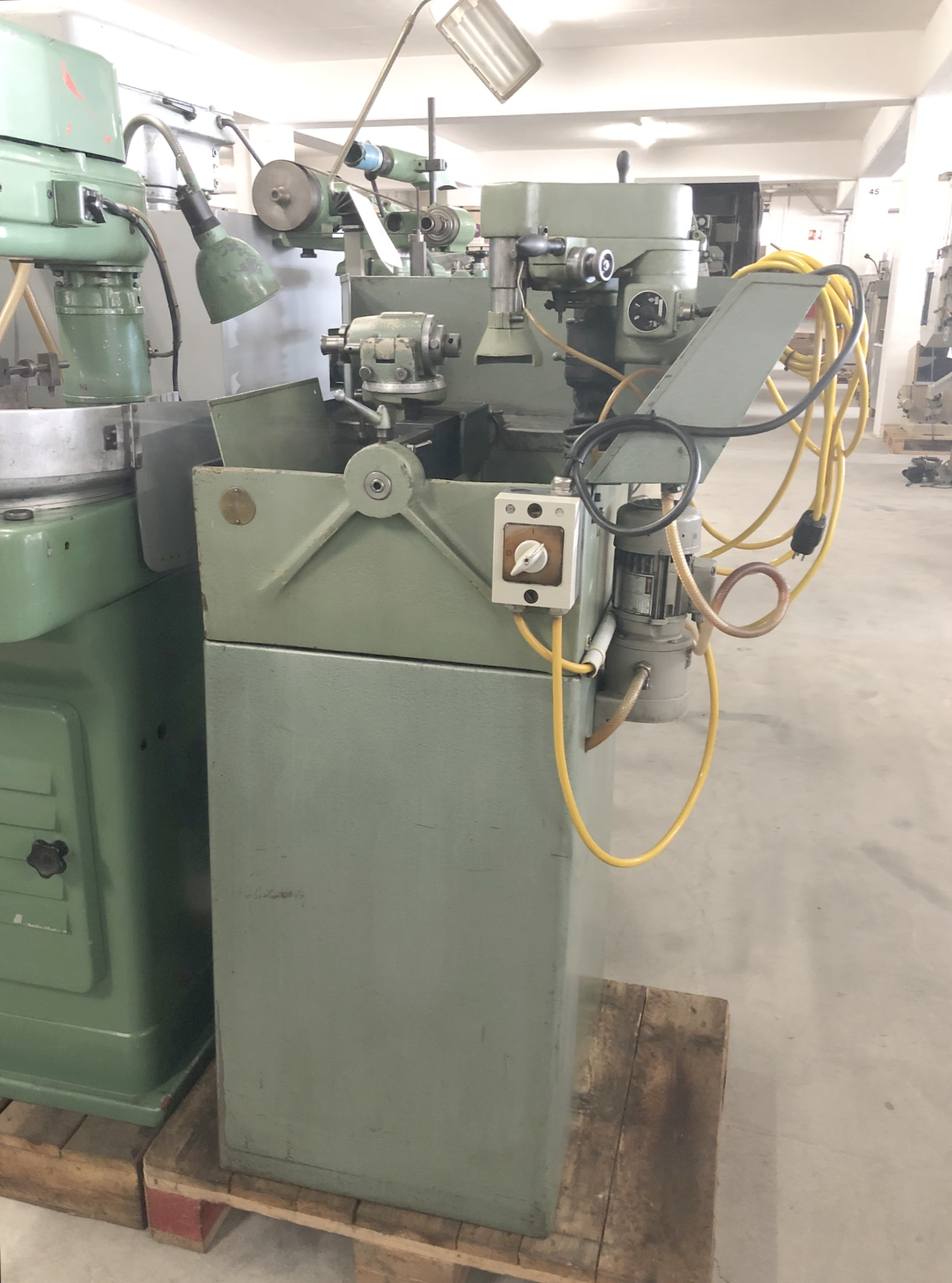

020780 - STRAMA 75

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Grinding-wheel diameter: 75 mm.
Drilling cap. of grind.wheel: 20 mm.
Longitudinal way of table: 55 mm.
Vertical adjustment of grinding head: 160 mm.
horizontal: 360 °.
number (steps): 2.
from: 2800 t/min.
up to: 5100 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 0.50 CV.
Machine's weight about: 150 kg.
Length: 1000 mm.
Width: 950 mm.
Height: 1550 mm.
