MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HUAWIN
  • Model:
  • 020039 - HUAWIN HW 110
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

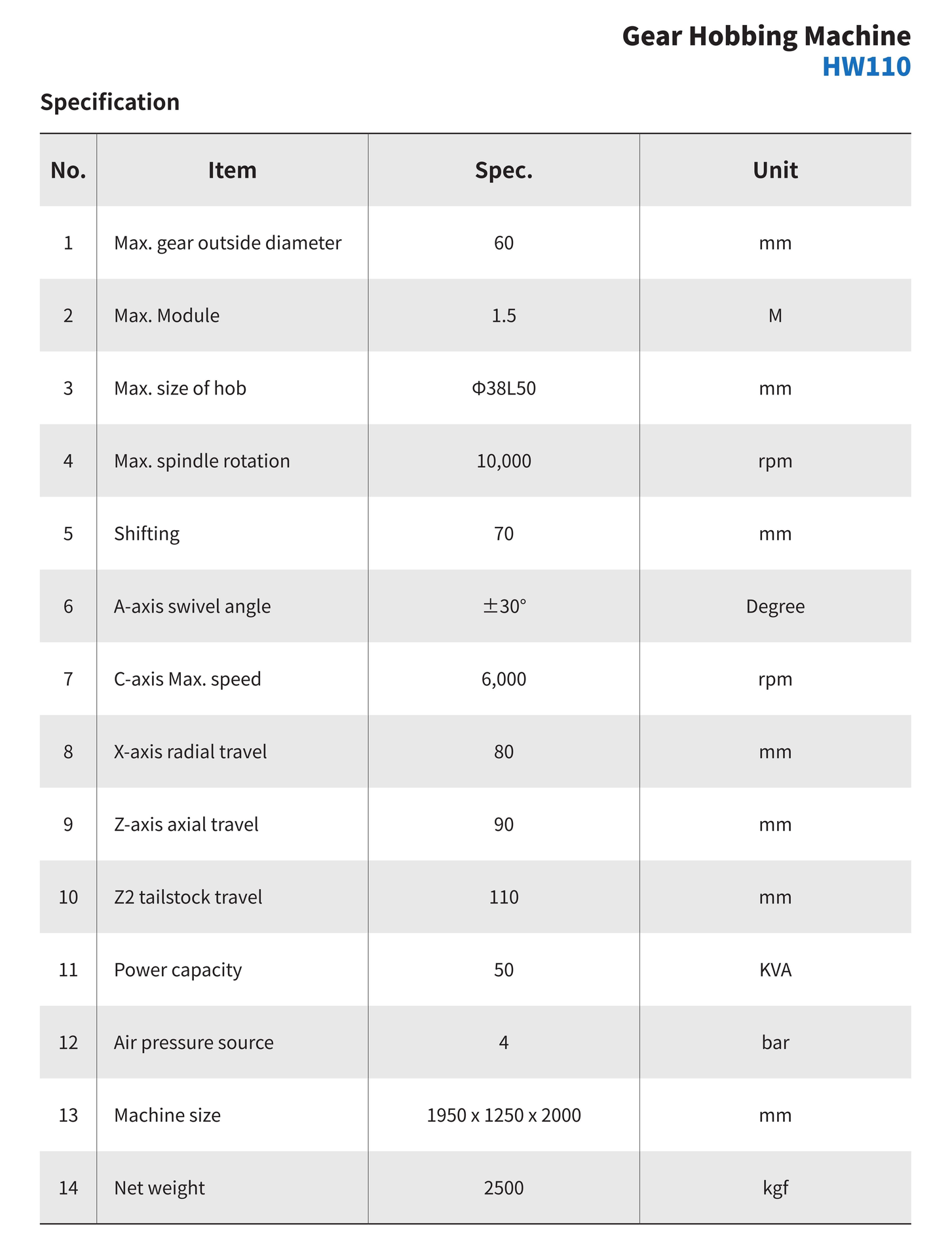

DESCRIPTION

Work capacity:max. diameter: 60 mm.
Max. module: 1 / 1.5.
Pitch min.: 6.
max.: 390.
Max. milling cutter displac.: 60 mm.
from: 300 t/min.
up to: 1000 mm/min.
Max. milling head inclination: +/- 45 °.
axial from: mm/min.
radial from: mm/min.
Power: 0.75 kW.
Machine's weight about: 1250 kg.
Length: 1800 mm.
Width: 1730 mm.
Height: 2300 mm.
+ request more information
