MACHINE INFORMATION AND SPECIFICATION

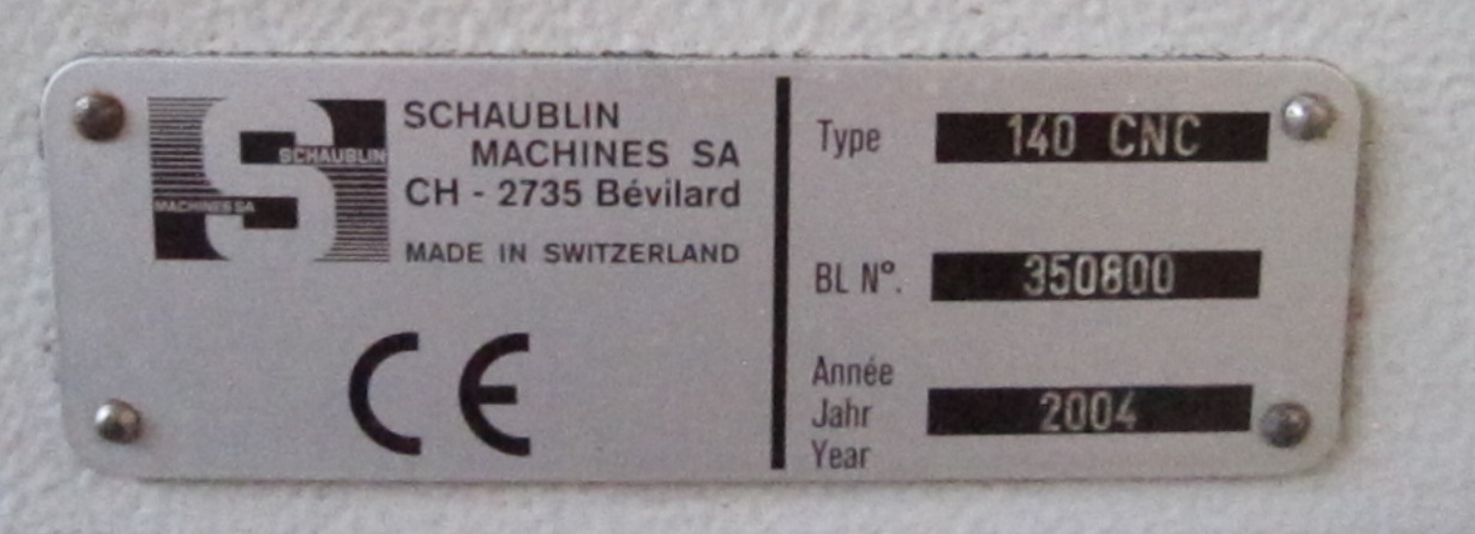

  • Manufacturer:
  • SCHAUBLIN
  • Model:

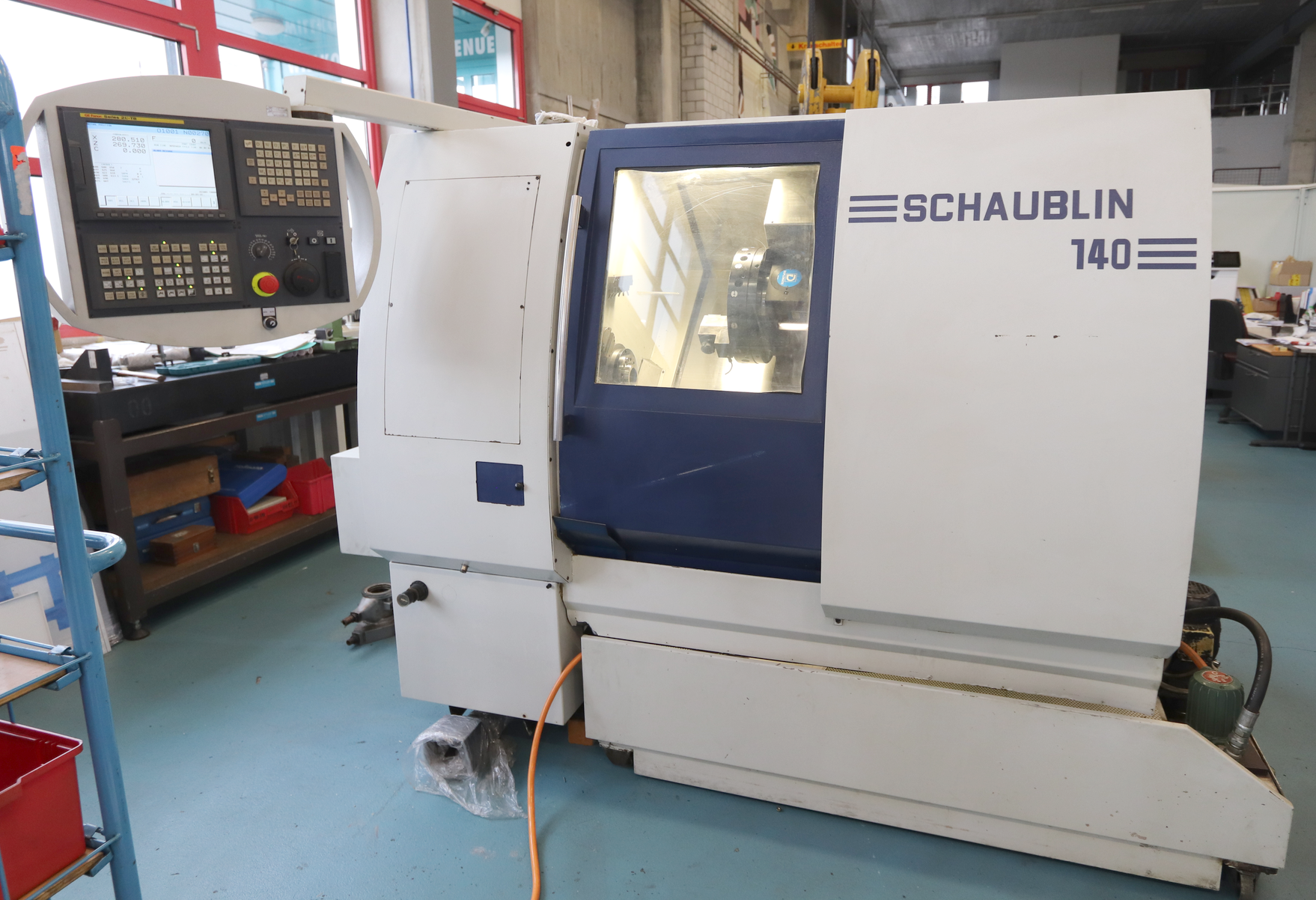

  • 019877 - SCHAUBLIN 140 CNC
  • Condition:
  • 1
  • YOM:
  • NA

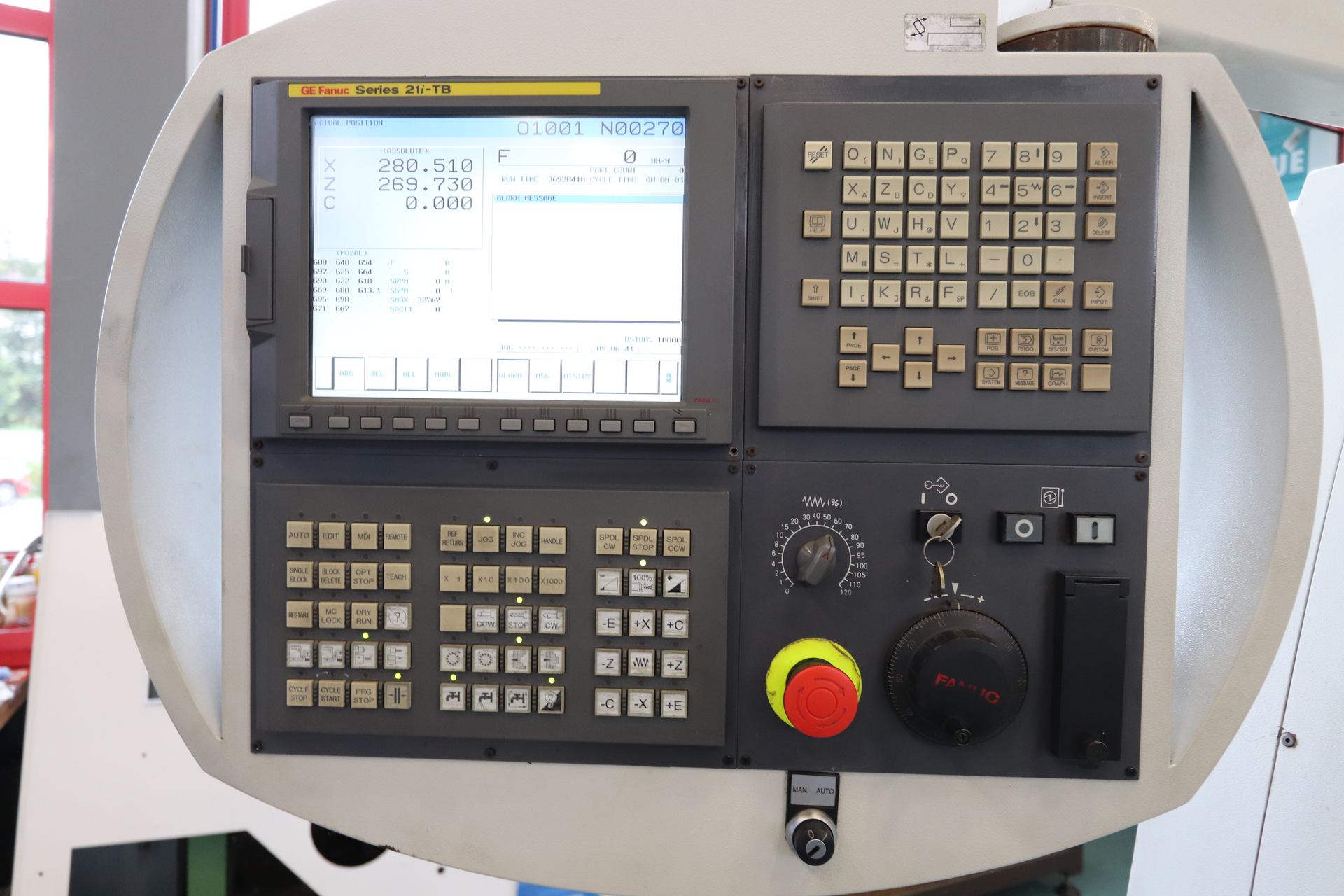

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

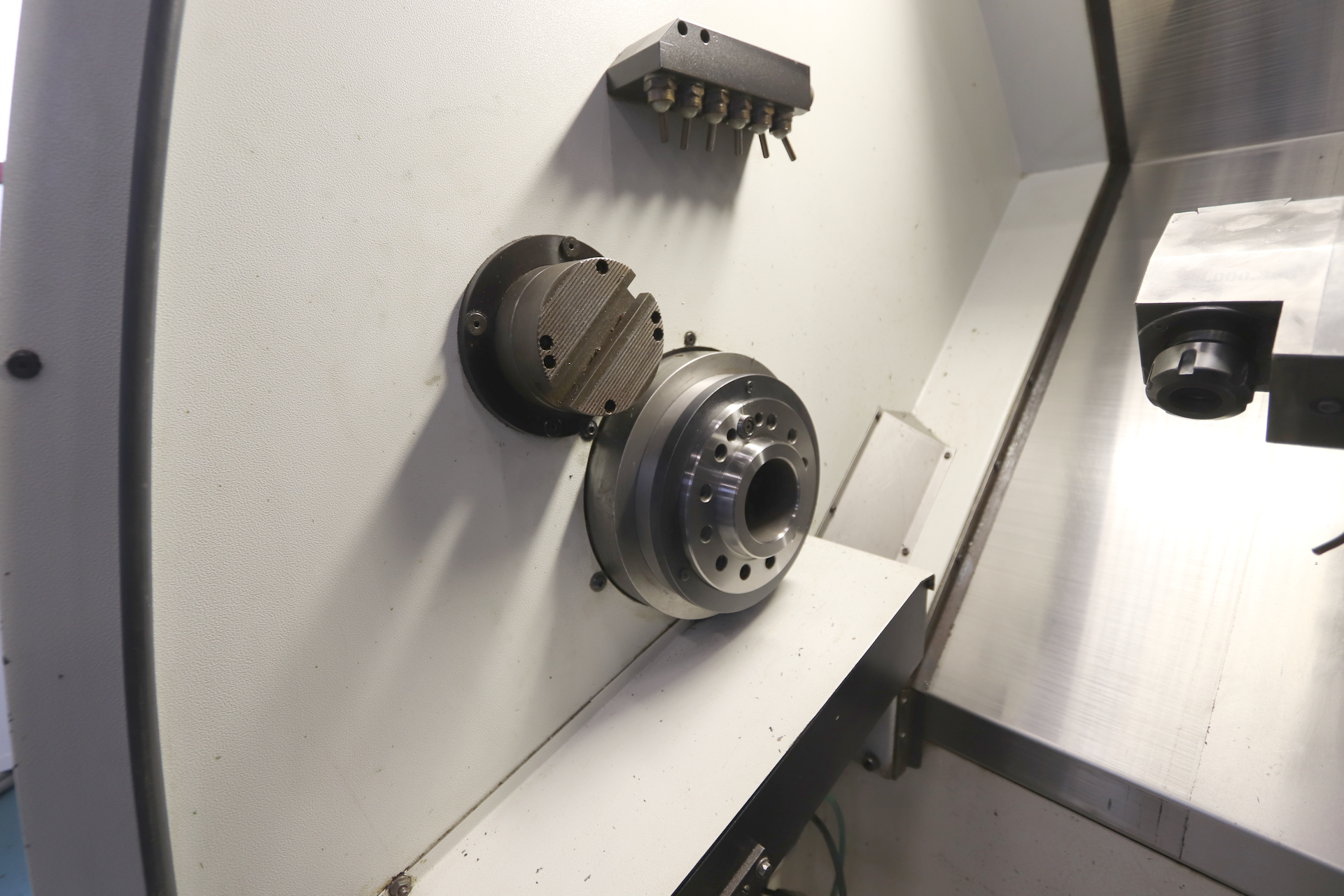

Taper in spindle: A2-5.
Spindle hole: 51 mm.
Turning diameter: 300 mm.
Bar diameter with collet: 24 / 36 mm.
Longitudinal travel (Z-axis): 370 mm.
Cross travel (x-axis): 210 mm.

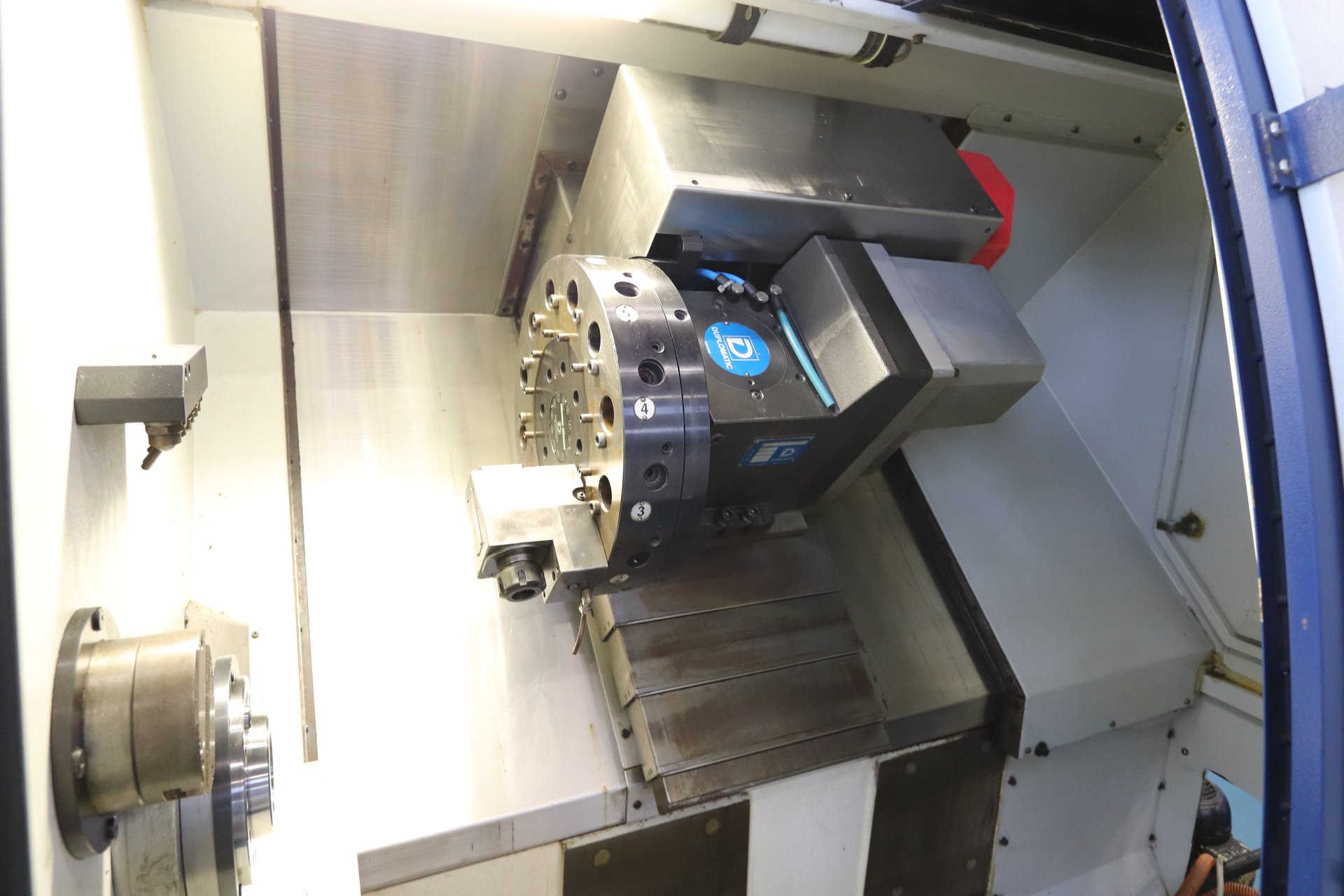

Turret slide: number: 1.
Driven tools turret 1: 12.
Driven tools turret: 12.
Spindle speeds: 30 - 6000 t/min.
Power of driven tools: 2.2 / 3.7 kW.
Spindle nose: VDI: 30.
C axis (spindle,resolution): 0.001 °.
from: 50 t/min.
up to: 10000 mm/min.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
Rapid traverse:: 10 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 3000 kg.
Length: 2530 mm.
Width: 1400 mm.
Height: 1840 mm.
Coolant system: 130 l.
