REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
SCHAUBLIN

Model:

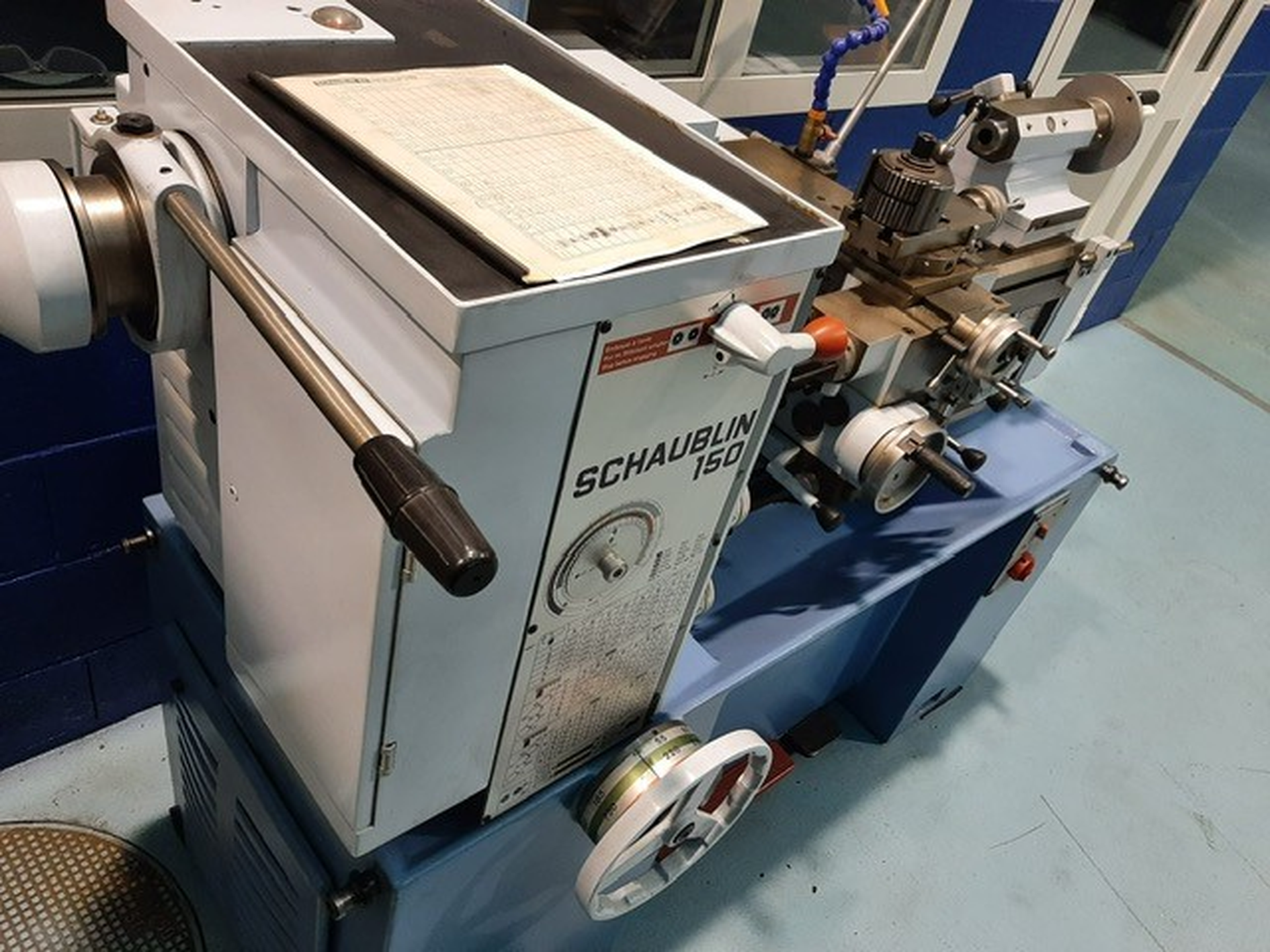

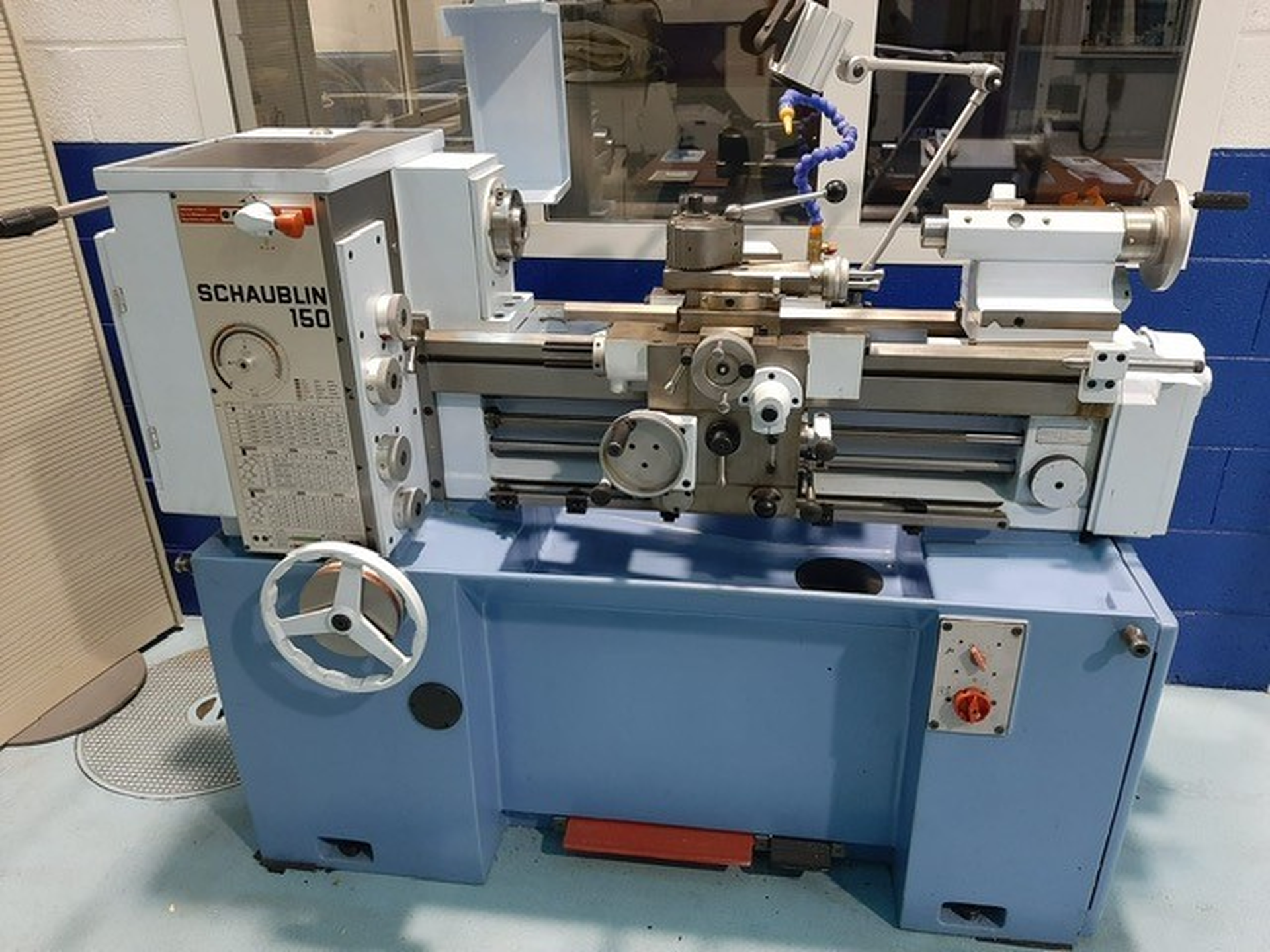

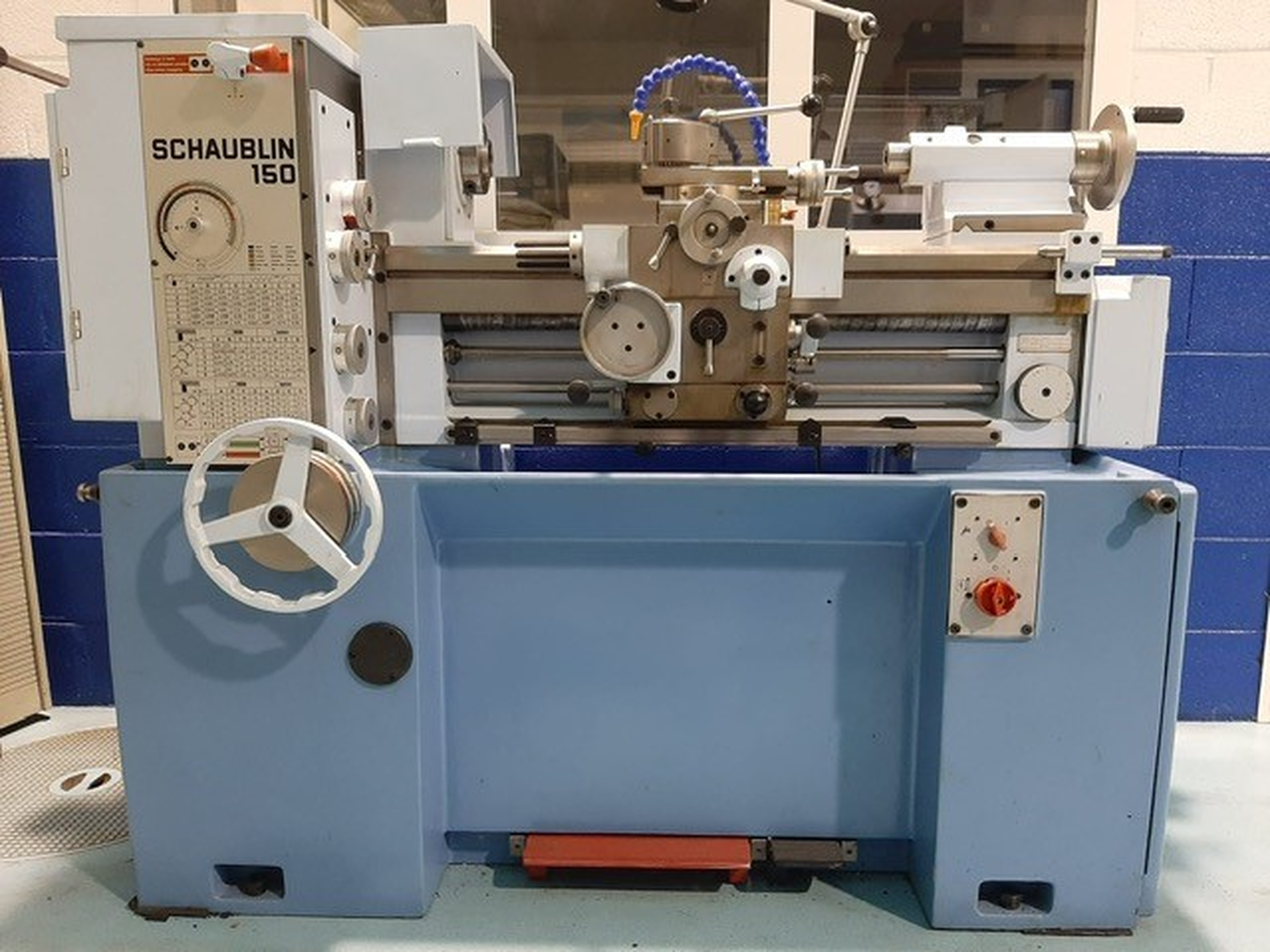

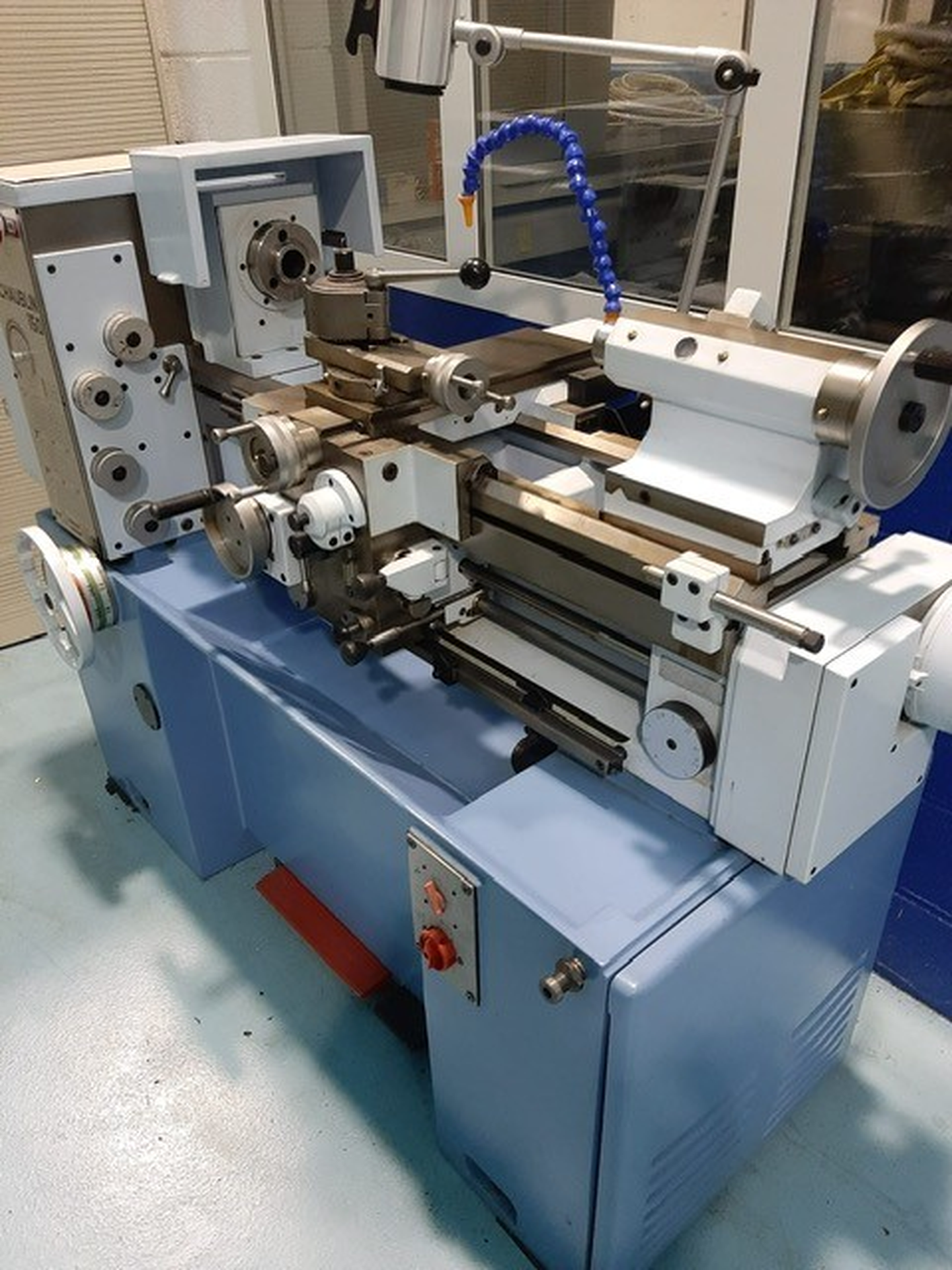

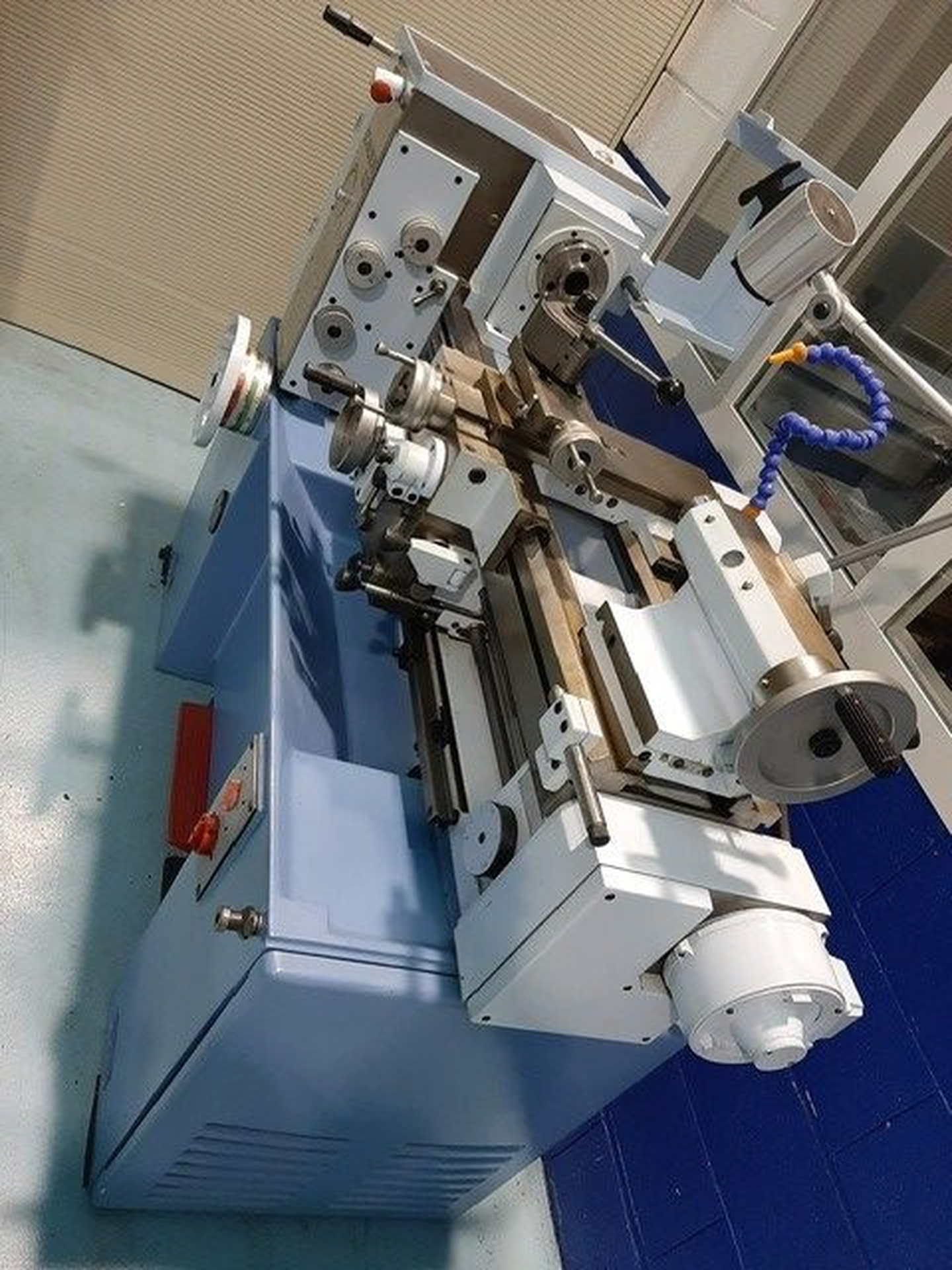

018647 - SCHAUBLIN 150

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 150 mm.
Distance between centres: 600 mm.
Swing over cross-slide: 177 mm.
Swing over bed: 340 mm.
Swing in gap: mm.
Turning length: 600 mm.
Spindle hole: 40 mm.
Spindel nose for collets: B32.
Taper in spindelstock MK: 5.
Camlock: D 1-4".
from: 0.015 mm/t.
up to: mm/t.
Taper in tailstock:: 5 CM.
Spindle diameter: 60 mm.
number (steps): 48.
Rapid motion: 4 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 2.70 CV.
Total power required: 6 CV.
Machine's weight about: 1250 kg.
Length: 1730 mm.
Width: 970 mm.
Height: 1300 mm.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY
