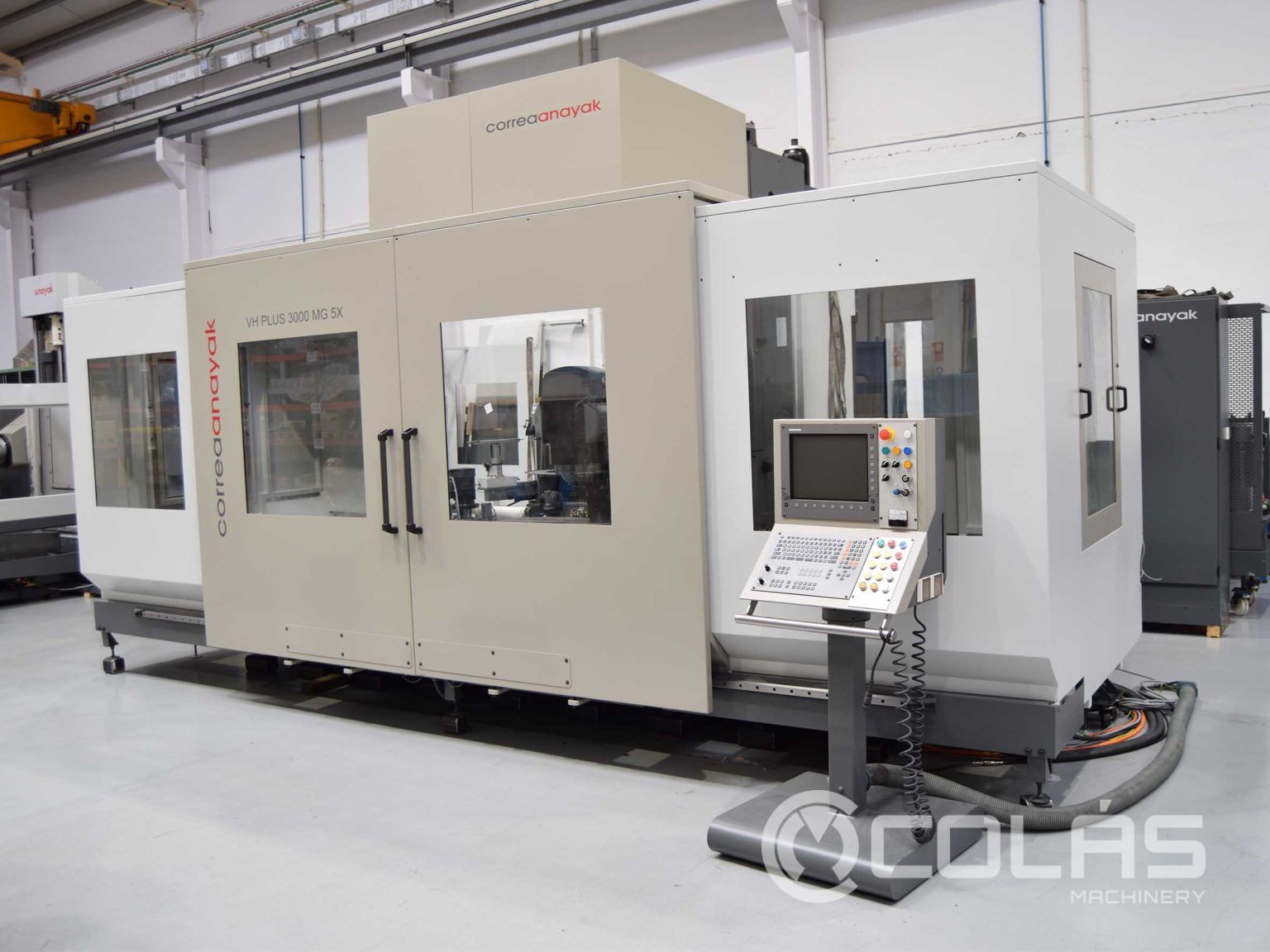

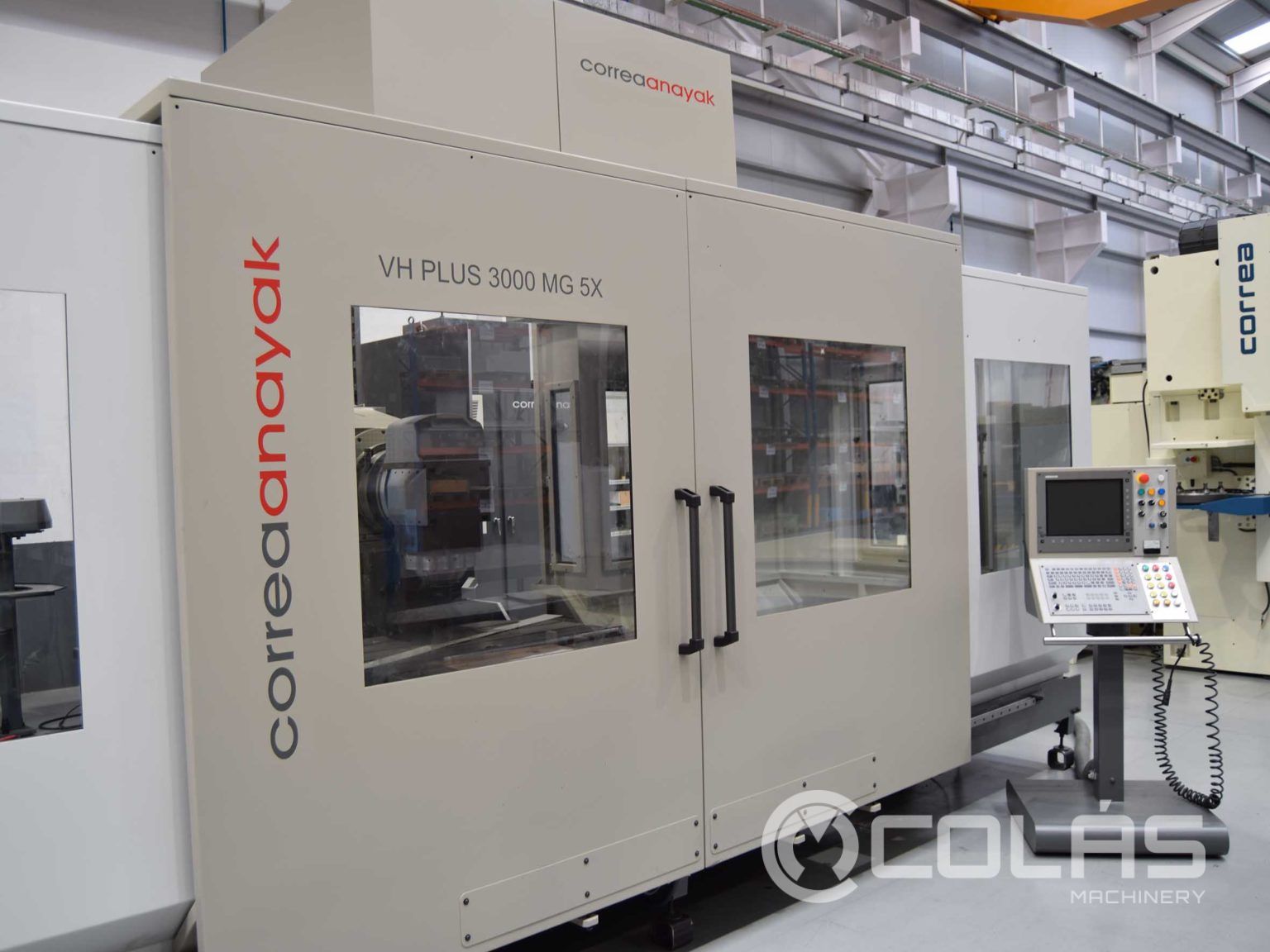

Longitudinal Traverse (X Axis ) 3.000 mm
Transversal Traverse (Y Axis) 1.270 mm
Vertical Traverse (Z Axis) 1.500 mm
Rapid Feeds (X,Y,Z) 20.000 mm/min
Max Working Feed 10.000 mm/min
Taper HSK A 63
Turning Speeds 60 – 18.000 r.p.m.
Main Motor Power 34 kW
Year - 1965
X - 1000(mm)
Y - 600(mm)
Z (mm)
Taper - 4 (ISO/MT)
Power - 2(kW)
Pattern Maker Milling Machine with swivable Head, MT 4, Rotary Table,accessories
...
MANDELLI
09536
1001 M 14 / U 2500/41KW - 4000
CNC Siemens 840 C
X stroke mm 4000 - longitudinal
Y stroke mm 2500 - vertical
Z stroke mm 2200 - cross
Max workpiece diameter that can be moved 3200 mm
Pallet change - 2 positions - ISO 1250 mm 1250 x 125...
