SIGMA
08543

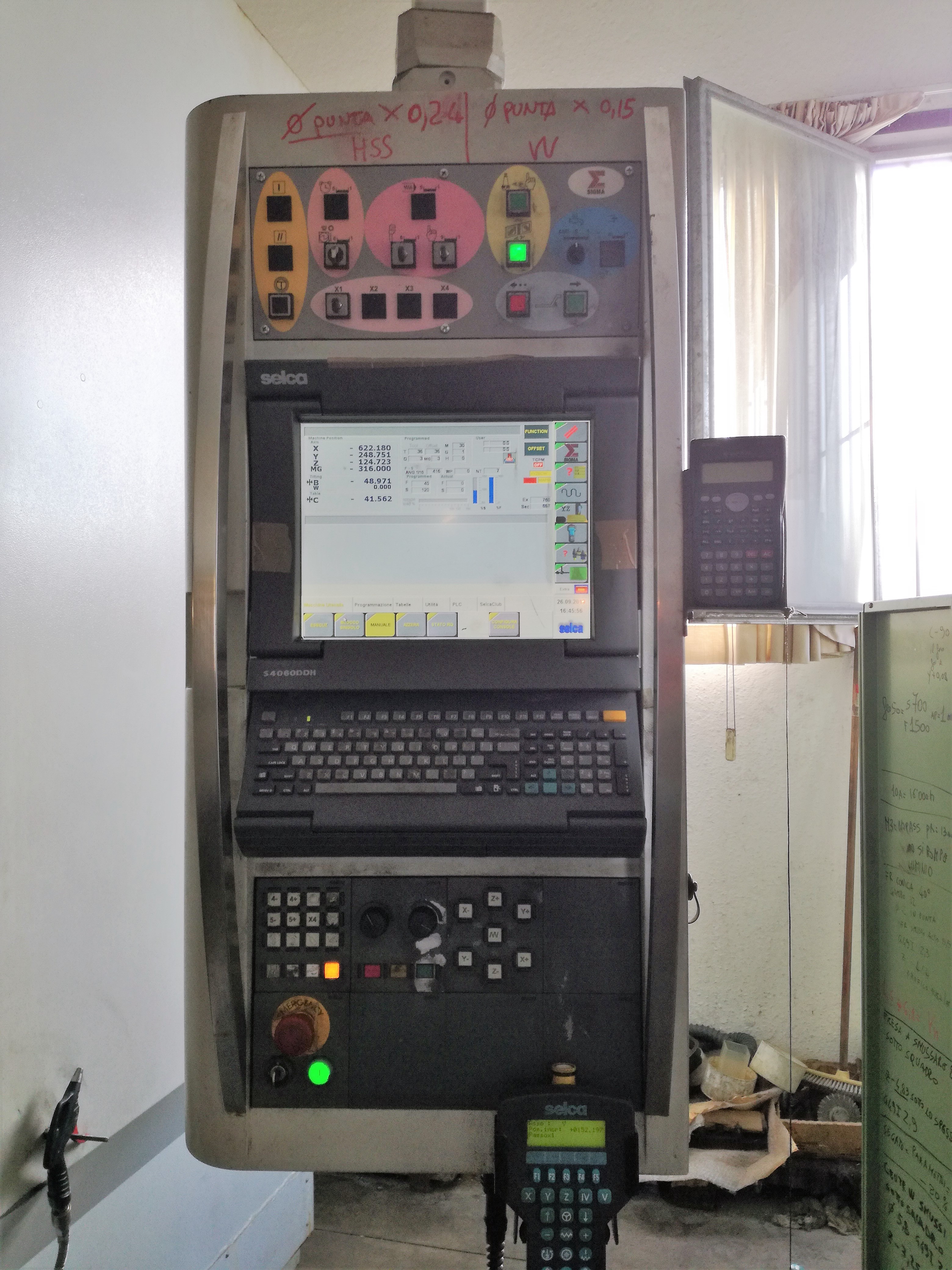

CNC SELCA S4060 DDM
TABLE:
Table surface mm 2300x730
Max table load Kg 2500

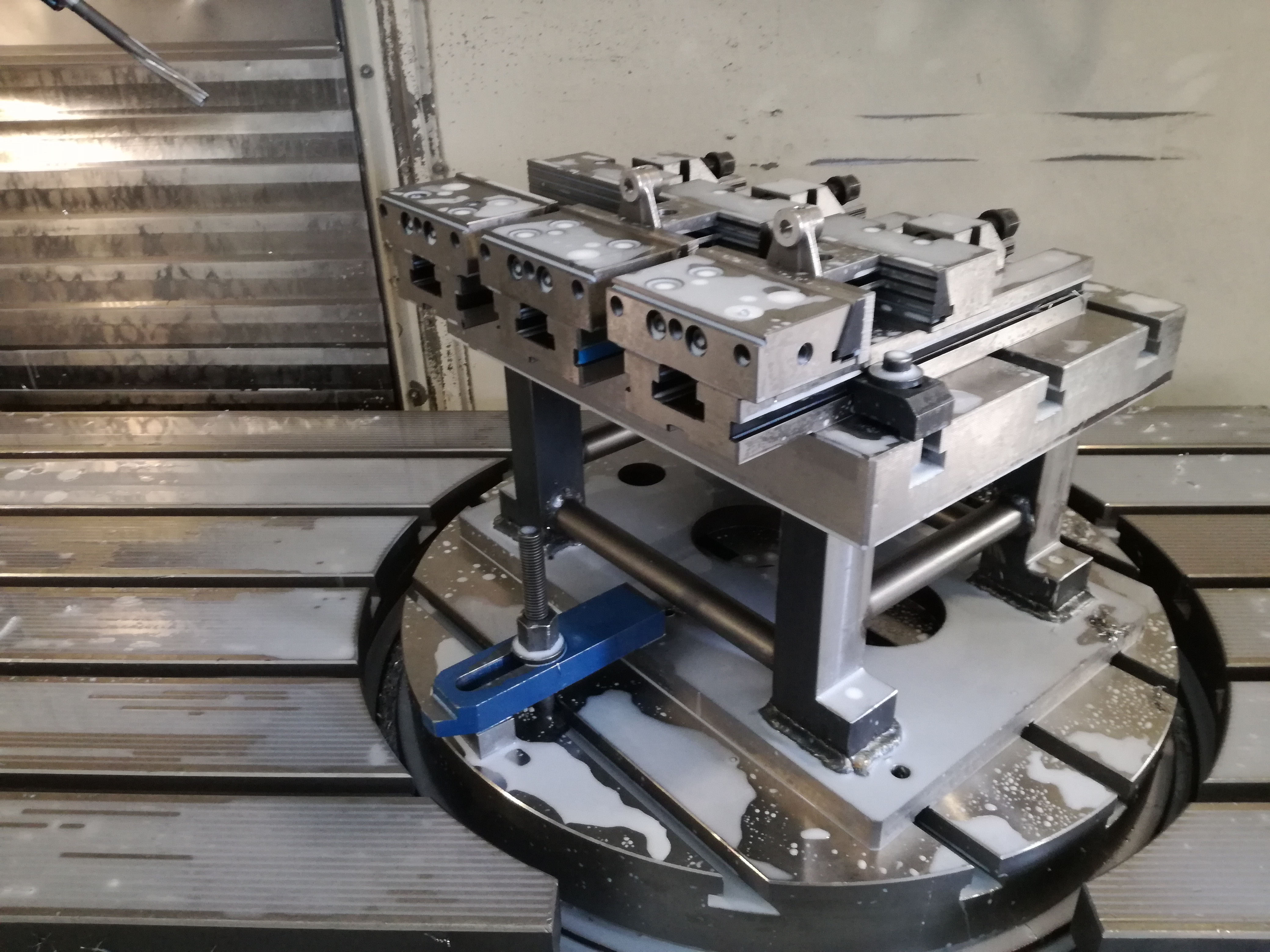

Continuous rotary table (axis C) diam. mm 660, built-in with fixed table
Max rotary table load Kg 1000
STROKES:
Axis X mm 2000
Axis Y mm 700
Axis Z mm 950

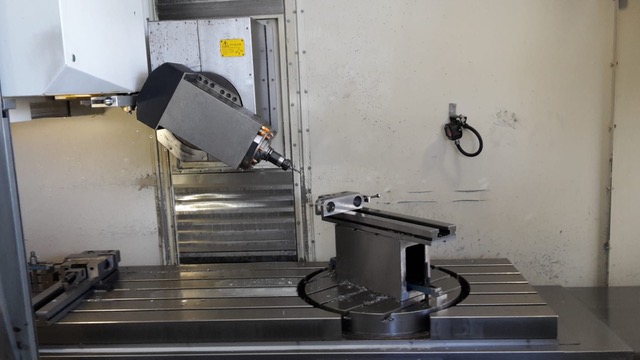

TILTING HEAD (axis B):
Rotation field degrees +/- 110
Positioning accuracy degrees 0,001
SPINDLE:
Spindle speed rpm 12.000
Tool holder ISO 40
Max power kW 33
Spindle torque Nm 180
TOOL CHANGE:
Tool change 50 positions
EQUIPPED WITH:
-High pressure through the spindle 30 bar
-Fixed probe for manual tool checking OTS, contact tool presetter system 3D Renishaw
-Piece probe optical transmission infrared Renishaw OMP60
-Washing gun
-Sigma TOOL CHECK
-Anti-collision Monitor software
-Conditioning of coolant with refrigerator group
USED MACHINE
YEAR 2009
Manufacturer NICOLÁS CORREA
Model CF 25/25
Year 2008
CNC HEIDENHAIN TNC 530 HSCI
Table
Table Surface 3.100 x 1.100 mm
Number /Dimmession of T-Slots 5/200 mm.
Carrying Load Table 6.000 Kg
Travels
Longitudinal Traverse (X Axis) 2.499 mm
Cr...
