MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Zayer
  • Model:
  • ZAYER 30 KMU-5000
  • Condition:
  • NA
  • YOM:
  • 1999
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Spain

DESCRIPTION

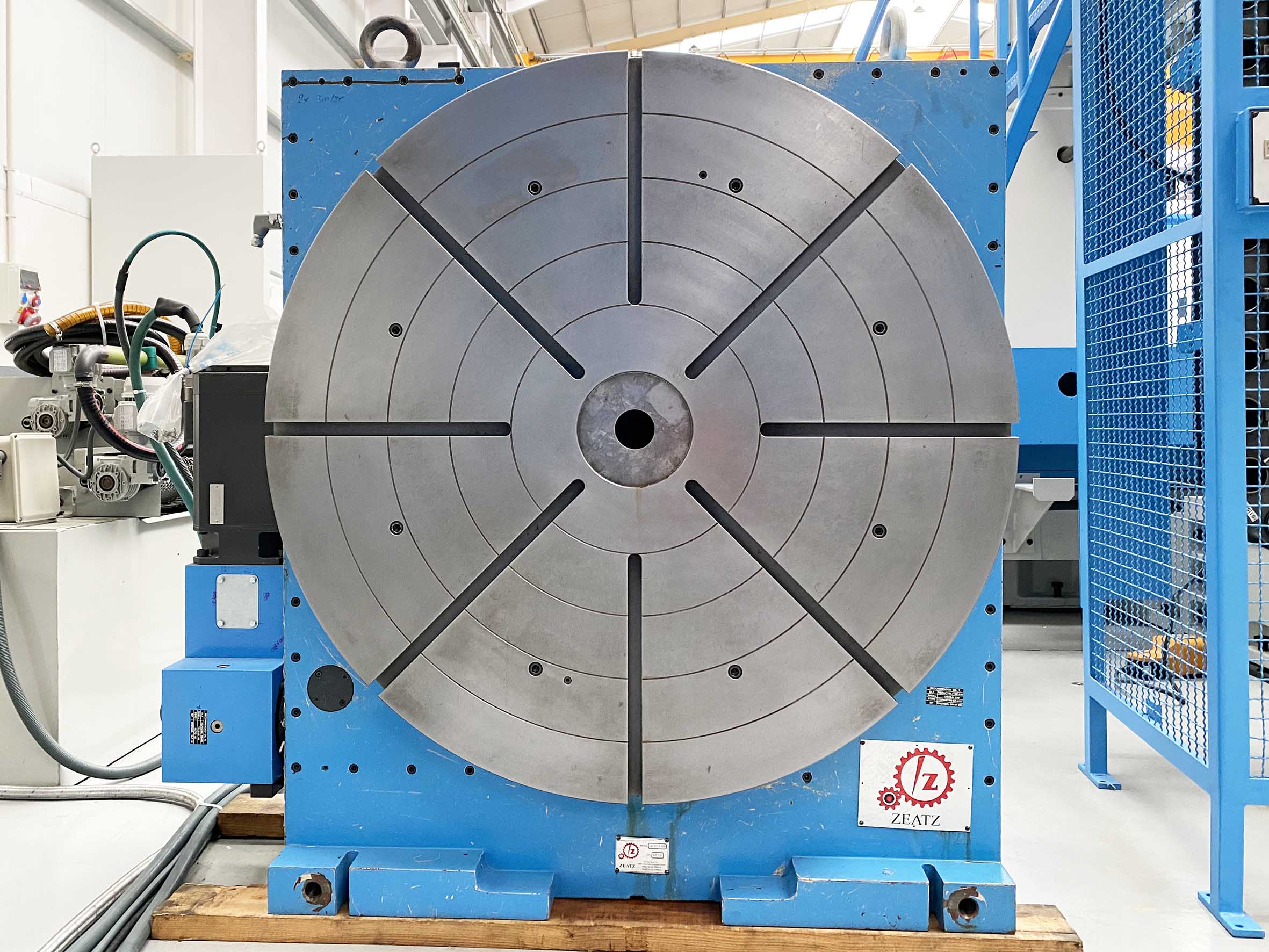

Manufacturer ZAYER Model 30 KMU-5000 Year 1999 CNC HEIDENHAIN TNC-430PA Table Surface 4.700 x 1.200 mm. Travels (X/Y/Z) 3.400/1.250/2.000 mm. Quill Travel (W Axis) 500 mm. Taper ISO-50 Main Motor Power 37 kW Automatic Head 45º INCLUDED Automatic Head 45º 0.001º/0.001º Head 45º Max. Speed 3.000 rpm 45º Head Taper ISO-50 Twist Head Contiuous INCLUDED Twist Head Max Speed 3.000 rpm Twist Head Taper ISO-50 Ram with Quill INCLUDED Quill Diameter 150 mm. Quill Taper ISO-50 Rotary Table ZEATZ Ø 1200 INCLUDED Internal and External Coolant Head 45º and Quill INCLUDED External Coolant Twist Head INCLUDED Semi-automatic head change INCLUDED Automatic Tool Changer INCLUDED Positions in ATC 60 Pick up station AITEK for 45º and Twist Heads INCLUDED Chip Conveyor INCLUDED Portable Handwheel HEIDENHAIN HR-410 Piece Touchprobe RENISHAW MP 16+SP2/1 Machine Weight 35.000 kg.
