MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • EMC
  • Model:
  • LATHE EMCO MAXXTURN 35
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

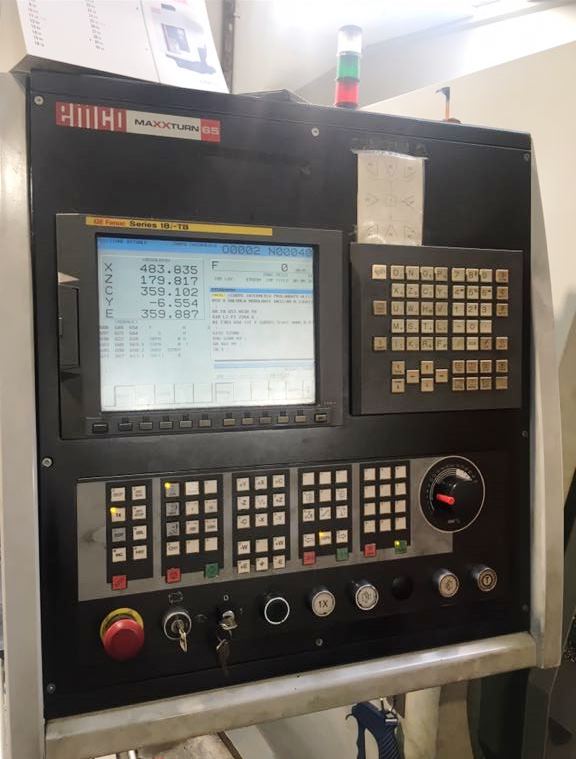

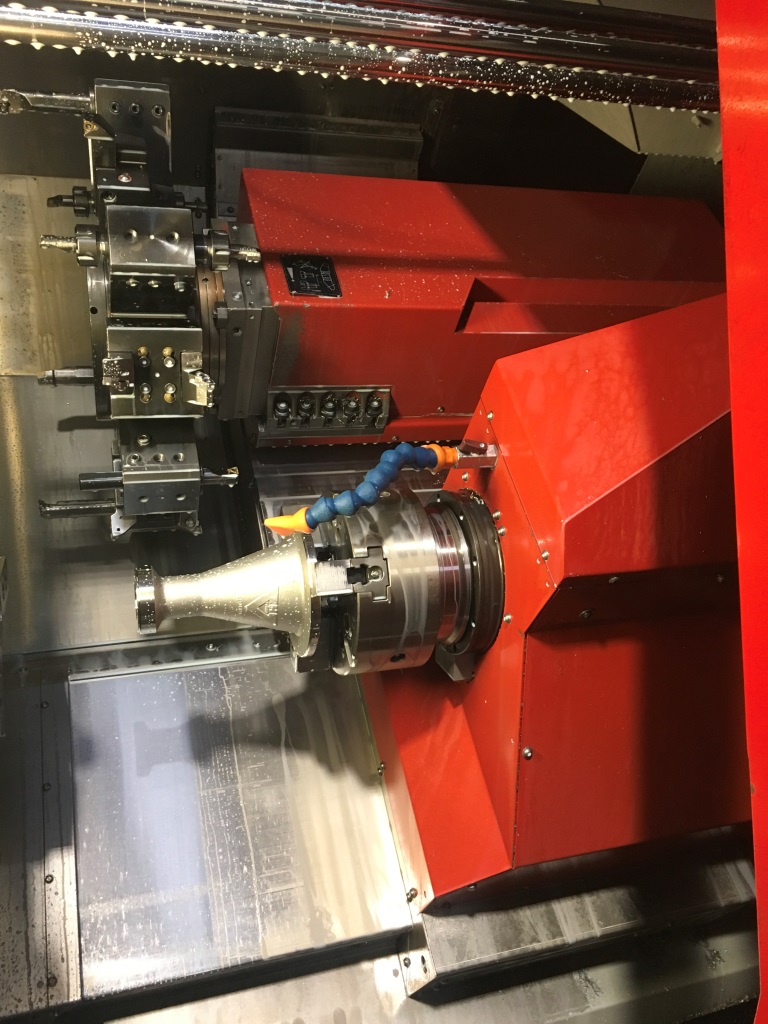

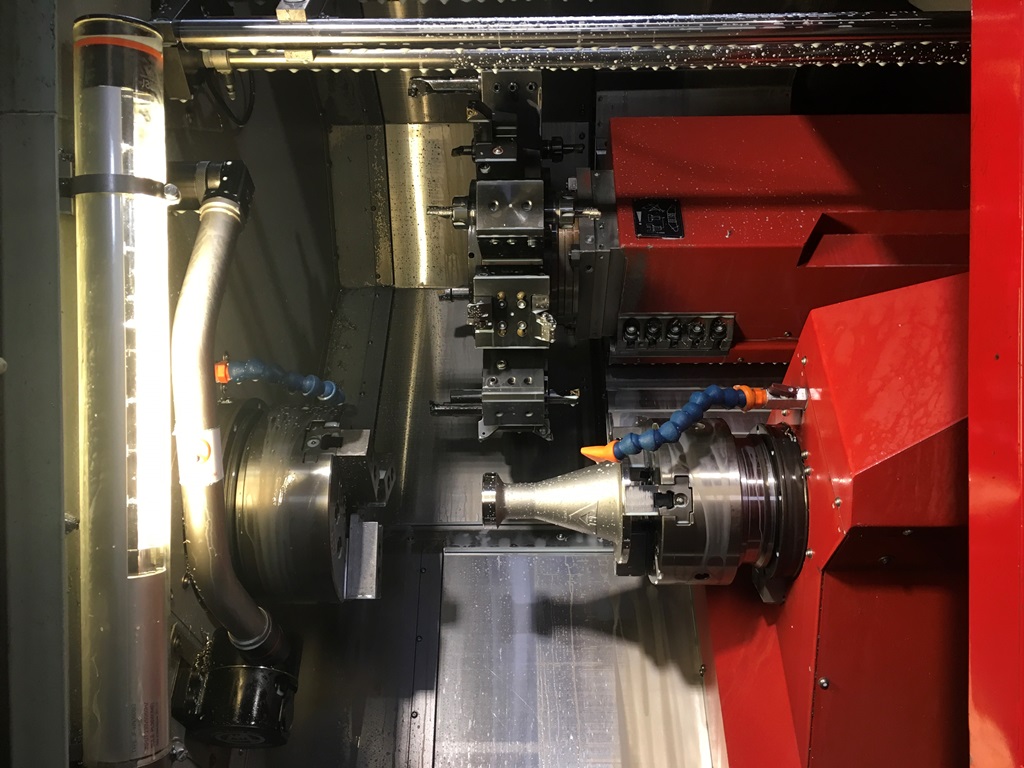

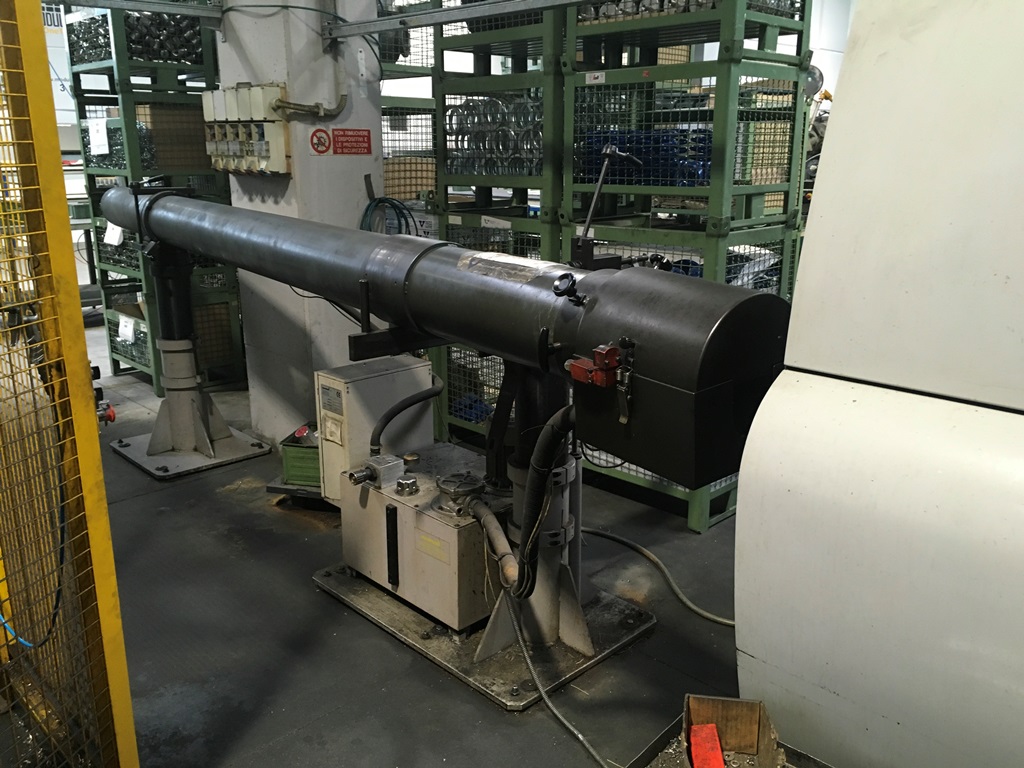

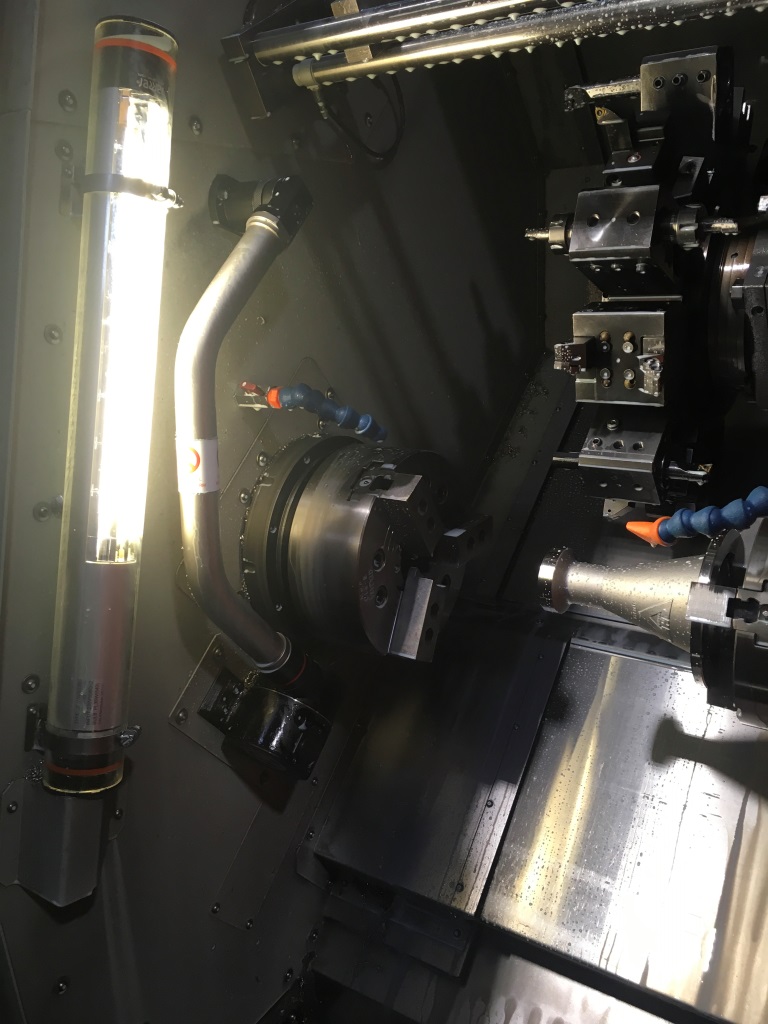

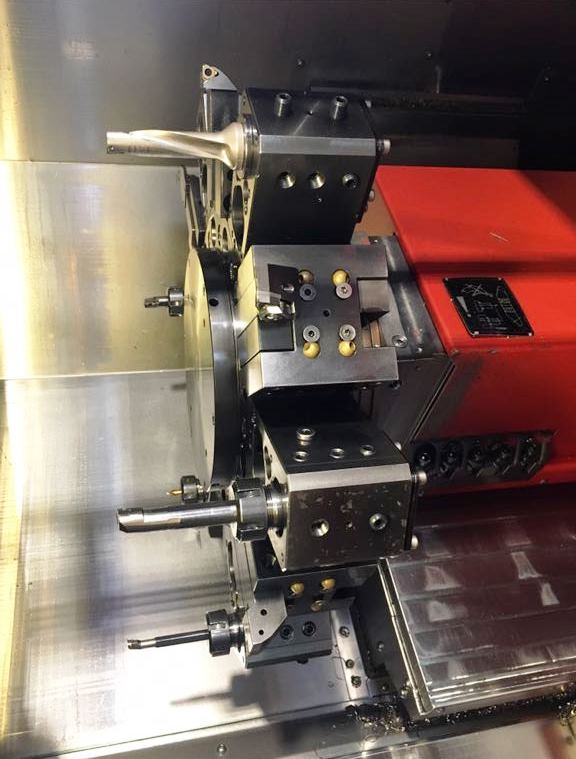

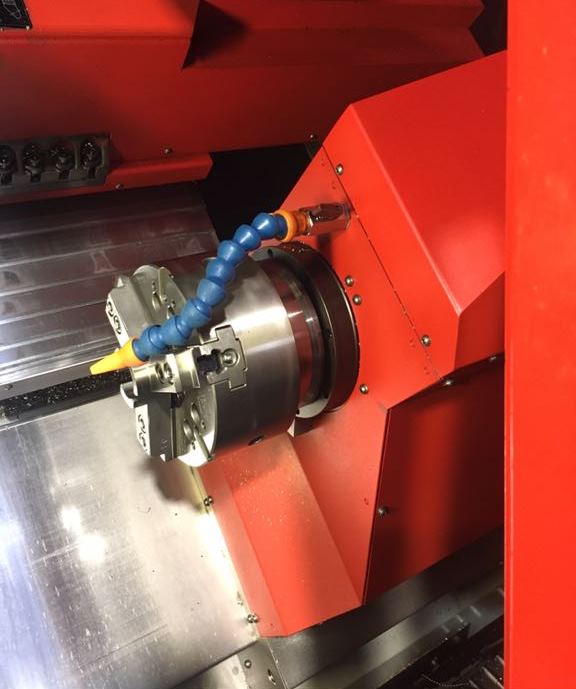

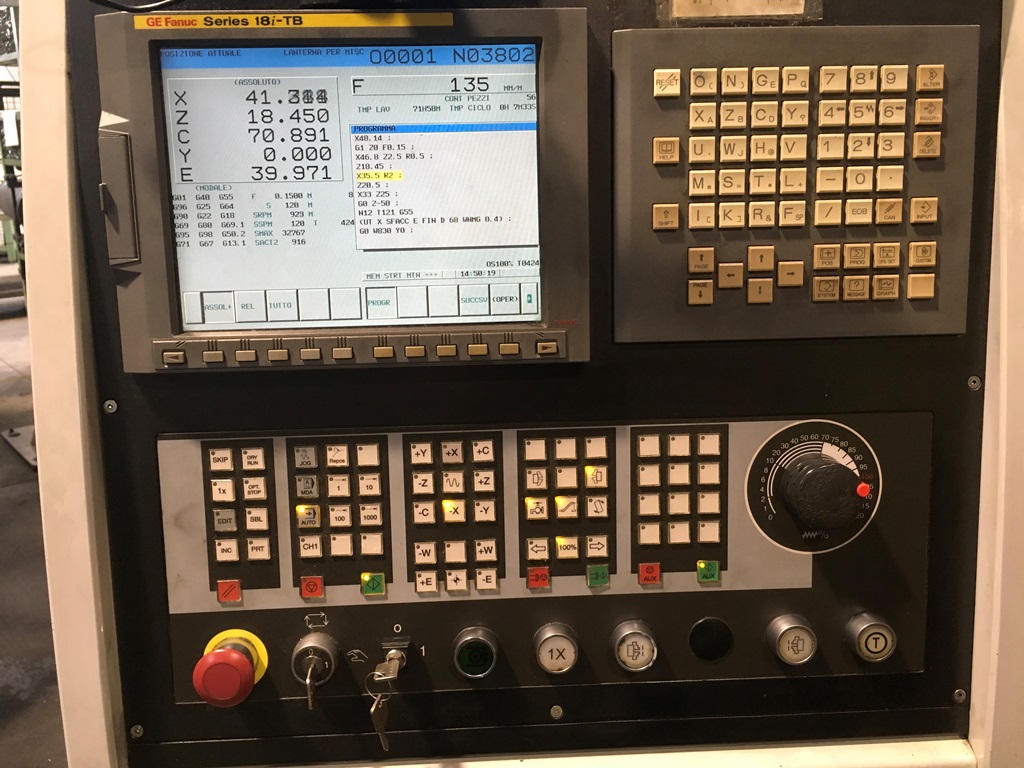

EMCO 07913 SPINDLE/SUB-SPINDLE LIVE TOOLS AXIS Y CNC FANUC 18i-TB AREA DI LAVORO: Axis strokes X/Y/Z: 260/80(+/- 40)/800 mm Bar passaging 75 mm Turning diameter max 500 mm Swing over bed 660 mm Spindles distance 1050 mm (spindel - sub-spindle) SPINDLE: Spindle speed max. 5000 giri/min Spindle nose A2-8 Spindle motor power 21/29 kW SUB-SPINDLE: Spindle speed max 7000 giri/min Spindle nose A2-6 Spindle motor power 21/29 kW TURRET: Live tools number 12 Tool holder DIN 69880 VDI 40 Power Kw 6,7 Speed RPM 0-5000 GENERAL DATA: Ovrall dimensions (LxPxH) 5300x2750x2355 mm (with chip conveyor) weight machine 6000 kg EQUIPPED WITH: -Chip conveyor -Tool presetting -Arm catcher -Bar feeder diam. mm 75 USED MACHINE
