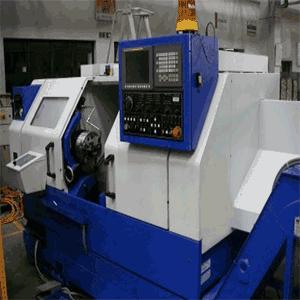

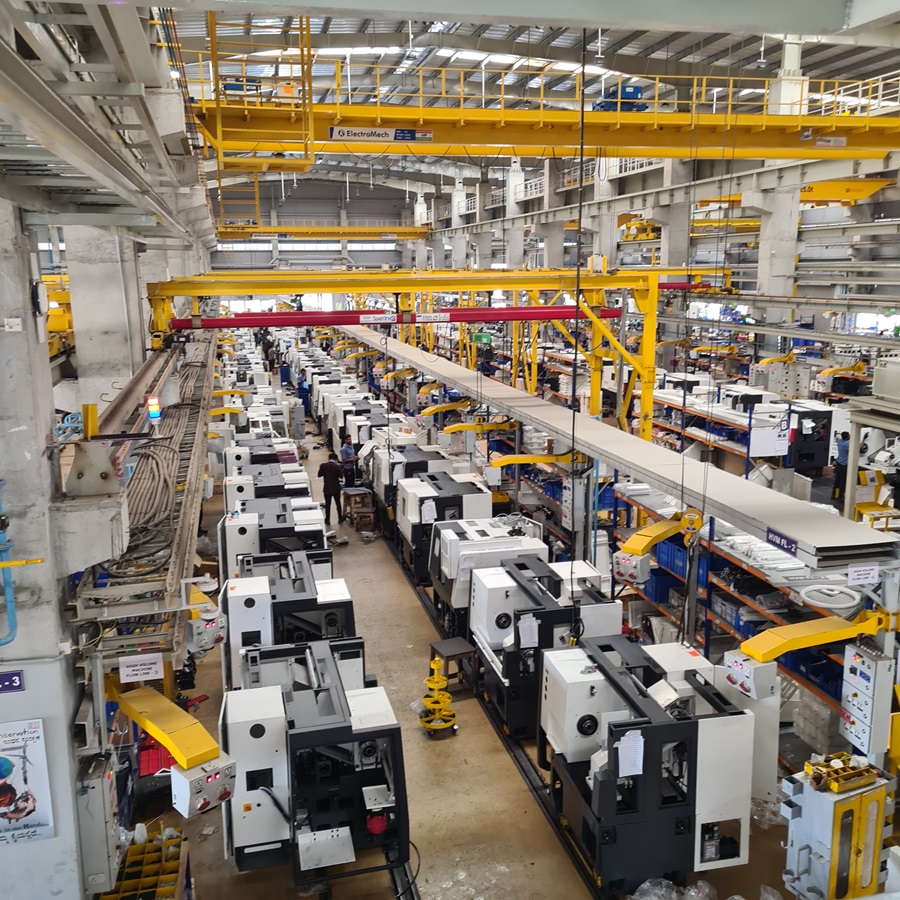

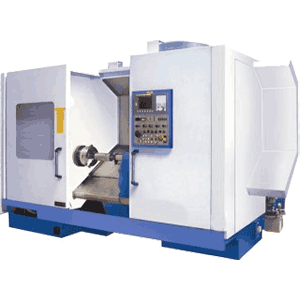

The Ajax Ace Production Slant bed CNC Lathes are designed to be strong powerful & reliable, with a top Fanuc 0i TF Plus CNC control, at an affordable price to help produce more and earn more. New models available with Y axis & sub spindle. Manufactured in a sustainable environmentally friendly. With the power from roof mounted solar panels even to supply the casting plant. So give one of our engineers a call or email today to discuss your requirements.
BIGLIA
08339
CNC FANUC 32i
CAPACITY:
MAX SWING DIAMETER 580 mm
MAX TURNING LENGTH 560 mm
MAX TURNING DIAMETER 290 mm
BAR CAPACITY 65 mm
SPINDLE:
SPINDLE SPEED 4000 rpm
SPINDLE TAPER ASA 6''
SPINDLE BORE 76 mm
SPINDLE MOTOR POWER 22-26 kW
TRAVELS:
X-A...
UTITA
07397
CNC ECS 2302
Max turning diameter on the carriage mm 450
Max turning lenght mm 4000
Distance between center mm 4400
Bar passaging mm 80
Spindle taper ASA 11
Max installed power kW 50
EQUIPPED WITH:
-N. 3 hydraulic rests Morari mm 17-125
-...
