Home > Metal Cutting > Broaching Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Fanuc
  • Model:

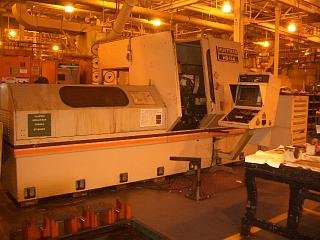

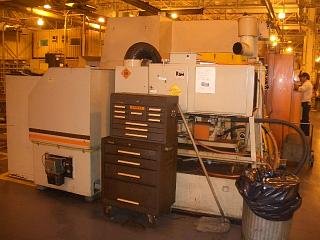

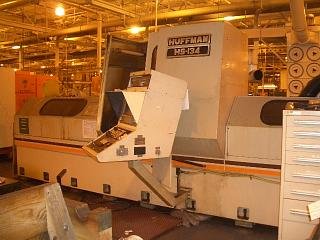

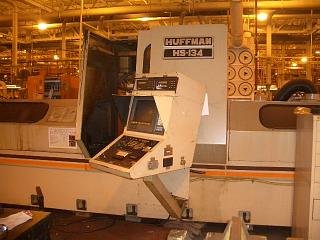

  • HUFFMAN MODEL HS134 CNC BROACH SHARPENER 96" CENTERS 15MA FANUC, 1993
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION


EQUIPPED WITH:

Fanuc 15m
Heidenhein Scales
Volkman Controls
Headstock W/Center
Tailstock W/Center
Steady Rest
7-1/2 HP Grinding Wheel Motor
Borazon Grinding Wheels
Automatic Lubrication
Coolant System That Delivers Up To 20 GPM at 80 PSI W/Refrigeration
Full Enclosure
Worklight
Operators Manual

SPECIFICATIONS:

Max. Diameter: 8"
Max. Center Distance: 96"
Max. Travel: 72"
Swing over Ways: 18"
Z - Axis: 18"
Y - Axis: 18"
B - Rotary Axis: +90 Deg
C - Rotary Axis: +/- 30 Deg.
A,W Rotary Axis: 360 Deg. Rollover
Wheel Spindle Range: 4500-18000 rpm
Wheel Diameter: 2"- 8", 51mm - 102mm
WheelHead: 7 1/2 hp
All Linear Axis: 0-200"/Min.
A - Rotary Axis: 20,000 Deg./Min.
W - Rotary Axis: 54,000
Weight: 32,000 lbs
