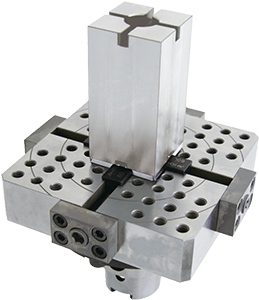

All Swift Klamp Dovetail work holders are attached to the workpiece usinga simple dovetail. Setup is quick, easy and dovetail work holders only require the minimum of material to hold the workpiece. That means less waste, easy preparation, and no distortion to the workpiece.Dovetail machining of the work-piece clamping area using an angular cutter is required prior to machining
Hydraulic bend arm (C) axis | Hydraulic clamp die | Hydraulic pressure die | (Y axis) Carriage with servo motor | Collet (B axis) rotation with servo motor & hydraulic grip | Multi position length stop | Automatic mandrel lubrication | Anticipated ma...
Chuck dia. 1600mm. Maximum turning dia. 2000mm. Maximum facing dia. 2000mm. Maximum distance from chuck face to toolholder 1680mm. Ram size 200mm x 180mm. Maximum ram travel 1000mm. Maximum work height 1500mm (using a standard 180mm long toolholder)....
