Manufacturer
Jones & Shipman
Model

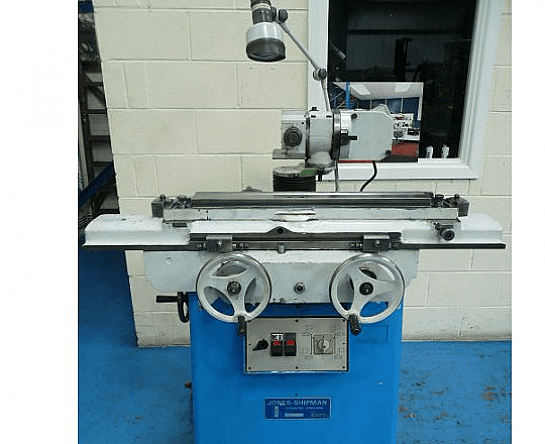

310T Tool and Cutter Grinder
Features:
Tilting and swivelling wheel head
Wheel Head Specification
360 degrees circular adjustment
360 degrees swivel in vertical plane
180 degrees swivel of motor in vertical plane
278mm (10 15/16”) Maximum centre of wheel above table
75mm (2 15/16”) Minimum centre of wheel above table
203mm (8”) Vertical adjustment of wheelhead
1.13 kW wheelhead motor
3,600 / 5,000 rpm wheel head speeds (2)
Table Working Surface
749 x 108mm (29 ½” x 4 ¼”)
Longitudinal Traverse:
445mm (17 ½”)
Cross Traverse:
187mm (7 3/8”)
Max Diameter Swing on Cutter Head:
305mm (12”)
Maximum Diameter Swing on Standard Centres:
203mm (8")
Distance between centres - 200 (400) mmLongitudinal way of table - 150 mmTransversal way of the table - 40 mmWork piece spindle head: - Slewing range of grinding head: - horizontal - 180 °vertical - 30 °rotary axis of the work piece spindle head ...
Centre height - 95 mmDistance between centres - 250 mmTable length - 450 mmTable width - 175 mmMax. grinding diameter - 130 mmLongitudinal way of table - 260 mmTransversal way of the table - 50 mmVertical adjustment of the table - 50 mmDividing attac...
Centre height - 95 mmDistance between centres - 250 mmTable length - 450 mmTable width - 175 mmMax. grinding diameter - 130 mmTransversal way of the table - 260 mmVertical adjustment of the table - 50 mmVertical adjustment of grinding head - 50 mmTab...
