Manufacturer:
Description:
Or
Reference: 2180155
| Manufacturing number | |
| Manufacturing year | |
| Manufacturing origin Swiss | |
| Voltage | 380/50/3 |
| Netweight | 1350 kg |
| Dimensions | 190x140x170 cm |
| Total power | |
| Customs position | 8460.1920 |
| Colour | |
| Greatest slideways | 530x220 mm |
| Greatest grinding surface | 520x230 mm |
| Gripping surface of the table | 600x200 mm |
| Speed of the longitudinal table | 0-25 m/min |
| - with slow forward | 5/10mm - 8 m/min |
| Speed of the transverse slide | 0-6 m/min |
| Height adjustment, manual | 330 mm |
| - with fast forward | 290 mm |
| - speed | 460 mm/min |
| Greatest distance between table and spindle-axis | 412 mm |
| Vertical movement | |
| - manually, 1 division | 0,01 mm |
| - with micrometric adjusment, 1 division | 0,001 mm |
| - automatically | 0,001-0,099 mm |
| - with push-button | 0,001 mm |
| Transverse movement | |
| - by handwheel | 1 division 0,01 mm |
| - with micrometric adjustment | 1 division 0,001 mm |

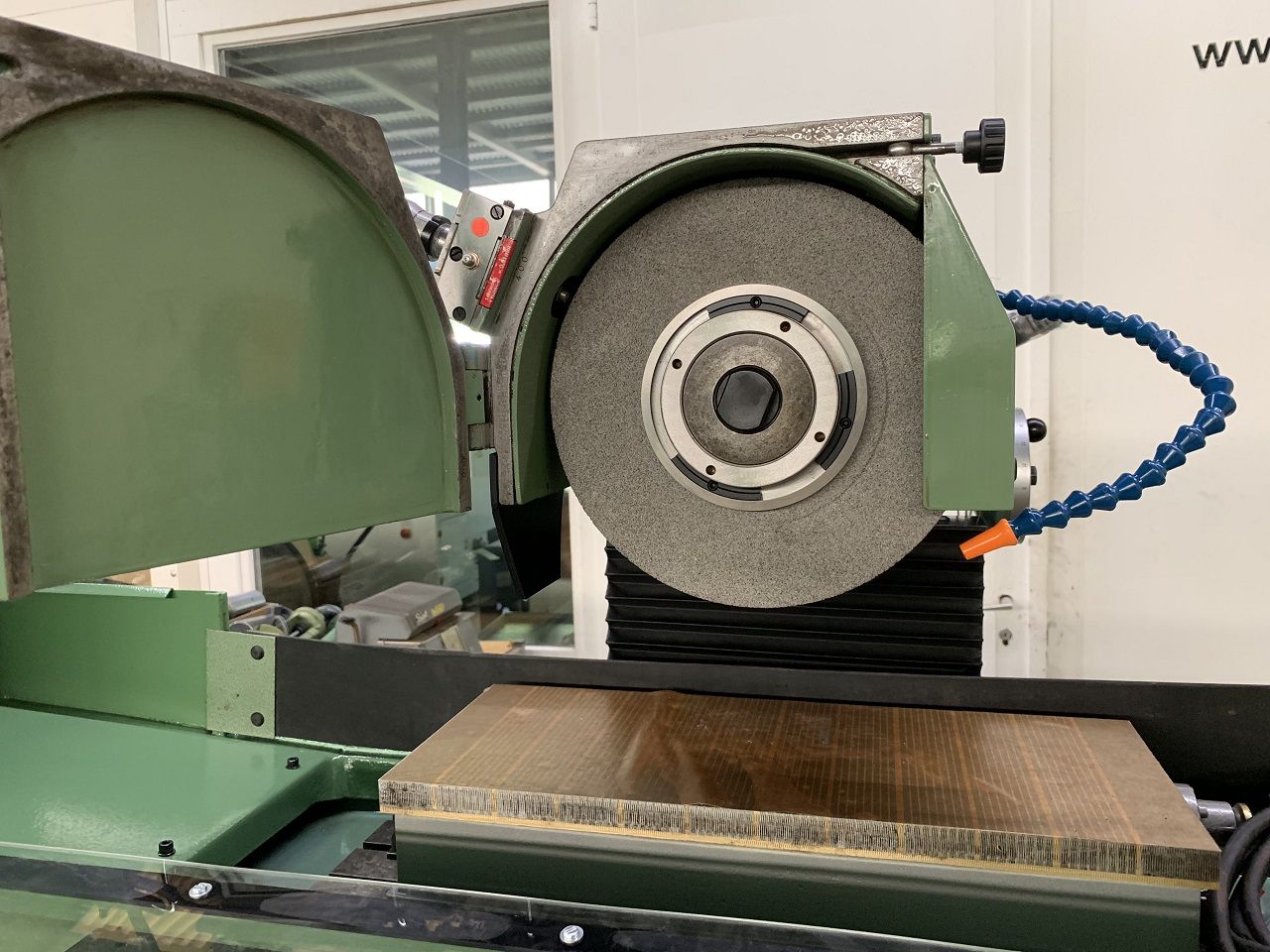

| Grinding wheel | |
| - diameter x width x bore 250x30x76.2 mm | |
| - r.p.m., normal 2700 rpm | |
| - r.p.m., with variator 3300-1150 rpm | |

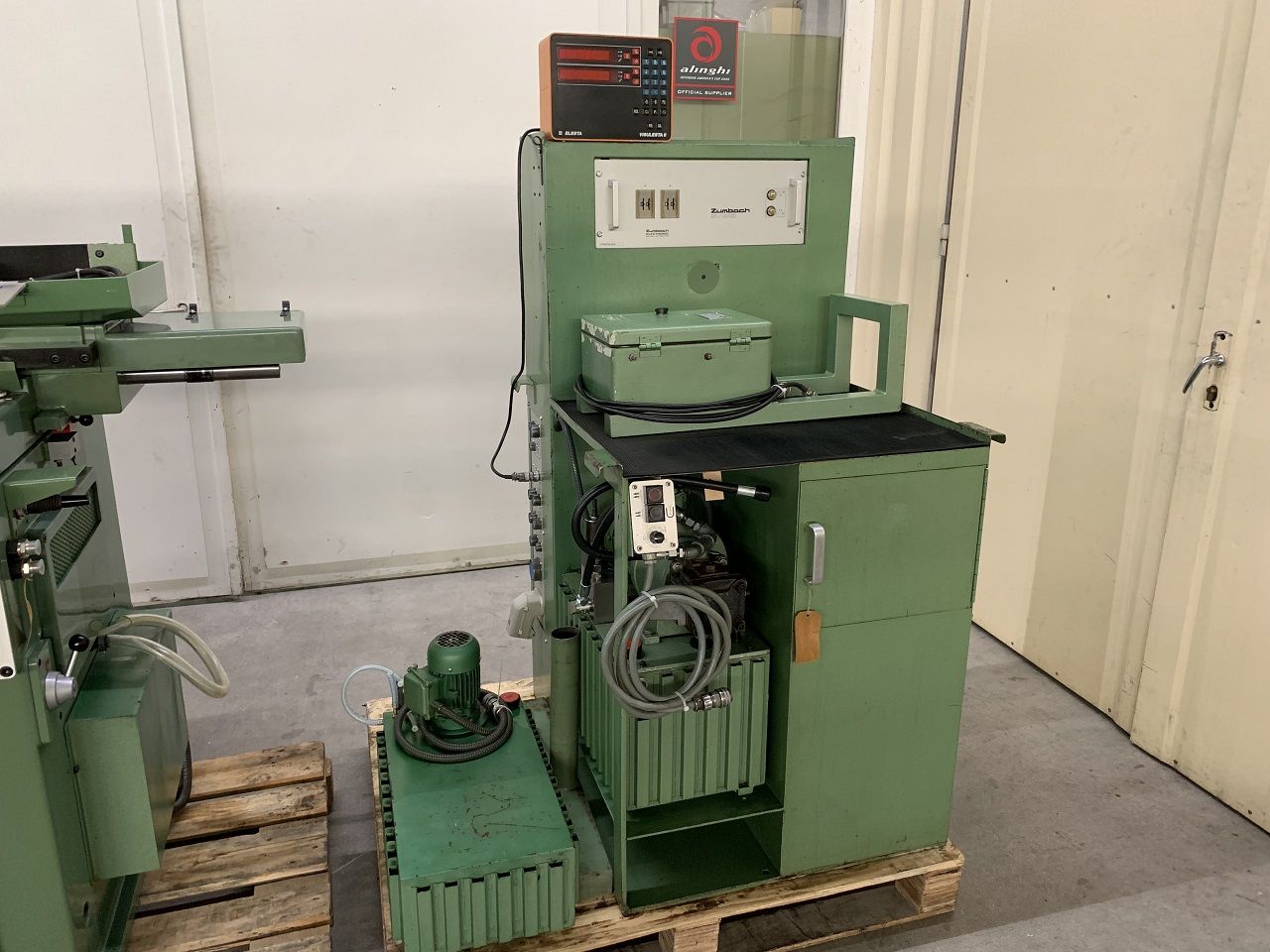

| Motors for | |
| Grinding wheel 1,8 kW | |
| 3000 rpm | |
| Hydraulic pump 1,0 kW | |
| 1400 rpm | |
| Cooling water 0,1 kW | |
| 1500 rpm | |
| Speed forward 0,18 kW | |
| 670 rpm | |
| errors and omissions excepted-data given without obligation | |
