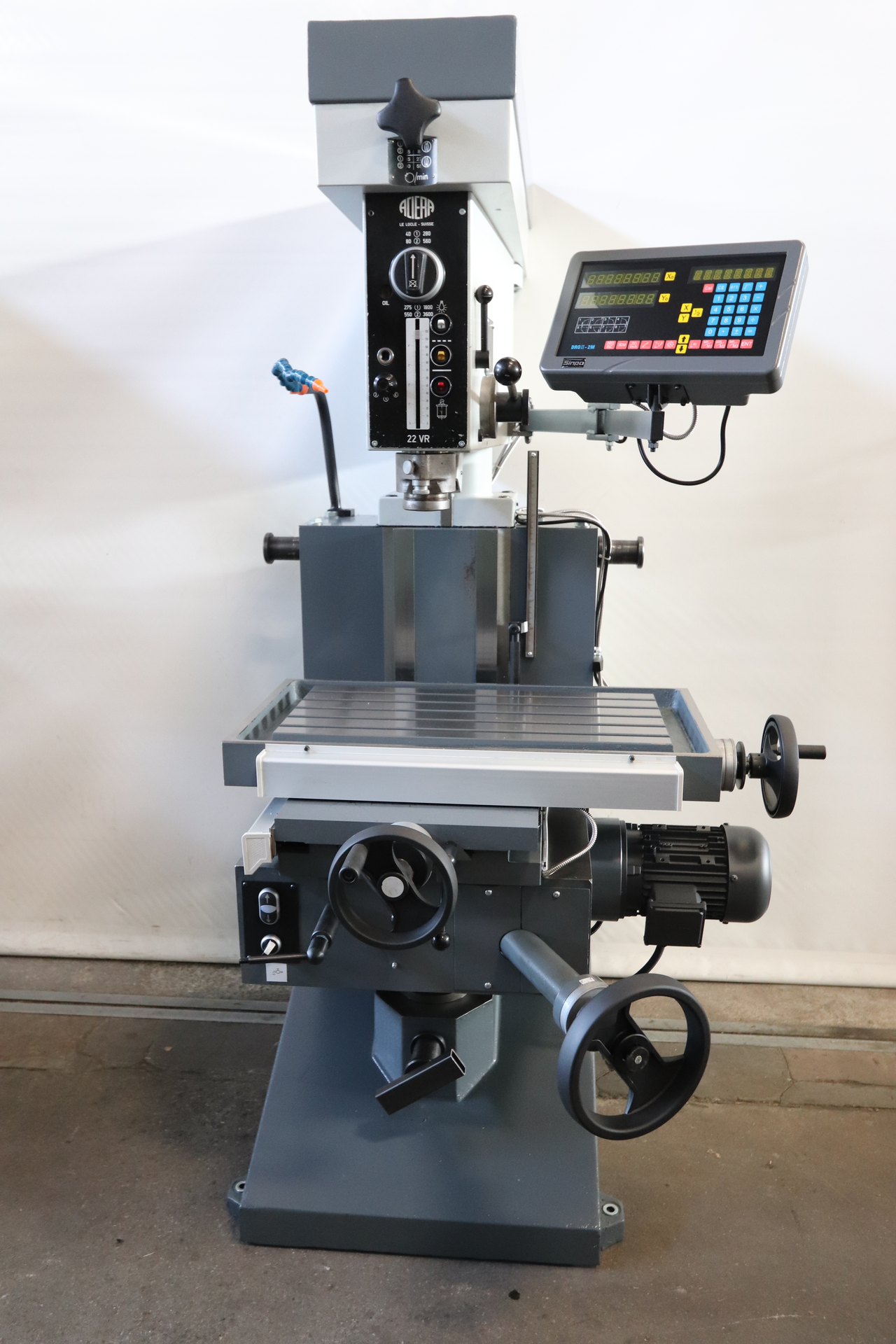

Table length: 700 mm. Table width: 370 mm. Length: 900 mm. Width: 1000 mm. Drill capacity in steel: 22 mm. Drill capacity in cast-iron: 24 mm. Taper in spindle: MT: 3. Depth of throat: 300 mm. Drill depth (spindle stroke): 120 mm. Spindle head adjustment: 300 mm. Longitudinal travel (X-axis): 330 mm. Transversal travel (y-axis): 210 mm. Vertical travel (z axis): 350 mm. from: 40 t/min. up to: 3600 t/min. Voltage 50 Hz 3x: 380 Volt. Spindle motor: 1.0 / 1.5 CV. Machine's weight about: 990 kg. Height: 1800 mm. Digital readout number of axis:: 2. Quick change device: A-30.
Used Meddings MF4 Pillar Drill, 2 speed gearbox, Belt change speed, 2 morse taper spindle, 14" x 13" table (350 x 330mm), 125mm quill travel, 950mm maximum spindle to table, 1,190 maximum spindle to base, 10 speeds, 80 to 4,000RPM, 3/4 Horse Power Mo...
