MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Chester
  • Model:

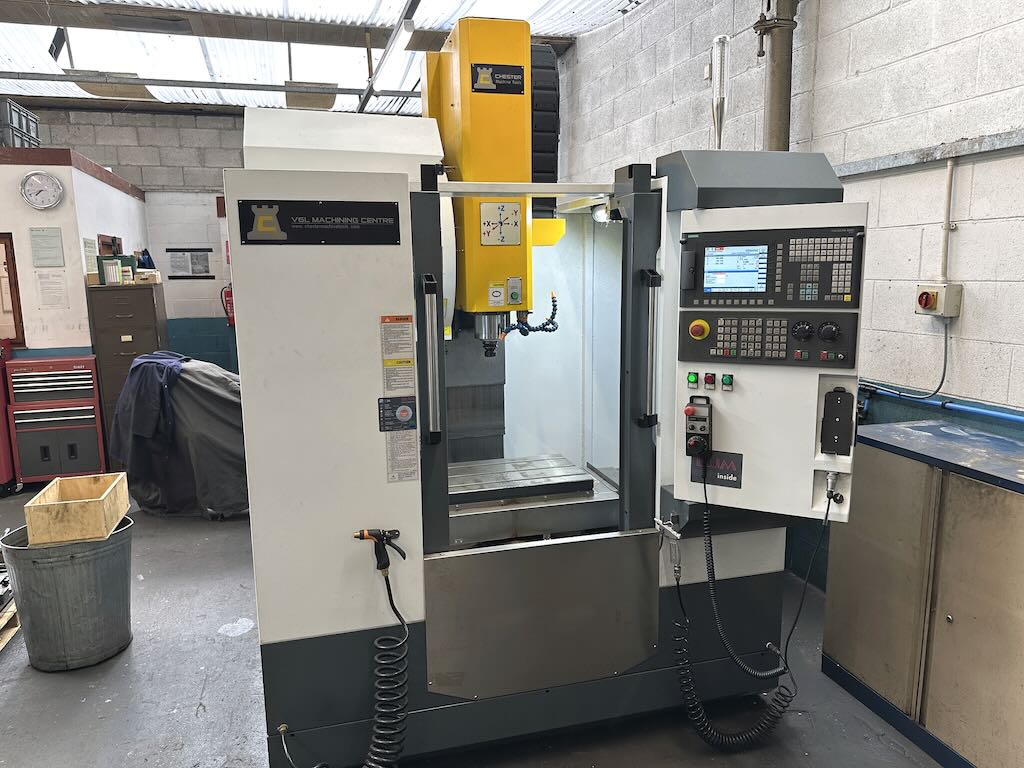

  • Chester V6L VMC (2018)
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

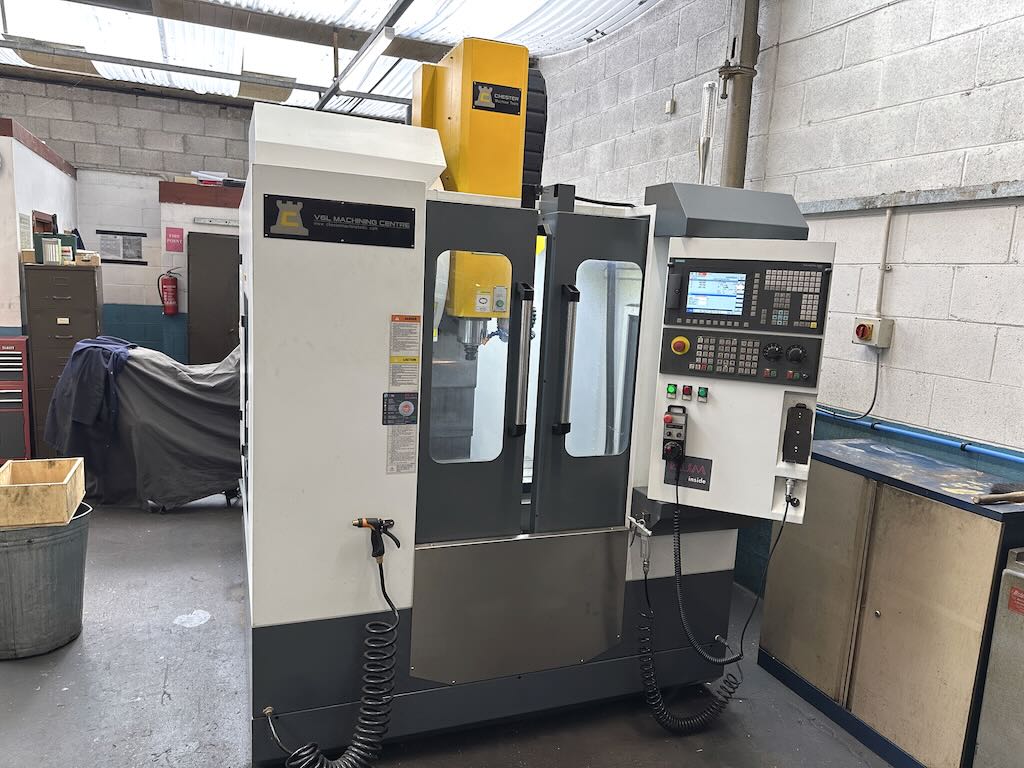

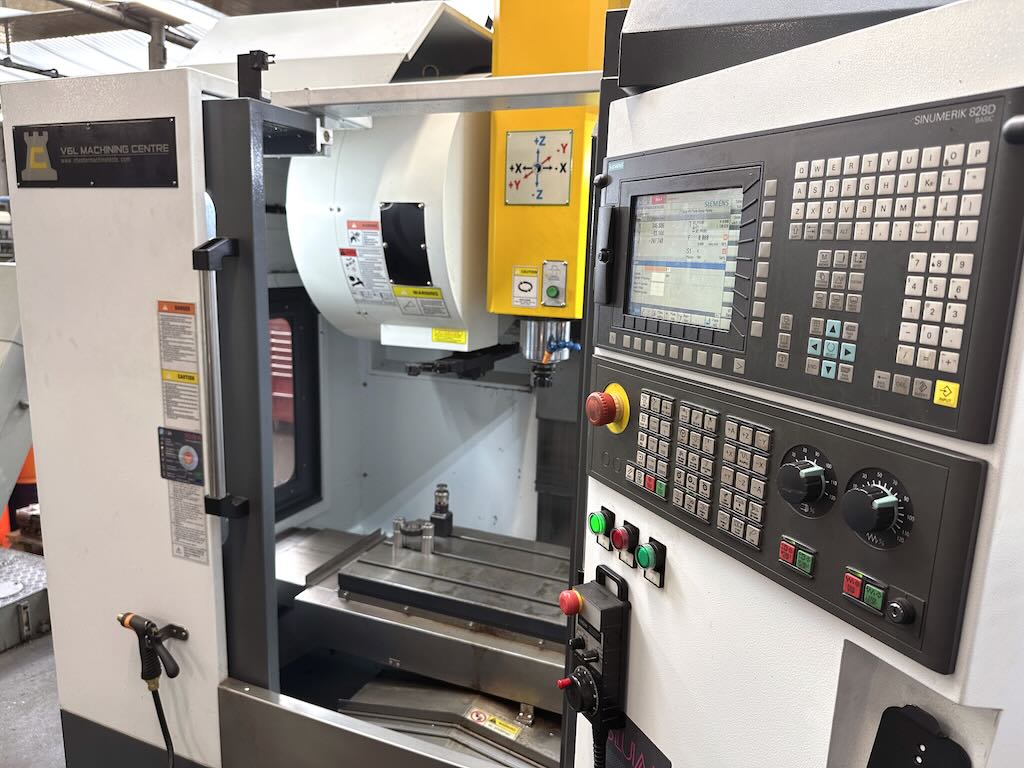

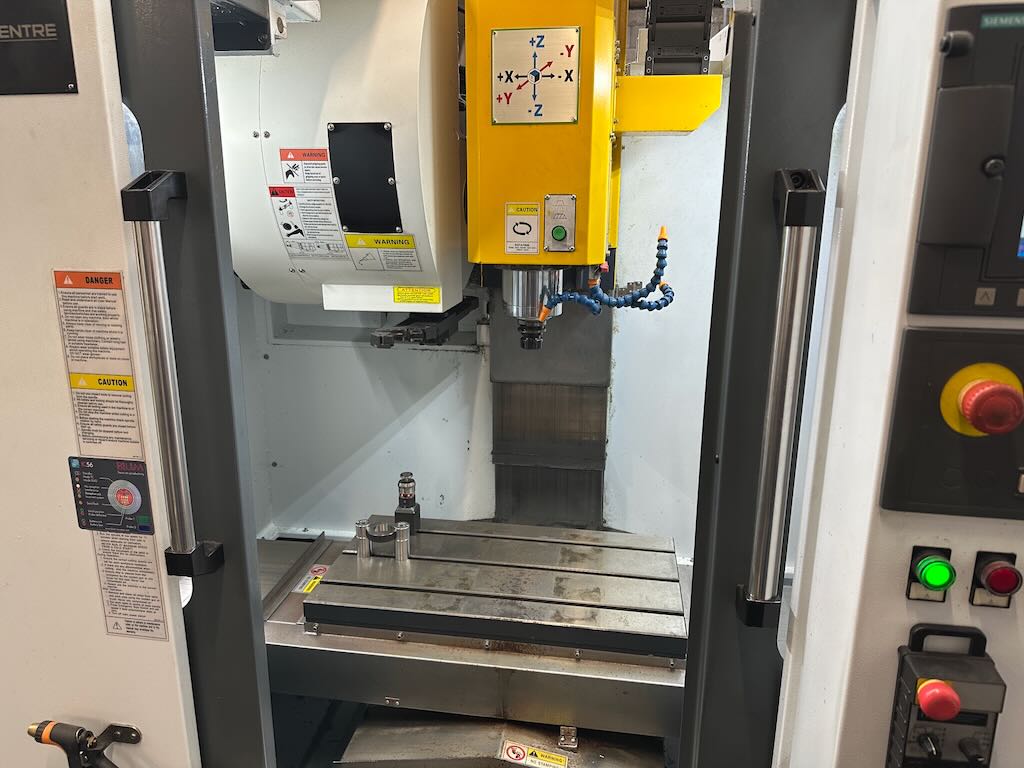

Brand: Chester Machine Tools.
Model: V6L.

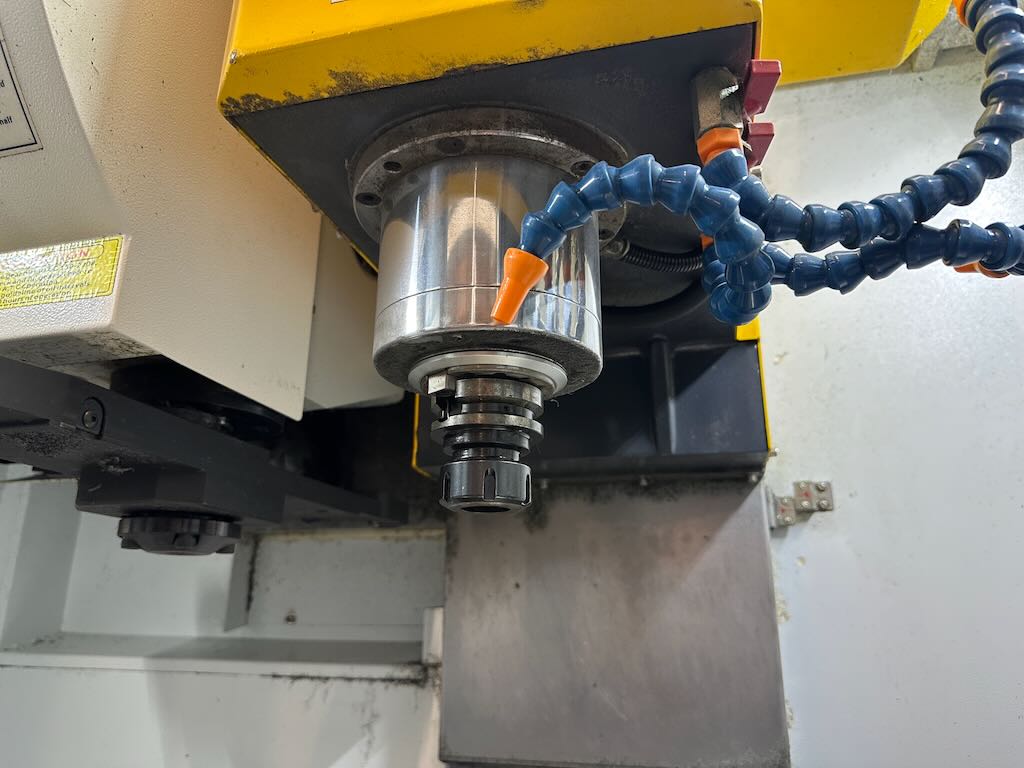

Spindle Speed: 10,000 RPM.
Year: 2018.

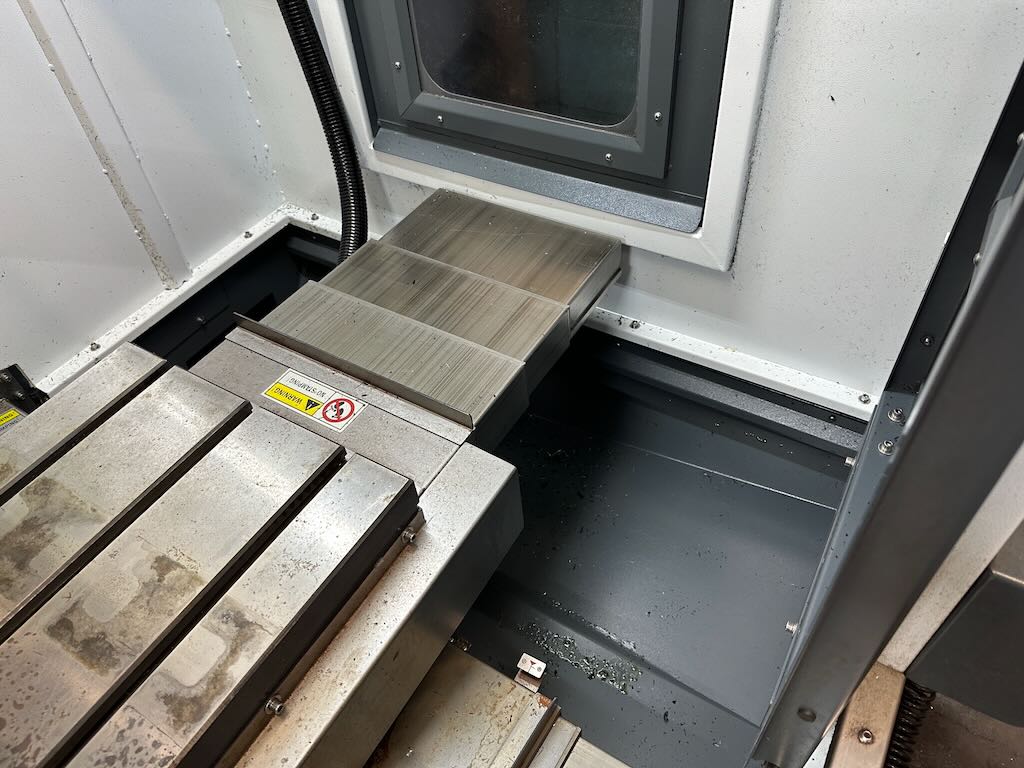

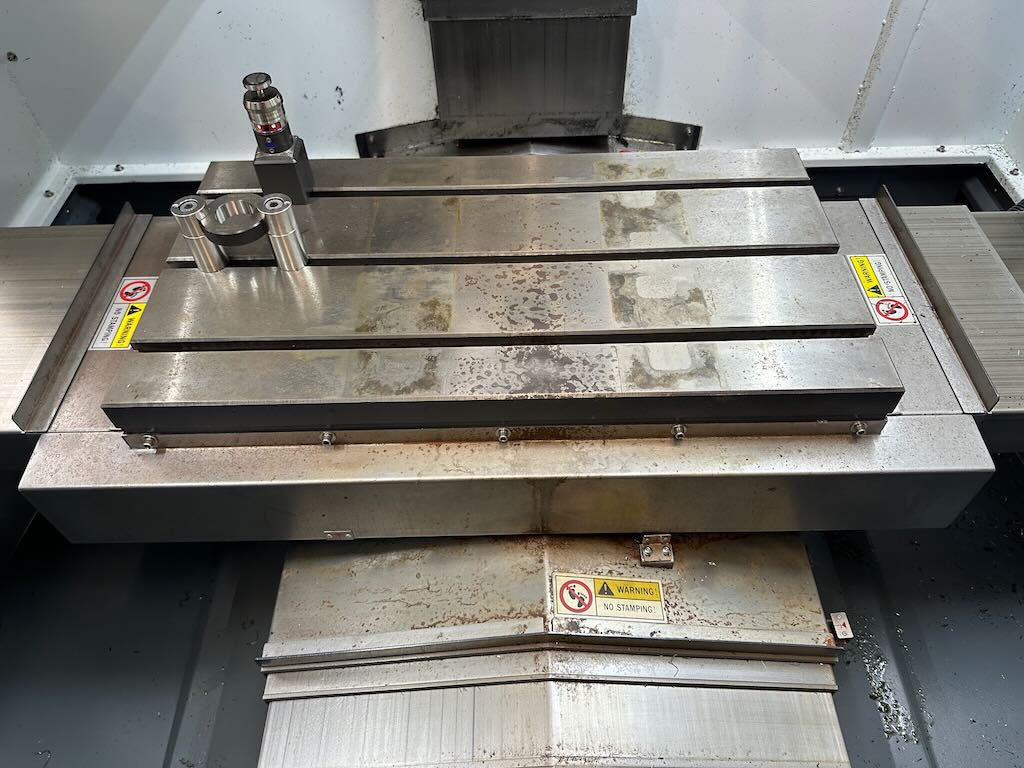

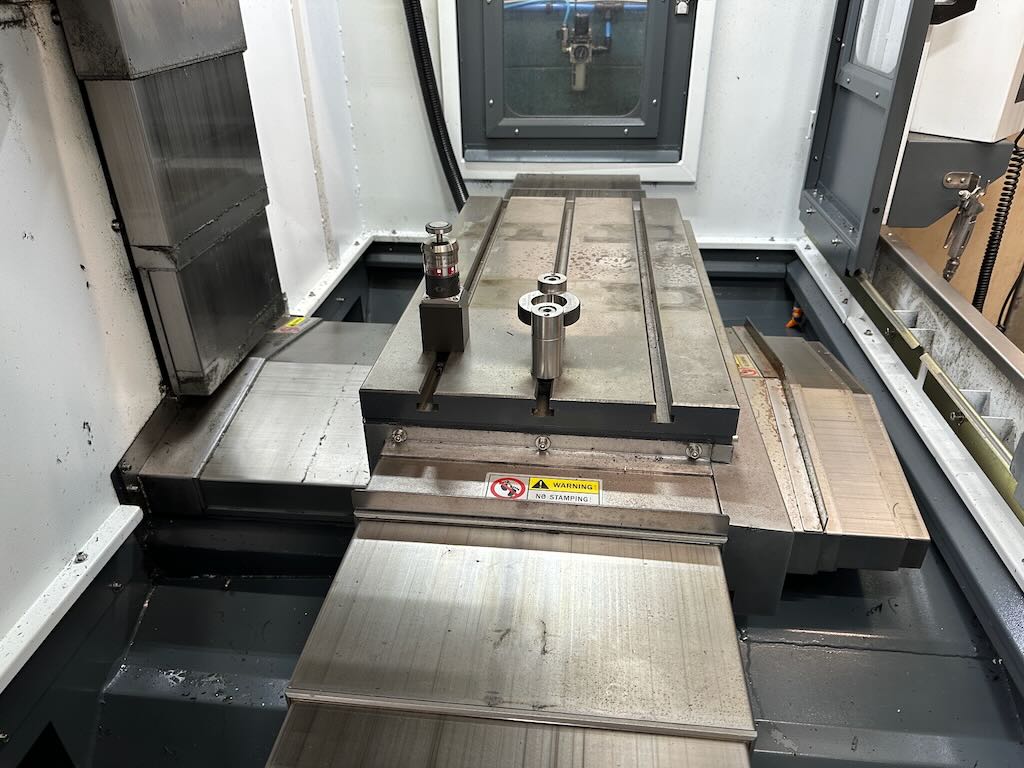

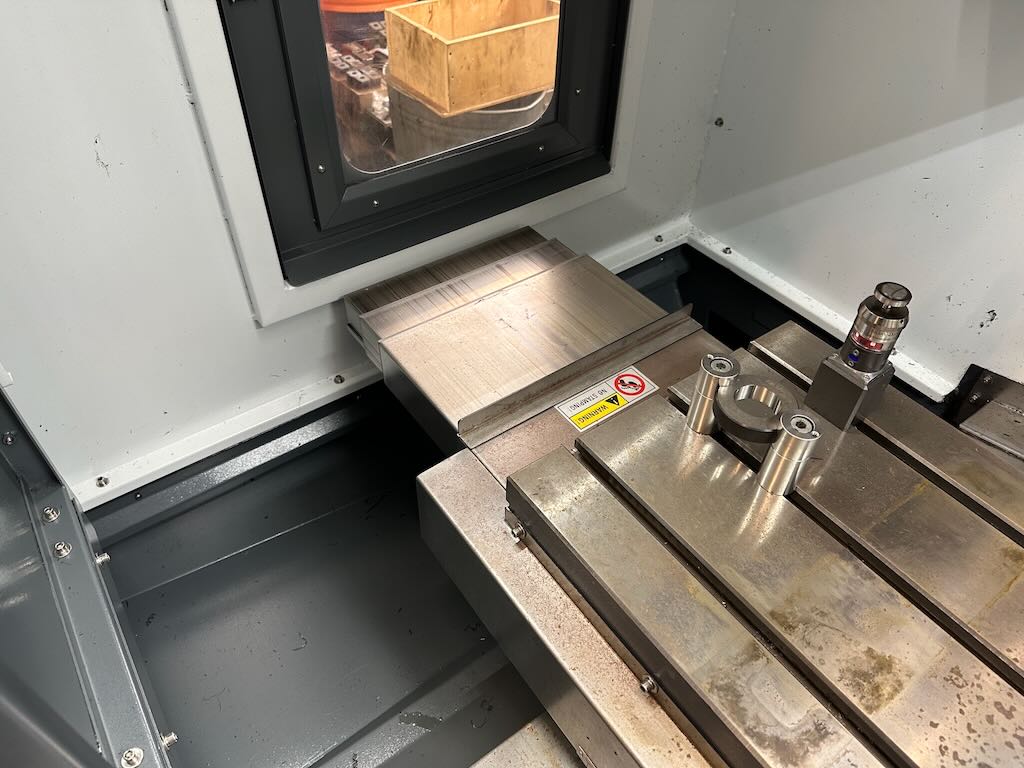

Table Size: 750 x 400mm.
T-Slot: 14 x 3 x 125mm (Width x number x Distance).
Max Load: 350kg.
X/Y/Z Travel: 600 / 400 / 450mm.
Spindle Nose to table: 110-560mm.
Spindle Center to Column: 434mm.
Rapid Feed: 48m/min.
Cutting Speed: 1-12.00 mm/min.

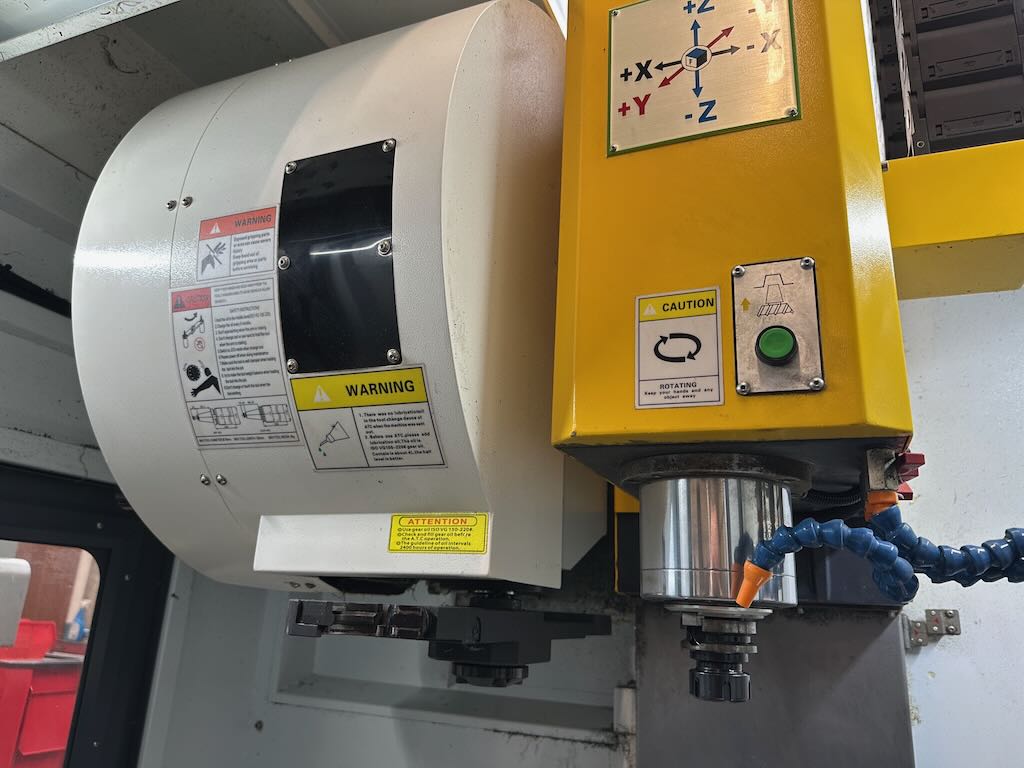

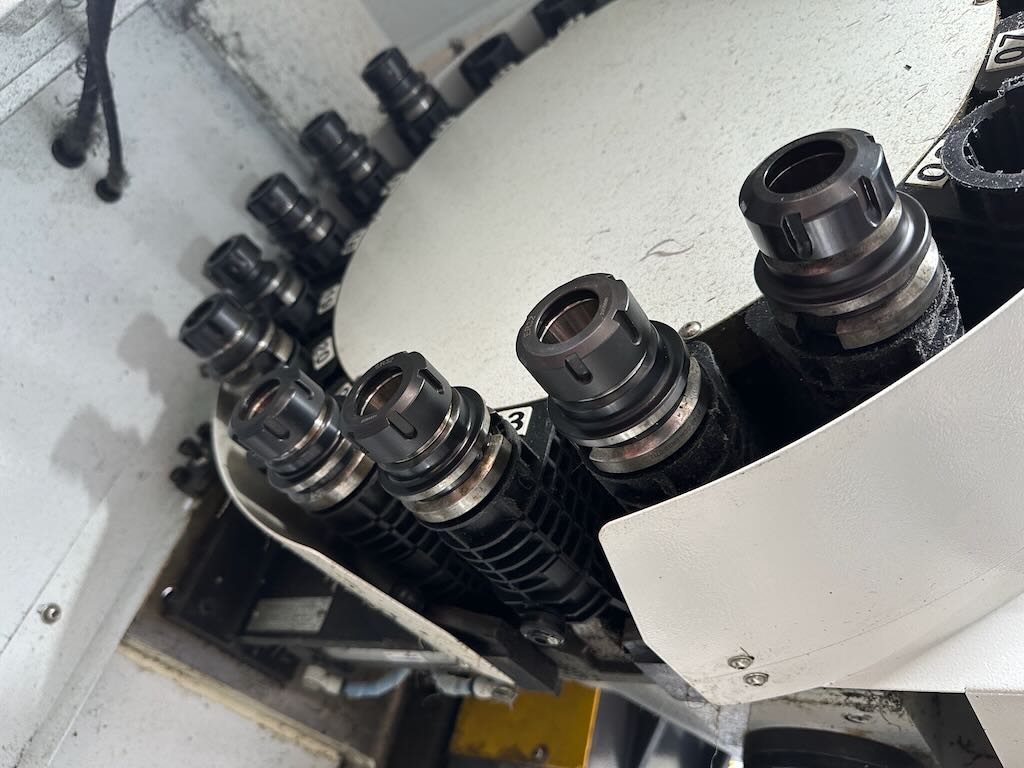

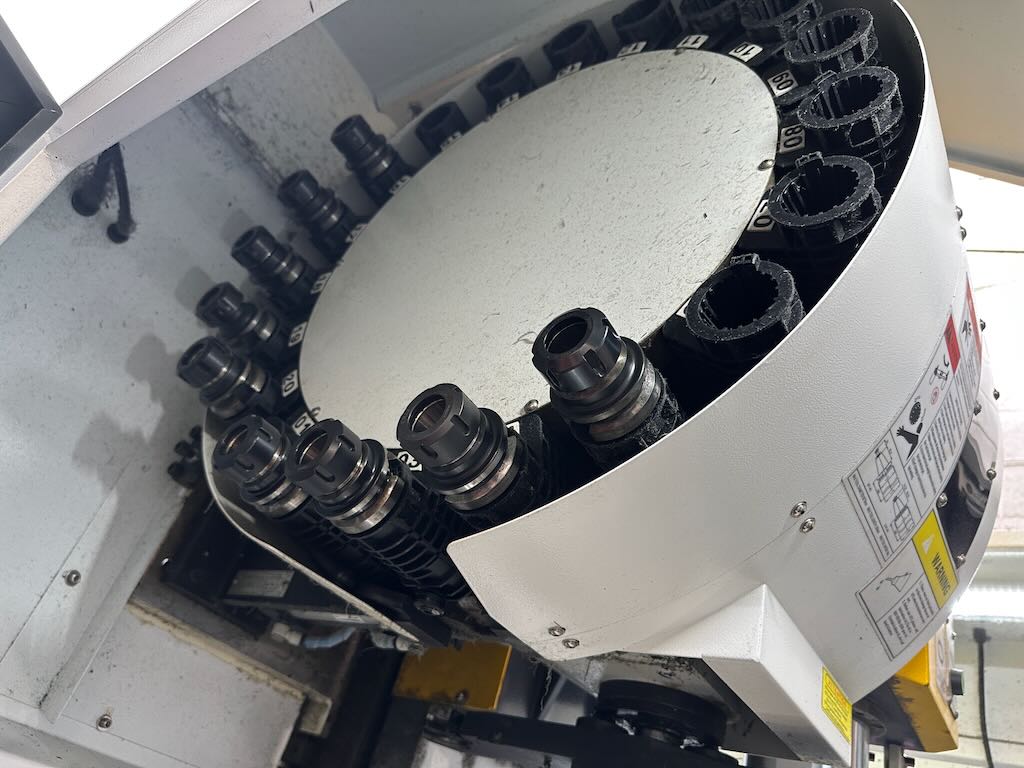

Tool Changer Slots: 20pcs.
Max Tool Length: 220mm.
Max Tool Diameter: 125mm.
Max Tool Weight: 8kgs.
Power Supply: 415V, 50/60Hz.
Dimensions: 1800 x 2530 x 2700mm (L x W x H).
Weight: 3500kg.

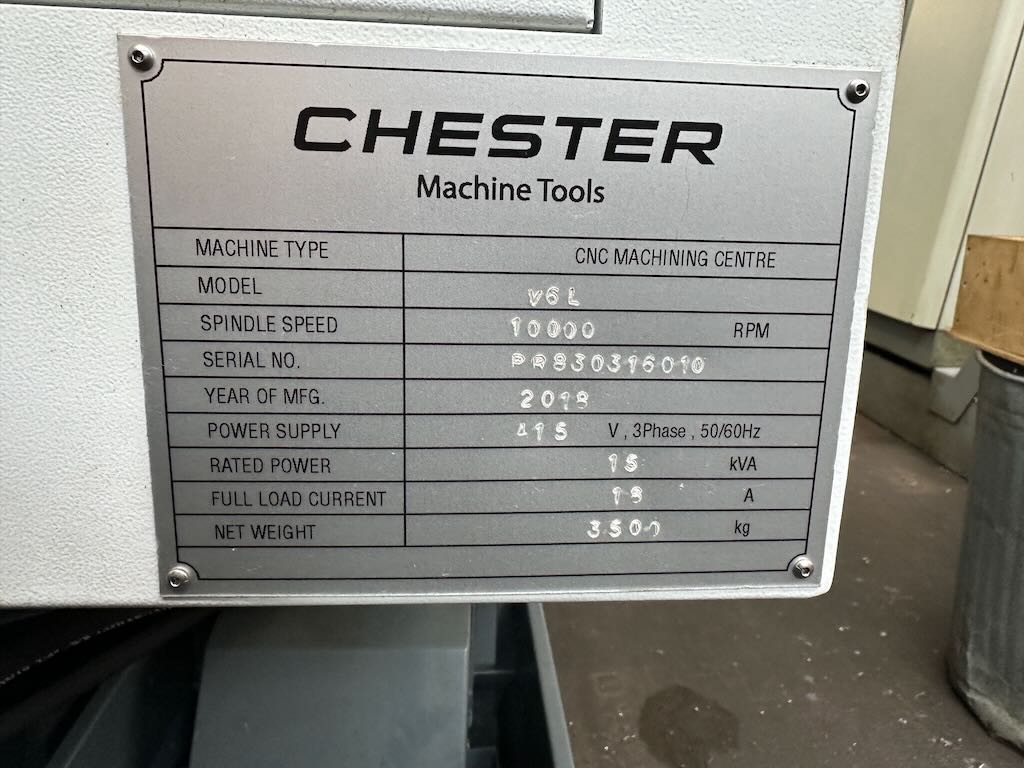

Serial Number: PR830316010.
