MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • AGATHON
  • Model:

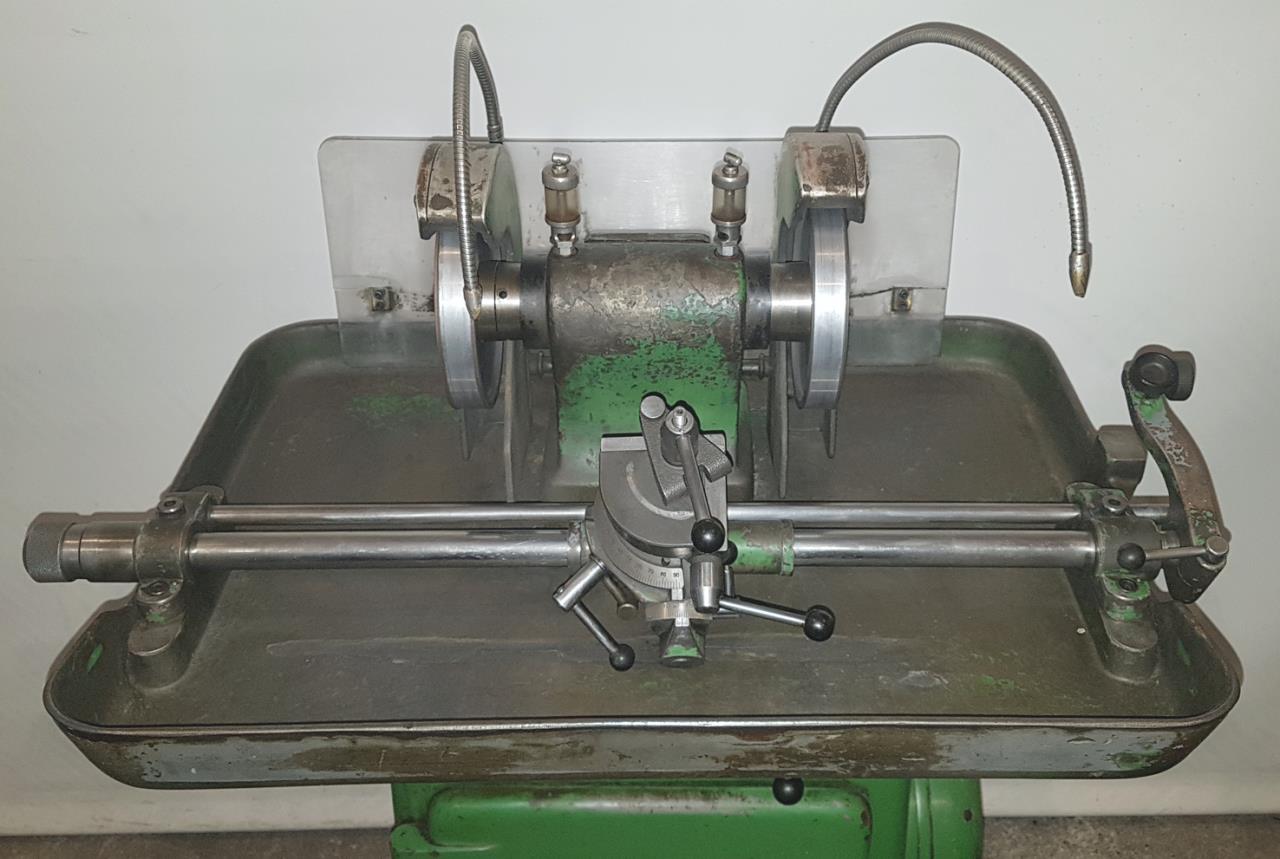

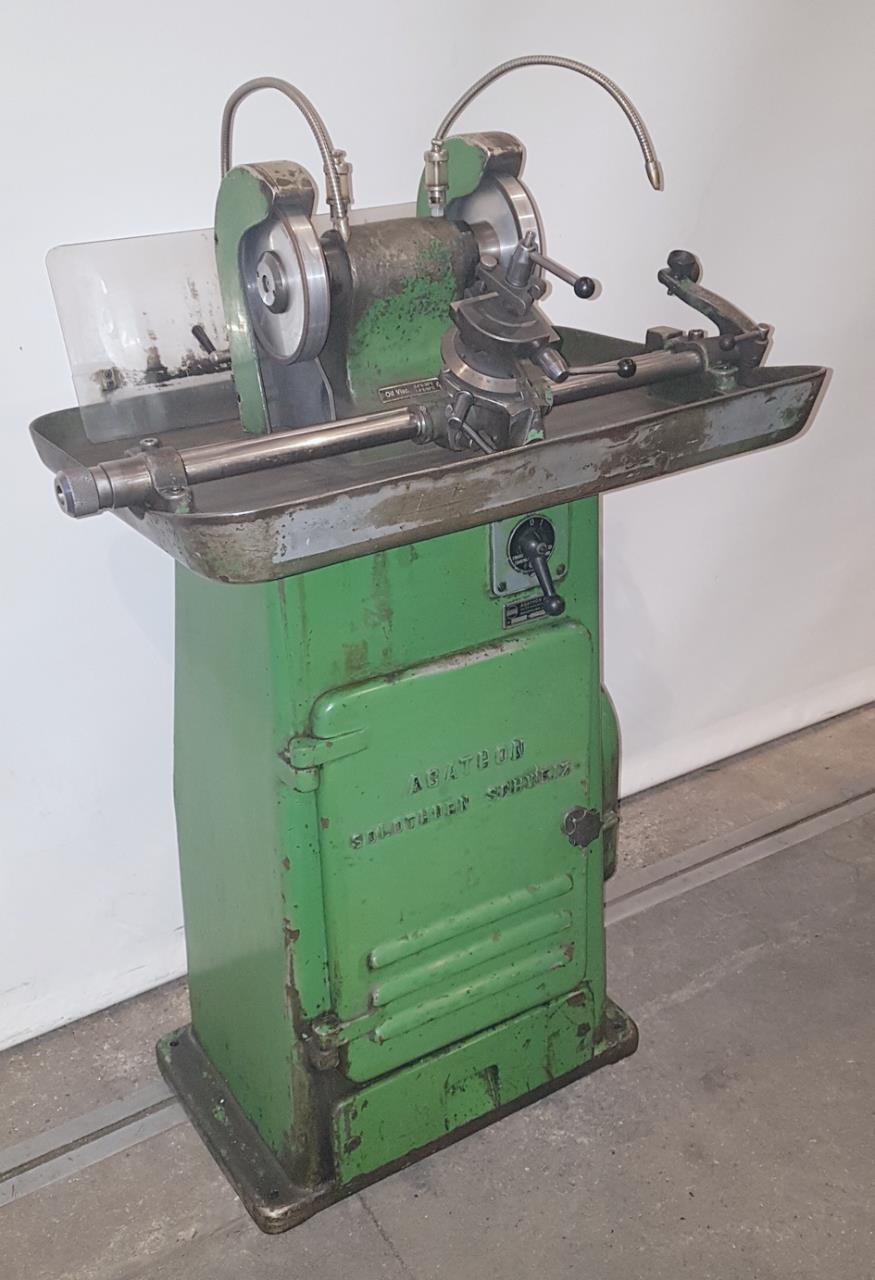

  • AGATHON 150 A
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

Grinding wheels: -
Diameter - 150 mm
Width - 20 mm
Bore - 20 mm
Spindle speeds: -
number (steps) -
up to - 2500 rpm
Tool orthogonal clearance -
max. - 26 °
Clamping range of the tools: -
Width - 32 mm
Height - 32 mm
Voltage 50 Hz3x - 380 Volt
Power - 0.7 HP
Machine's weight about - 225 kg
Overall dimensions machine: -
Length - 850 mm
Width - 620 mm
Height - 1200 mm
Various accessories: -
Coolant system -
