MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

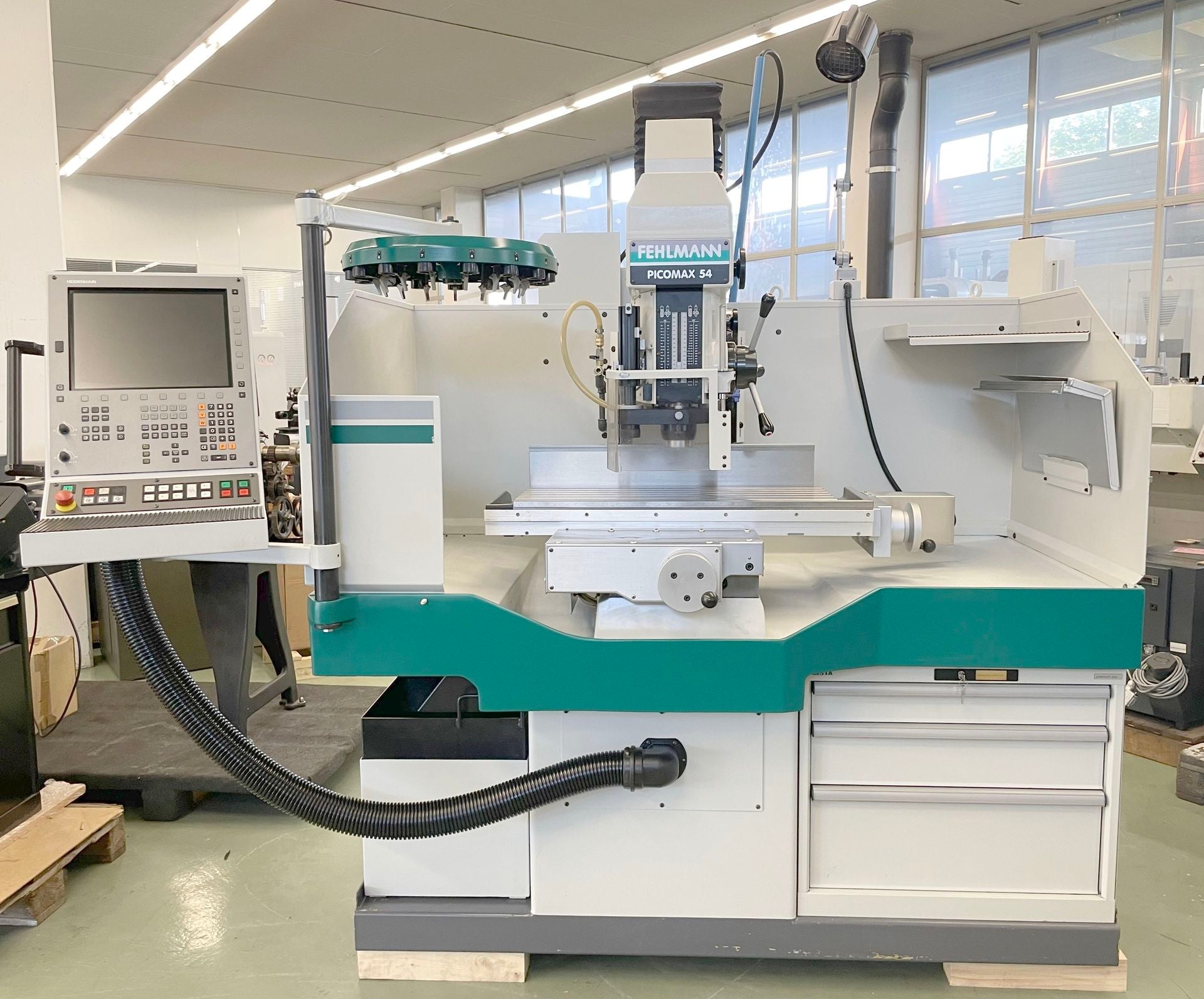

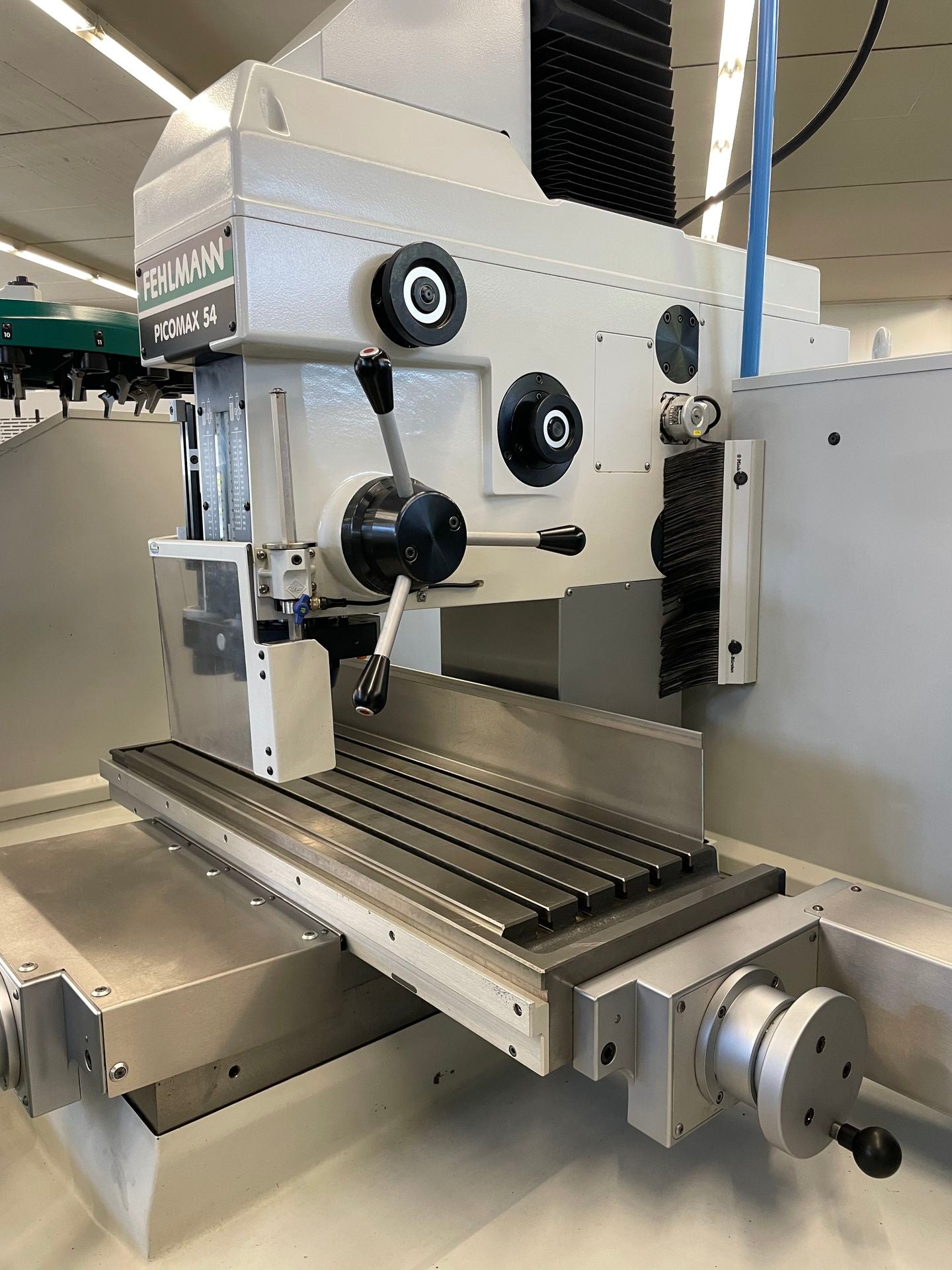

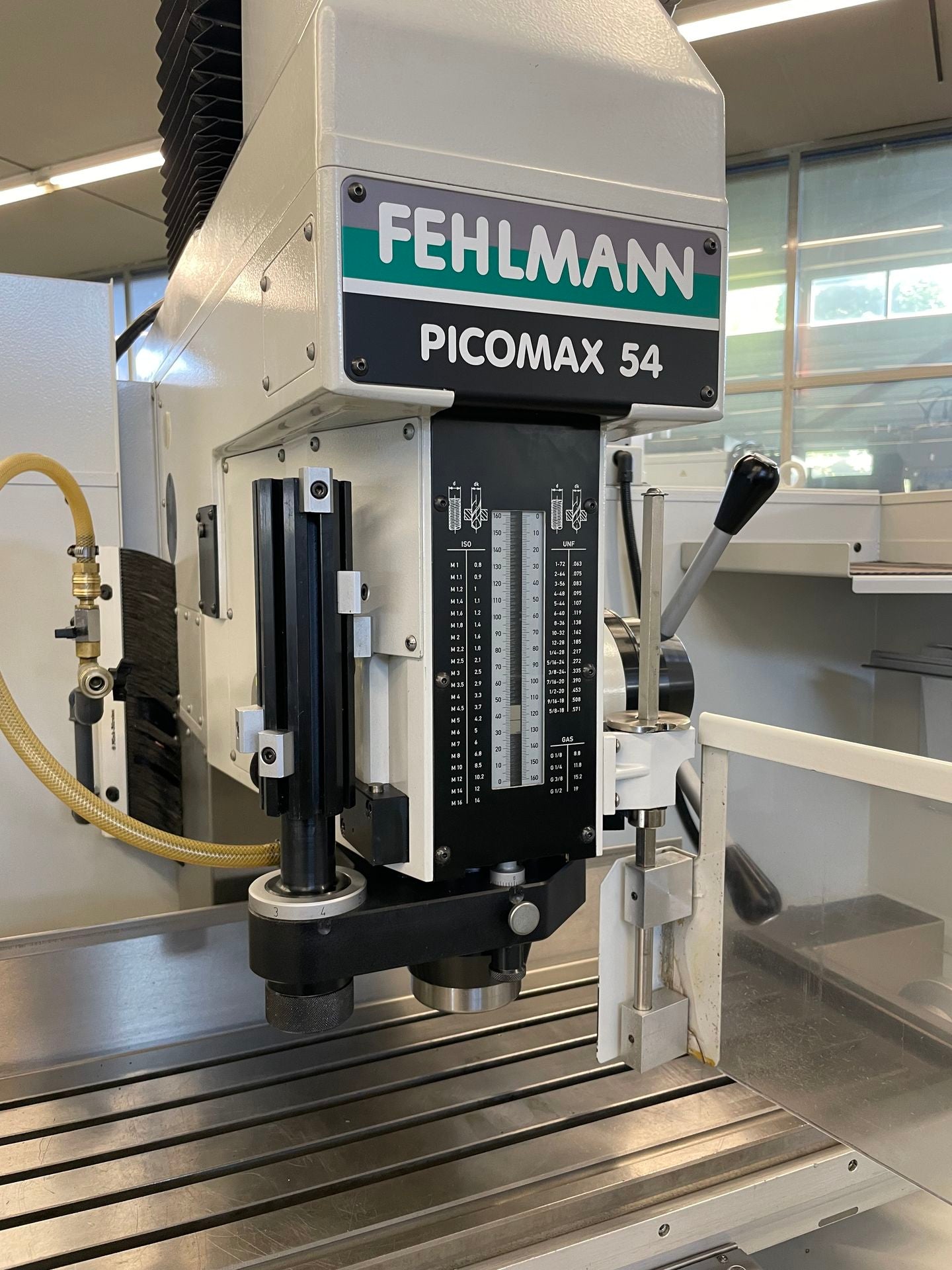

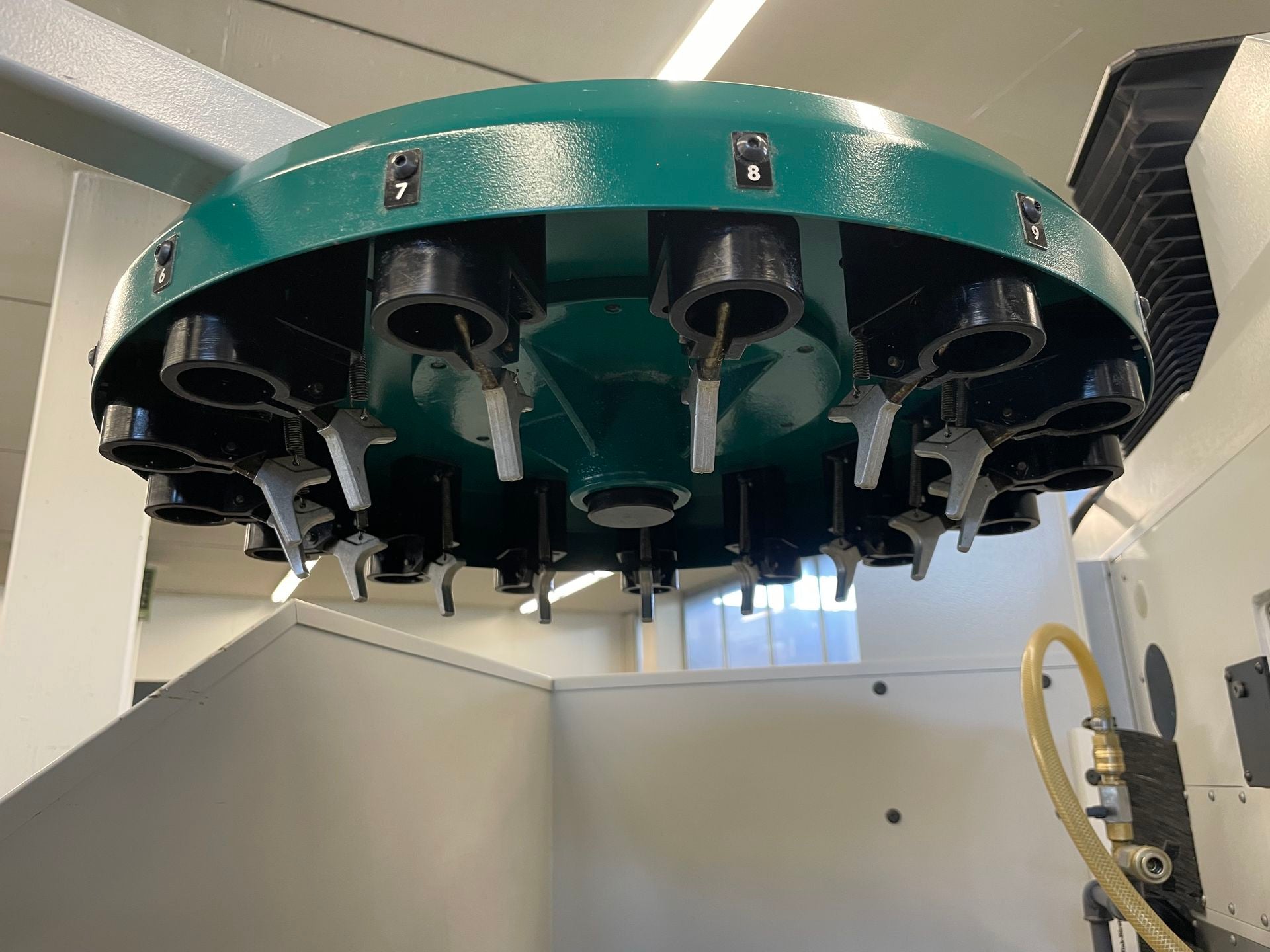

  • 023116 - FEHLMANN PICOMAX 54
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Drill capacity in steel: 28 mm.
Threat cutting in steel M: 24.
Milling capacity: 100 cm3/min.
Spindle stroke: 160 mm.
from: 50 t/min.
up to: 7100 t/min.

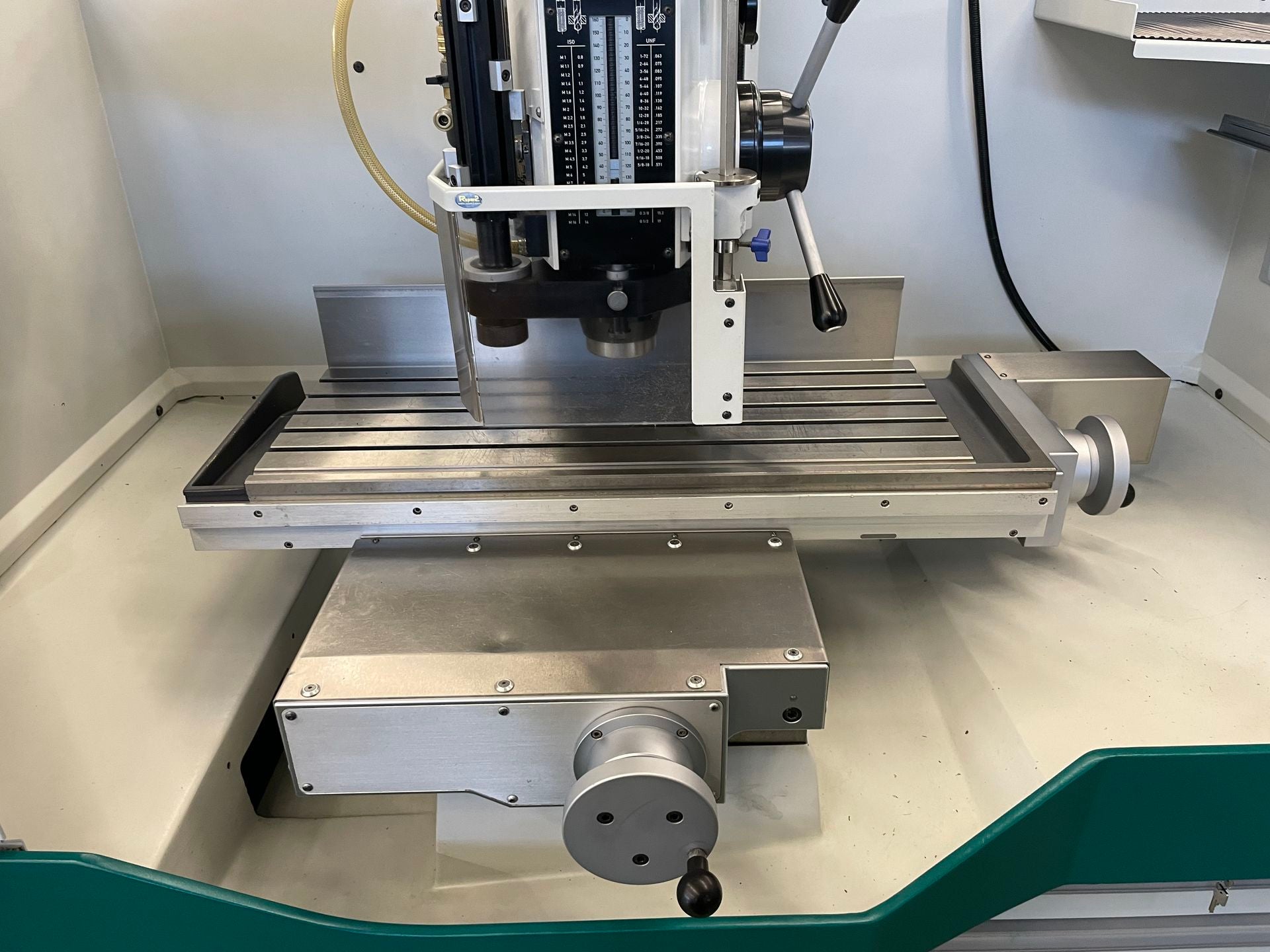

Table length: 880 mm.
Table width: 320 mm.
Min. distance from table to spindle: 0 mm.
Max. distance from table to spindle: 610 mm.
Longitudinal travel: 500 mm.
Transversal travel: 260 mm.
Vertical travel: 480 mm.
X axis: 1 - 2000 mm/min.
Y axis: 1 - 2000 mm/min.
Z axis: 10 - 1200 mm/min.
W axis: 500 - 2000 mm/min.
Table load max.: 300 kg.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 8 kW.
Total power required: 10 kW.
Machine's weight about: 2150 kg.
Length: 2200 mm.
Width: 1800 mm.
Height: 2400 mm.
