MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Colchester
  • Model:

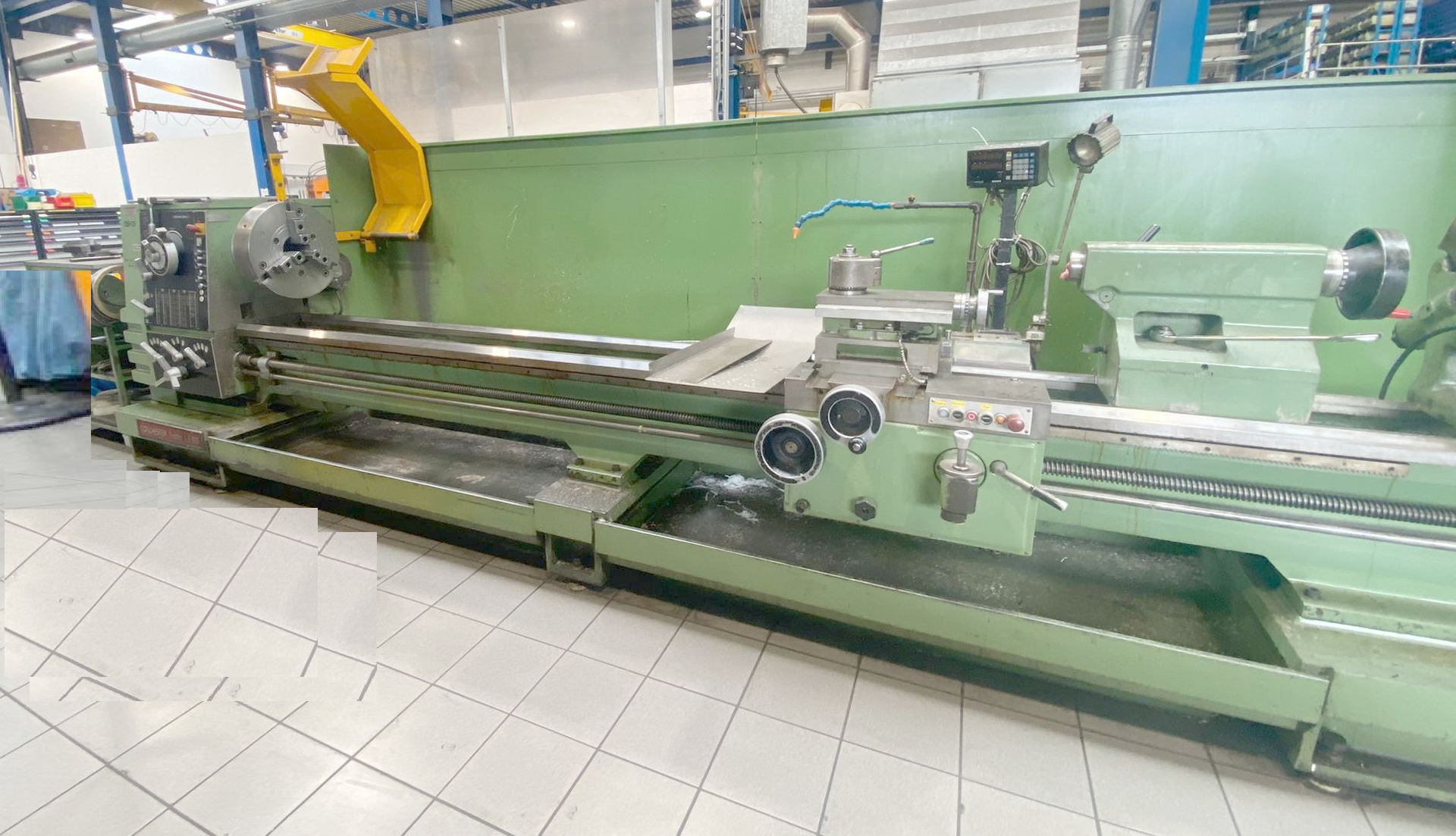

  • 023050 - COLCHESTER Magnum L.B.800-4000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 380 mm.
Distance between centres: 4000 mm.
Swing over cross-slide: 520 mm.
Swing over bed: 740 mm.
Spindle hole: 168 mm.
number (steps): 20.
from: 10 t/min.
up to: 800 t/min.

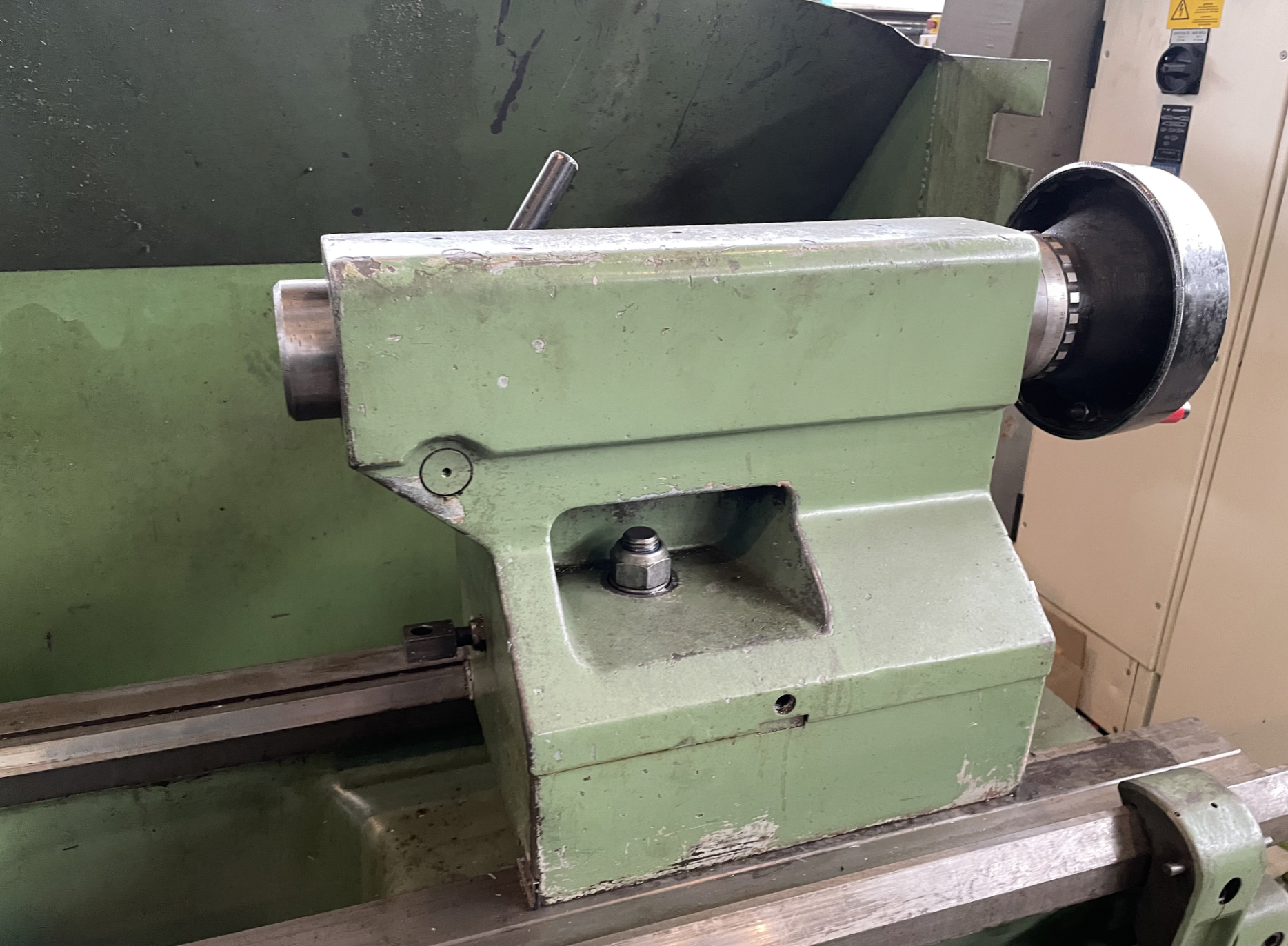

Taper in tailstock:: 6 CM.
Spindle diameter: 95 mm.
Spindle stroke: 190 mm.
Spindle motor: 15 kW.
Machine's weight about: 5200 kg.
Length: 5920 mm.
Width: 1200 mm.
Height: 1500 mm.
Digital readout number of axis:: 2.

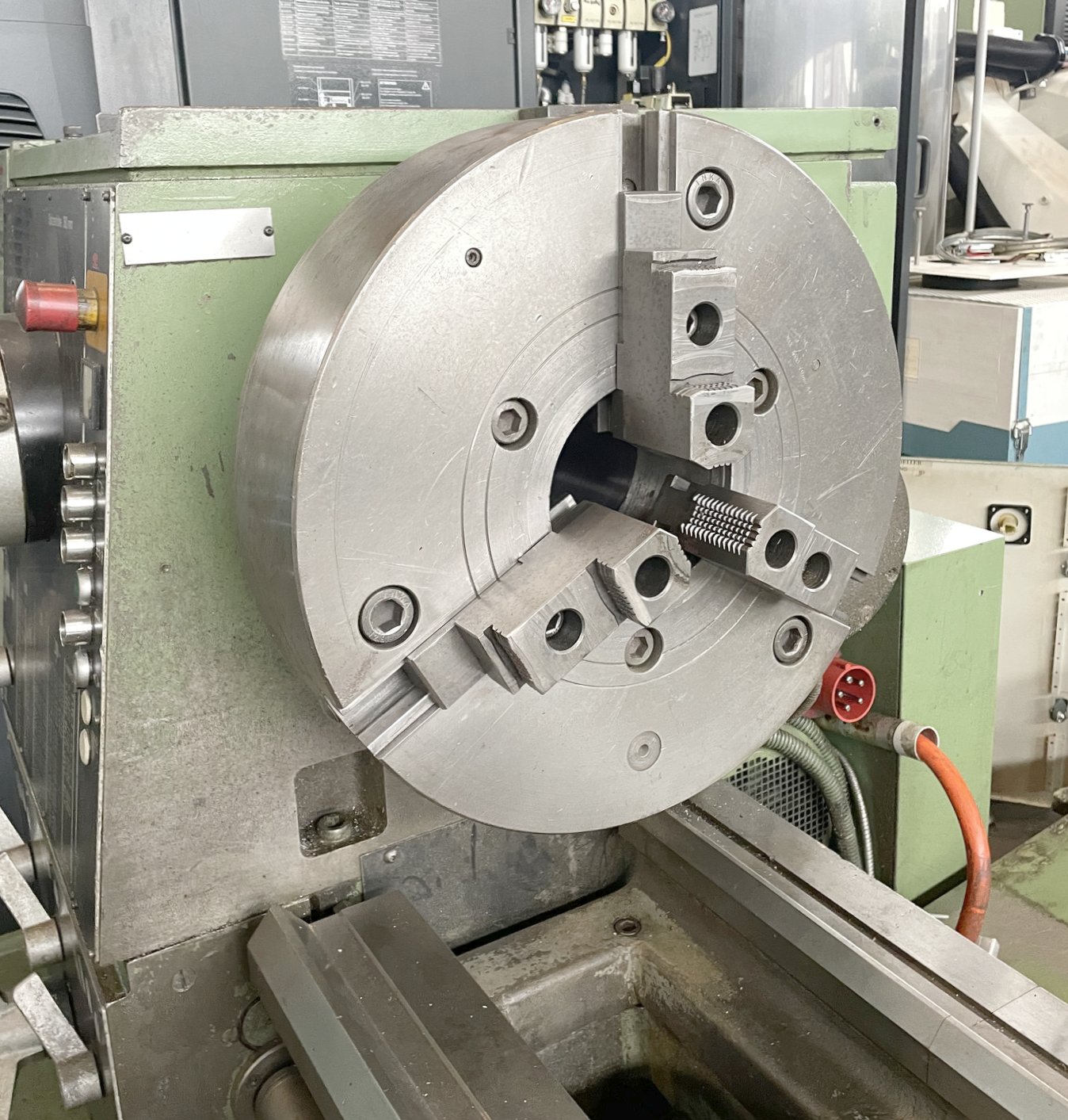

3-jaw chuck diameter: 500 mm.
+ request more information
