MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

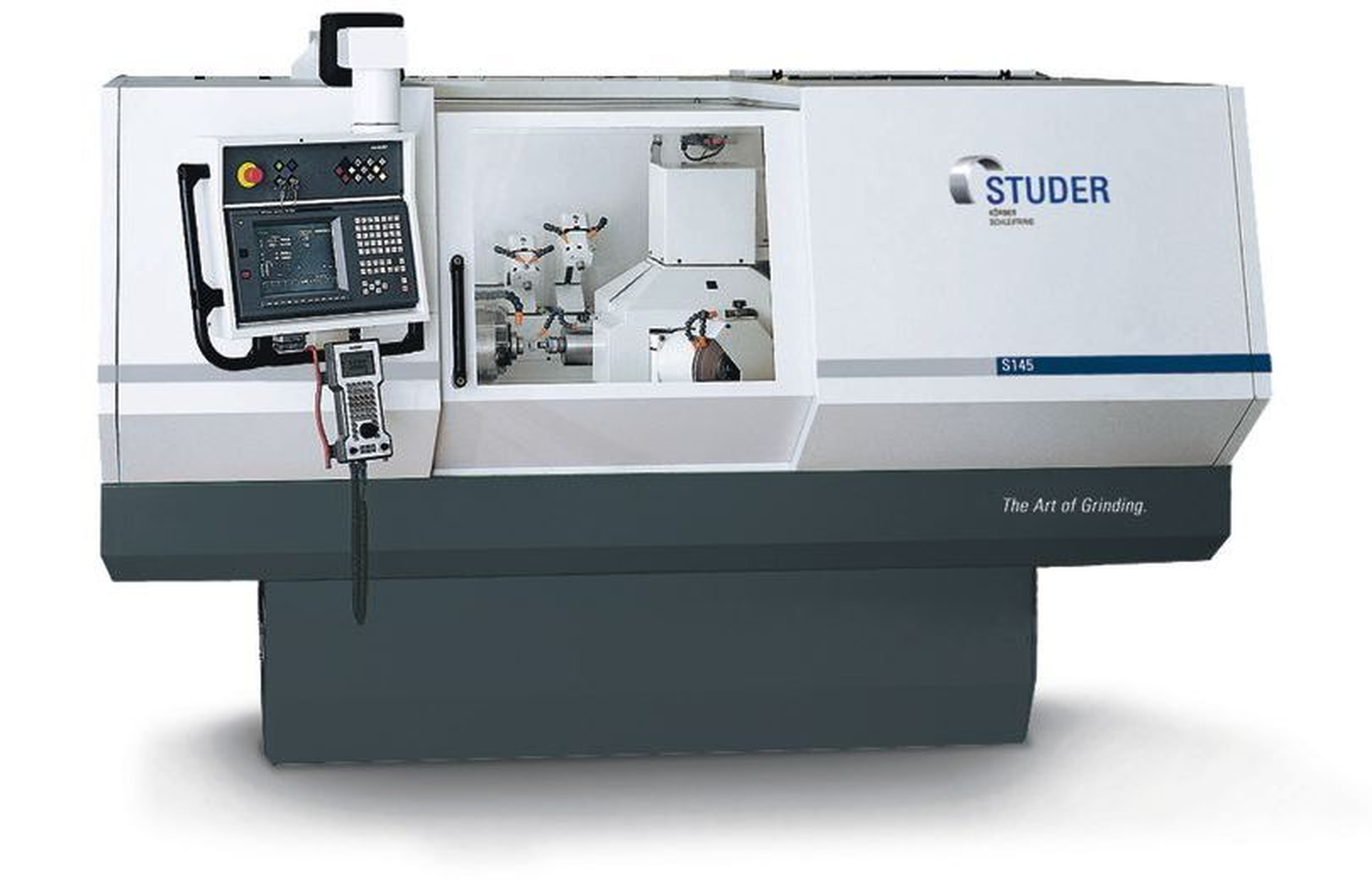

  • 022918 - STUDER S 145 CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Workpiece length max.: 850 mm.
Maximum workpiece weight: 150 kg.
Above the workpiece table: 350 mm.
In front of the workpiece table: 440 mm.
Centre height: 175 mm.
Longitudinal travel (Z-axis): 500 mm.
Cross travel (x-axis): 120 mm.
Workpiece spindle stock (Q-axis): + / -30°.
Z axis (longitudinal travel): 0.001-10000 mm/min.
X axis (transversal): 0.001-10000 mm/min.
Diameter of grinding wheel: 250 mm.
C axis (spindle,resolution): °.
Swivelling range: 0 - 270 °.
Number of positions: 4.
from: 1 t/min.
up to: 1000 t/min.
Typing speed: 1 - 50 t/min.
Spindle hole: 50 mm.
taper in spindle: ISO: 50.
Work piece spindle nose CAMLOCK: 6''.
Air connect: 5 bar.
Voltage 50 Hz 3x: 400 Volt.
Workpiece spindle motor: 3 kW.
Total power required: 22 kVA.
Machine's weight about: 5700 kg.
Length: 3000 mm.
Width: 2000 mm.
Height: 2200 mm.
Dressing spindle: HF 33.
3-jaw chuck diameter: 250 mm.
numbers: 3.
max. speed: 90000 t/min.
