MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

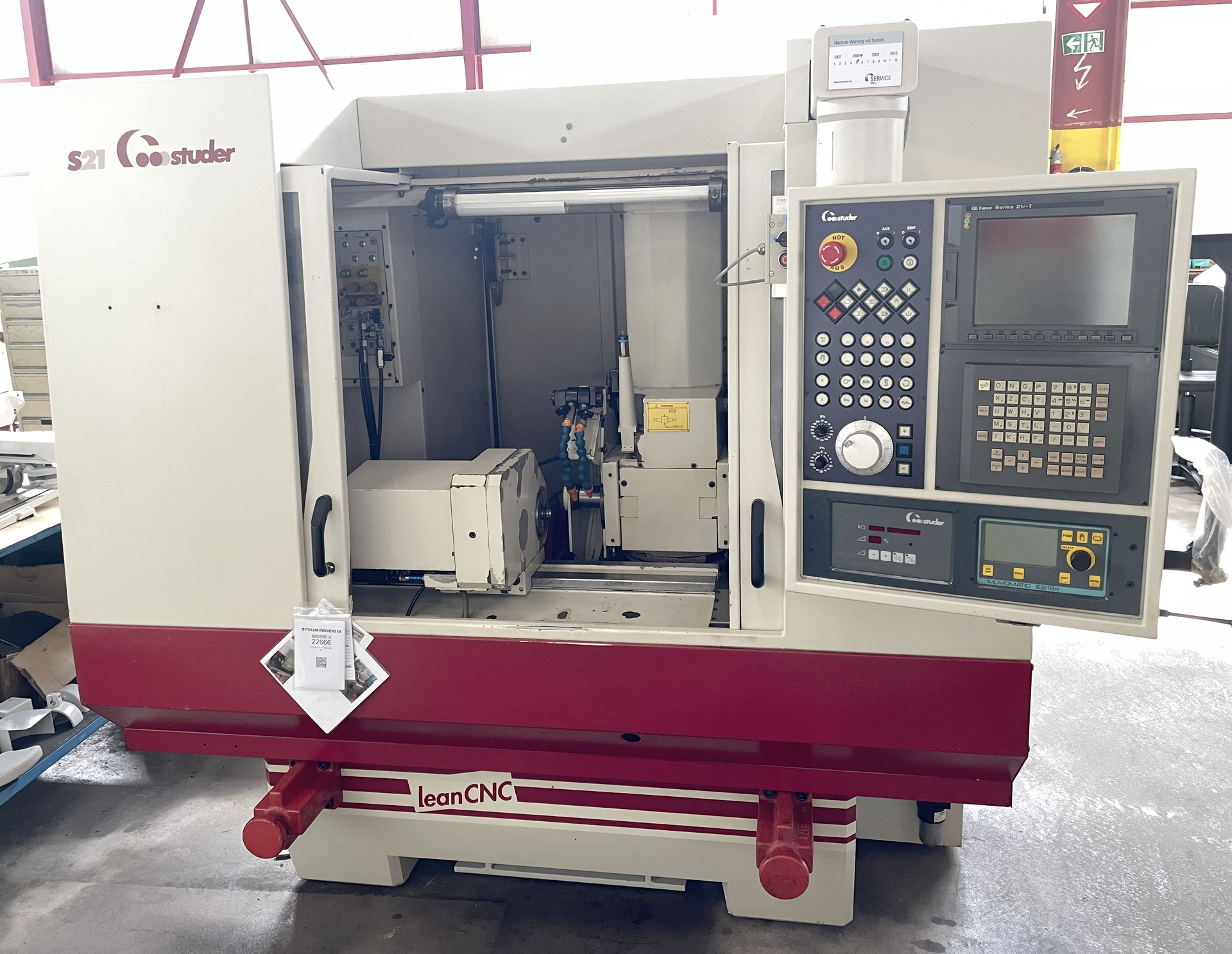

  • 022666 - STUDER S 21 lean CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 400 mm.
Workpiece weight on centres max.: 30 kg.
Diameter: 400 mm.
Width: 2000 mm.
B axis resolution max.: 1 °.
B axis swivelling range: -15 / +195 °.
Peripheral speed: 35 m/s.
Cross travel CNC: 254 mm.
Feed speed up: 0.001-5000 mm/min.
Max. travel: 483 mm.
from: 0.001-10000 mm/min.
up to: 60000 t/min.
Spindle hole: 26 mm.
taper in spindle: MT: 4.
Taper in tailstock:: 3 CM.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 3 kW.
Total power required: 20 kVA.
Machine's weight about: 4300 kg.
Length: 2300 mm.
Height: 2100 mm.

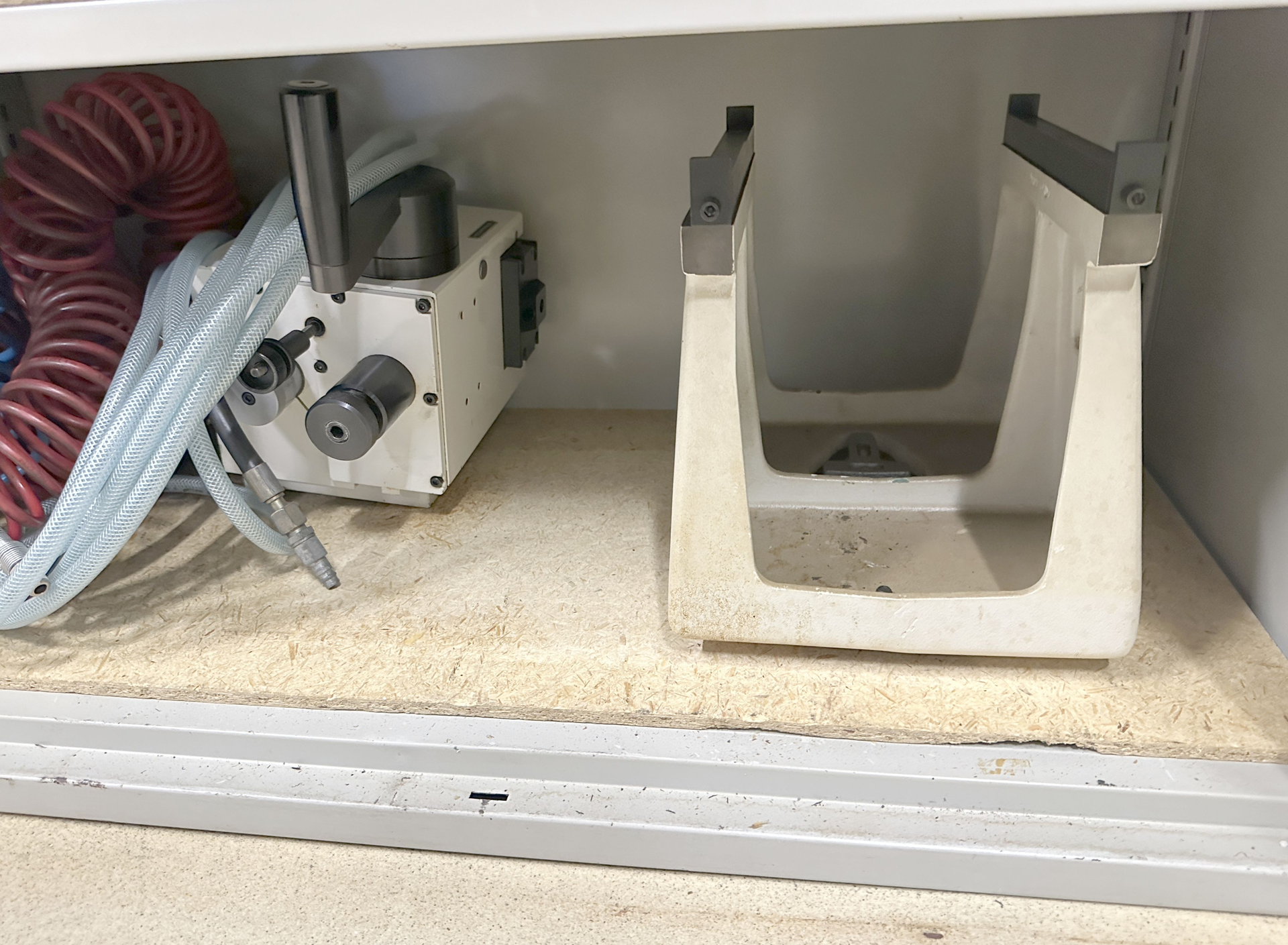

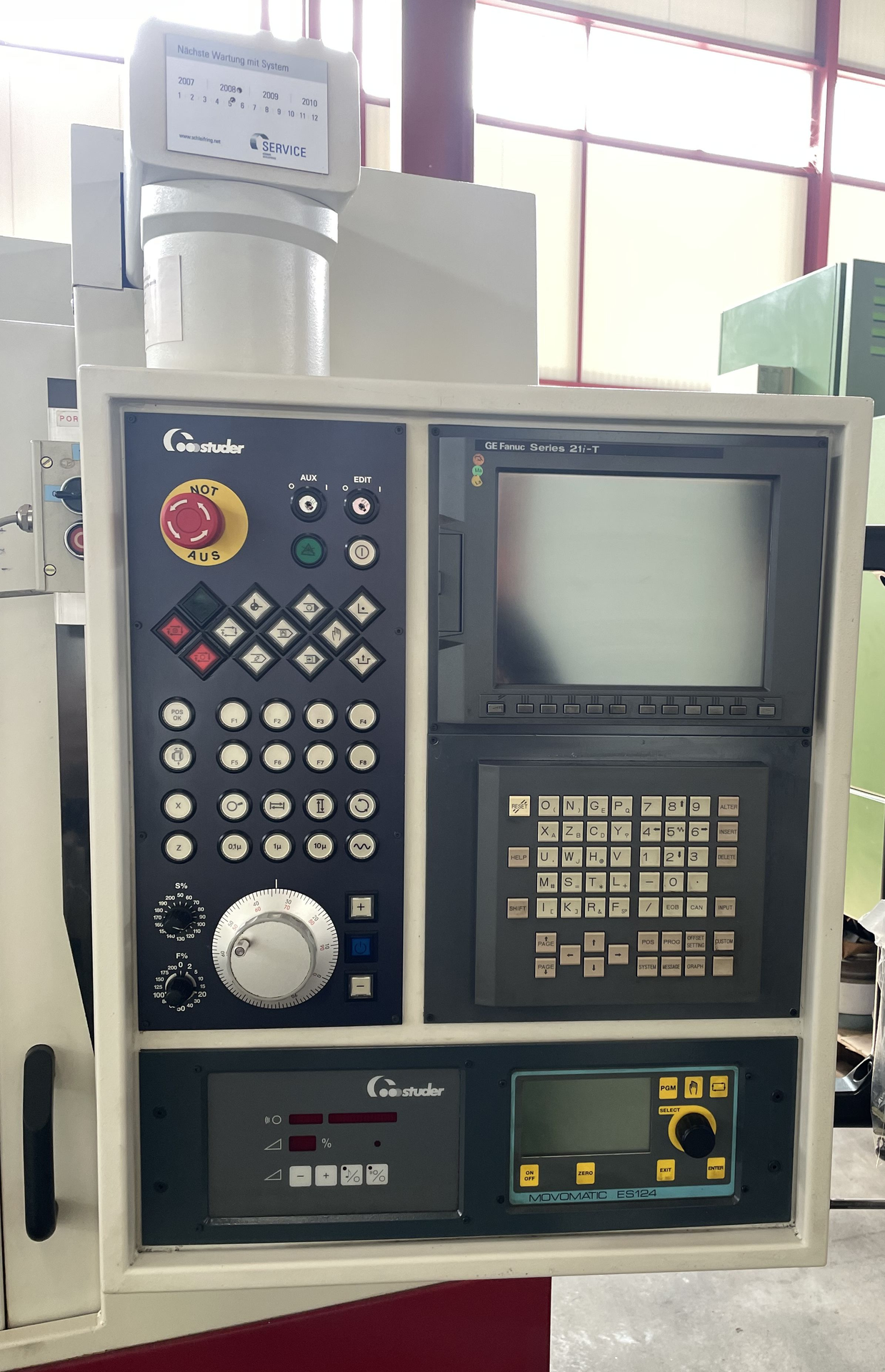

Measuring device: MOVOMATIC CR257.
Number of spindles: 1.
Oil mist extractor: FIBARON.
