MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

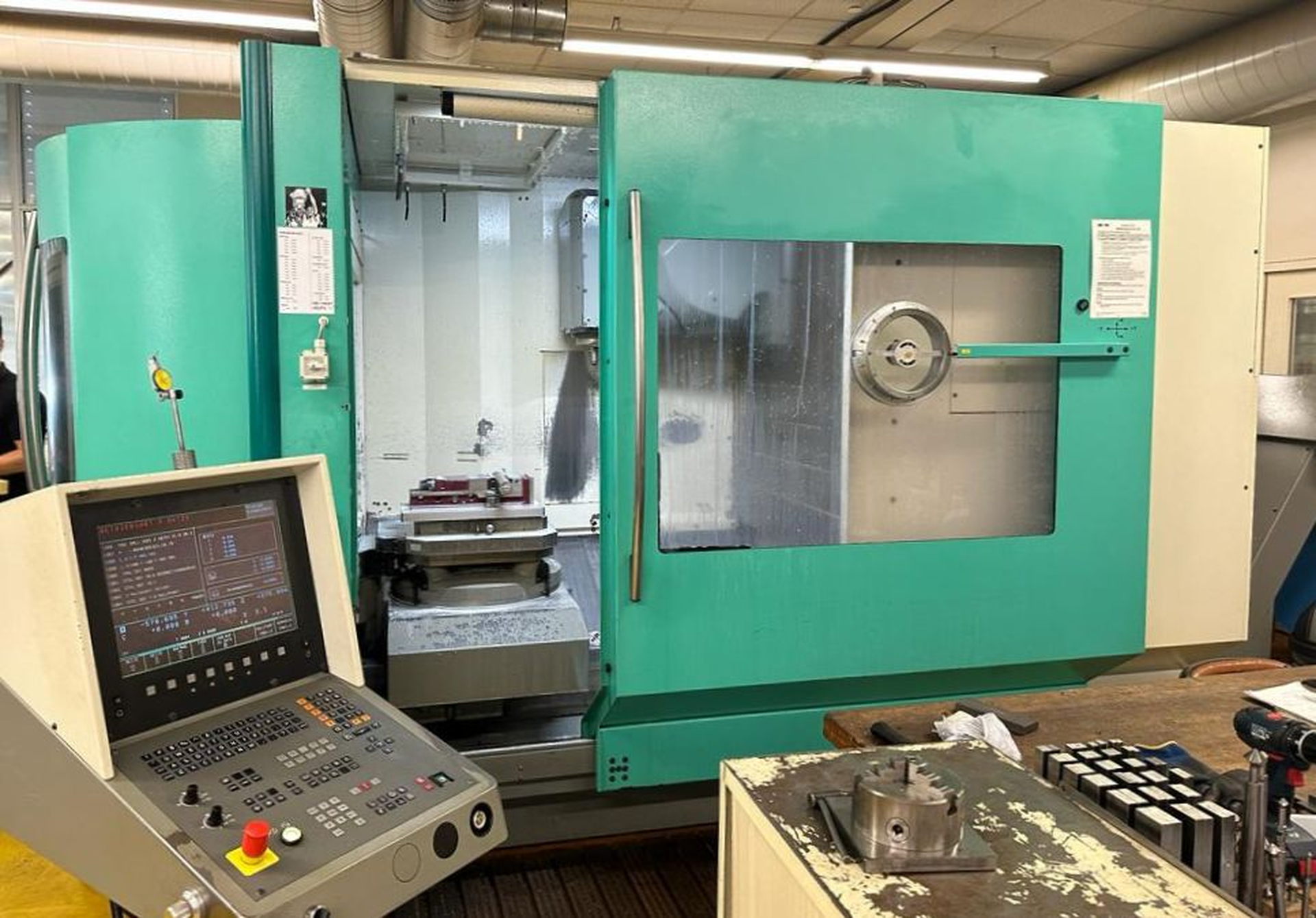

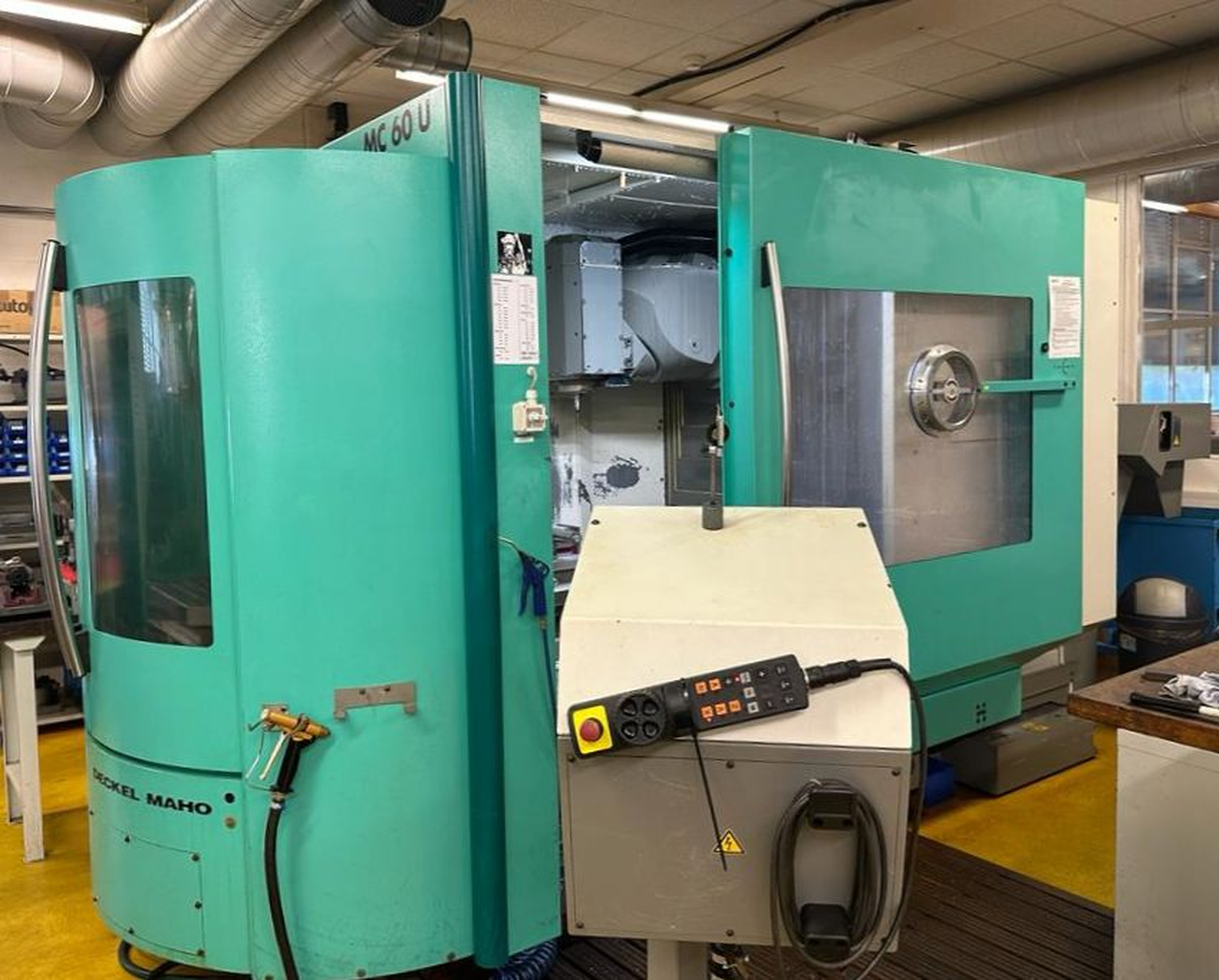

  • 022585 - DMG DMC 60 U
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Operating time: 19467 Heures.
Number of axis total: 5.
Table length: 630 mm.
Table width: 500 mm.
Centering bore diameter: 50 mm.
Table load max.: 600 kg.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 700 mm.
Vertical travel (z axis): 550 mm.
Tool magazine number of tool places: 60.
Tool diameter max.: 100 mm.
Diameter with free adjacent pockets: 160 mm.
Tool lenght: 350 mm.
Max. tool-weight: 10 kg.
Spindle nose SK: 40 DIN 69871.
from: 20 t/min.
up to: 12000 t/min.
Feed range: 1 - 10000 mm/min.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 9500 kg.
Length: 500 mm.
Width: 500 mm.
Height: 2484 mm.

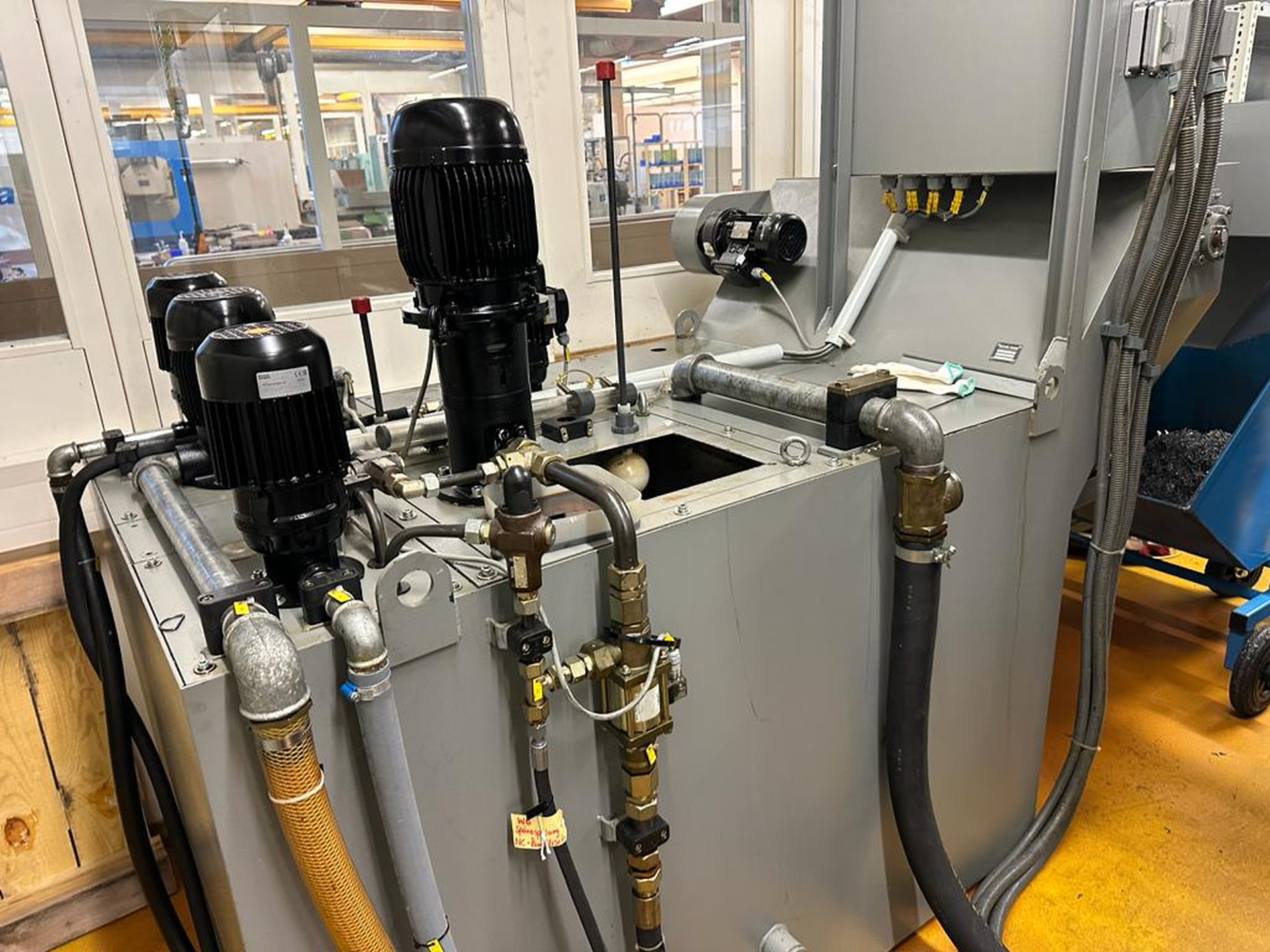

Coolant through spindle (cts): 17 bar.

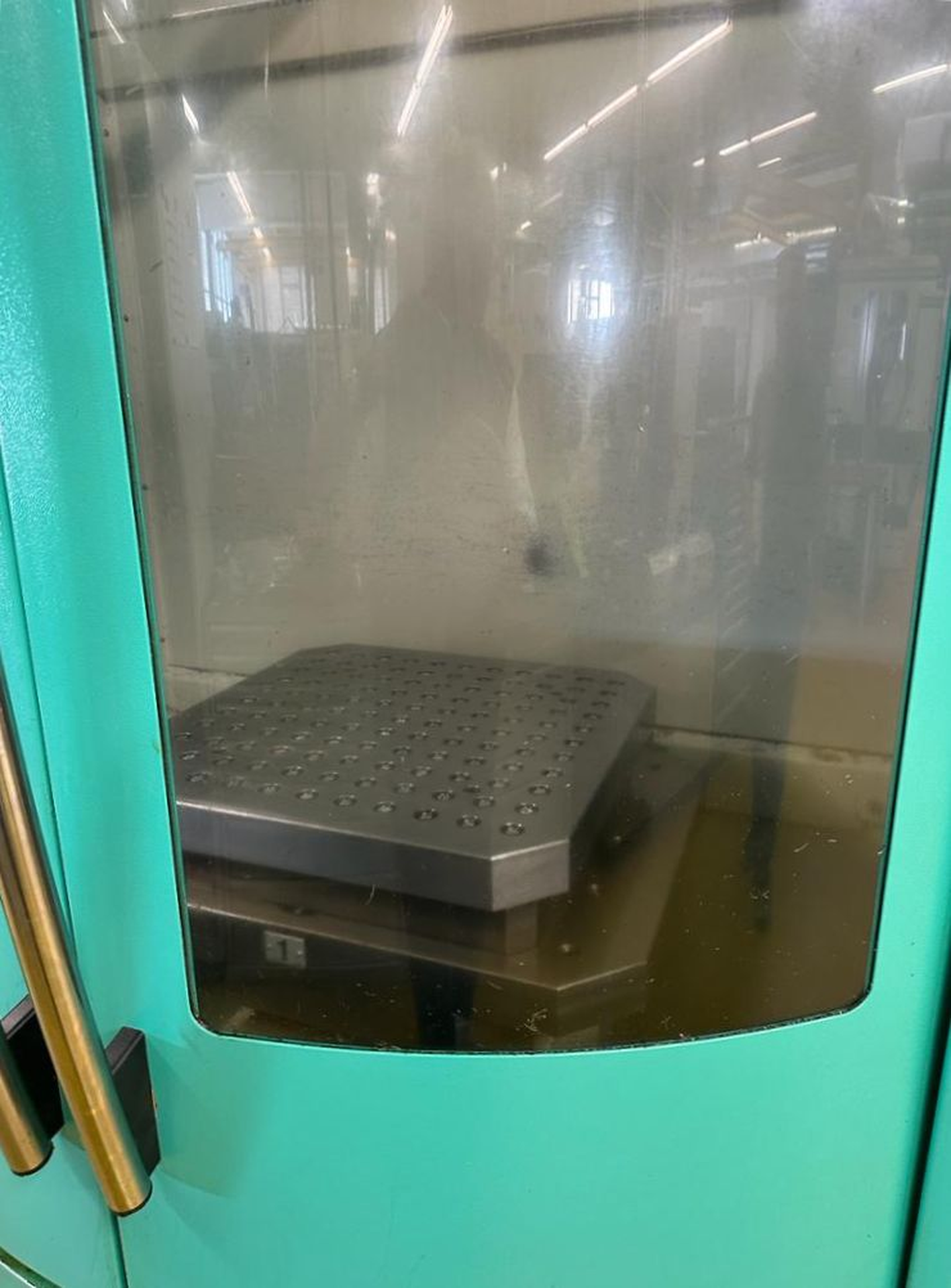

Pallets: number: 2.
Max. Load: 600 kg.
Spindle changed: 2016.
