MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GILDEMEISTER
  • Model:

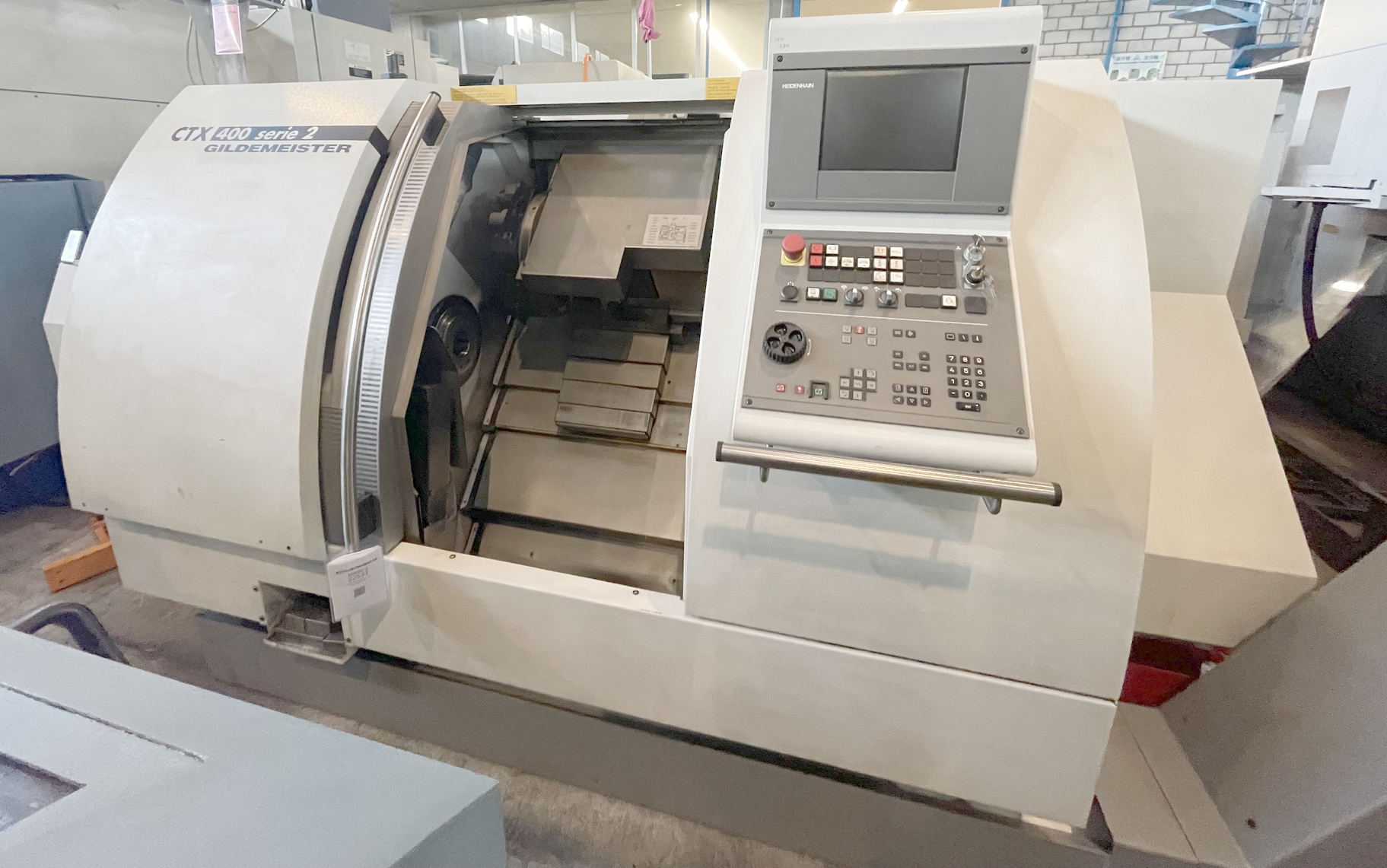

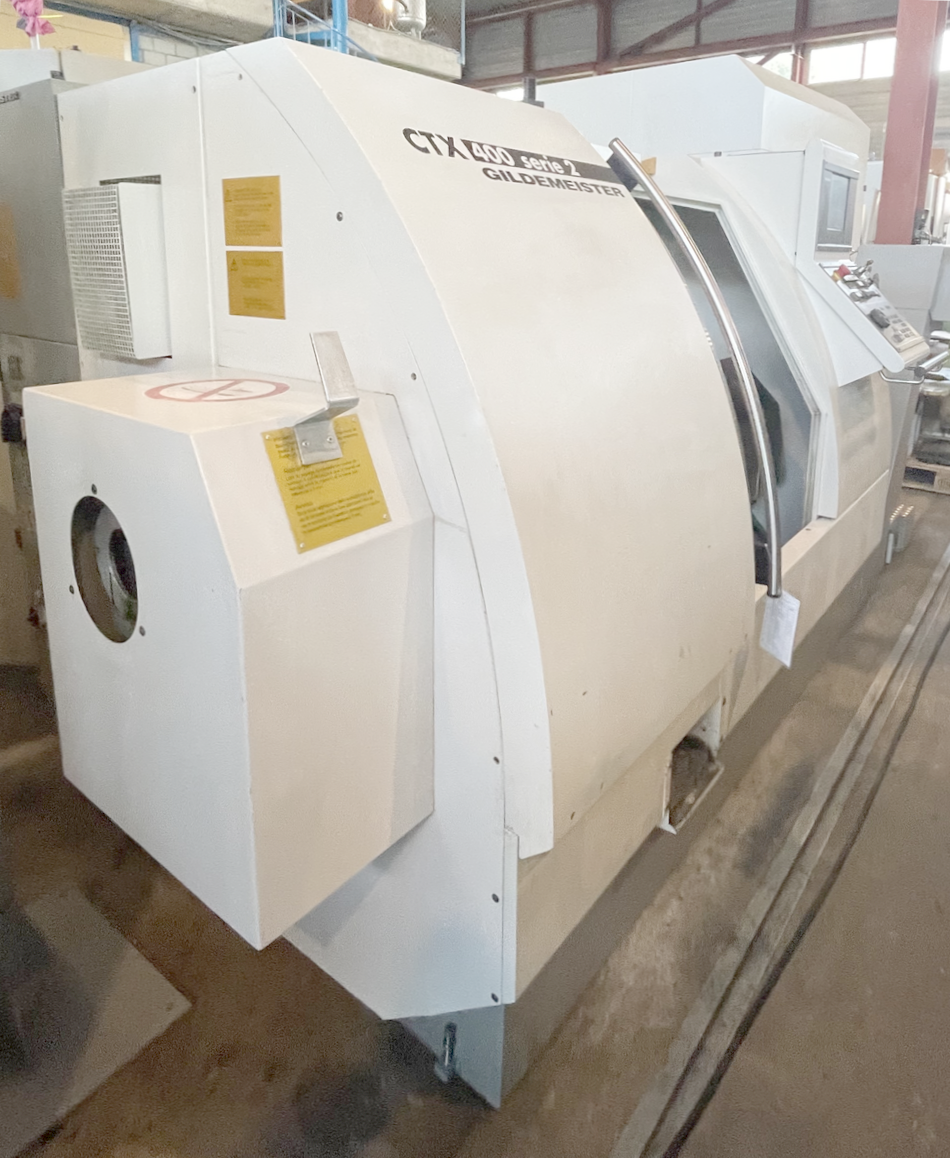

  • 022533 - GILDEMEISTER CTX 400
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Swing over bed: 500 mm.
Maximum turning length: 640 mm.
Turning diameter: 290 mm.
Longitudinal travel (Z-axis): 640 mm.
Transversal strocke (X axis): 212 mm.

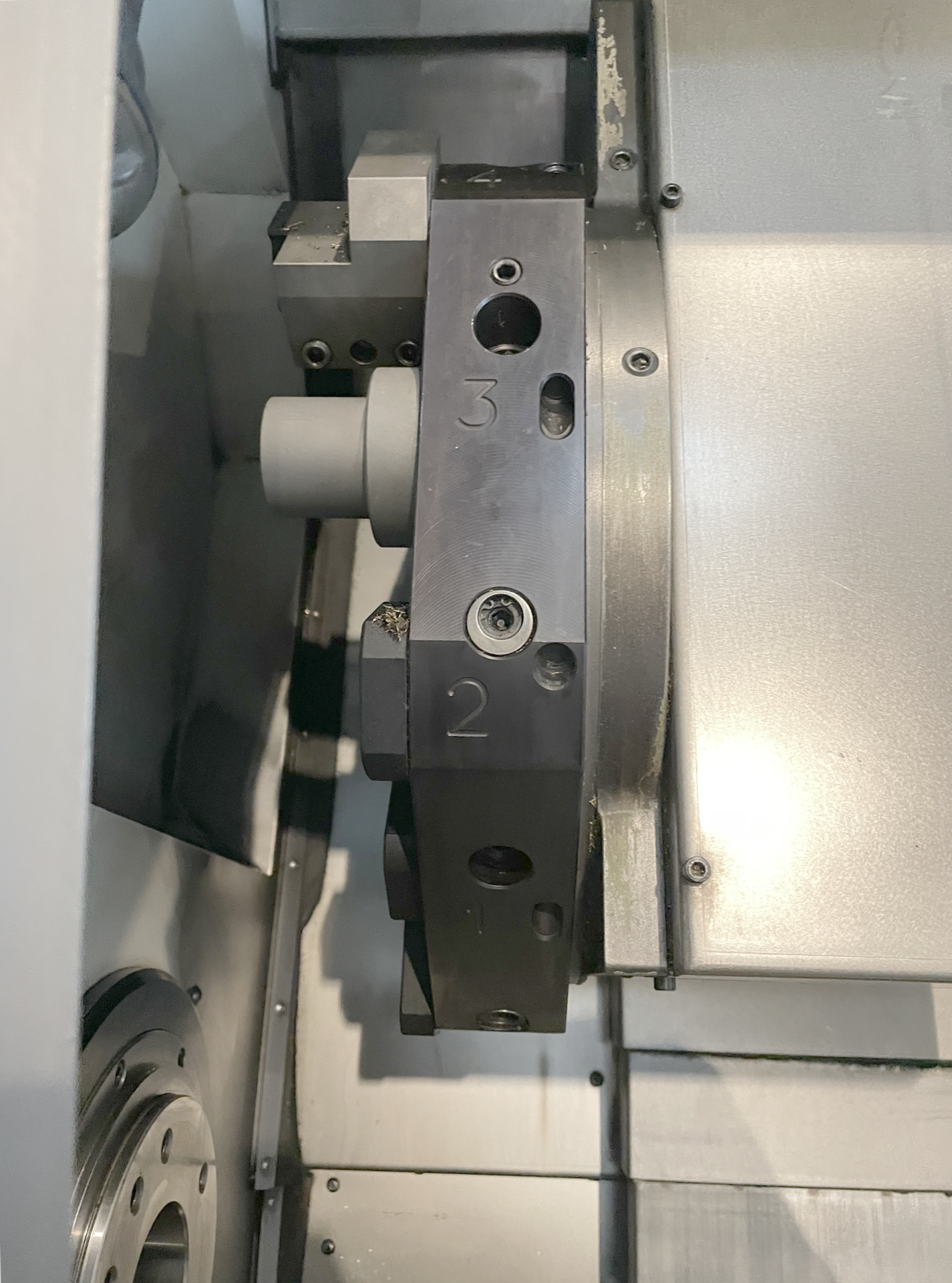

Fixed tools turret: 12.
Inner cone diameter: 30 mm.
Inner cone DIN: 69880.
Indexing time: 0.8 s.

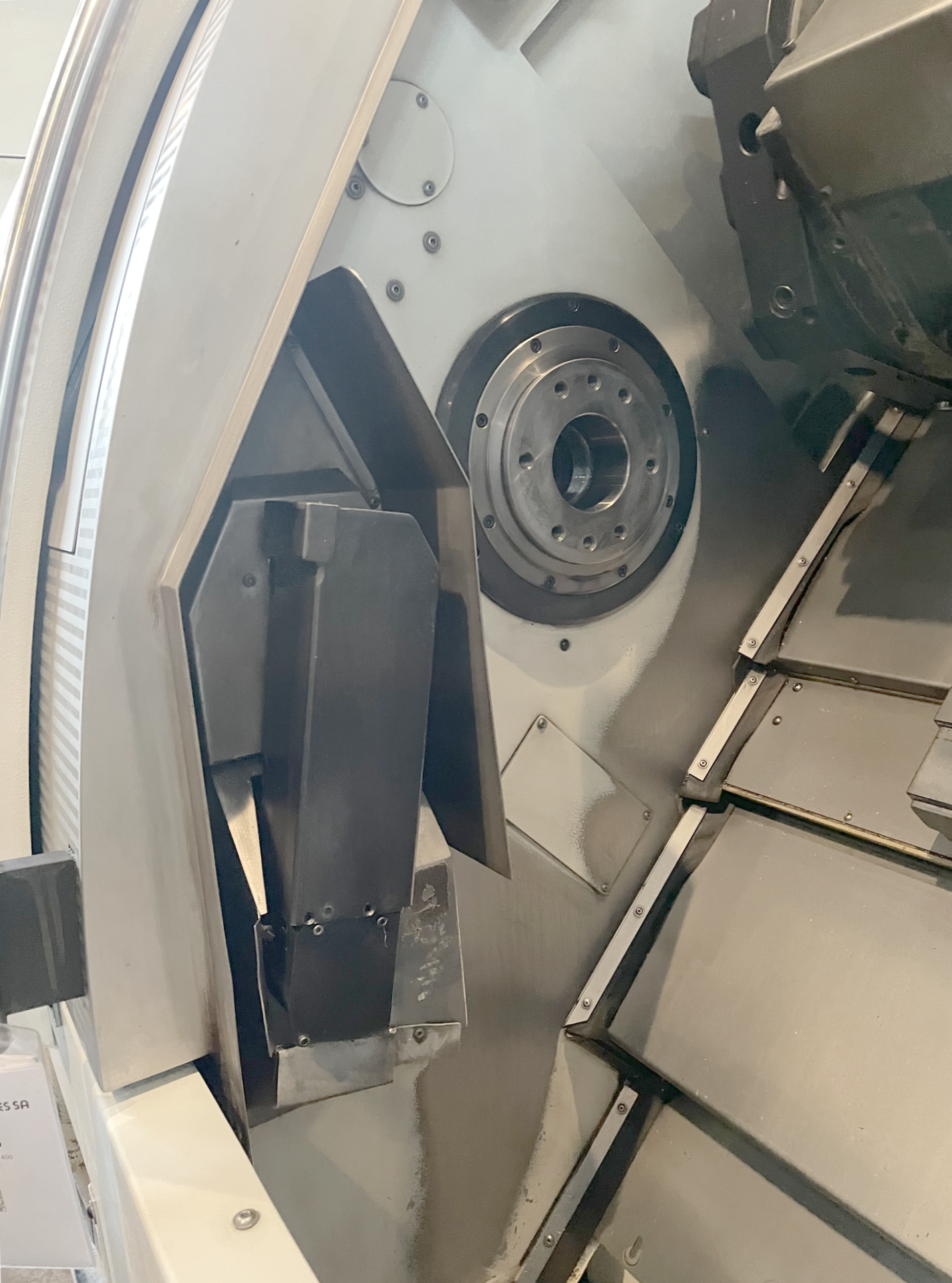

Spindle hole: 66 mm.
Inner taper type: HAINBUCH SK65 BZI.
from: 25 t/min.
up to: 4000 mm/min.
Spindle power: 22 kW.
Torque max.: 420 Nm.
Morse taper: 4 CM.
Spindle stroke: 100 mm.
Spindle diameter: 80 mm.
Pressure: 8 kN.
longitudinal from: mm/min.
transversal from: mm/min.
Rapid traverse X: 10 m/min.
Rapid traverse Z: 15 m/min.
Spindle motor: 22 kW.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 50 kVA.
Machine's weight about: 5100 kg.
Length: 3400 mm.
Width: 1940 mm.
Height: 1700 mm.

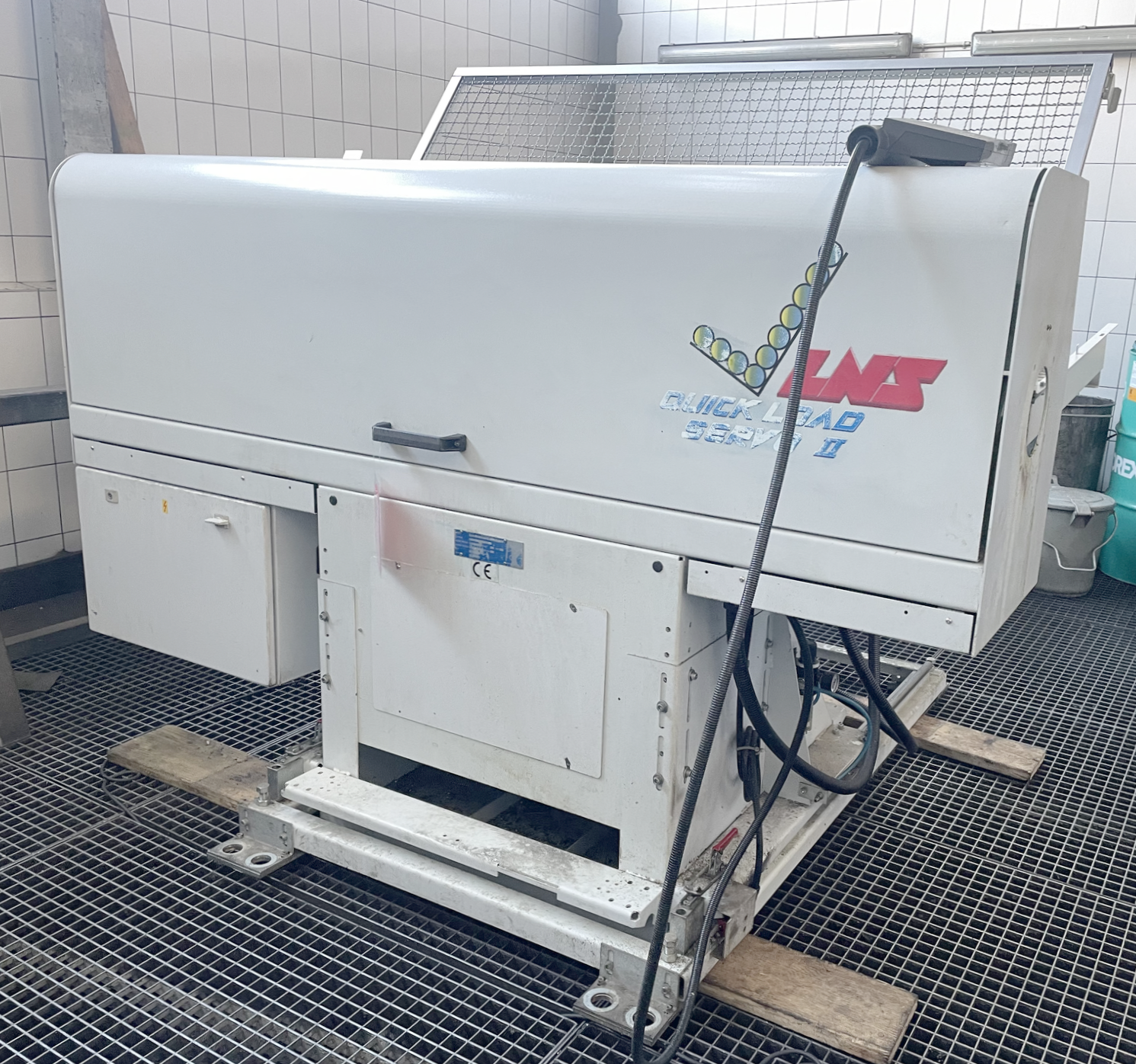

Bar feeder: LNS.
Type: Quick Load Servo 2.
