MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

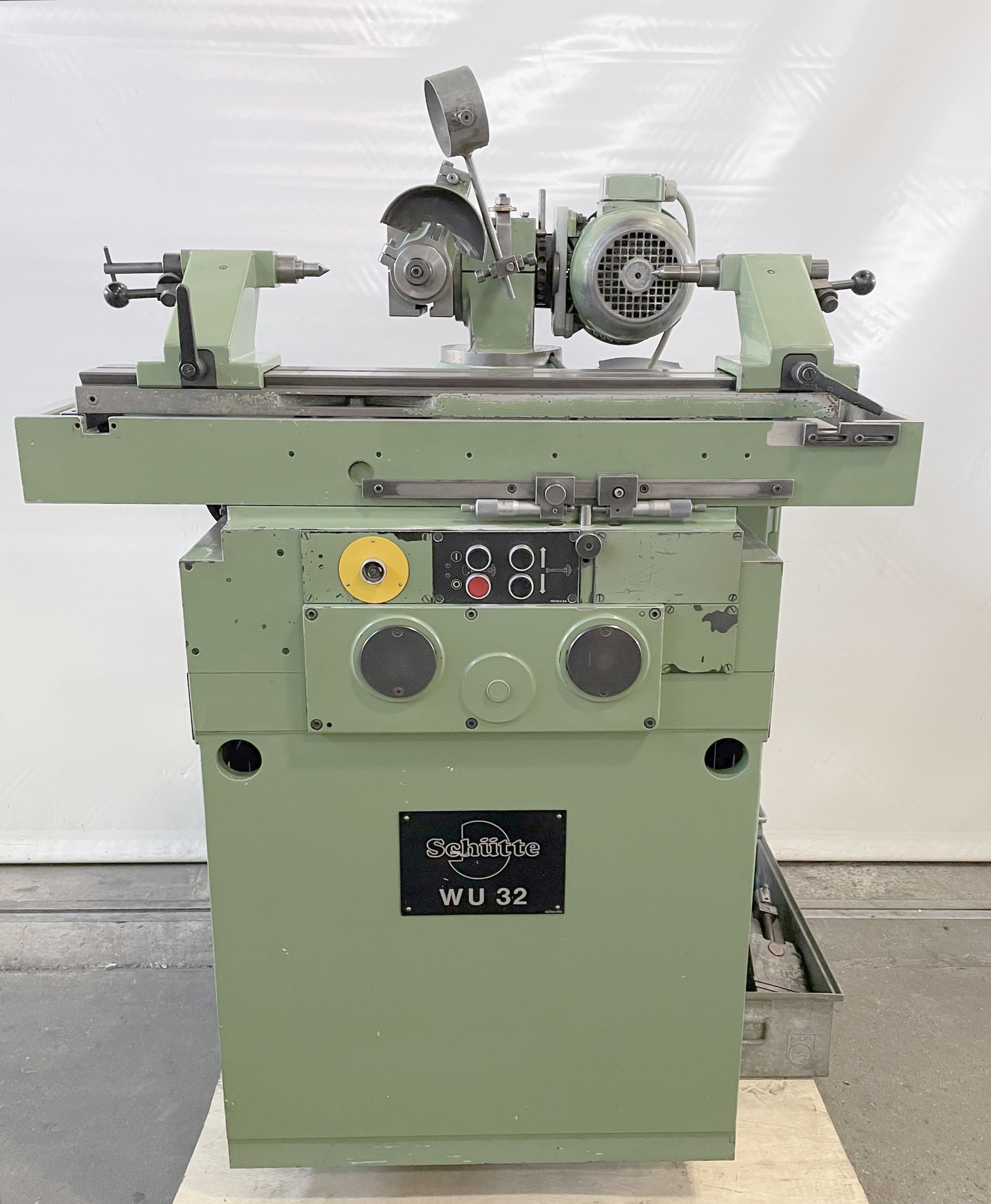

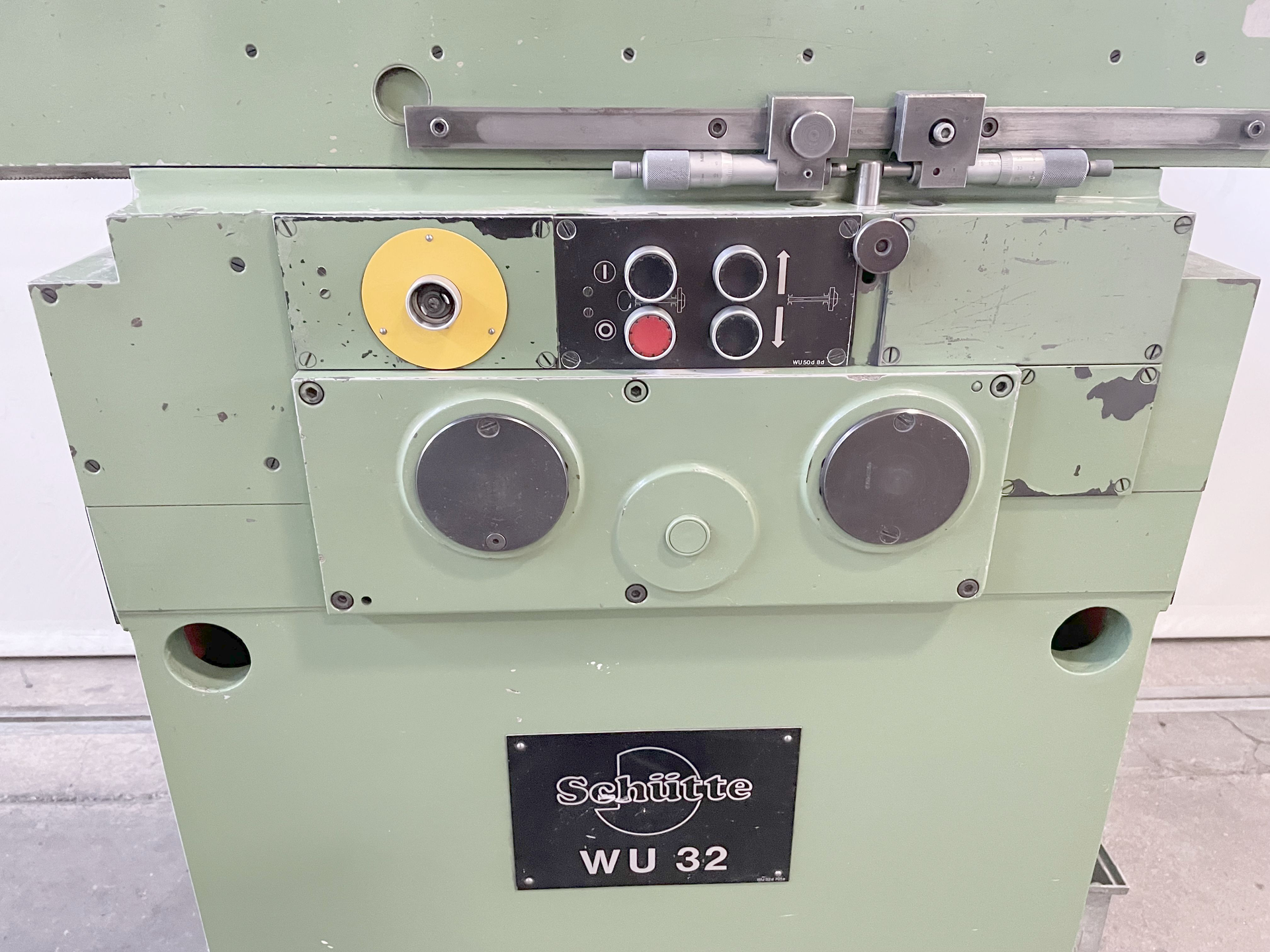

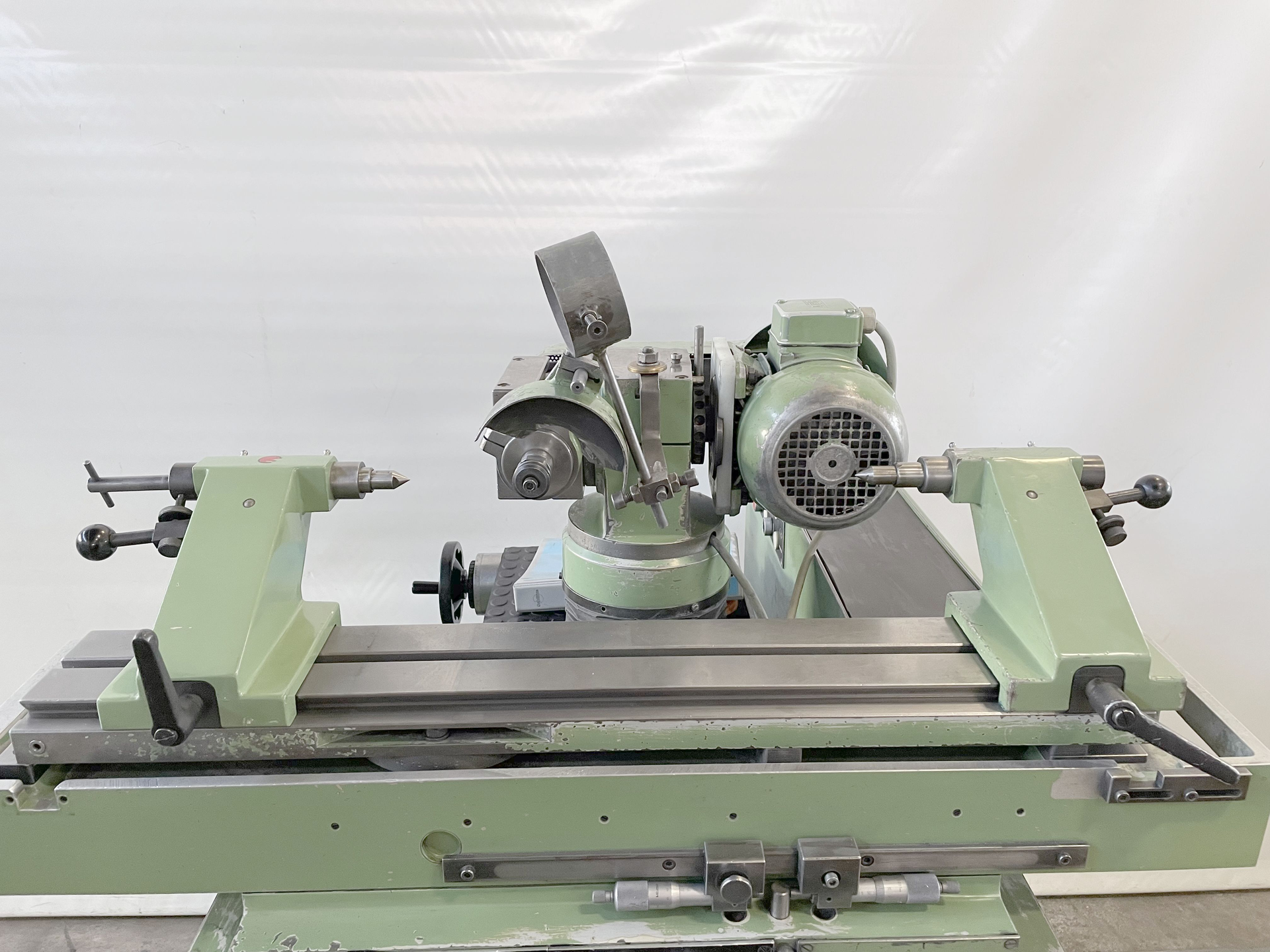

  • 022017 - SCHÜTTE WU 32
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 115 mm.
Distance between centres: 500 mm.
Max. grinding length: 320 mm.
Max. grinding diameter: 260 mm.
Longitudinal: 340 mm.
Vertical: 270 mm.
B axis (grinding head rotation): 360 °.
from: 3650 t/min.
up to: 6100 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 0.75 kW.
Machine's weight about: 700 kg.
Length: 1375 mm.
Width: 1325 mm.
Height: 1500 mm.
