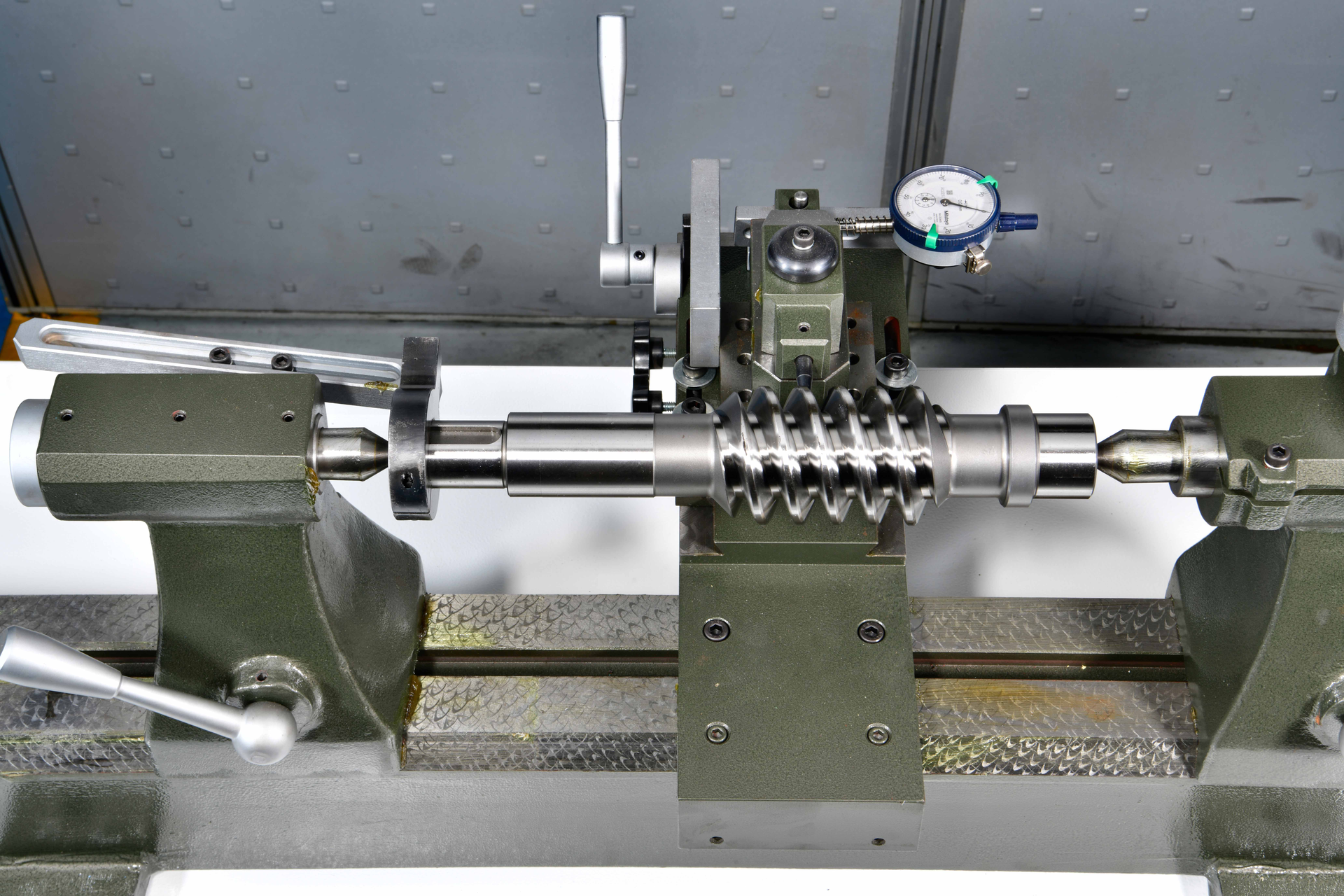

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HUAWIN
  • Model:

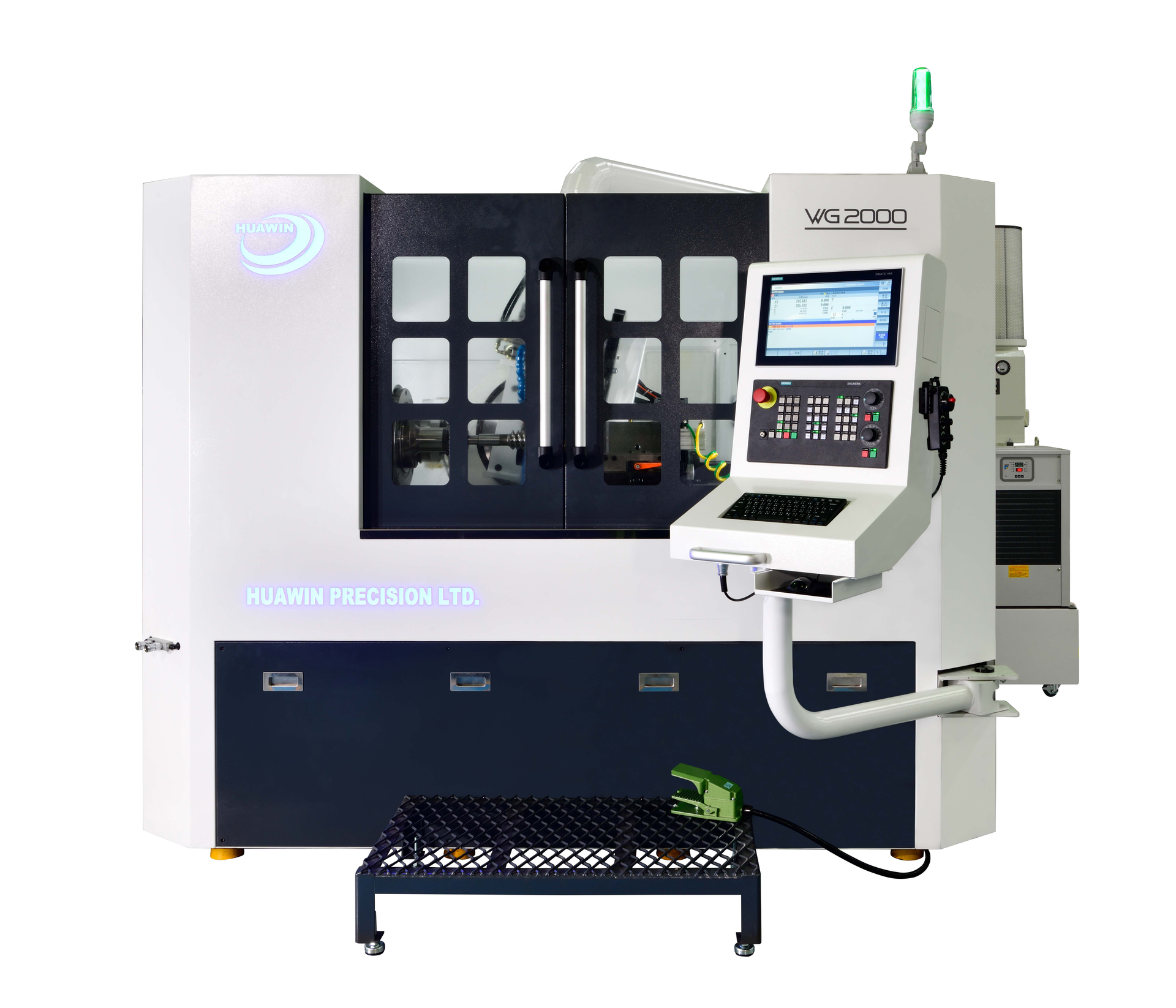

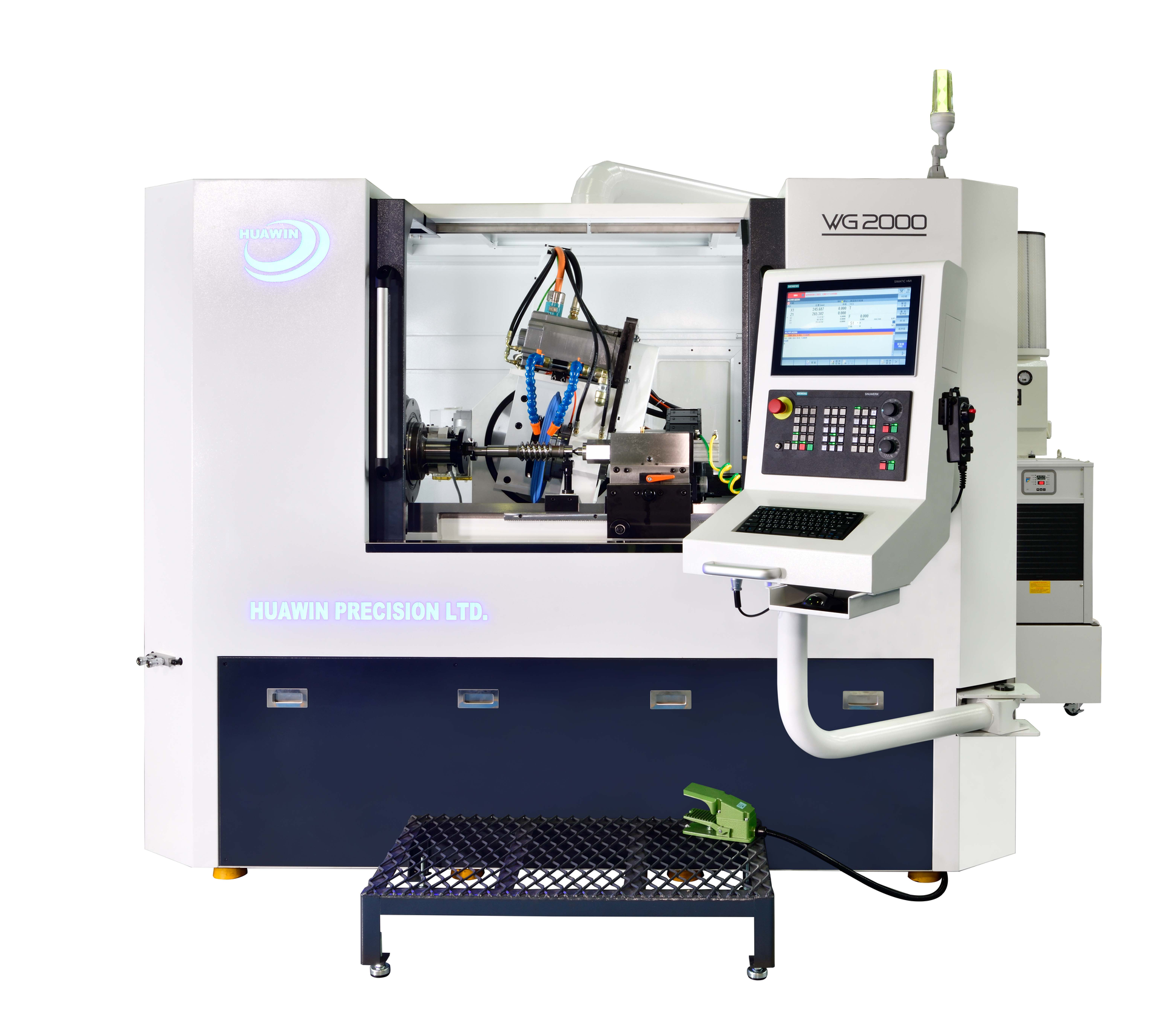

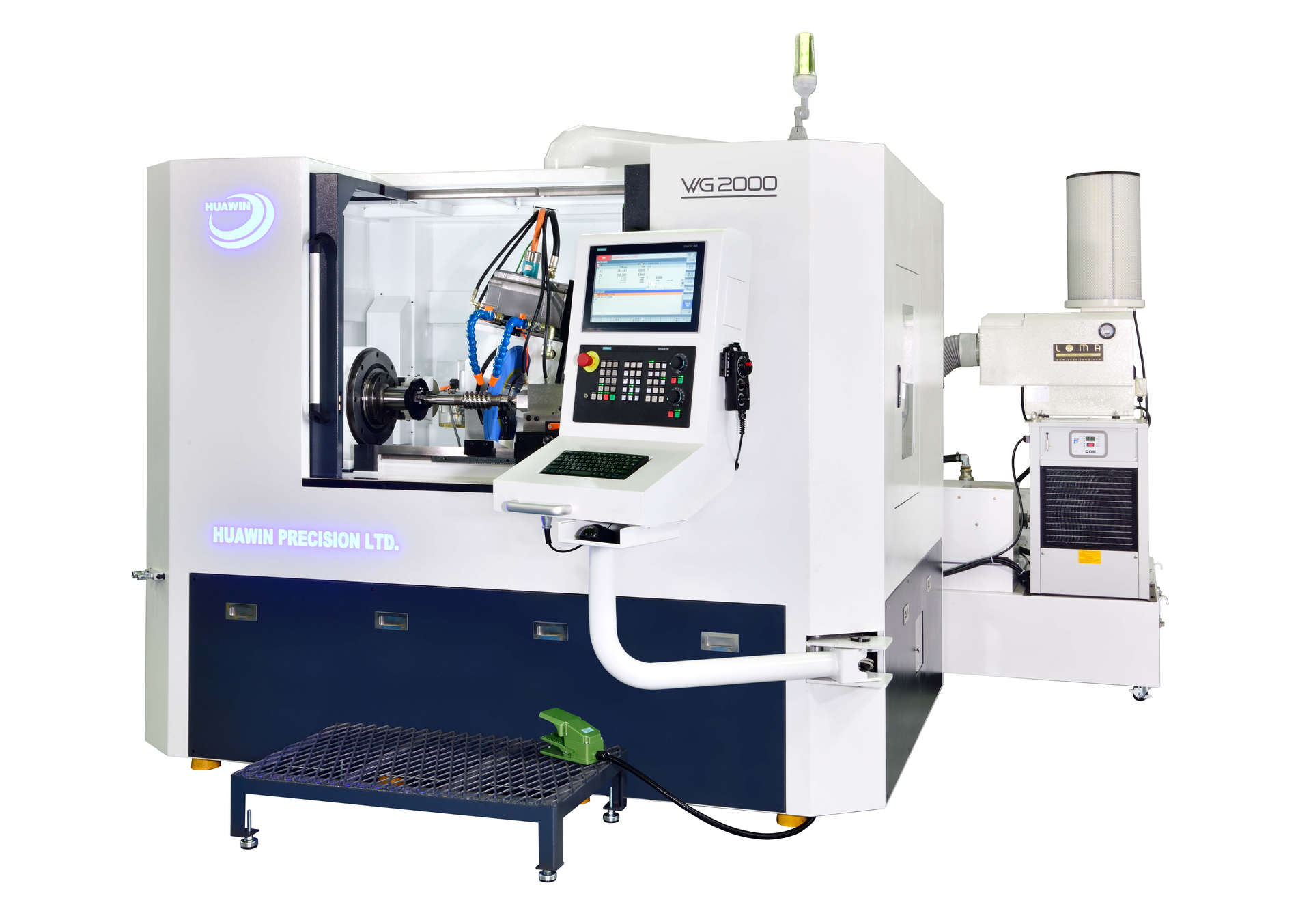

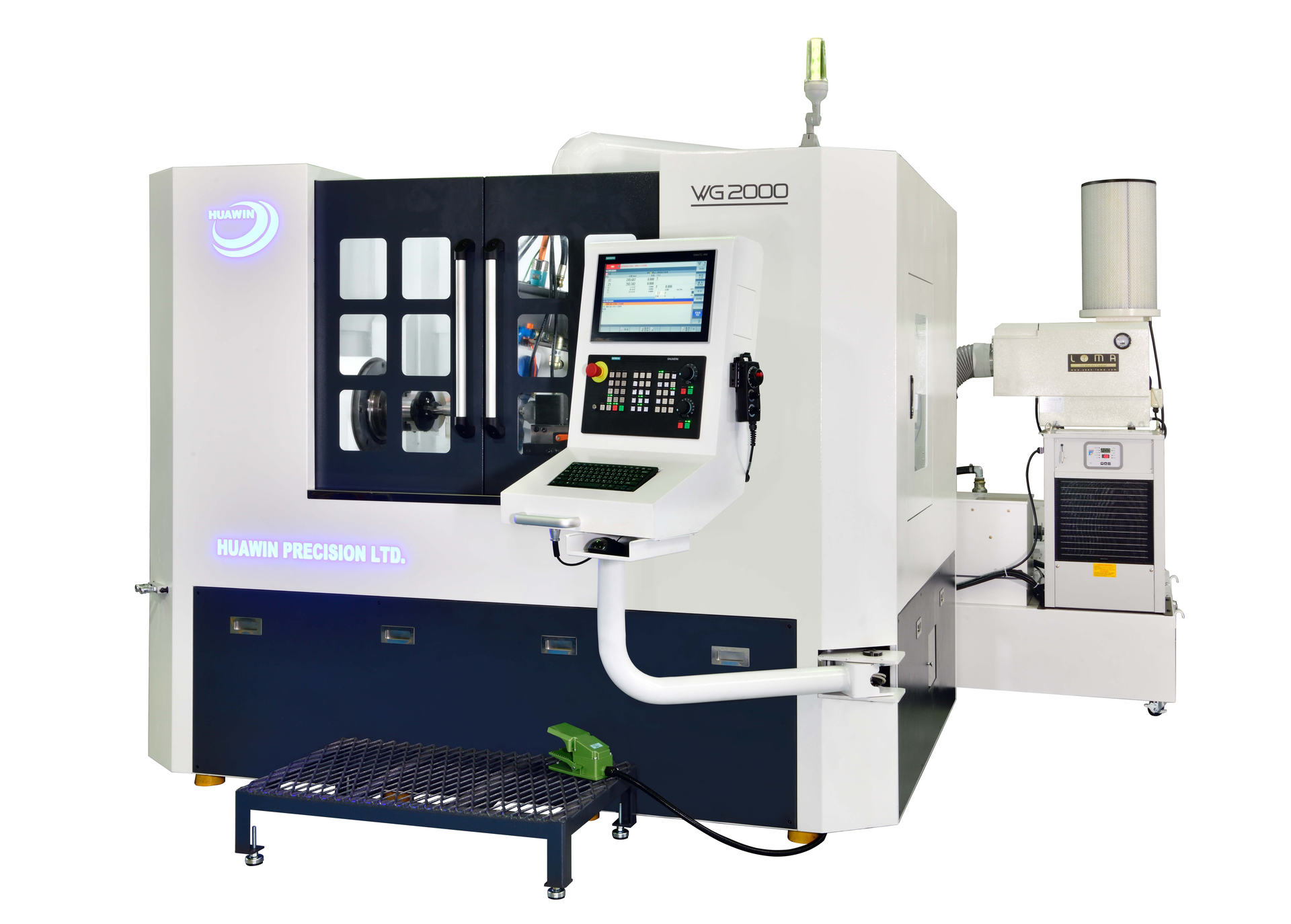

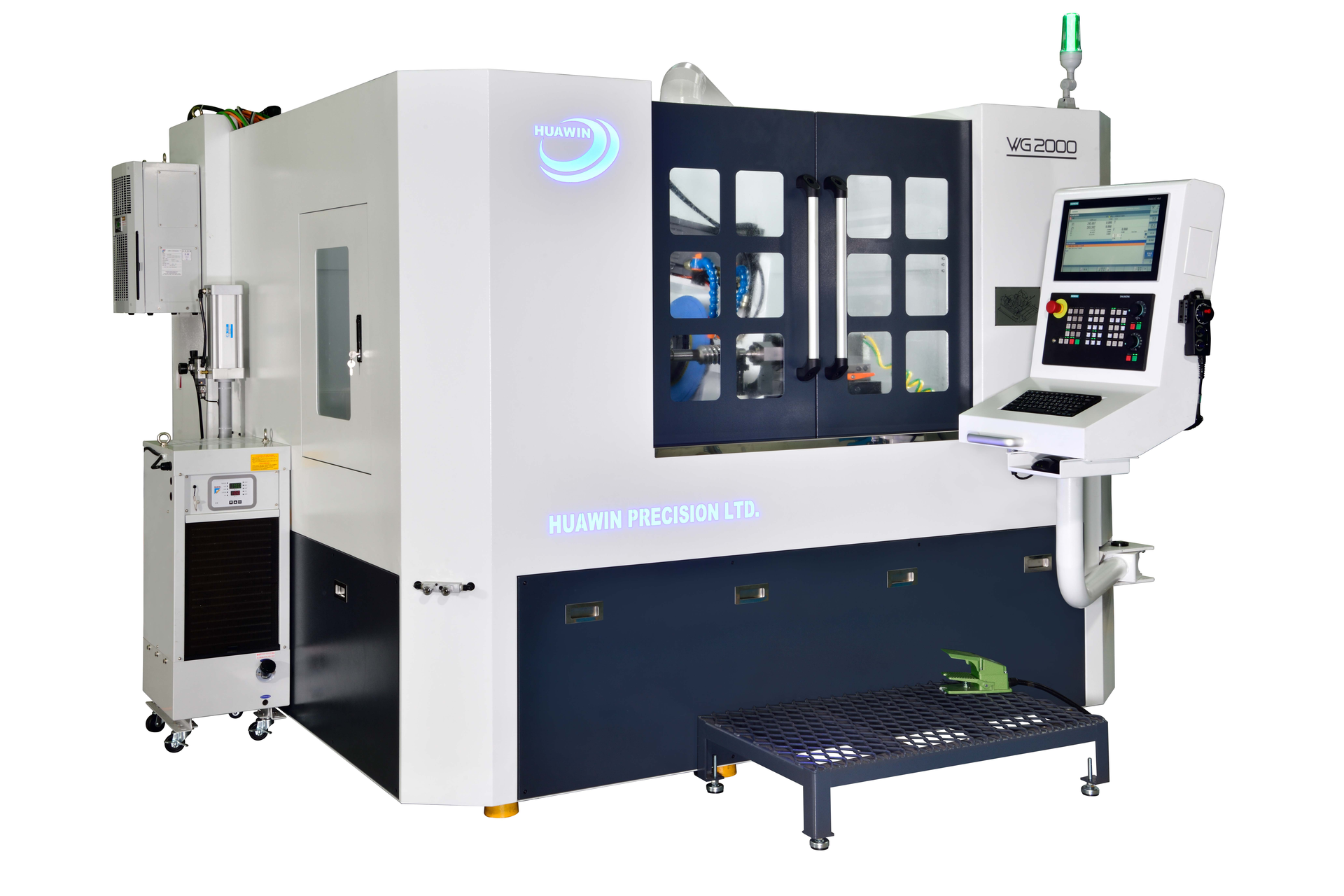

  • 022000 - HUAWIN WG 2000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

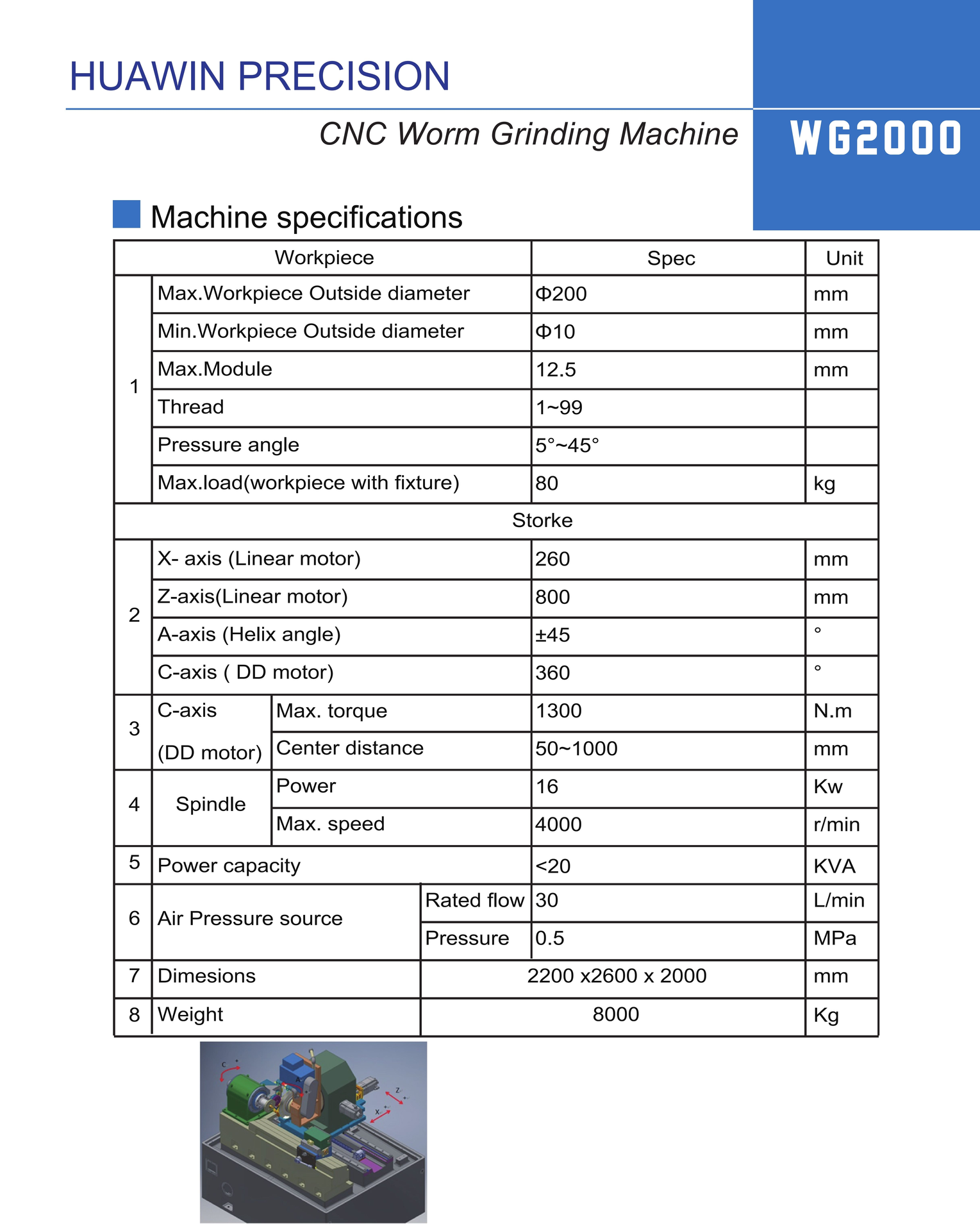

DESCRIPTION

Distance between centres: 1000 mm.
min.: 1 mm.
max: 99 mm.
Workpiece weight on centres max.: 80 kg.
Pression angle: 5 - 45 °.
Max. module: 13.
X axis: 260 mm.
Z axis: 800 mm.
A axis: +/-45 °.
C axis: 360 °.
Air connect: 5 bar.
Grinding spindle motor: 16 kW.
Torque max.: 1300 Nm.
Total power required: 20 kVA.
Machine's weight about: 8000 kg.
Length: 2600 mm.
Width: 2200 mm.
Height: 2000 mm.
