MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FERRARI
  • Model:
  • 021996 - FERRARI C.B. ML 45
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis simultaneous: 5.
Longitudinal travel (X-axis): 320 mm.
Transversal travel (y-axis): 320 mm.
Vertical travel (z axis): 320 mm.
Length: 2700 mm.
Width: 2400 mm.
Height: 2900 mm.
Table load max.: 20 kg.
A axis: 360 °.
B axis swivelling range: +/-115 °.

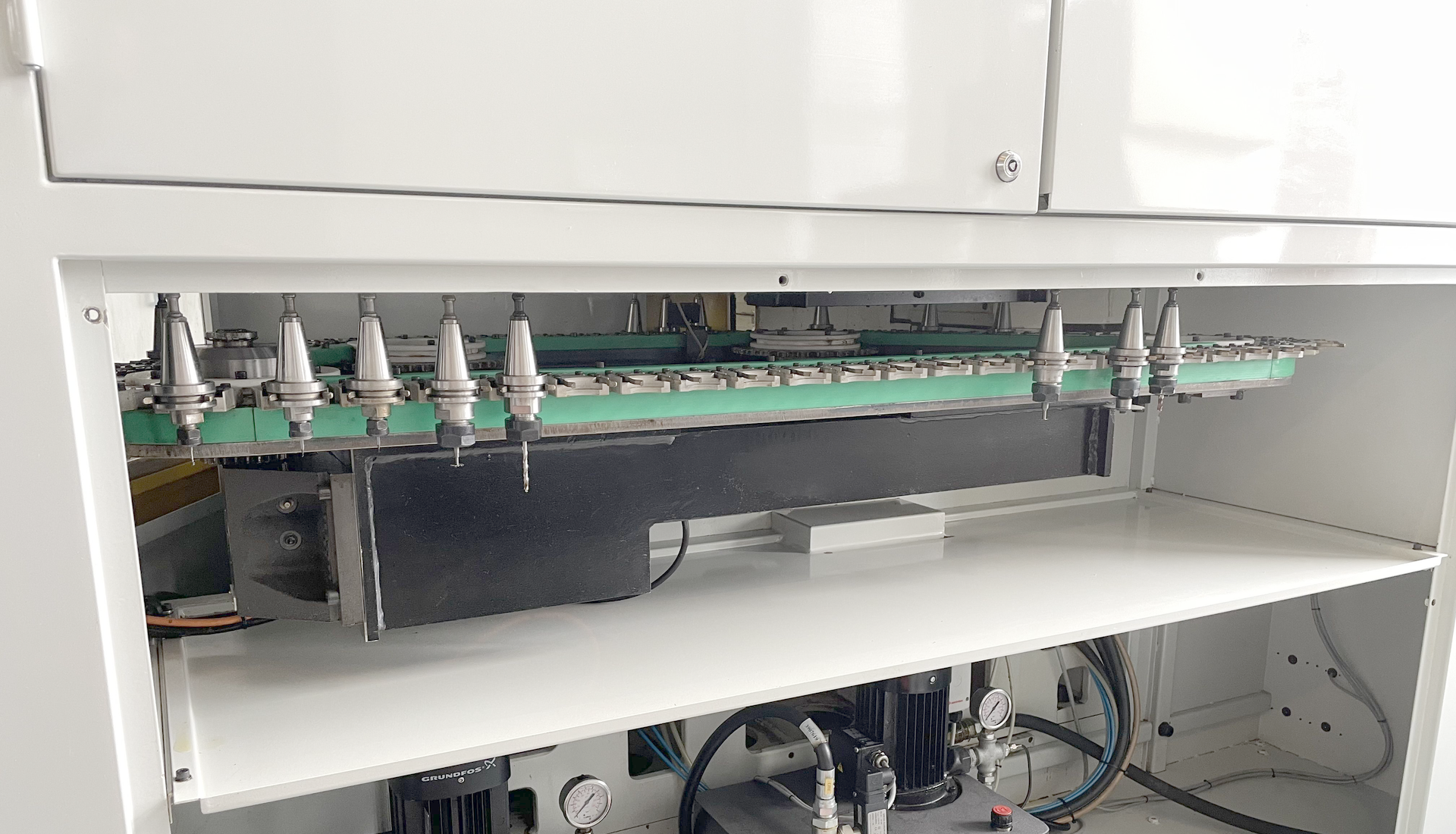

Number of tools: 60.
Spindle nose: ISO: V 30.
from: 0 t/min.
up to: 40000 t/min.
Feed range: 60000 mm/min.
Rapid traverse:: 60 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 11 kW.
Total power required: 35 kW.
Machine's weight about: 6000 kg.
