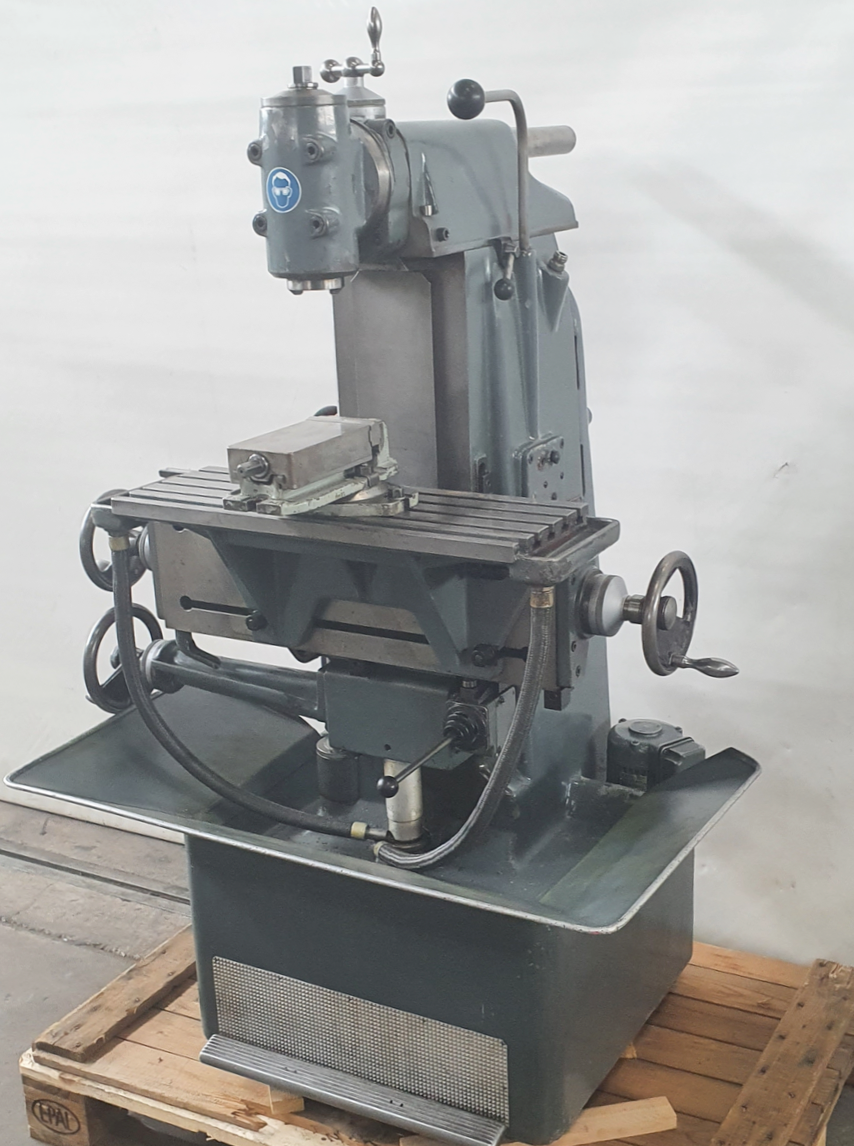

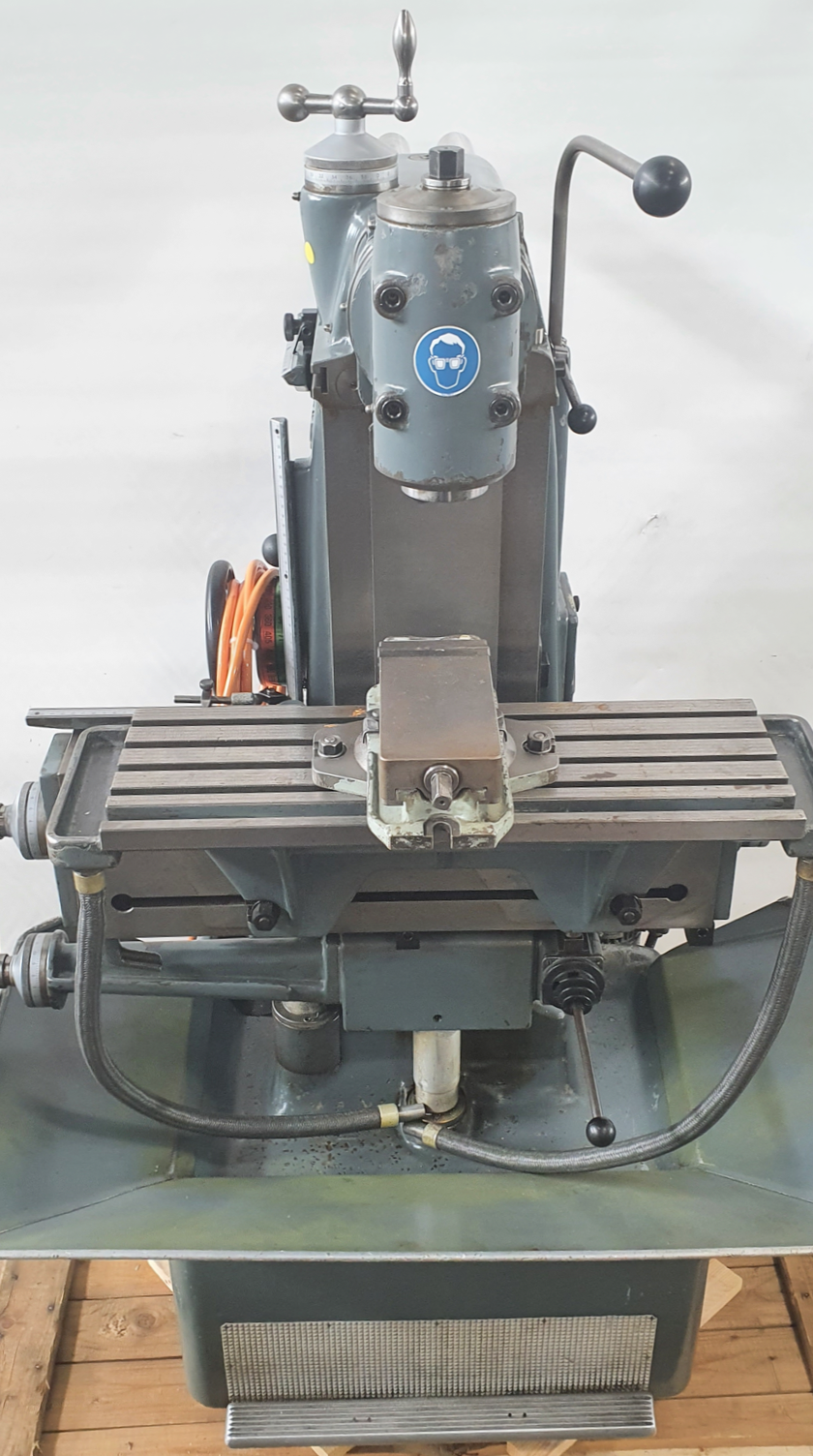

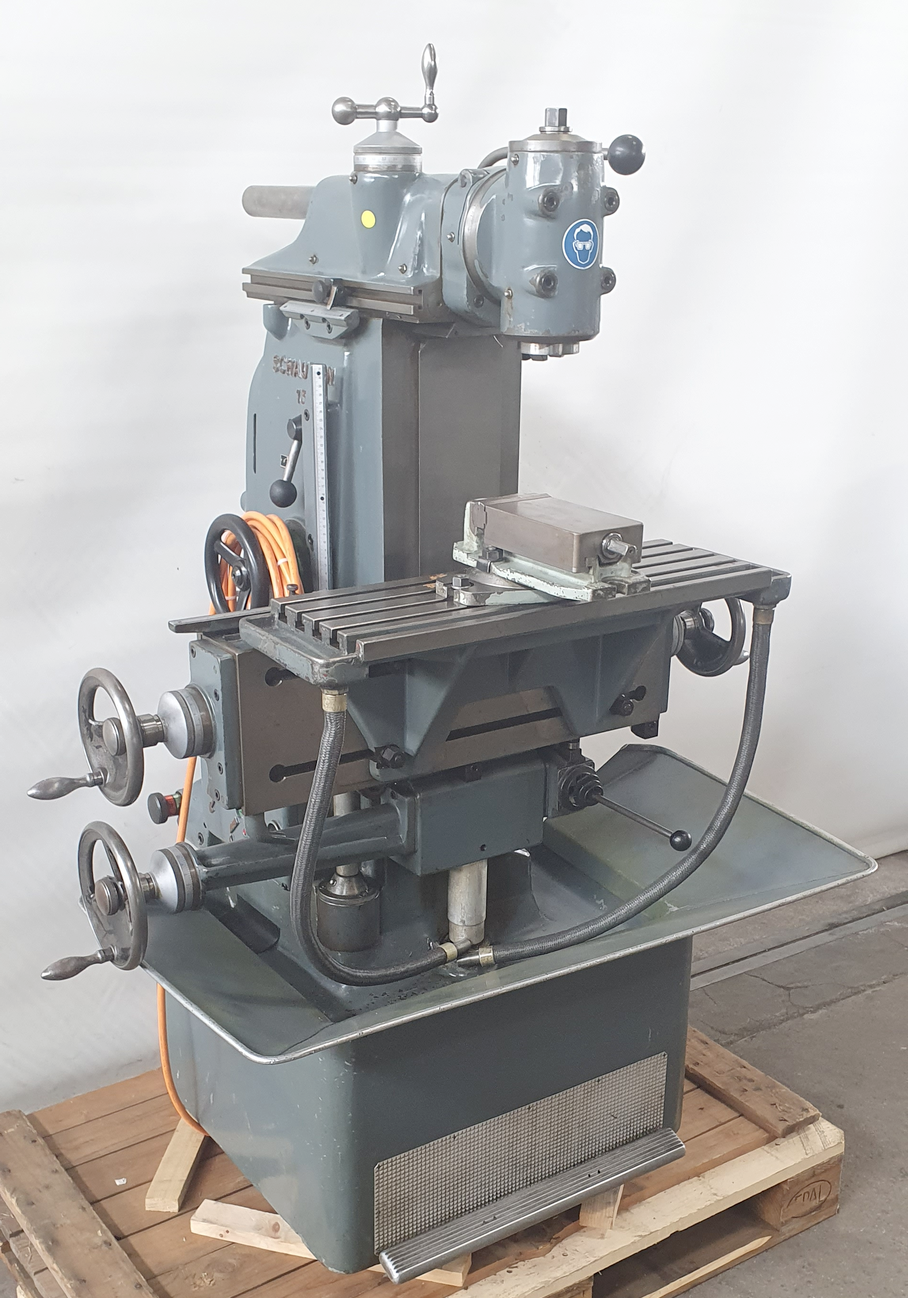

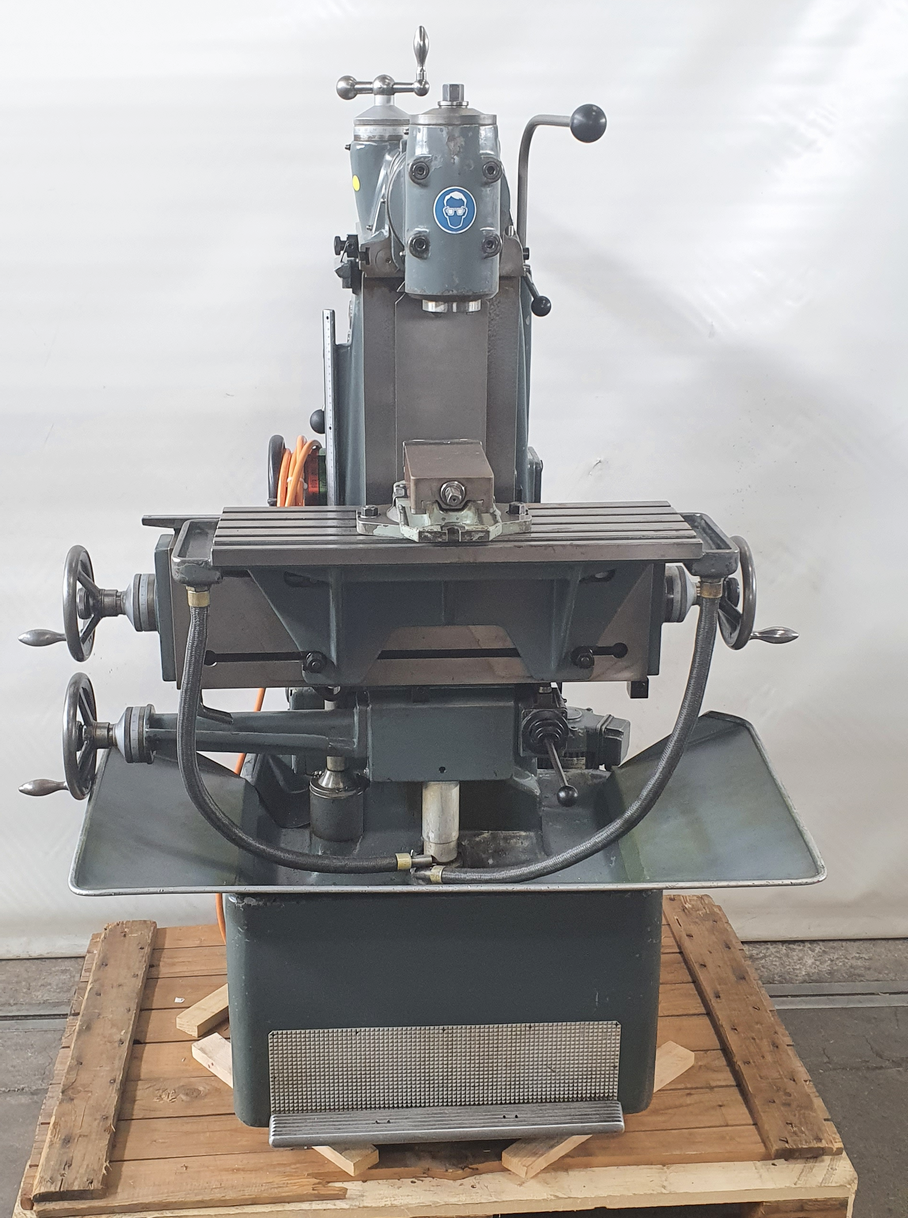

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 021941 - SCHAUBLIN 13
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 600 mm.
Table width: 210 mm.
Number of T-channels: 4.
T-channel width: 12 mm.
Distance of the T-slots: 40 mm.
Longitudinal travel (X-axis): 260 mm.
Transversal travel (y axis): 150 mm.
Vertical travel (z axis): 310 mm.
Travel of the upper slide: mm.
Distance from vertical spindle to table: 310 mm.
Distance from horizontal spindle to table: 410 mm.
from: 58 t/min.
up to: 400 mm/min.
Taper in spindle: 30 ISO.
Feeds steps:: 10.
longitudinal from: 12.0 mm/min.
vertical from: 12.0 mm/min.
longitudinal: 1.2 m/min.
vertical: 1.2 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 2.0 CV.
Total power required: kVA.
Machine's weight about: 700 kg.
Length: 1500 mm.
Width: 1100 mm.
Height: 1600 mm.
