MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Matsuura
  • Model:

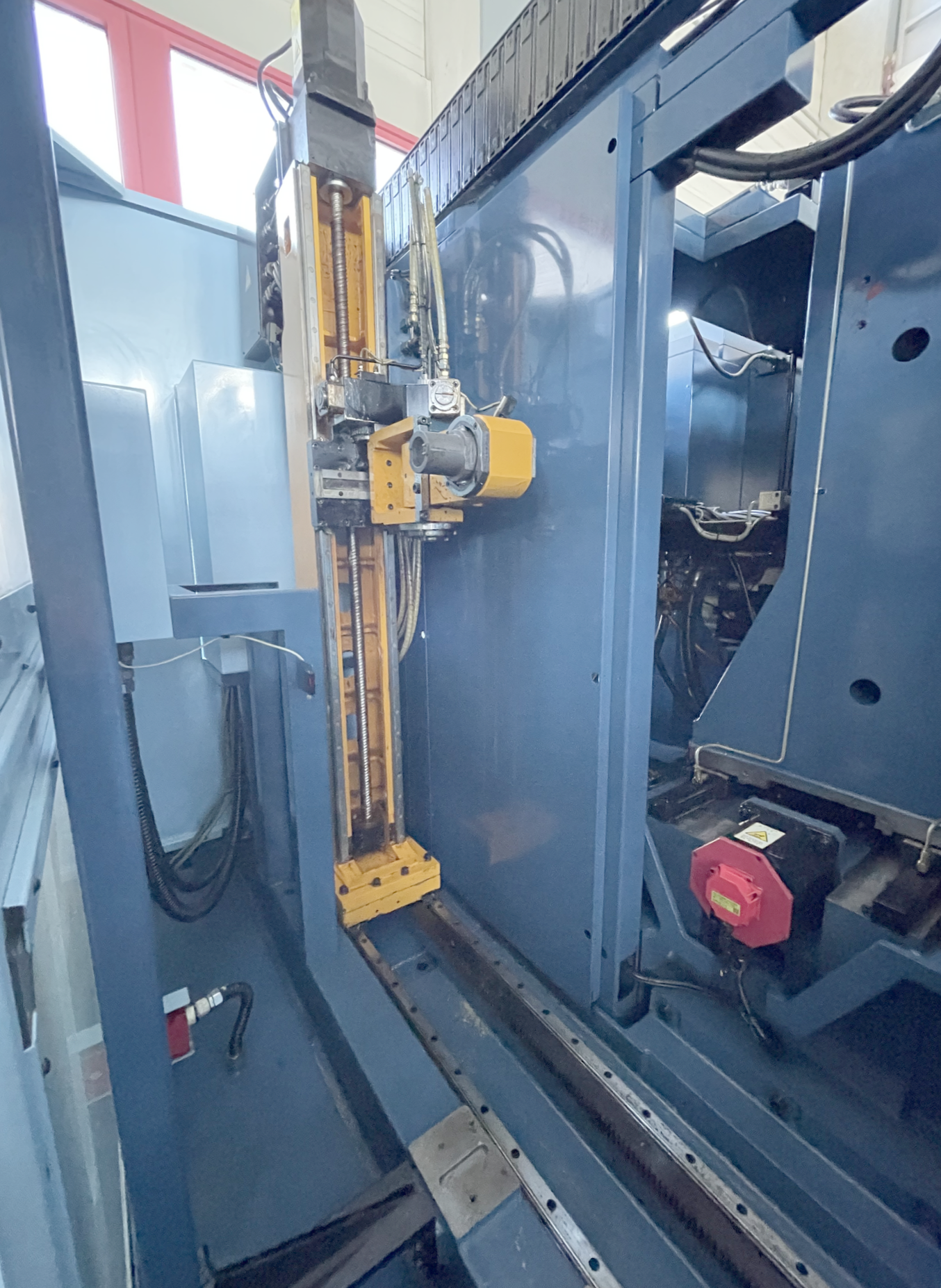

  • 021765 - MATSUURA H. PLUS 300
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Number of spindles: 1.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 500 mm.
Vertical travel (z axis): 500 mm.
Height: 2445 mm.
Diameter: 530 mm.
B axis: 1 °.
C axis: 1 °.
numbers: 2.
Length: 3660 mm.
Width: 2463 mm.
Maximum workpiece weight: 250 kg.
Pallet weight: 40 kg.
Time of changing palets: 7 s.

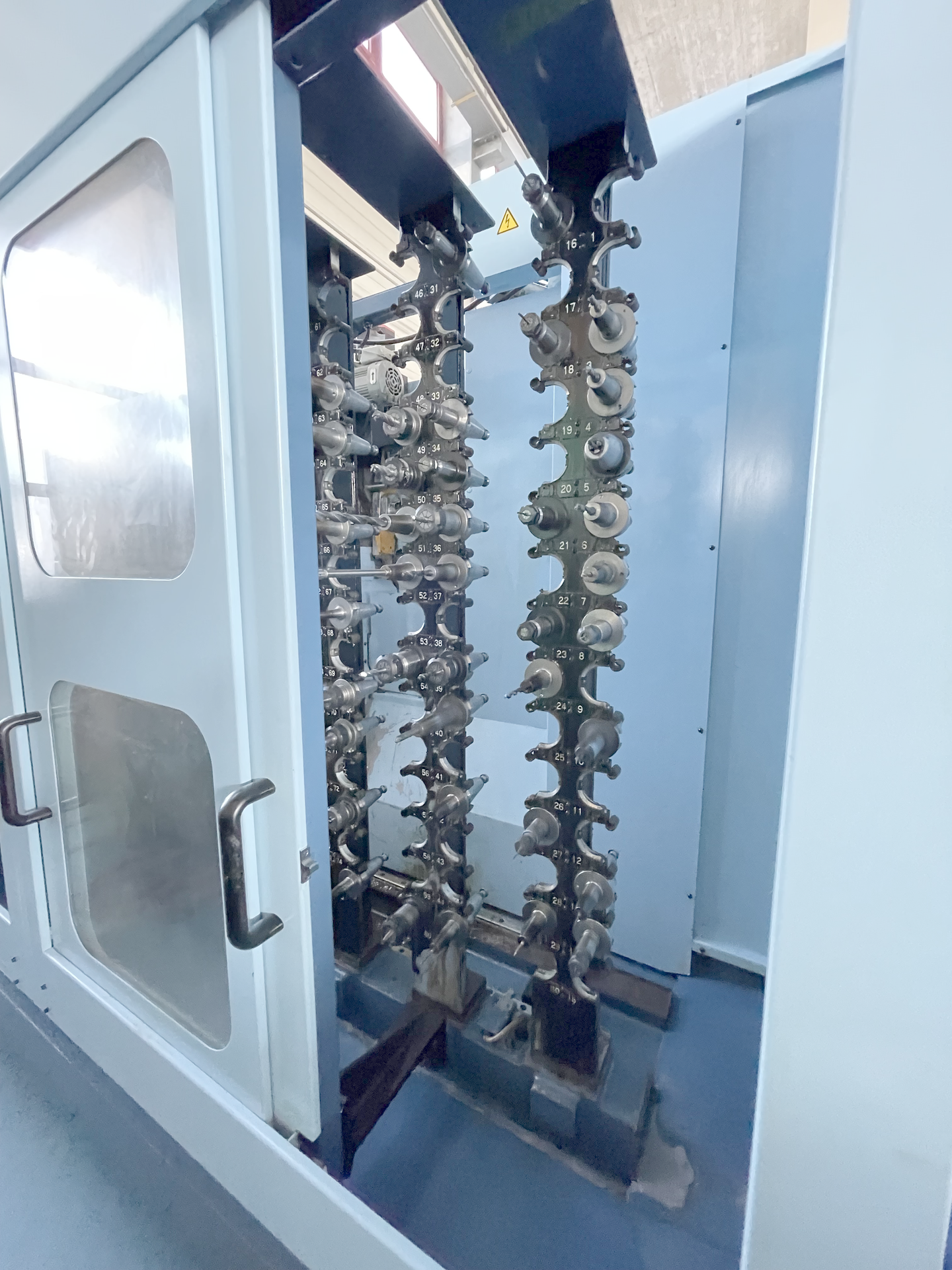

Number of tools: 90.
Tool diameter max.: 80 mm.
Diameter with free adjacent pockets: 150 mm.
Tool lenght: 300 mm.
Max. tool-weight: 8 kg.
Time of tool changing: 2 s.
Average chip-to-chip time: 2.9 s.
Spindle nose: BT: 40.
Distance spindle nose to table: 80 - 580 mm.
from: 50 t/min.
up to: 15000 t/min.
Torque max.: 95.4 Nm.
Feed range: 1 - 50000 mm/min.
Rapid traverse:: 50 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle power: 15 / 22 kW.
Total power required: 44 kVA.
Machine's weight about: 7000 kg.
Coolant system: 500 l.

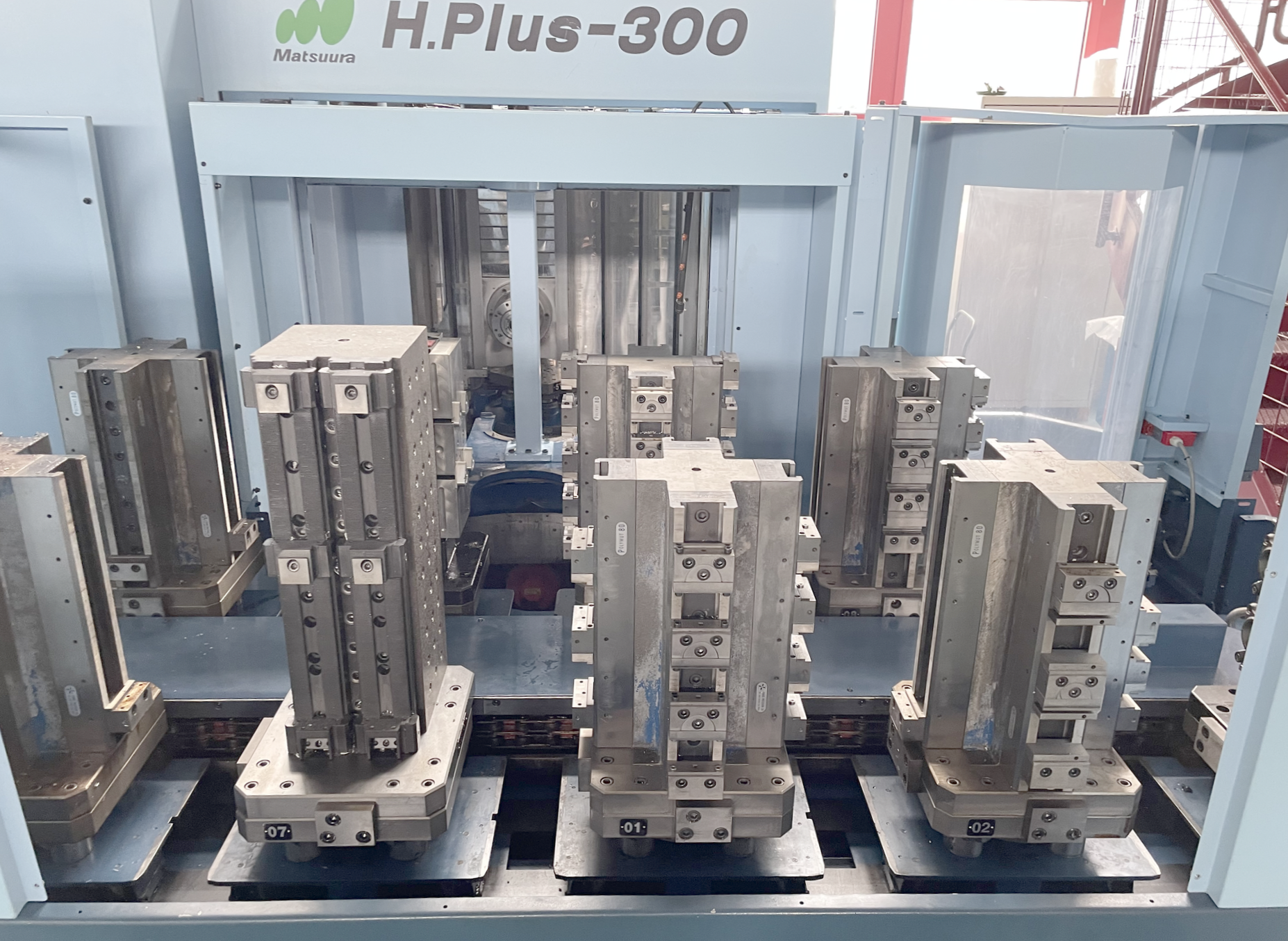

Pallets: number: 10.
