MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Brother
  • Model:

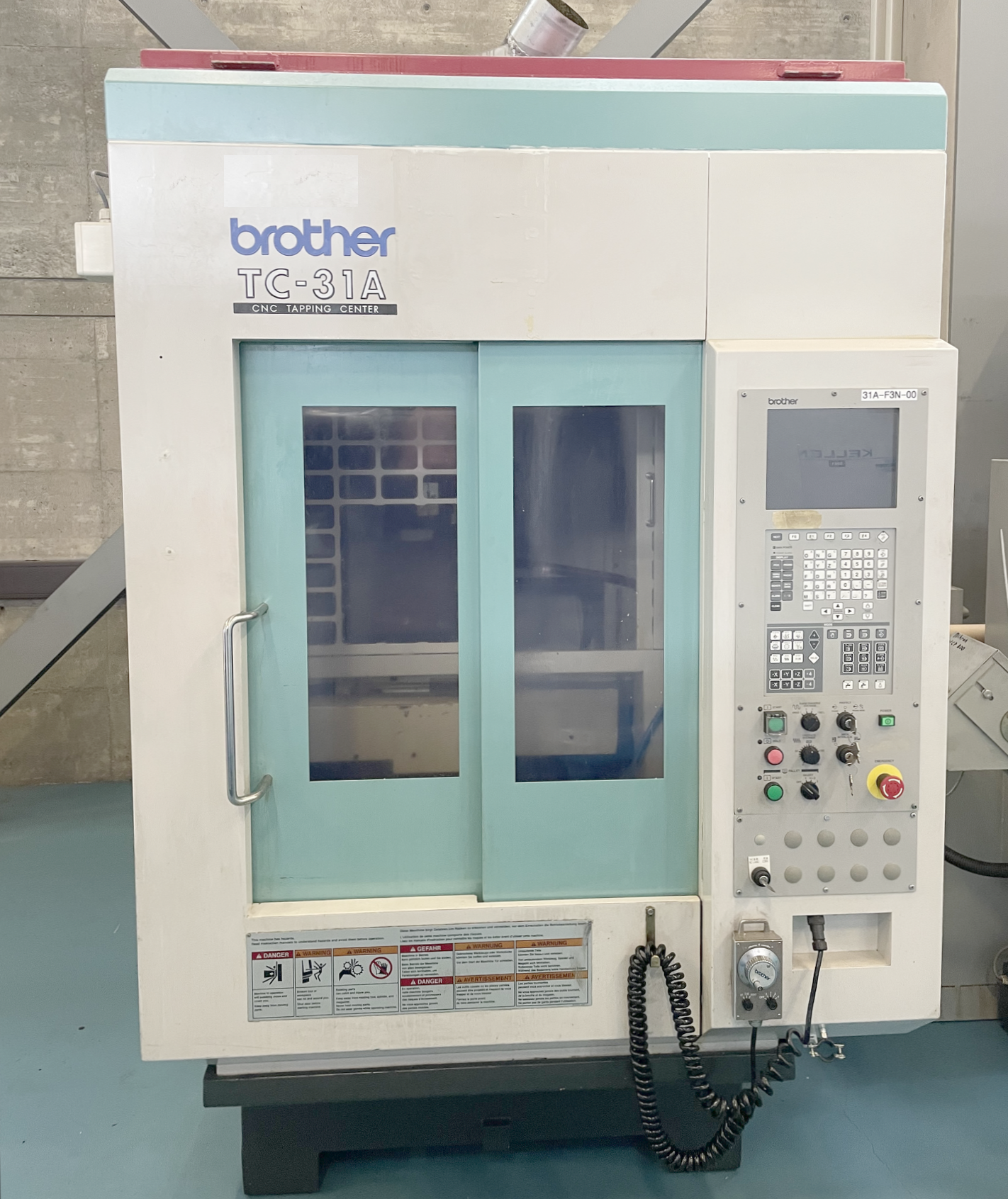

  • 021681 - BROTHER TC-31 A
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Number of spindles: 1.

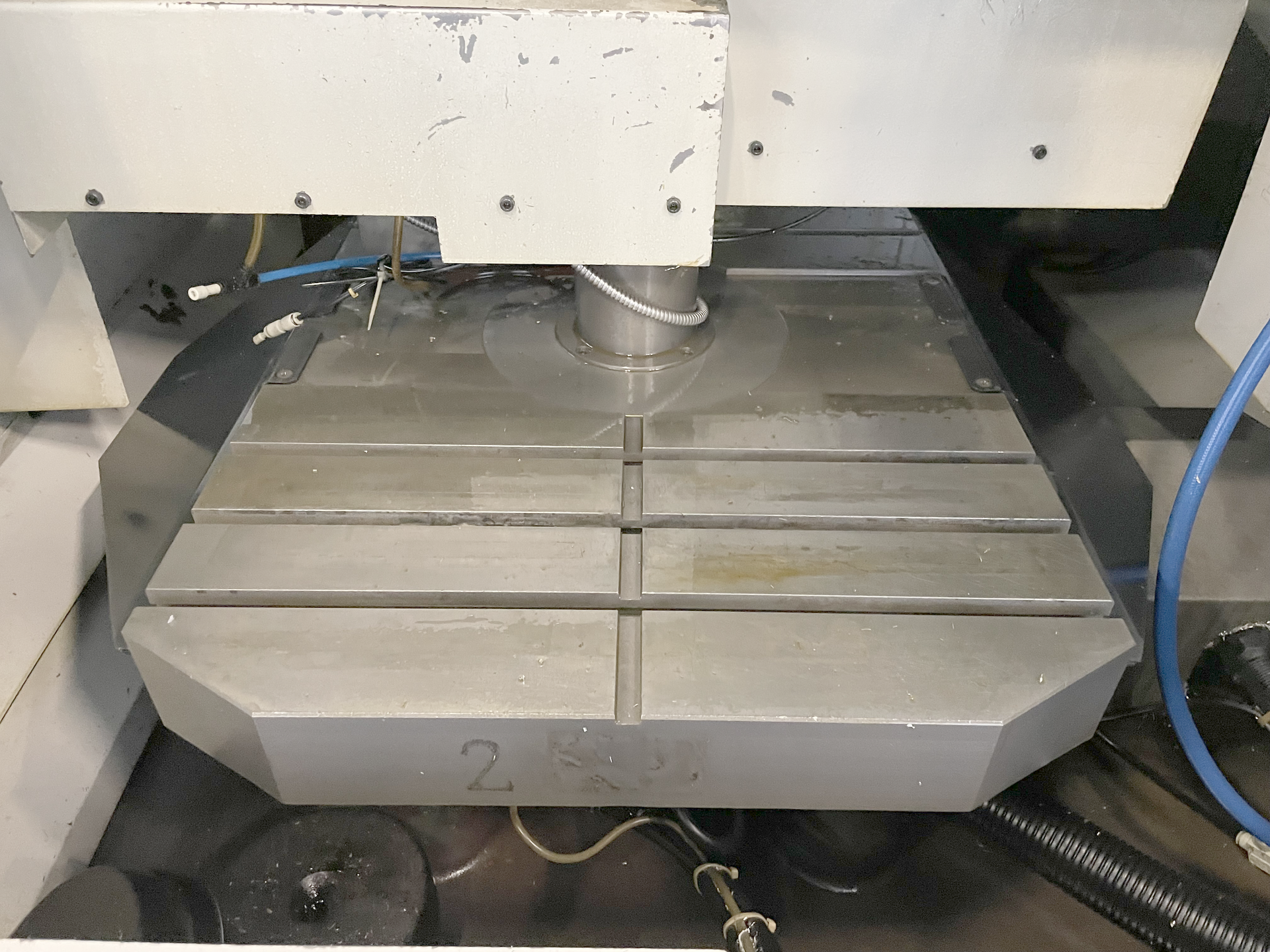

Number of tables: 2.
Table length: 500 mm.
Table width: 270 mm.
Table load max.: 80 kg.
Longitudinal travel (X-axis): 350 mm.
Transversal travel (y-axis): 250 mm.
Vertical travel (z axis): 350 mm.

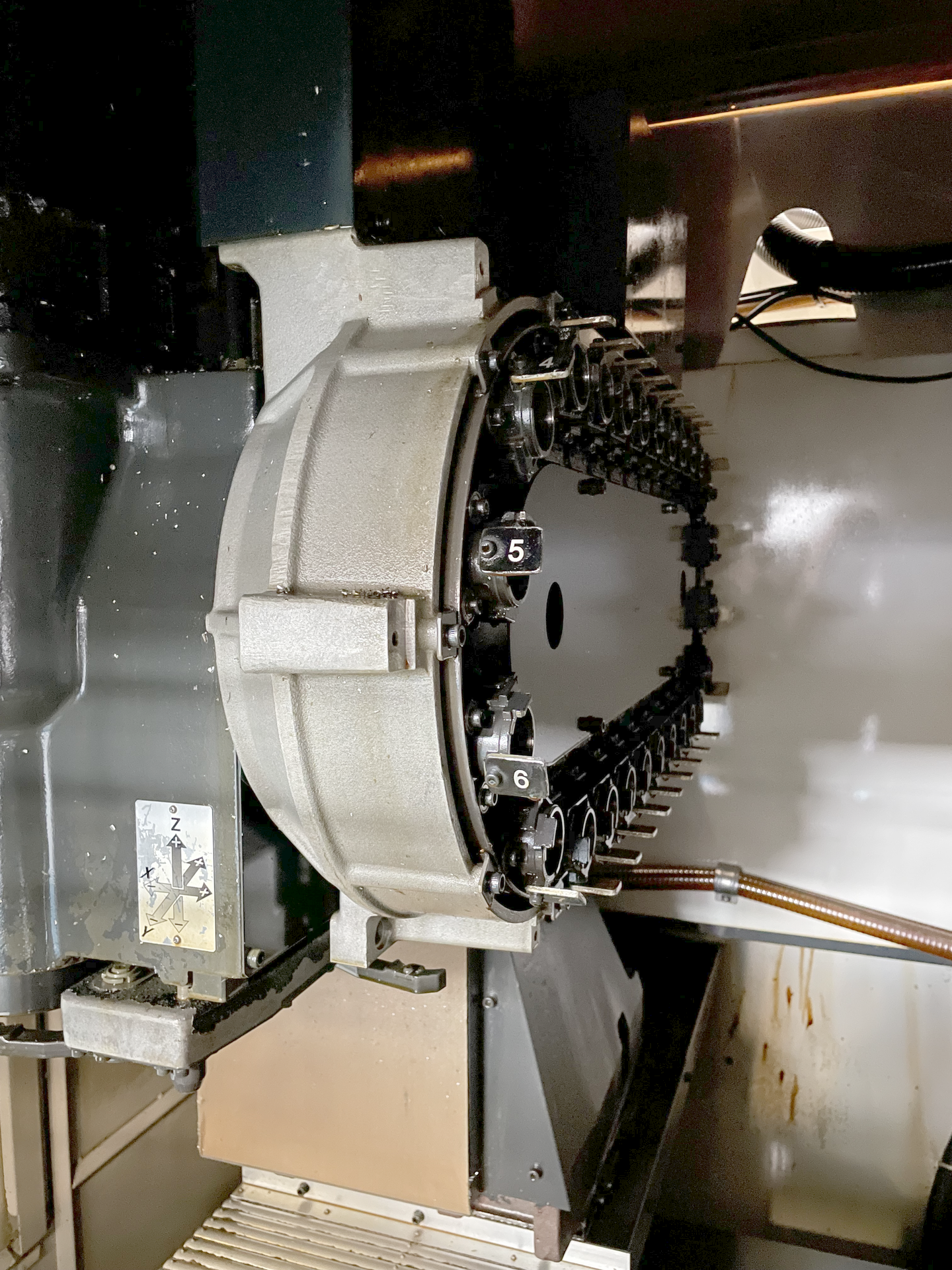

Number of tools: 26.
Tool diameter max.: 55 mm.
Tool lenght: 200 mm.
Max. tool-weight: 2 kg.
Spindle nose: BT: 30.
Distance spindle nose to table: 200 - 550 mm.
from: 22 t/min.
up to: 22000 t/min.
Feed range: 5 - 20000 mm/min.
Rapid traverse:: 50 m/min.
Air connect: 4 - 6 bar.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 25 kVA.
Machine's weight about: 2100 kg.
Length: 2341 mm.
Width: 1410 mm.
Height: 2165 mm.
