MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TORNOS
  • Model:

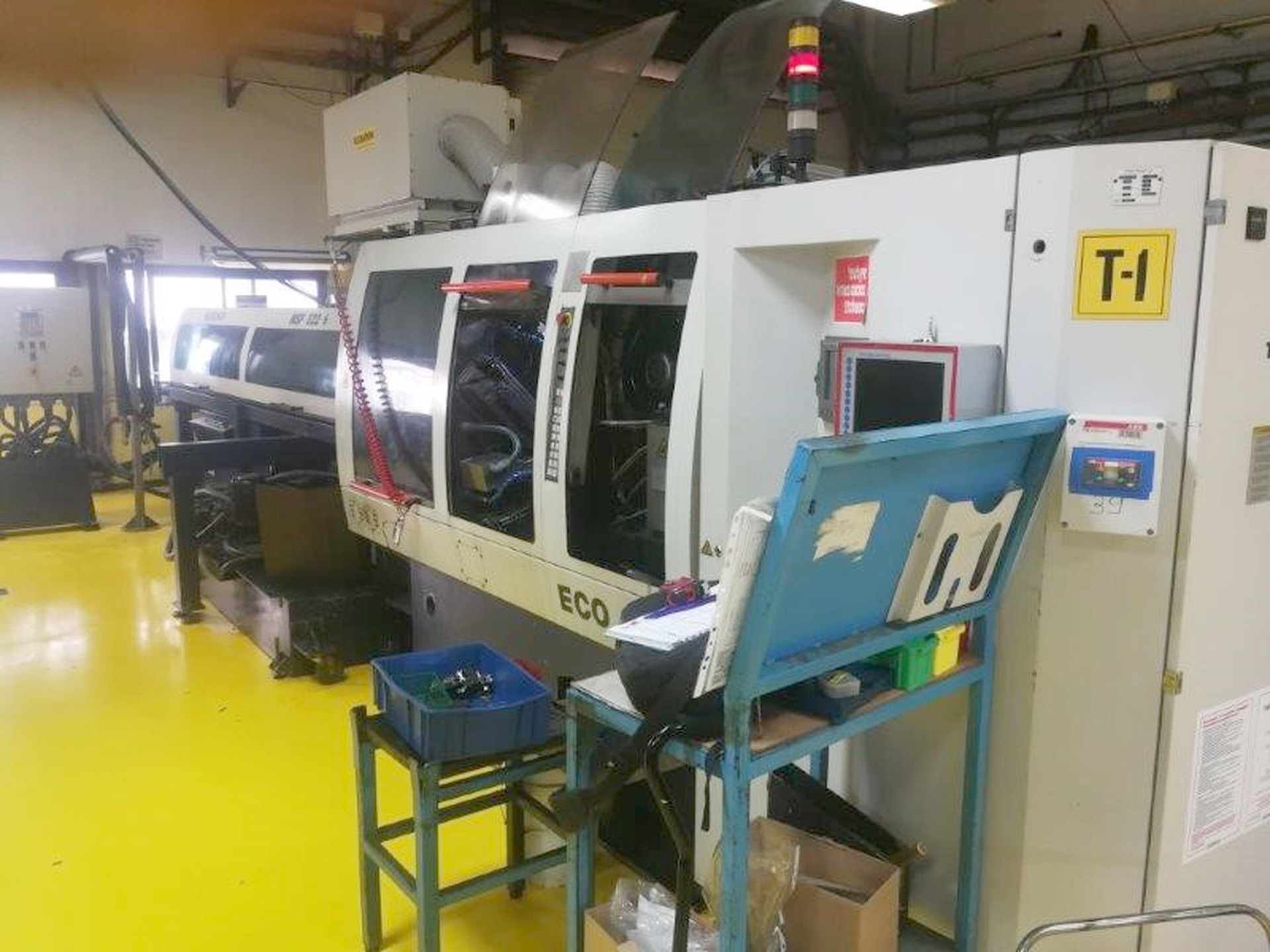

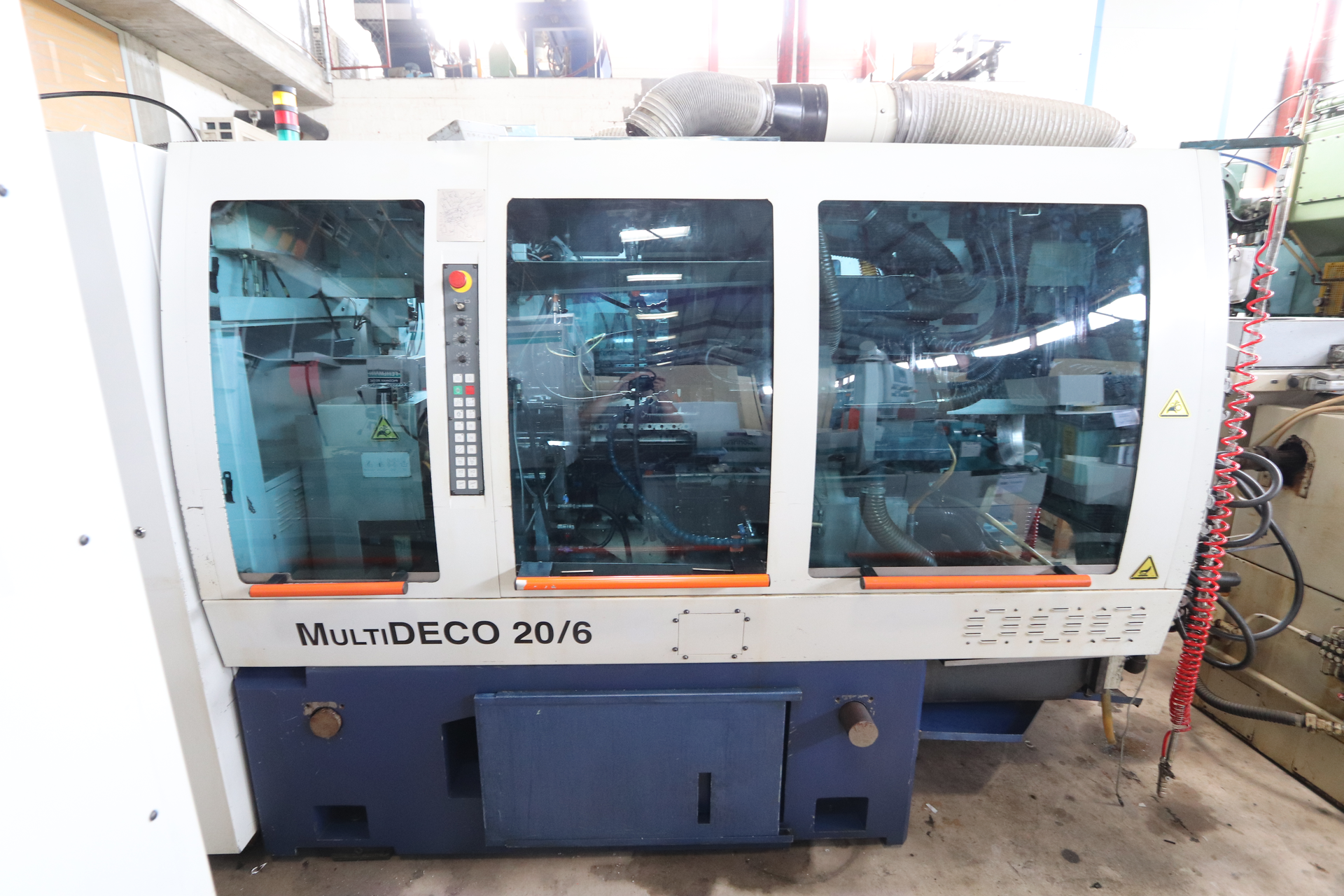

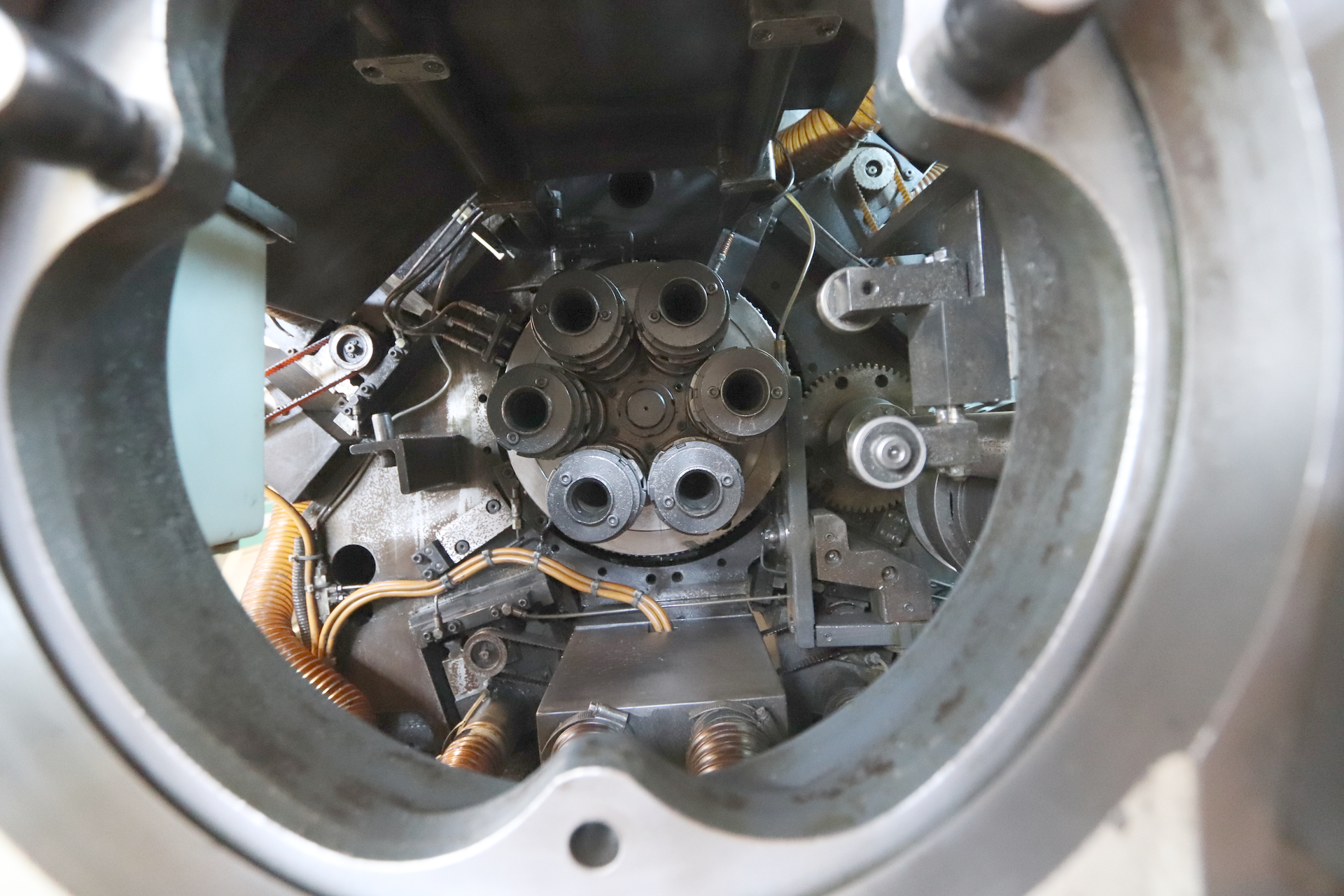

  • 020878 - TORNOS MULTIDECO 20/6
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 18.
Number of cross slides: 6.
Plain turning slide number: 5.
Longitudinal carriage way: 160 mm.
Number back spindle: 1.
Capacity round bar: 5-20 mm.
Workpiece length max.: 100 mm.
up to: 6000 t/min.
Production capacity: 45 pce/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 15 kW.
Total power required: 43 kVA.
Machine's weight about: 8500 kg.
Length: 3500 mm.
Width: 1600 mm.
Height: 1950 mm.

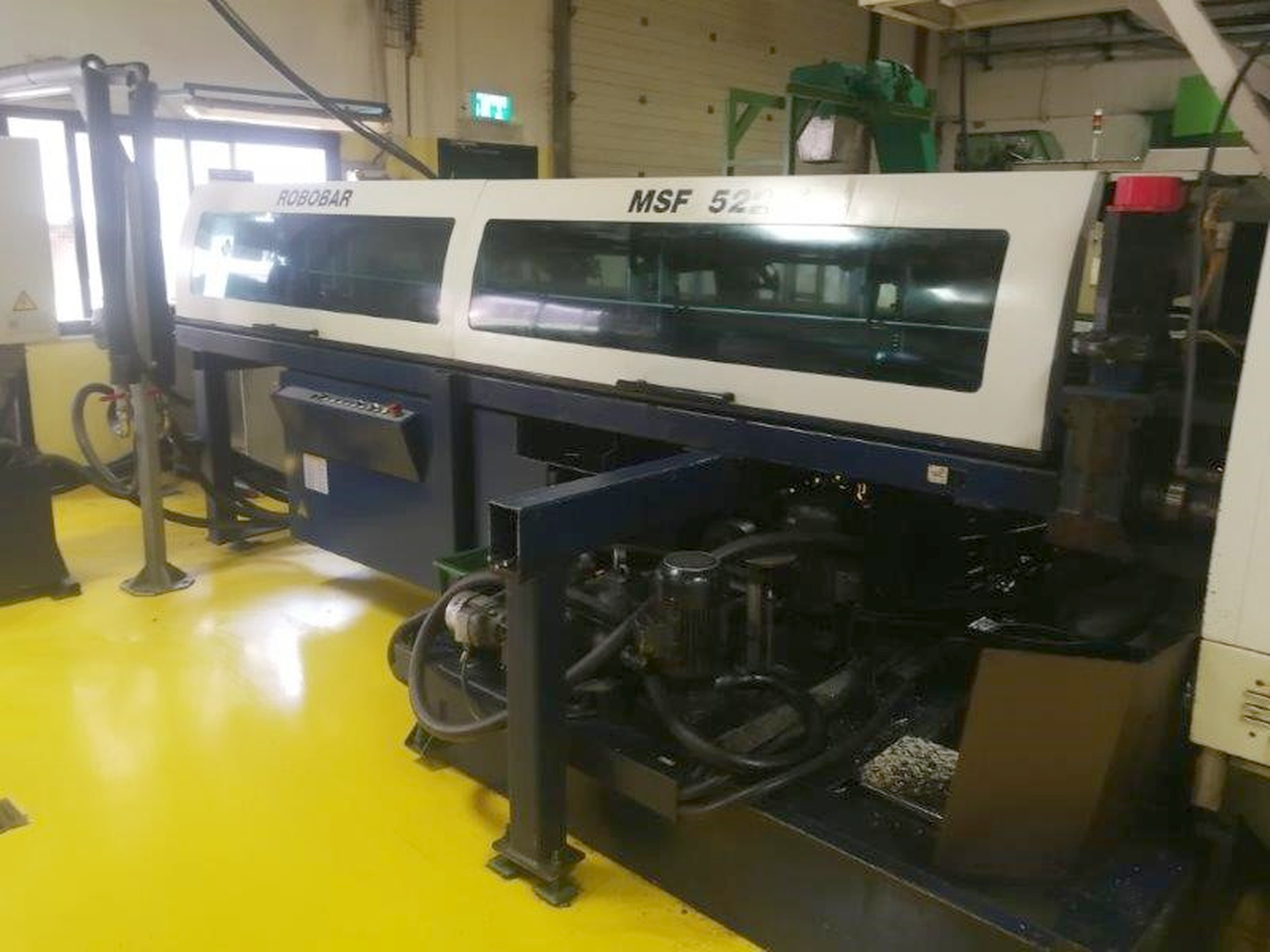

Bar loader number of bars: ROBOBAR.
Type: MSF 522/6.

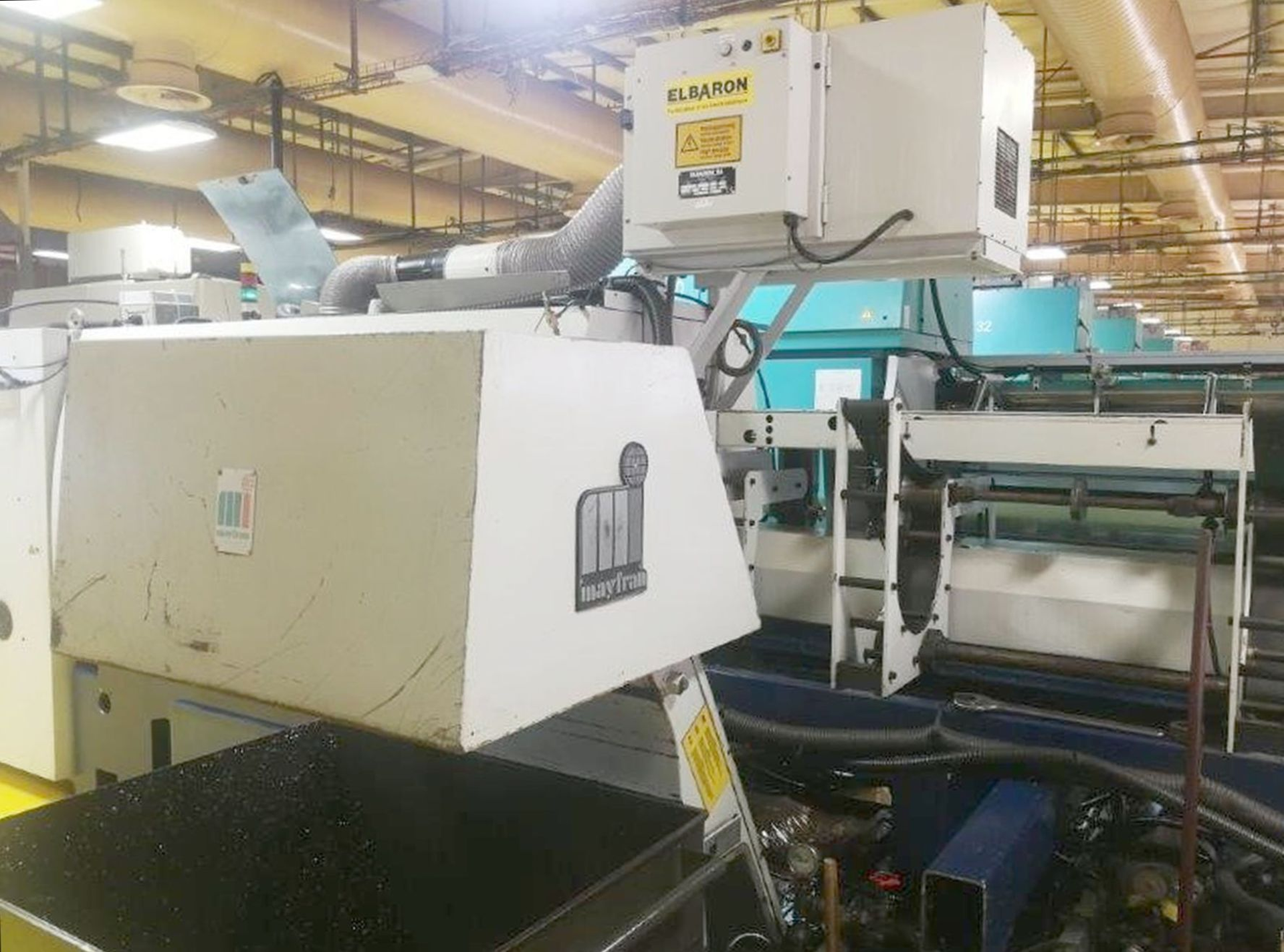

Oil mist extractor: ELBARON.
Spindle stop device: °.
