MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRAK DPM
  • Model:

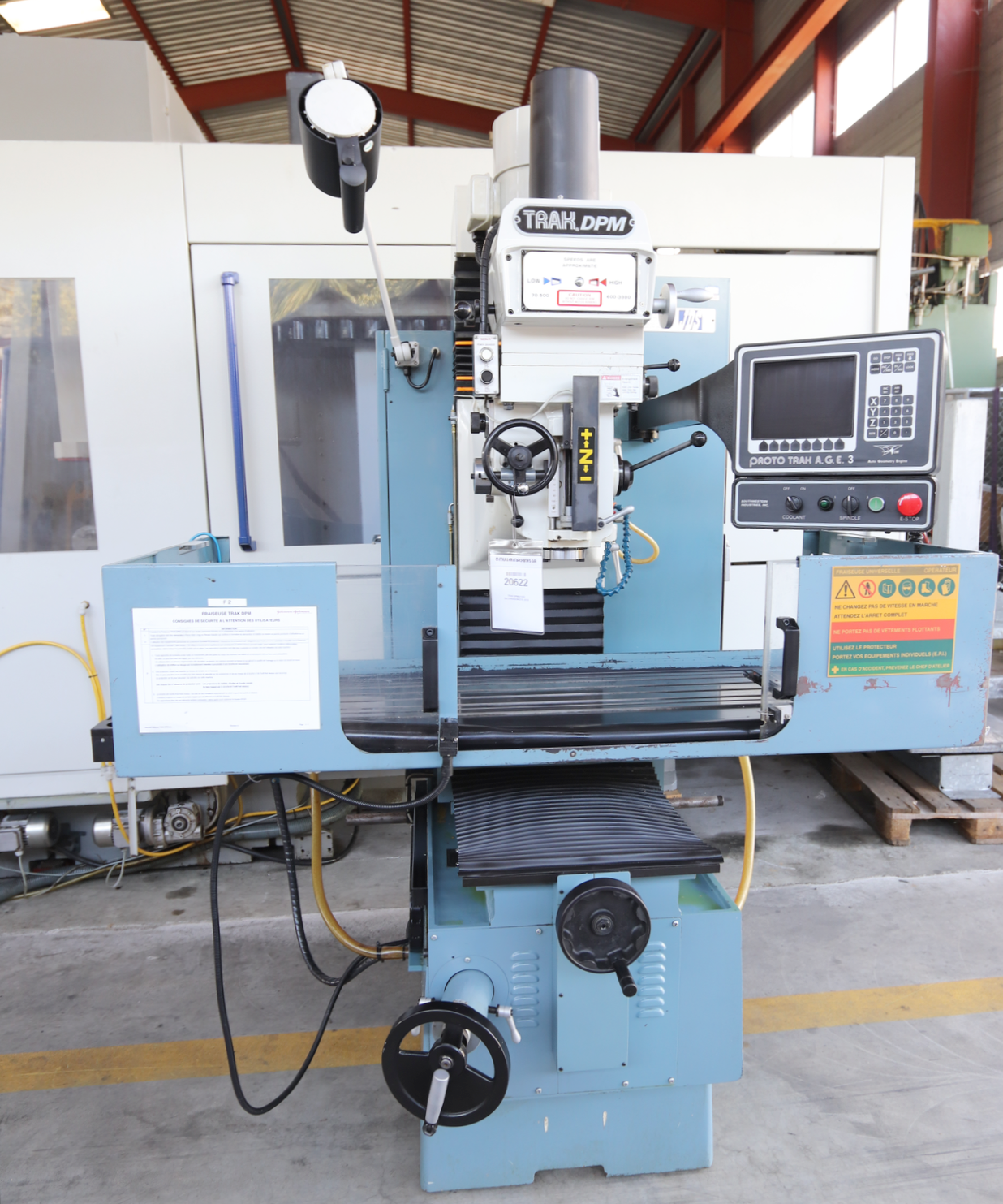

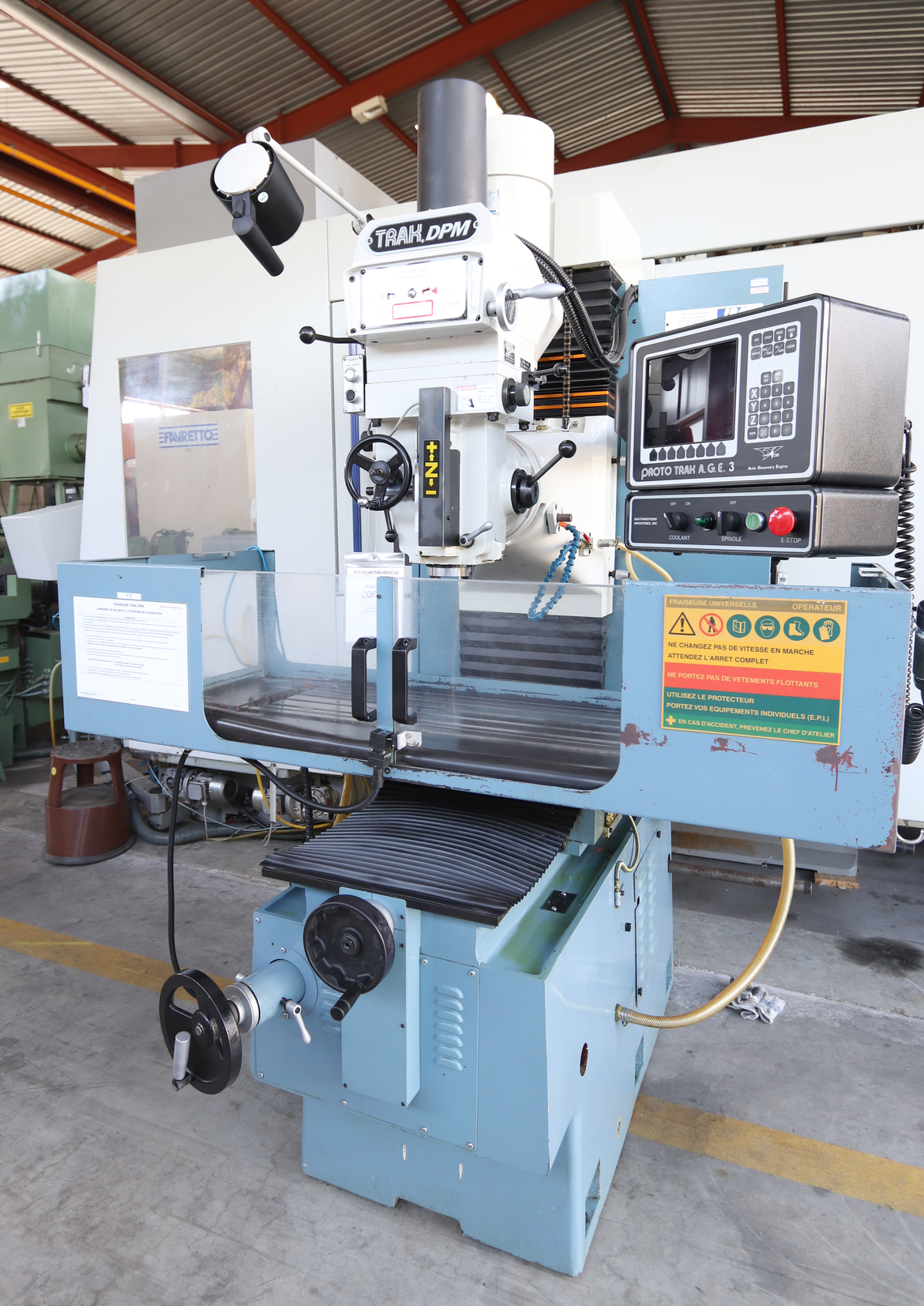

  • 020622 - TRAK DPM 750
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

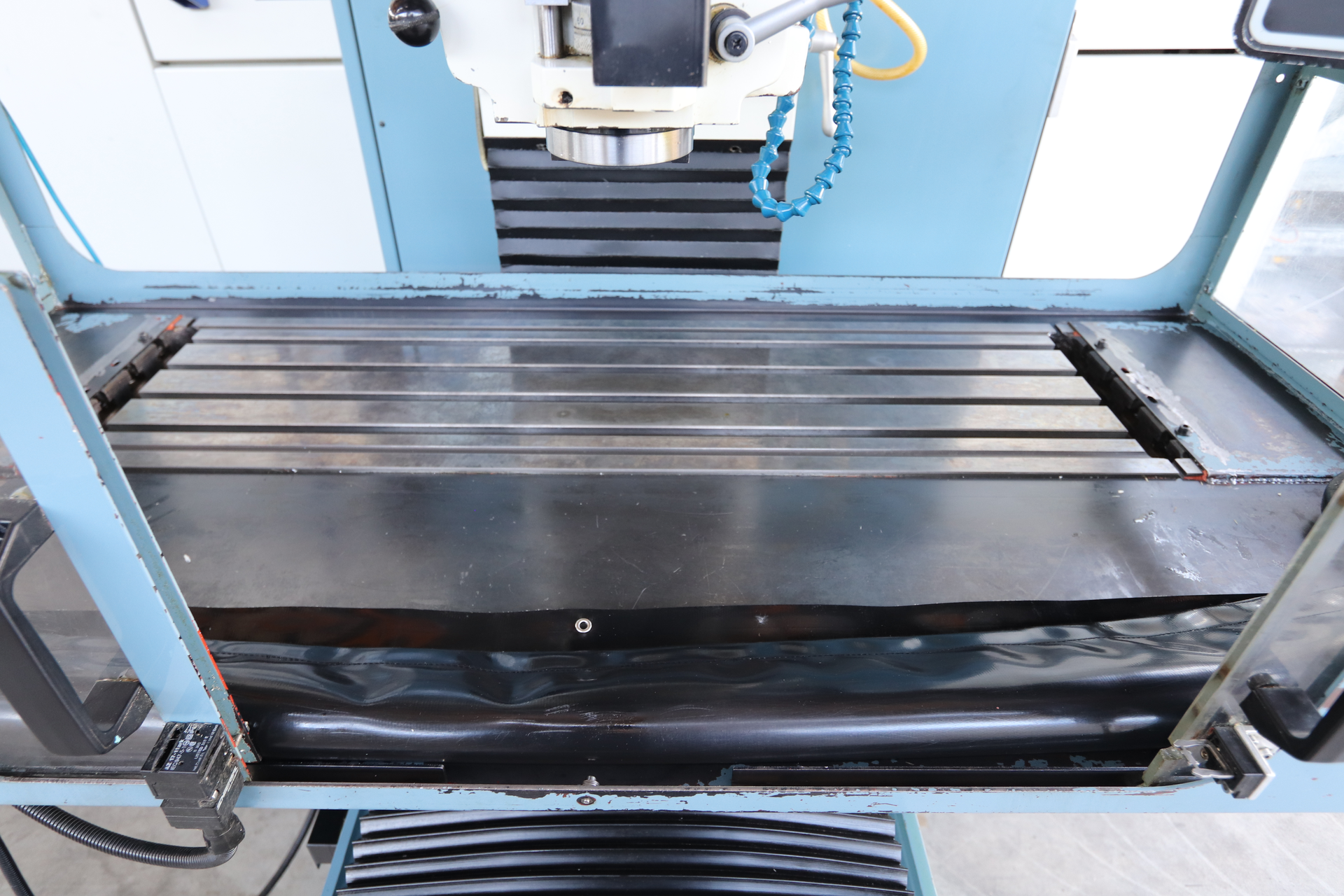

Table length: 1270 mm.
Table width: 320 mm.
Longitudinal travel (X-axis): 750 mm.
Transversal travel (y axis): 400 mm.
Vertical travel (z axis): 610 mm.
Table load max.: 600 kg.
spindle to table: 610 mm.
to slide ways: 480 mm.
Taper in spindle: 40 ISO.
number (steps): 2.
from: 5 t/min.
up to: 3600 t/min.
Swivel range Vertical milling head: -90 / +90 °.
Feeds (X, Y, Z): 5 - 3800 mm/min.
Vertical quill travel: 120 mm.
Quill feed speed: 0.04 / 0.08 / 0.15 mm/t.
Drill capacity in steel: 35 mm.
Threat cutting in steel M: 36.
Milling capacity in steel: 80 - 150 cm3/min.
Boringout: 120 mm.
Voltage 50 Hz 3x: 415 Volt.
Milling spindle motor: 5.5 kW.
Machine's weight about: 2100 kg.
Length: 1800 mm.
Width: 1650 mm.
Height: 2400 mm.

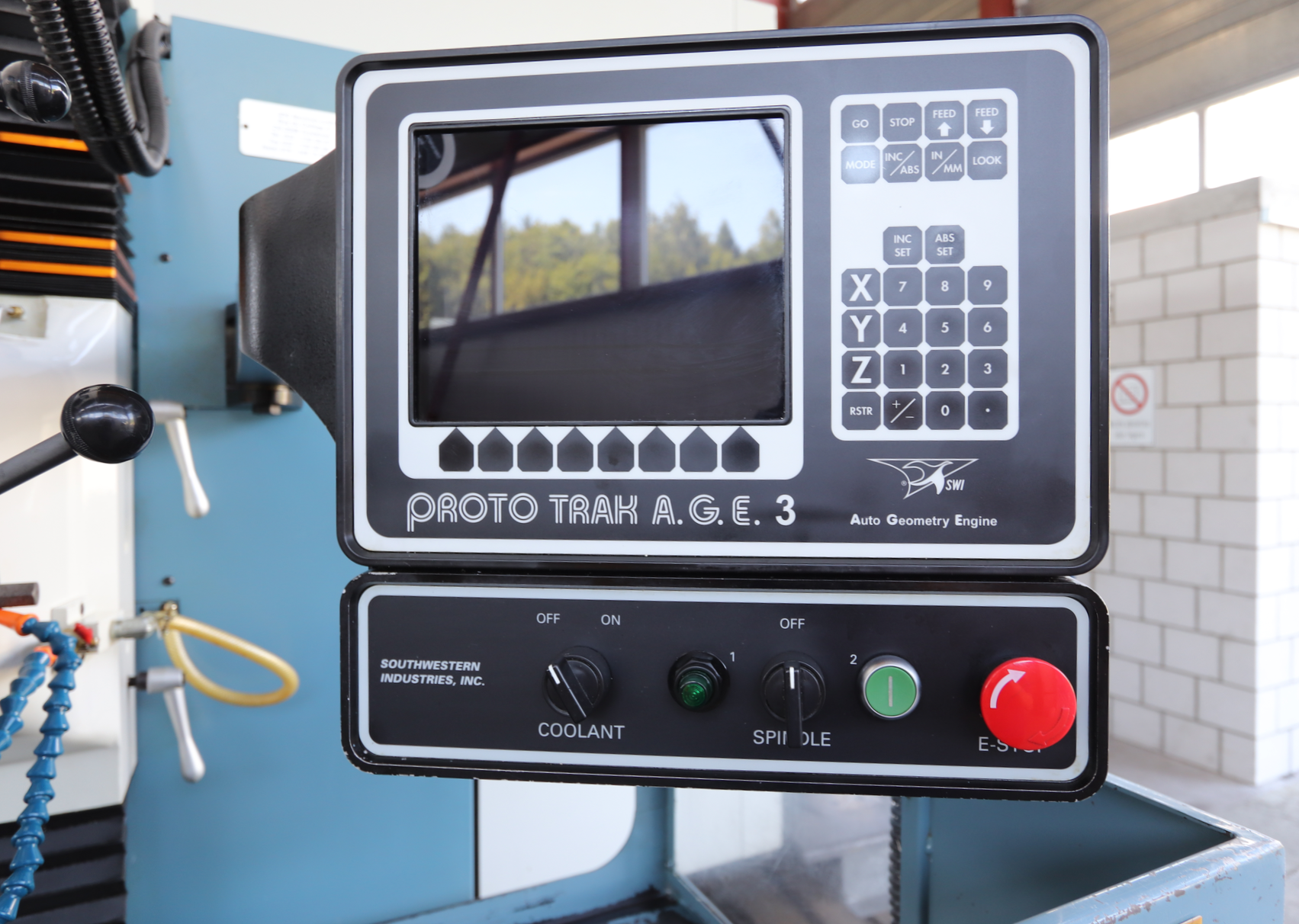

Digital readout number of axis:: 3.
