MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

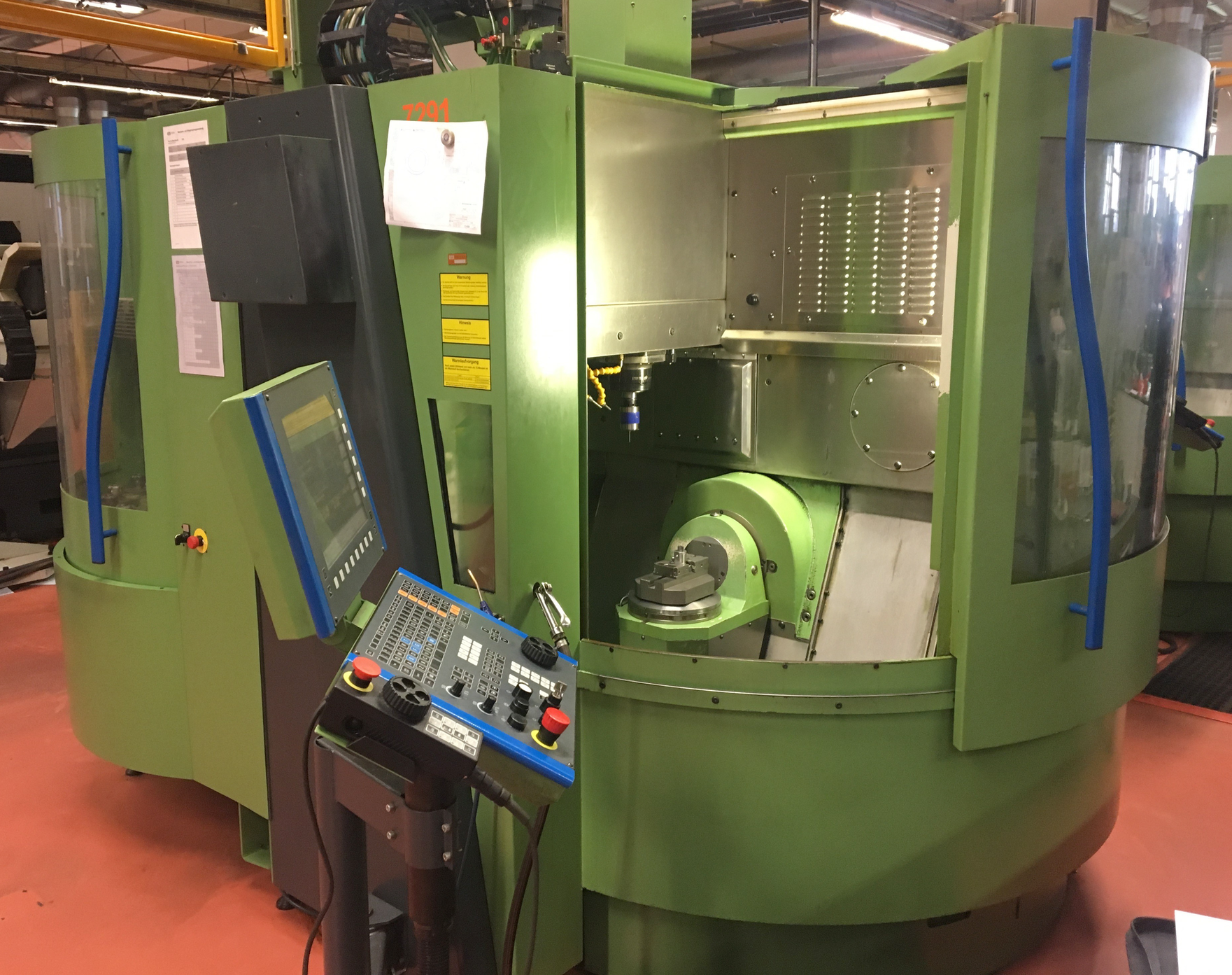

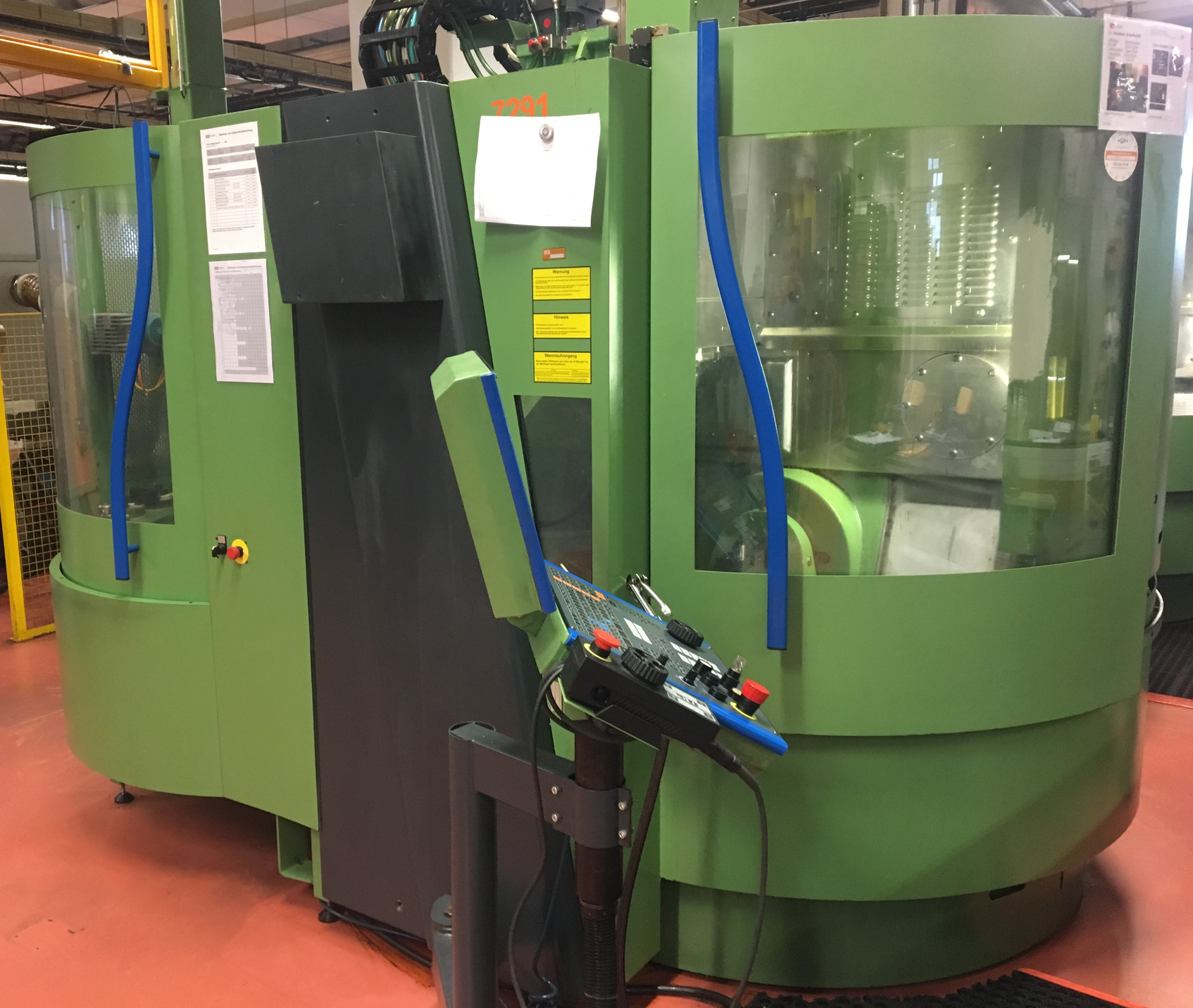

  • 020569 - MIKRON HSM 400 U
  • Condition:
  • 1
  • YOM:
  • NA

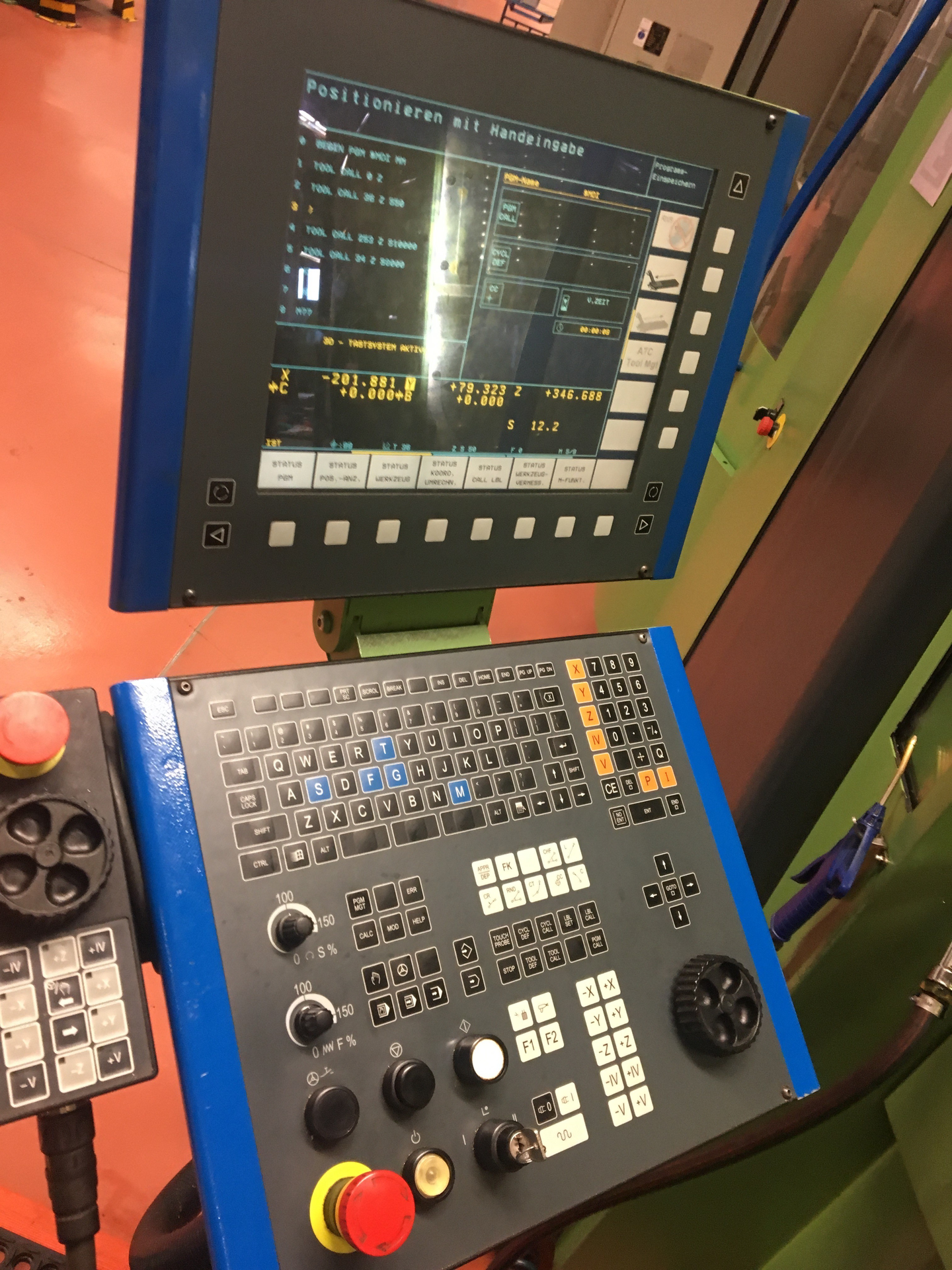

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

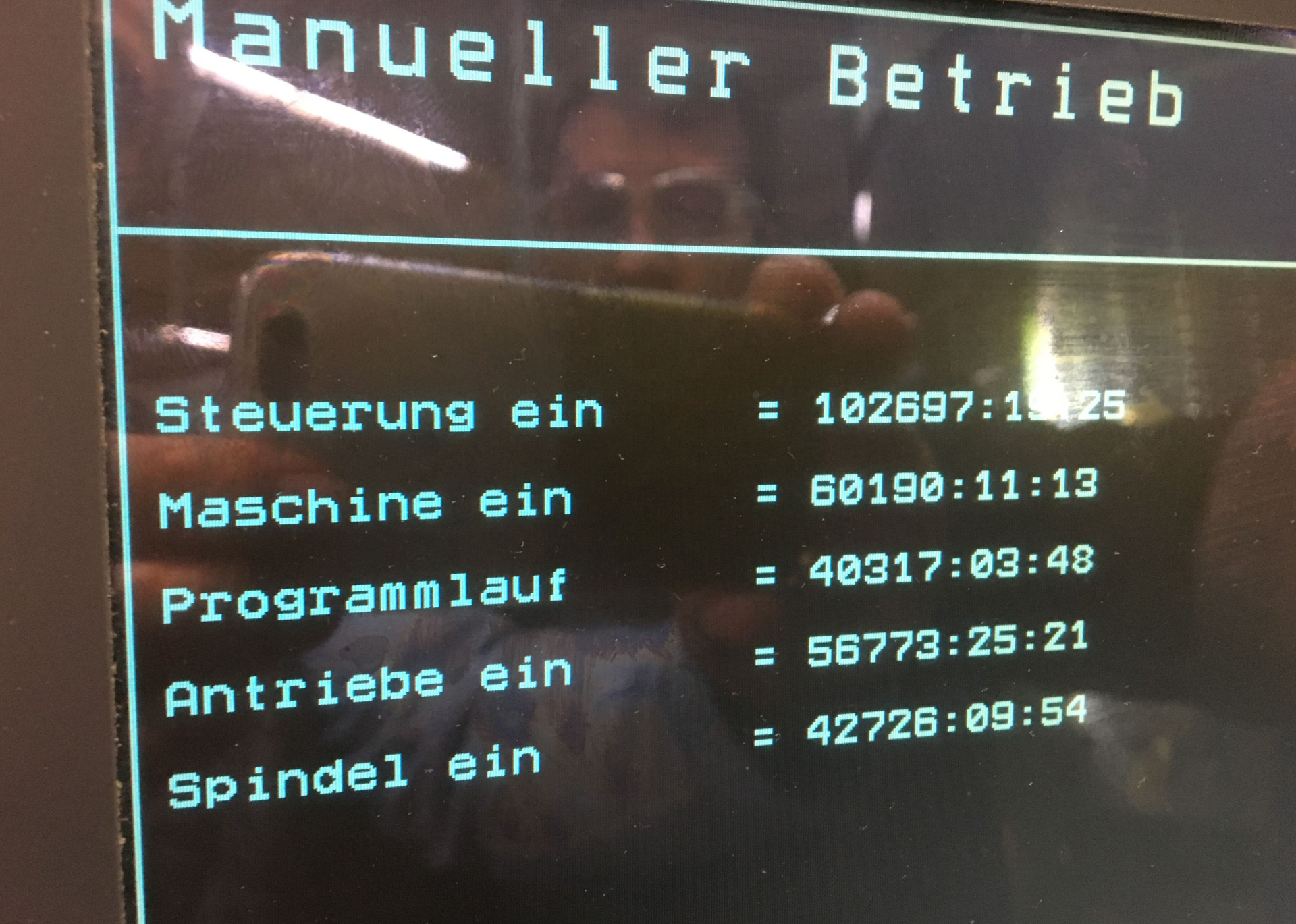

Time under power: 60190 Heures.
Operating time: 56773 Heures.
Spindle run time: 42726 Heures.
Number of axis total: 5.

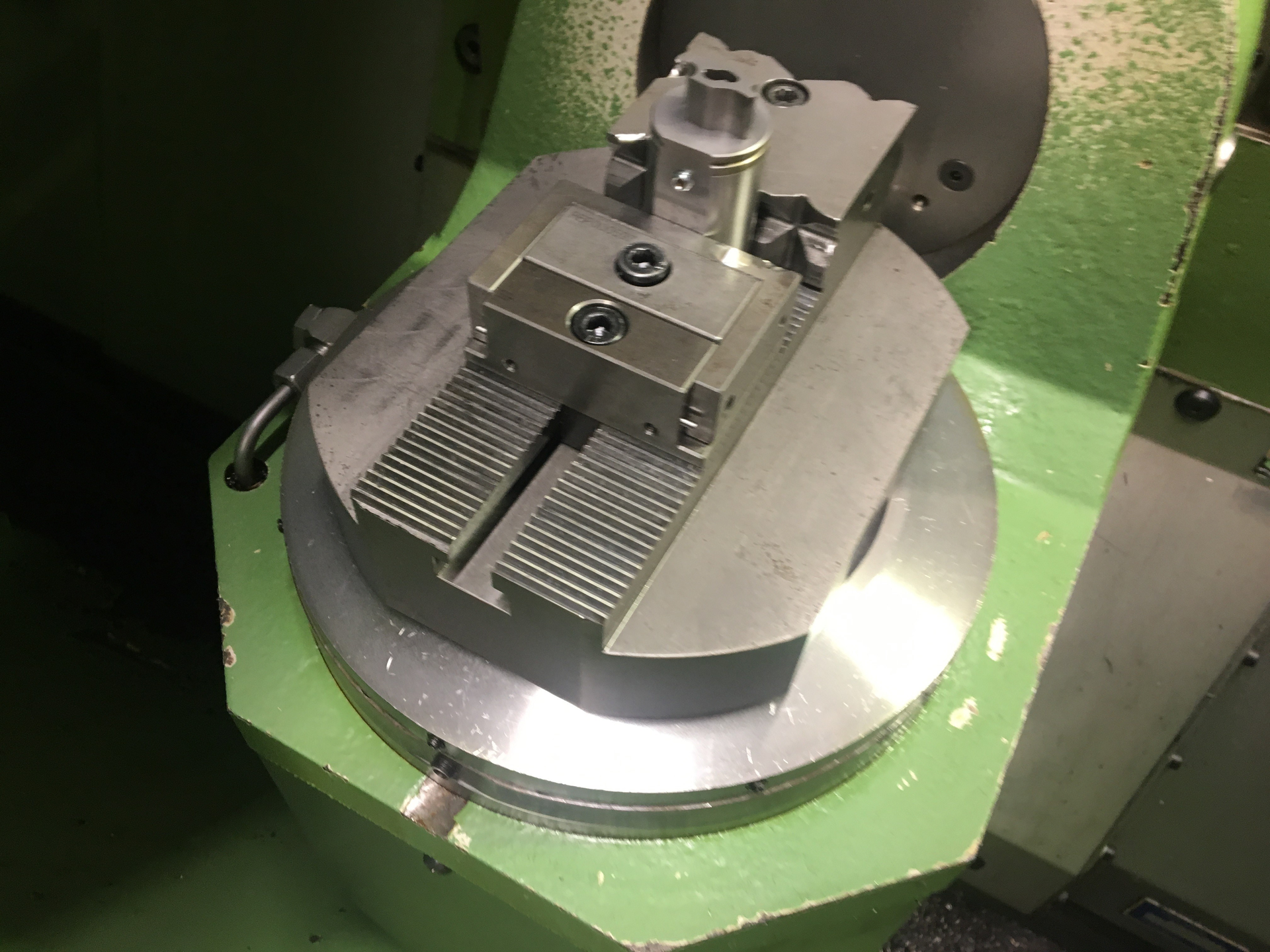

Rotary table:diameter: 250 mm.
Longitudinal travel (X-axis): 400 mm.
Transversal travel (y-axis): 240 mm.
Vertical travel (z axis): 350 mm.

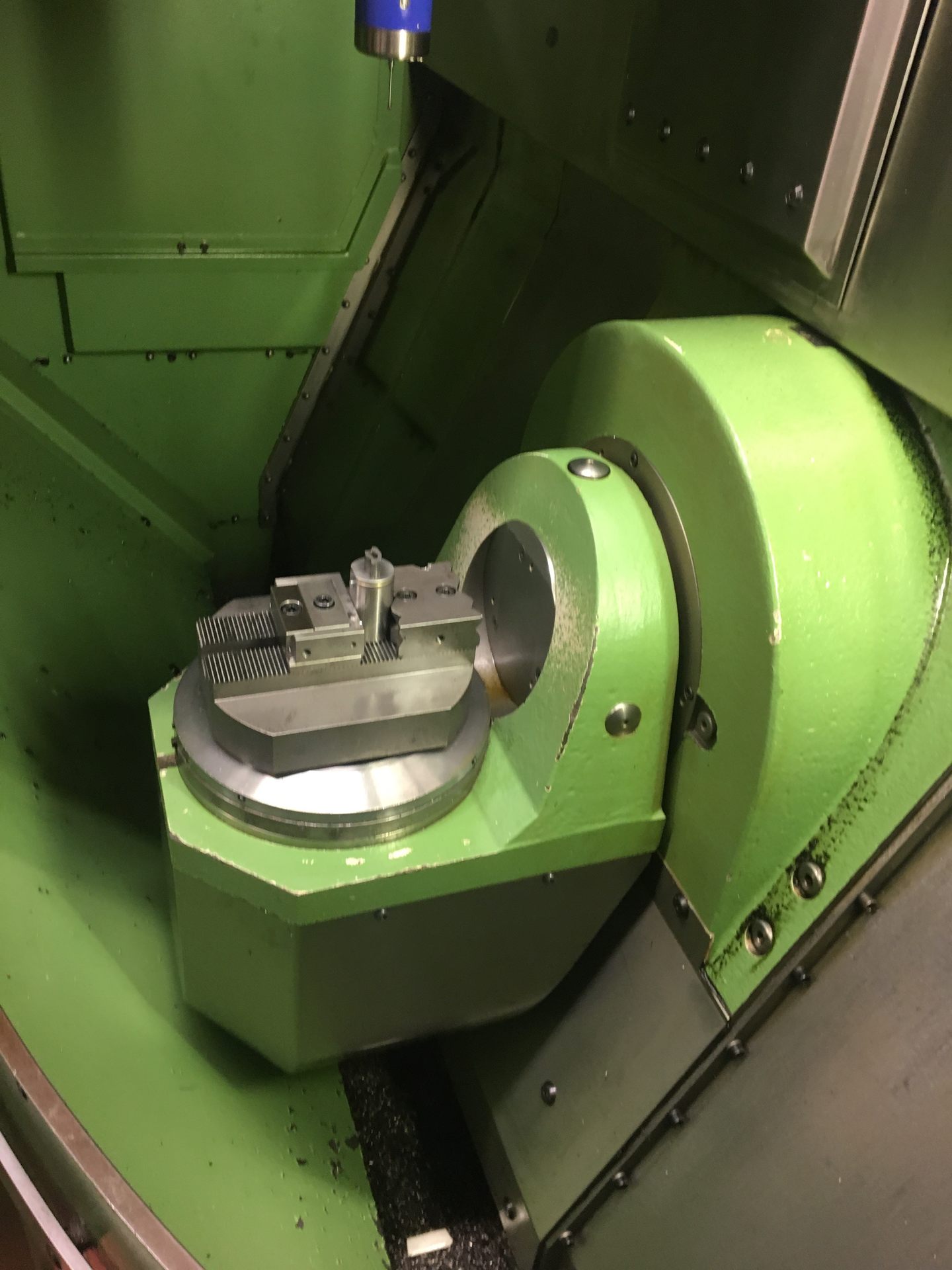

B axis swivelling range: +/-110 °.
C axis: 360 °.
Tool changer:: TCD.
Number of tools: 36.

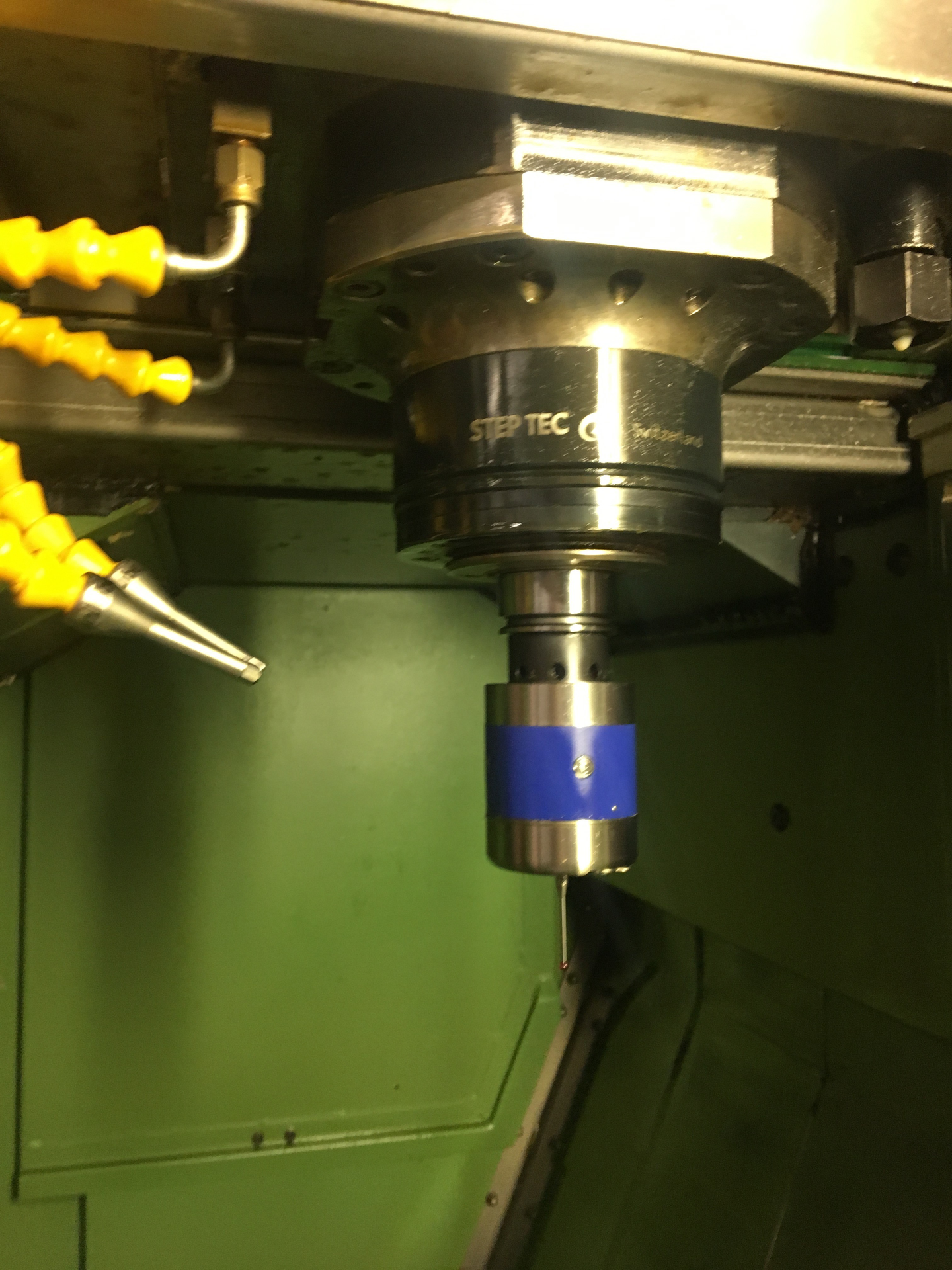

Spindle nose: HSK: 40E OptiCool.
Spindle speeds:: StepTec.
from: 100 t/min.
up to: 40000 mm/min.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
vertical from: 1 mm/min.
Rapid traverse:: 42 m/min.

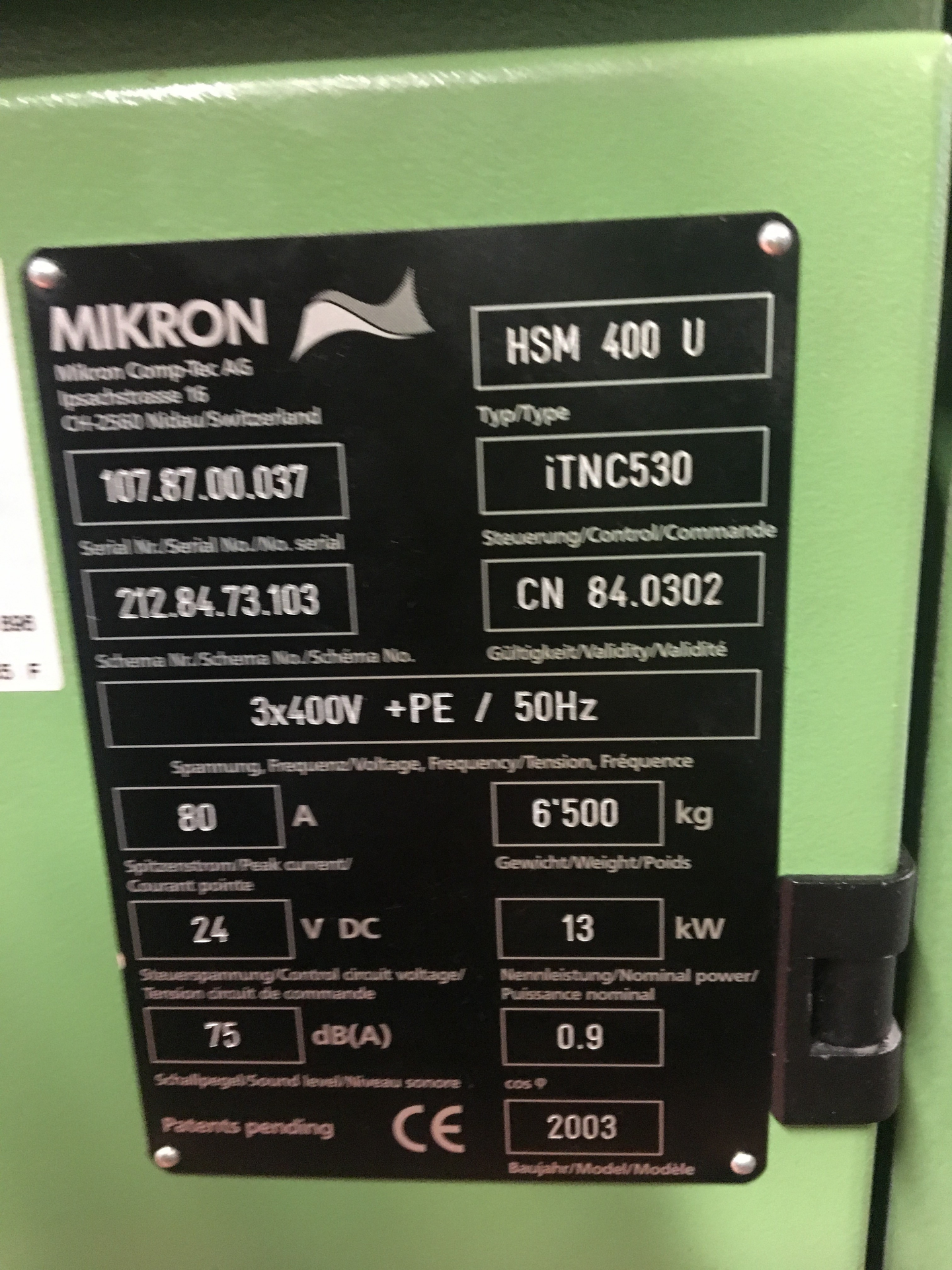

Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 13 kW.
Machine's weight about: 6500 kg.
Length: 3800 mm.
Width: 2900 mm.
Height: 2500 mm.

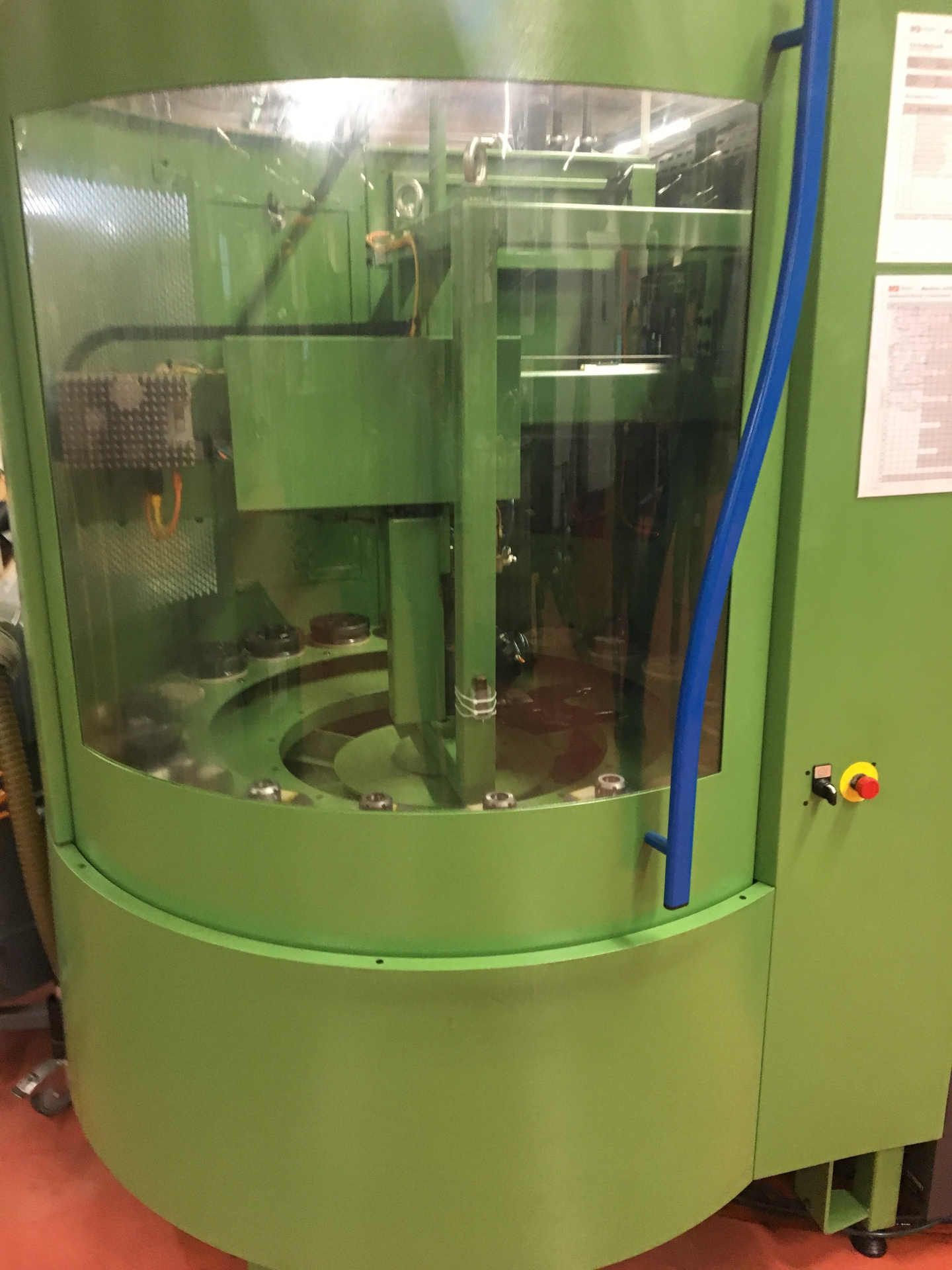

Pallets chanching device:: EROWA ITS 148mm.
Pallets: number: 20.
