MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

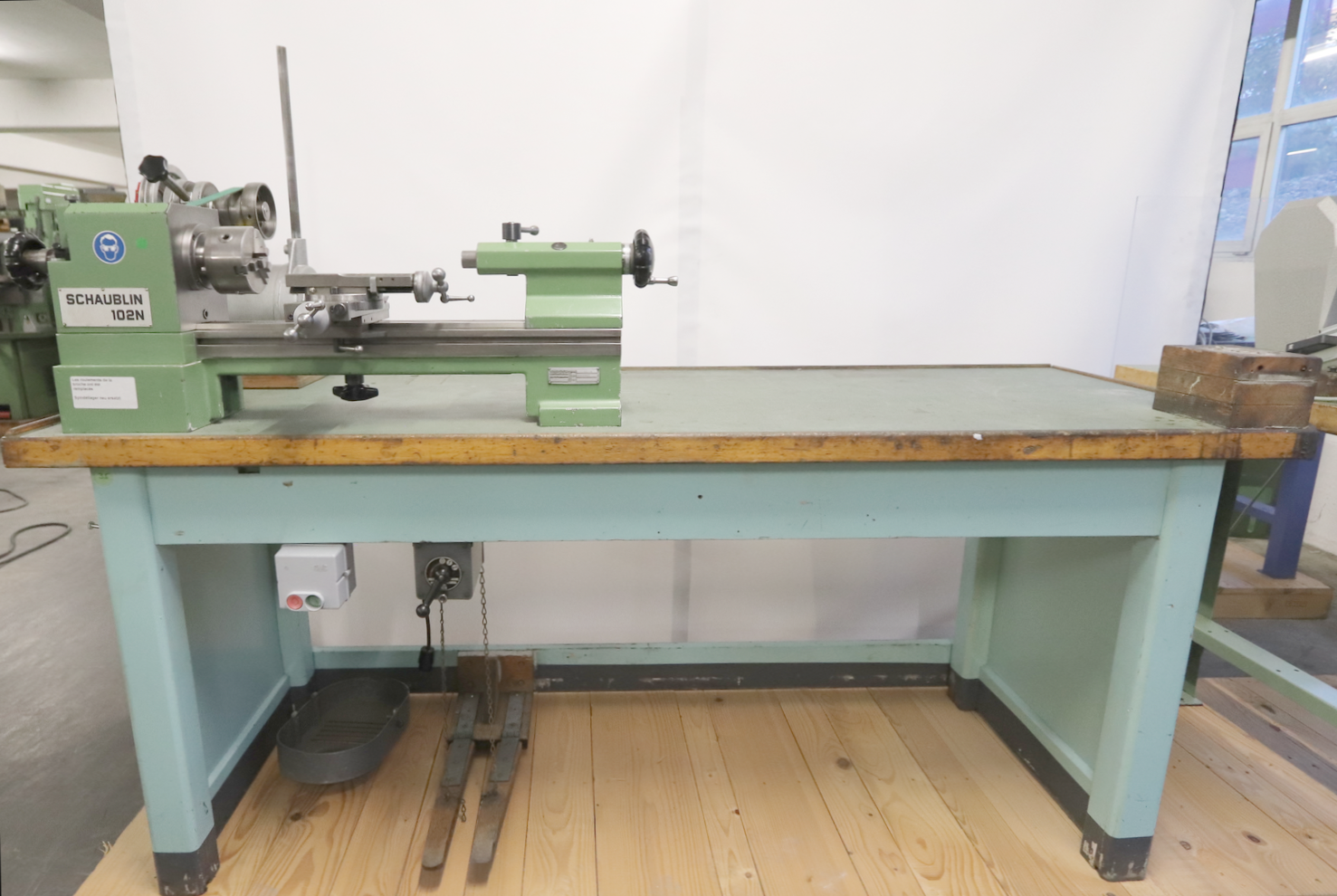

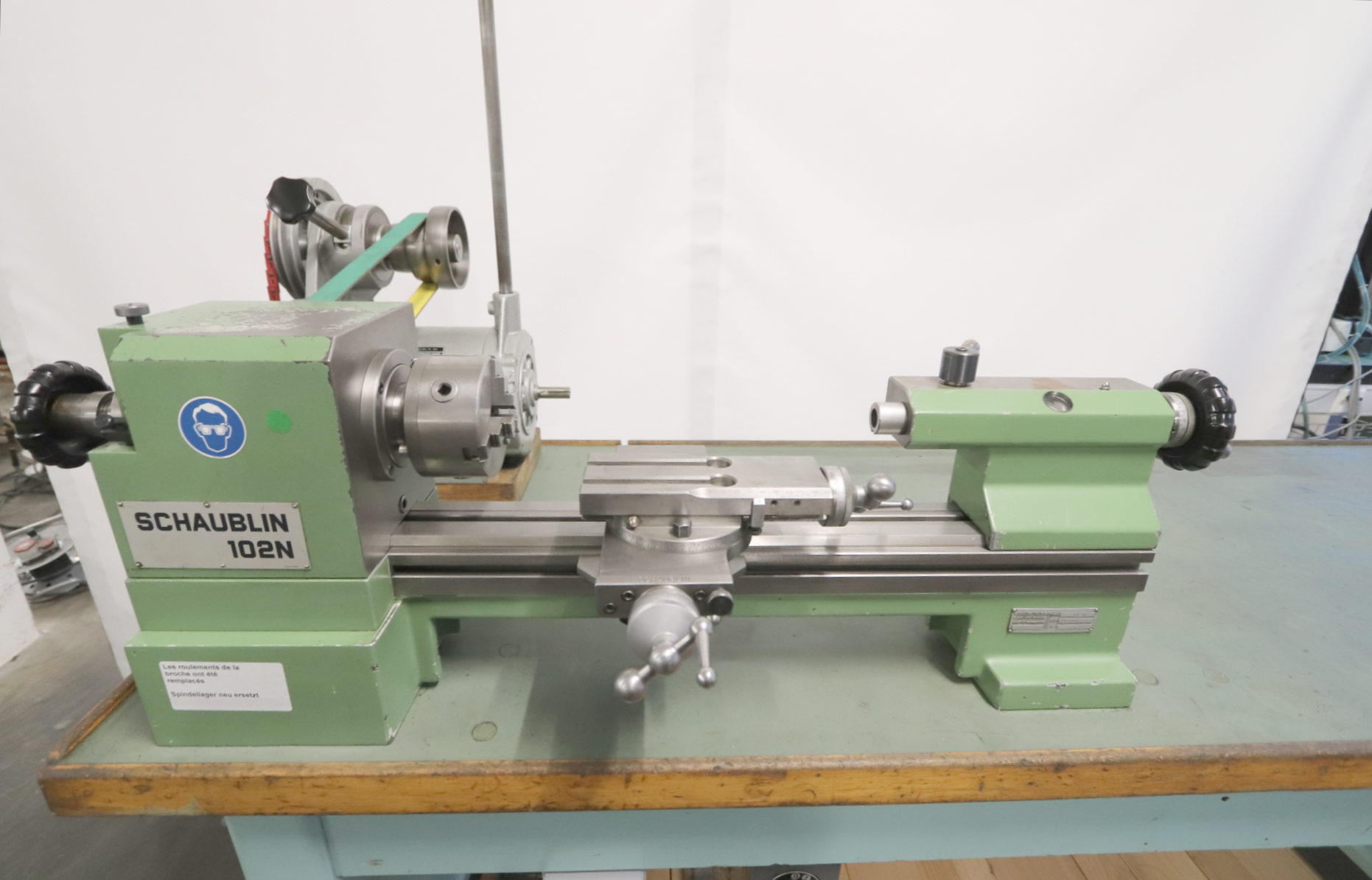

  • 020349 - SCHAUBLIN 102 N
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 375 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
Inner taper type: W25.
number (steps): 12.
from: 45 t/min.
up to: 2800 t/min.
Taper in tailstock:: 2 CM.
Voltage 50 Hz 3x: 380 Volt.
Length: 2150 mm.
Width: 770 mm.
Height: 900 mm.
3-jaw chuck diameter: 100 mm.
