MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Aciera

Model:

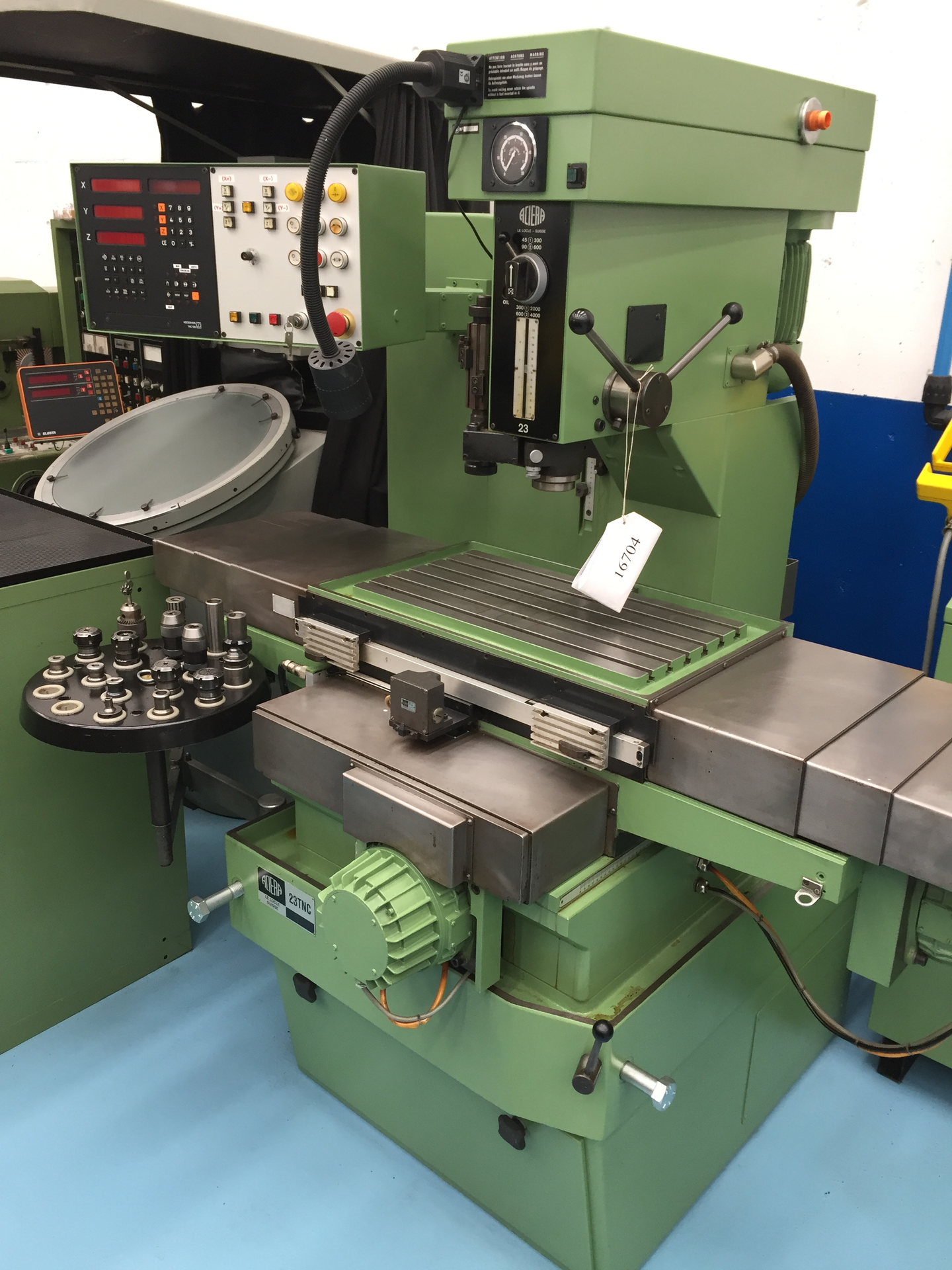

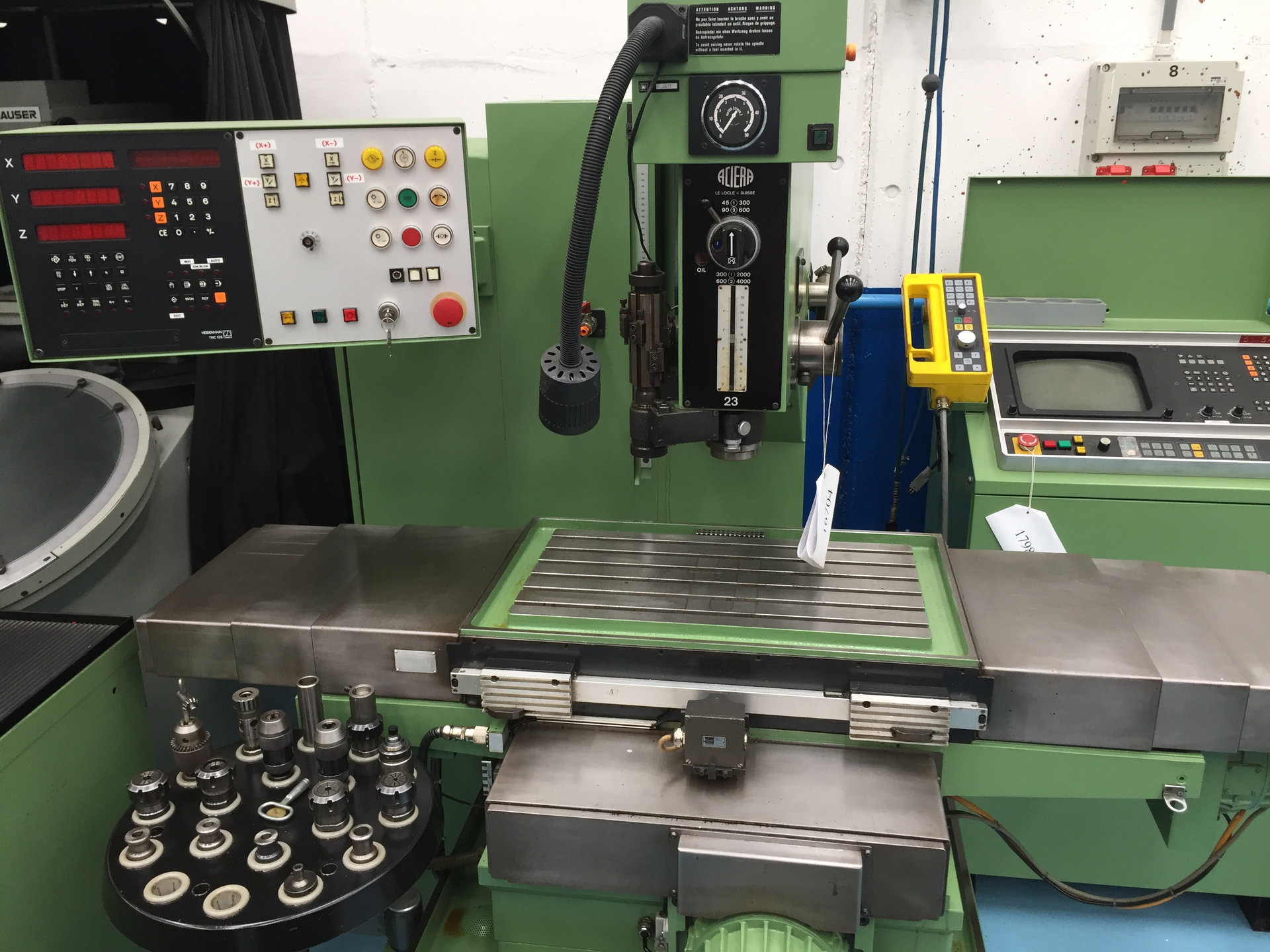

016704 - ACIERA 23 TNC

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Drill capacity in steel: 23 mm.
Threat cutting in steel M: 18.
from: 45 t/min.
up to: 4000 t/min.
Spindle stroke: 120 mm.
Table length: 590 mm.
Table width: 320 mm.
Min. distance from table to spindle: 110 mm.
Max. distance from table to spindle: 570 mm.
Longitudinal travel: 500 mm.
Transversal travel: 300 mm.
Feeds: 0.02-0.6 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Power: 5.0 kW.
Machine's weight about: 1550 kg.
Length: 1700 mm.
Width: 1400 mm.
Height: 2100 mm.
