MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

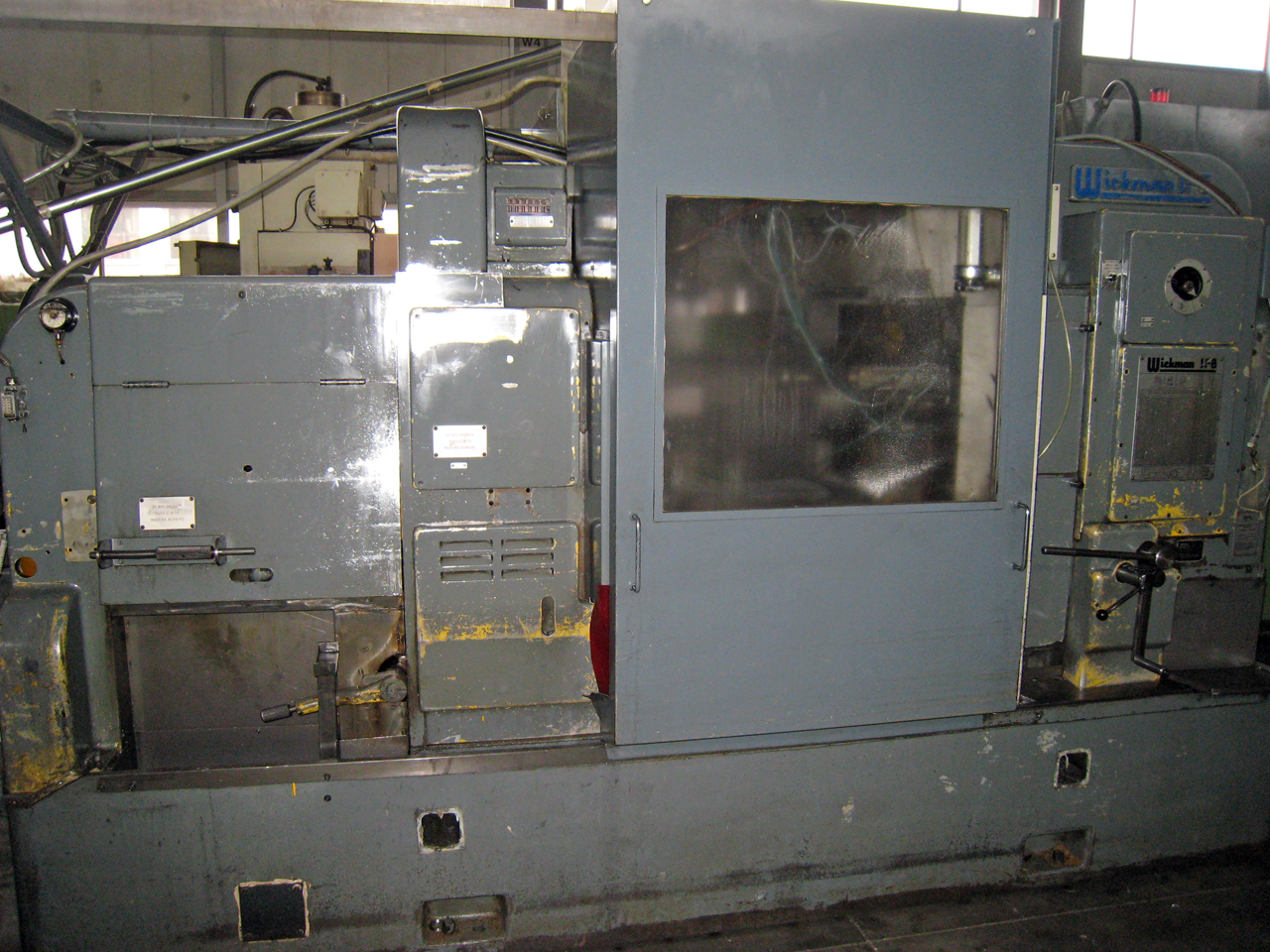

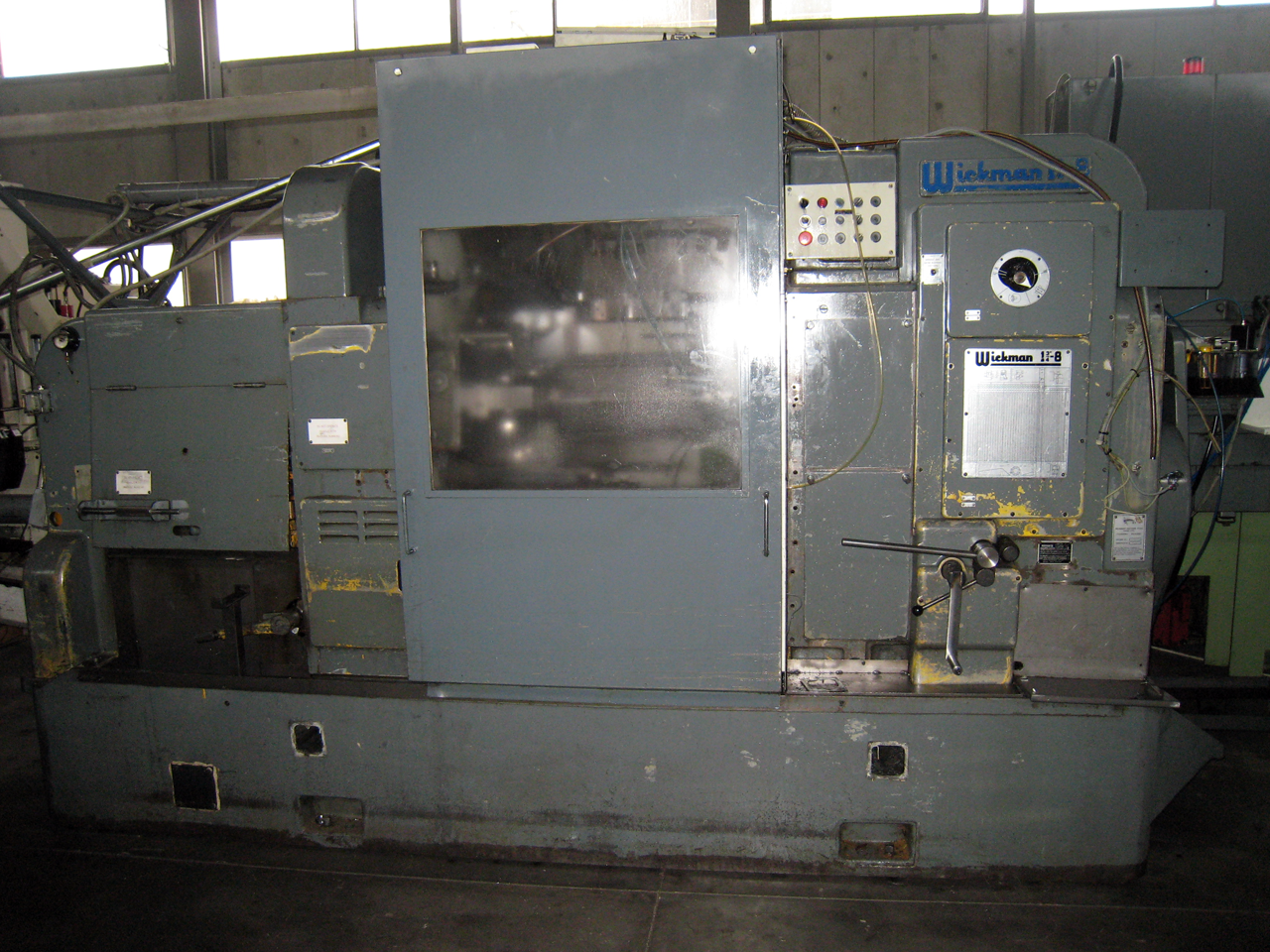

  • 013835 - WICKMAN 1 3/4" - 8
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

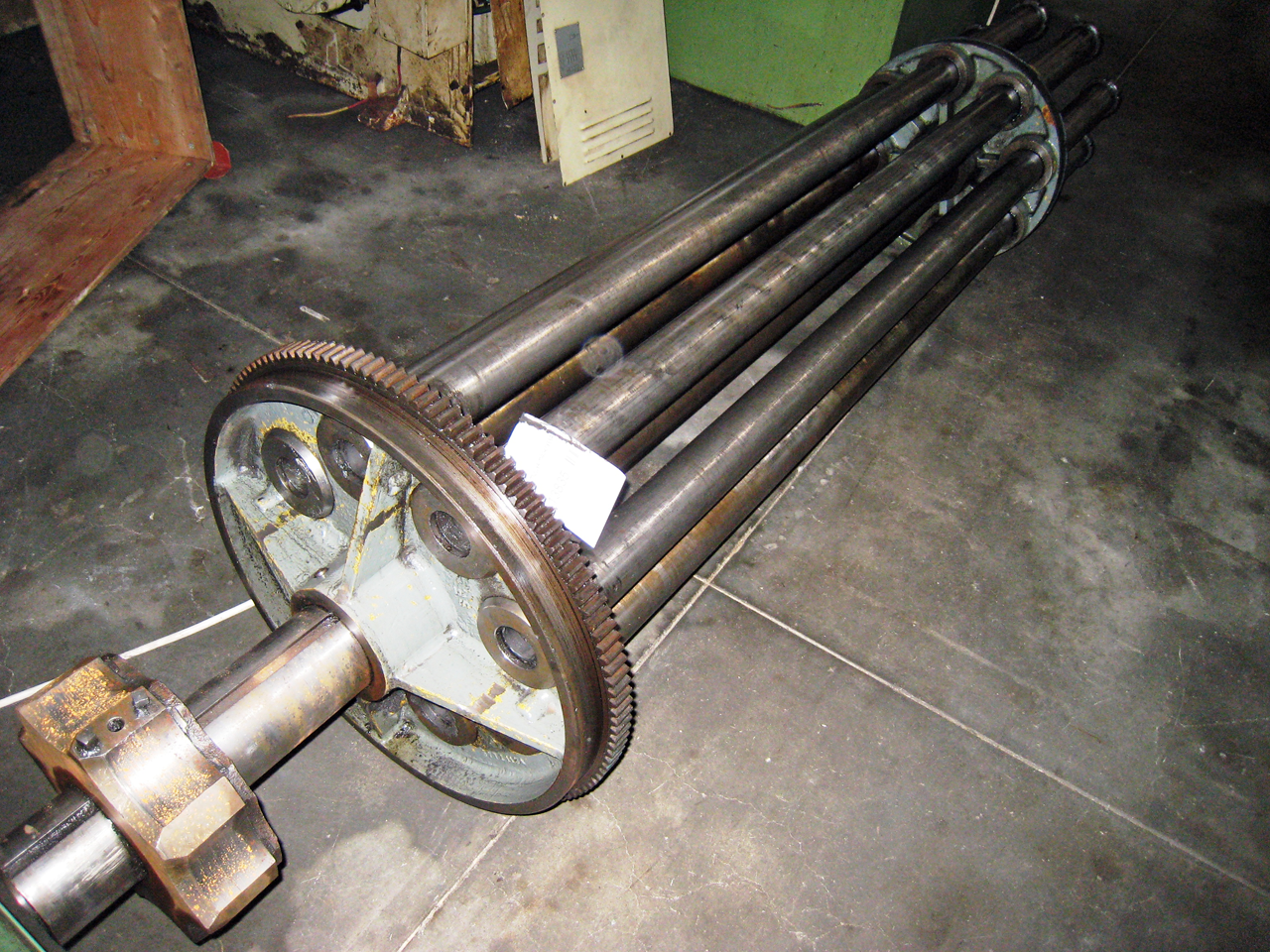

Number of spindles: 8.
Capacity round bar: 45 mm.
Capacity square bar: 31 mm.
Capacity hexagon bar: 39 mm.
from: 96 t/min.
up to: 1243 t/min.
number (steps): 24.
Voltage 50 Hz 3x: 380 Volt.
Power: 22 kW.
Machine's weight about: 12700 kg.
Length: 6630 mm.
Width: 1600 mm.

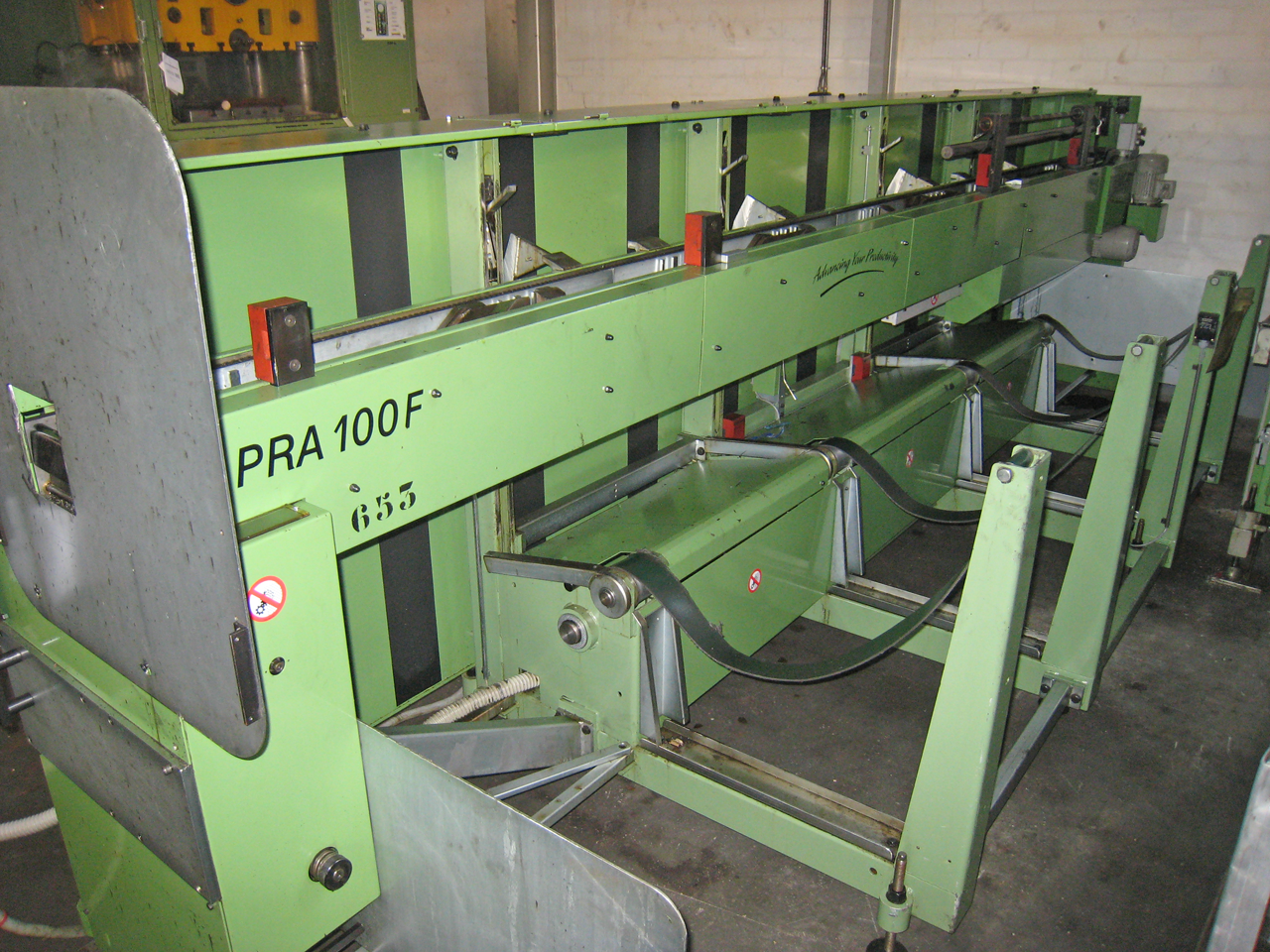

Automatic bar loader (num. bars): IEMCA PRA 100 F.
