MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Aciera

Model:
002787 - ACIERA F 3

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

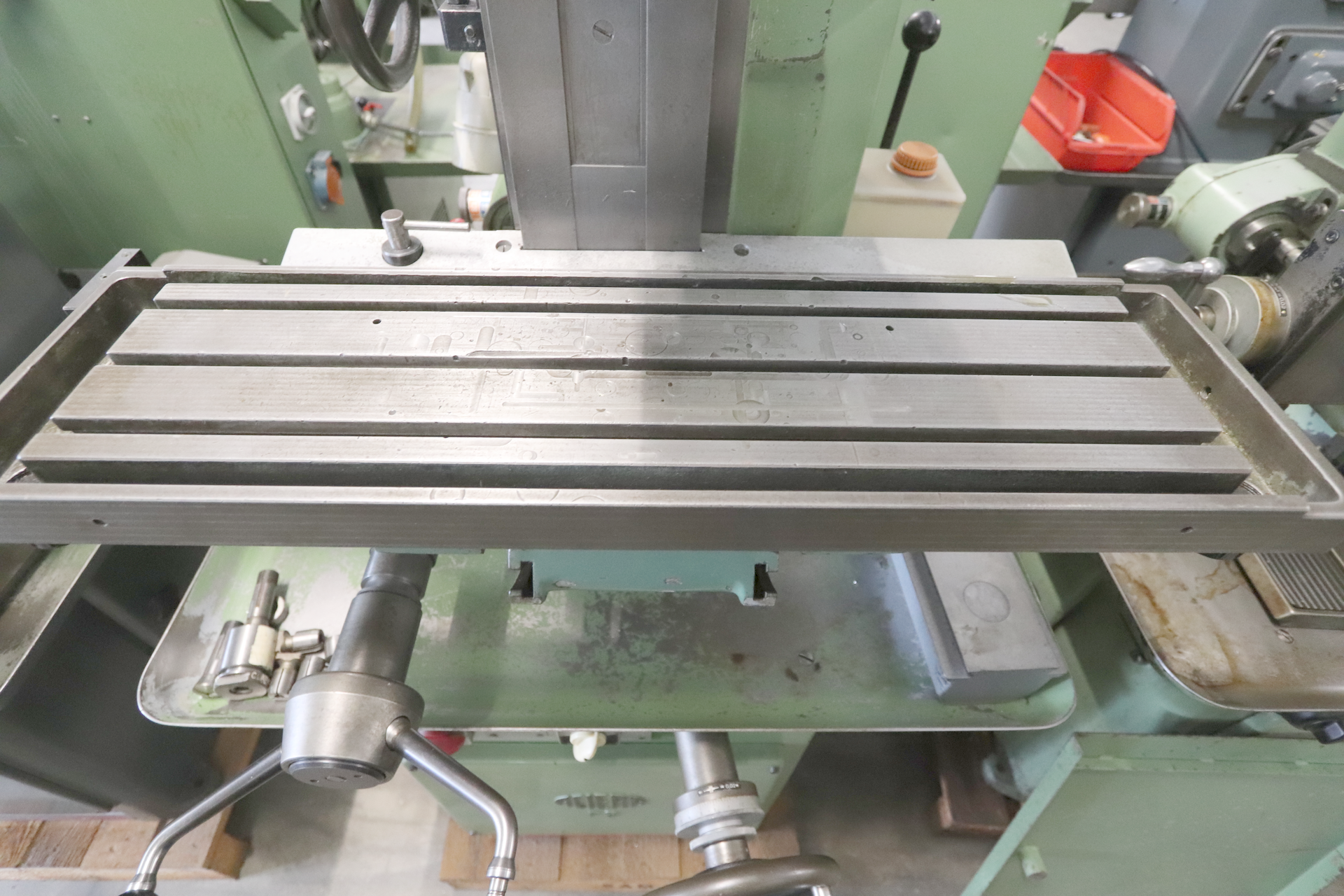

Table length: 600 mm.
Table width: 190 mm.
Longitudinal travel (X-axis): 300 mm.
Transversal travel (y axis): 135 mm.
Vertical travel (z axis): 300 mm.
Distance from vertical spindle to table: 260 mm.
number (steps): 8.
from: 95 t/min.
up to: 232 mm/min.
Taper in spindle:: 20 W.
Feeds steps:: 8.
longitudinal from: 12.0 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 2.0 CV.
Machine's weight about: 500 kg.
Length: 1100 mm.
Width: 900 mm.
Height: 1600 mm.
