RAMBAUDI
06070

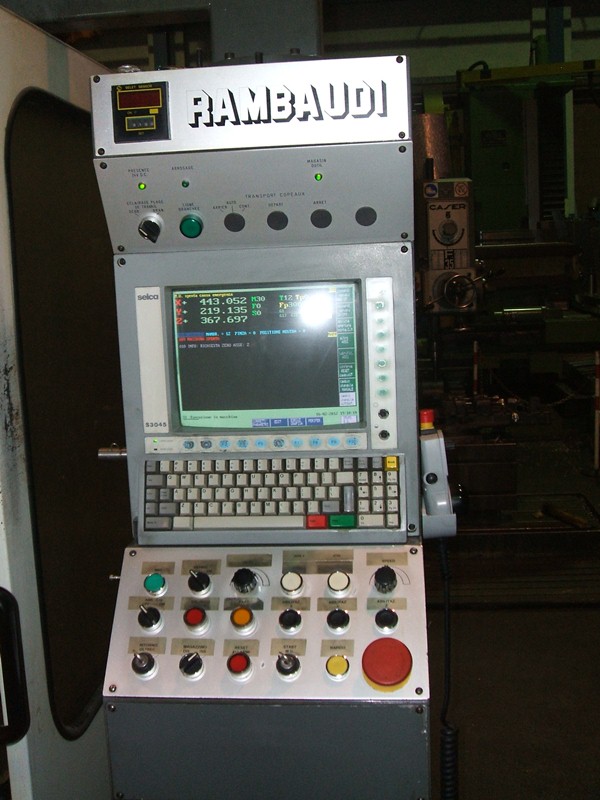

CNC SELCA 3045

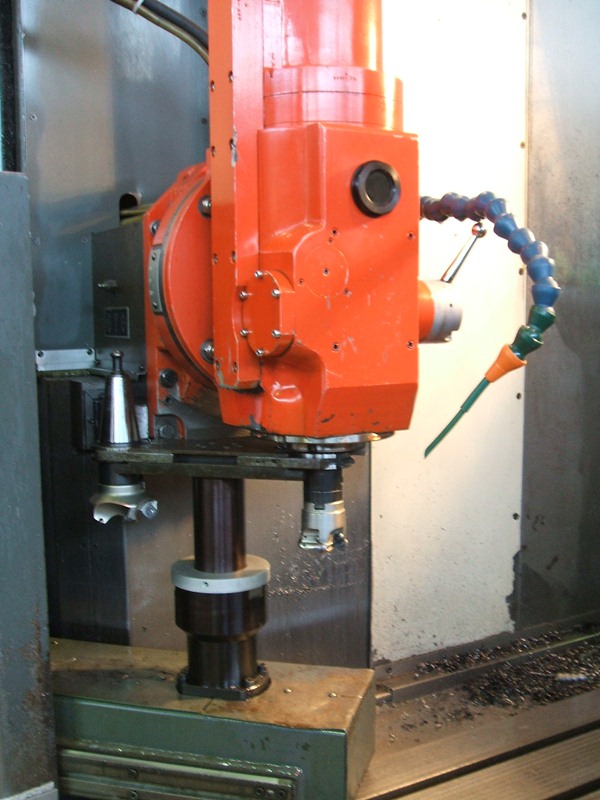

Manual rotary head +/- 90°
WORKING CAPACITY:
Axis X mm 1200
Axis Y mm 500
Axis Z mm 450
TABLE:
Table dimensions mm 1400x550
T-slot mm 5x18x100
Max load Kg 700
FEED:
Working feed mm/min 0-6000
Rapid feed X-Y-Z mm/min 15000
SPINDLE:
Spindle taper ISO 40
Spindle speed rpm 4500
TOOL MAGAZINE:
20 positions
EQUIPPED WITH:
-Optical lines
USED MACHINE
MEXIM
08259
Table dimensions mm 1600x360
Axis X stroke mm 1100
Axis Y stroke mm 300
Axis Z stroke mm 420
Spindle speed n.12 / rpm 56-1800
Spindle motor power kW 7,5
Total installed power kW 15
EQUIPPED WITH:
-Universal head HURON ISO 50
-DRO 3 axis
...
Table Data:
Capacity | 2500M
Table area | 1500x350mm
Number of “T” shaped slots | 5-16H7
Distance between “T” shaped slots | 60mm
Rotary movement of table in both direction | 45º
Automatic longitudinal | 1150mm
Automatic cross | 400mm
Auto...
