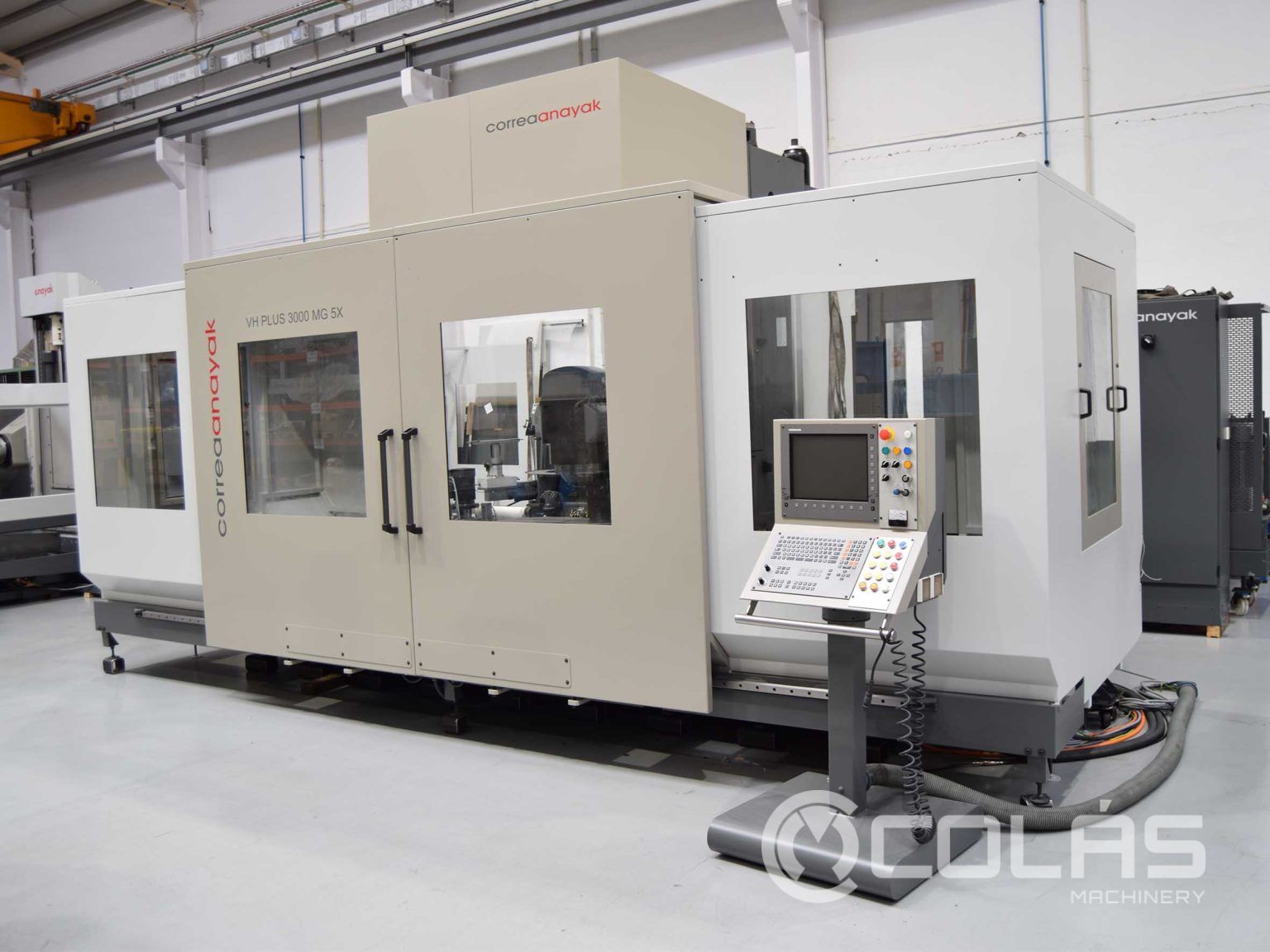

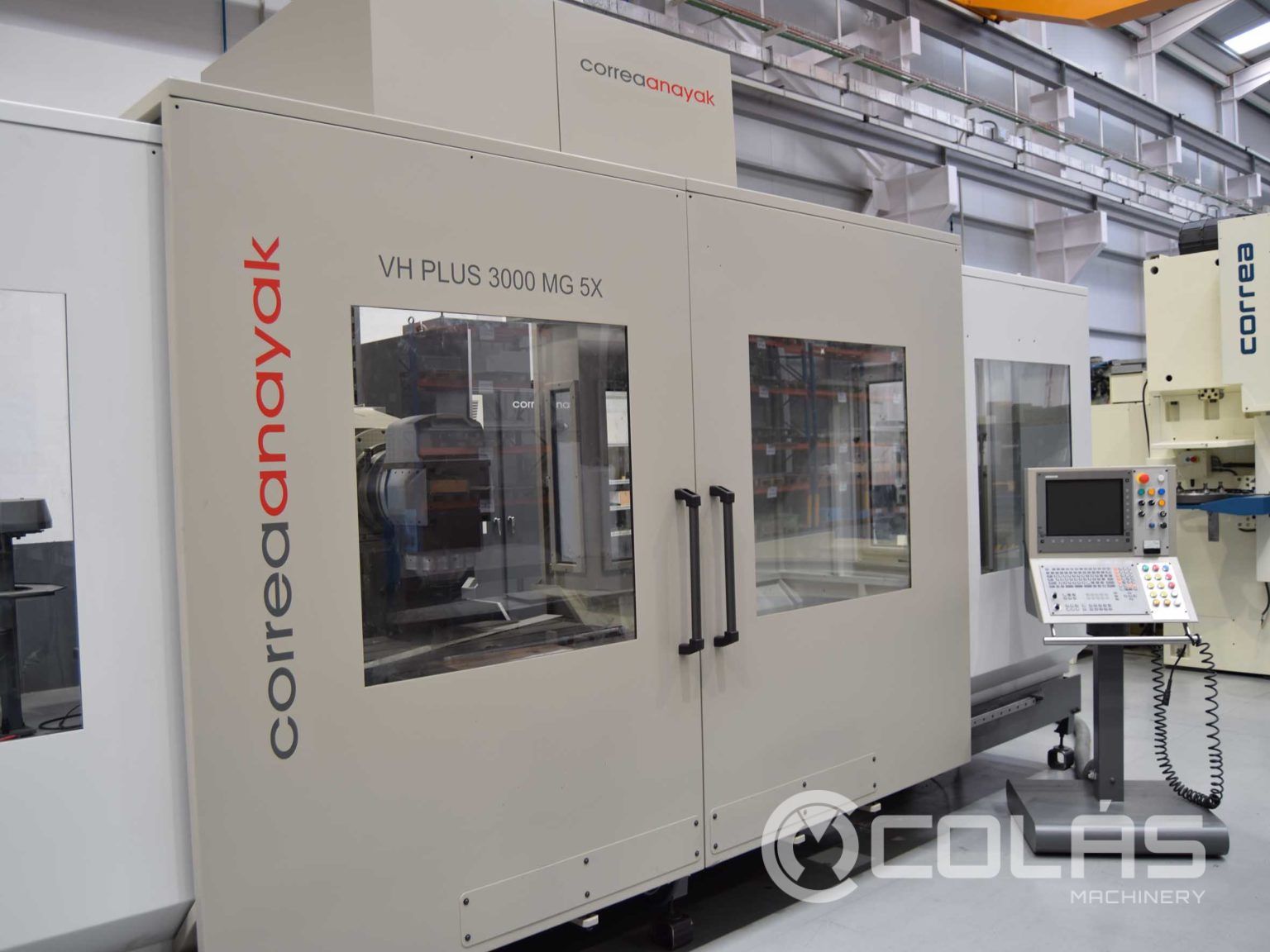

Longitudinal Traverse (X Axis ) 3.000 mm
Transversal Traverse (Y Axis) 1.270 mm
Vertical Traverse (Z Axis) 1.500 mm
Rapid Feeds (X,Y,Z) 20.000 mm/min
Max Working Feed 10.000 mm/min
Taper HSK A 63
Turning Speeds 60 – 18.000 r.p.m.
Main Motor Power 34 kW
KONDIA
New02734
NUMERIC CONTROL HEIDENHAIN TNC 150
AXIS X MM.600
AXIS Y MM.350
QUILL VERTICAL AXIS Z MM.125
MAX WORKPIECE WEIGHT 225 KG.
TABLE SIZE MM. 700X300
T SLOTS (DISTANCE BETWEEN T SLOTS) 3 (75 MM.)
T SLOTS WIDTH MM.16
2 SPINDLE RANGE MOTOR 2/...
Box Slideways on Y and Z Axis. Dovetail Slideways on X Axis.
Turcite on all Slideways and Gibs.
Swivel Control Panel with Integrated DRO – Digital Read Out.
Variable Speed Head with Power Feed Quill and Auto Stop.
