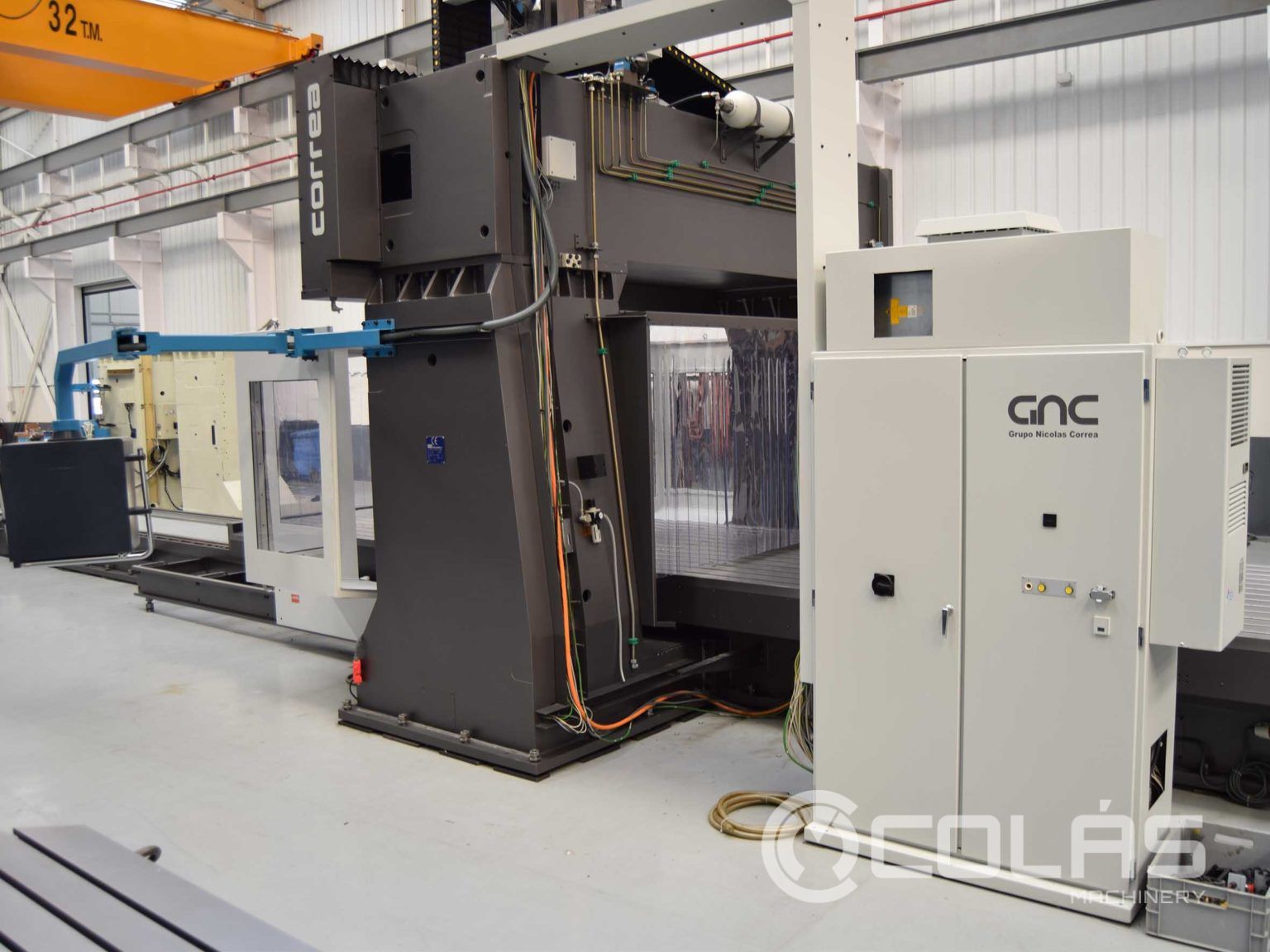

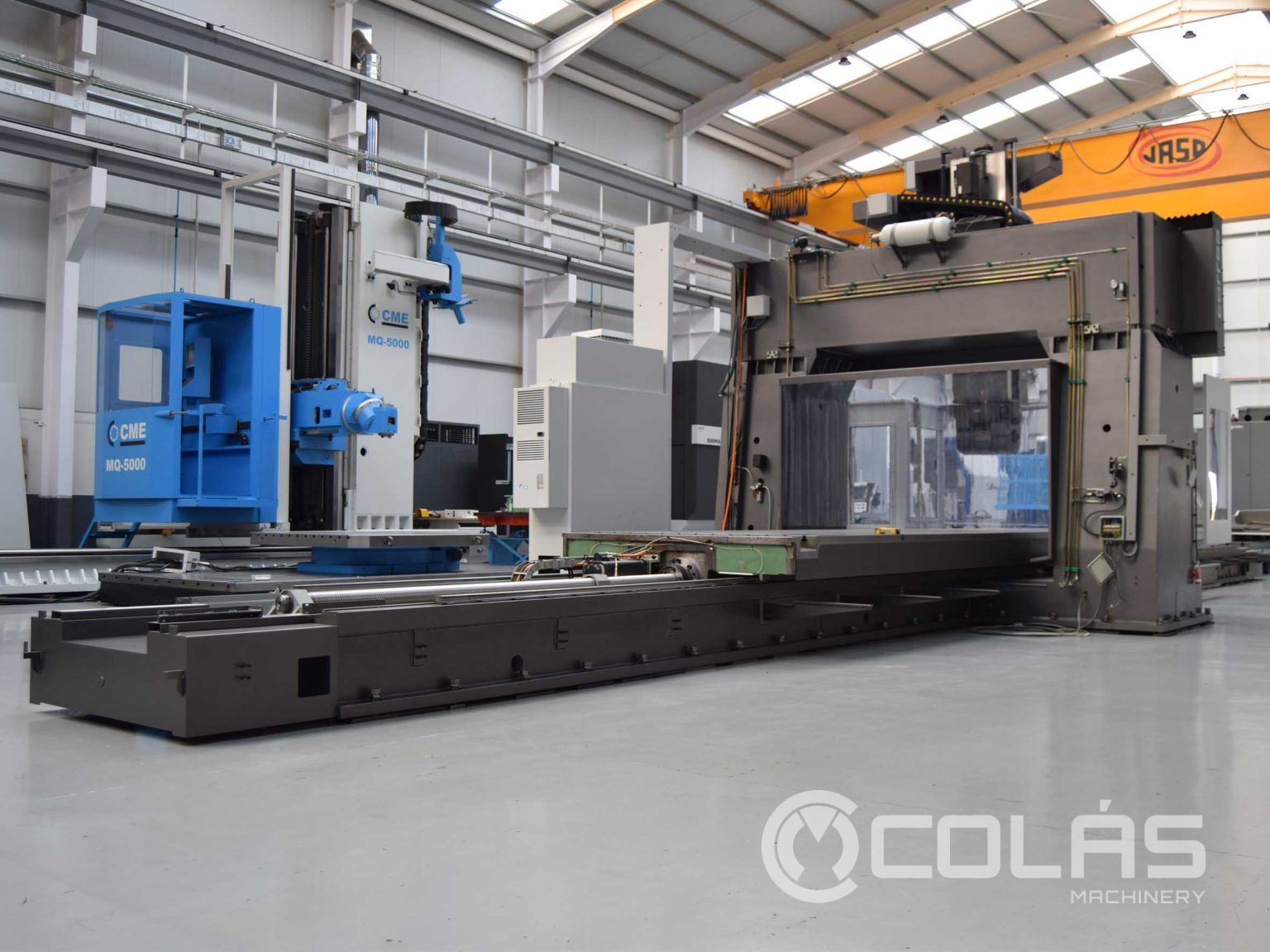

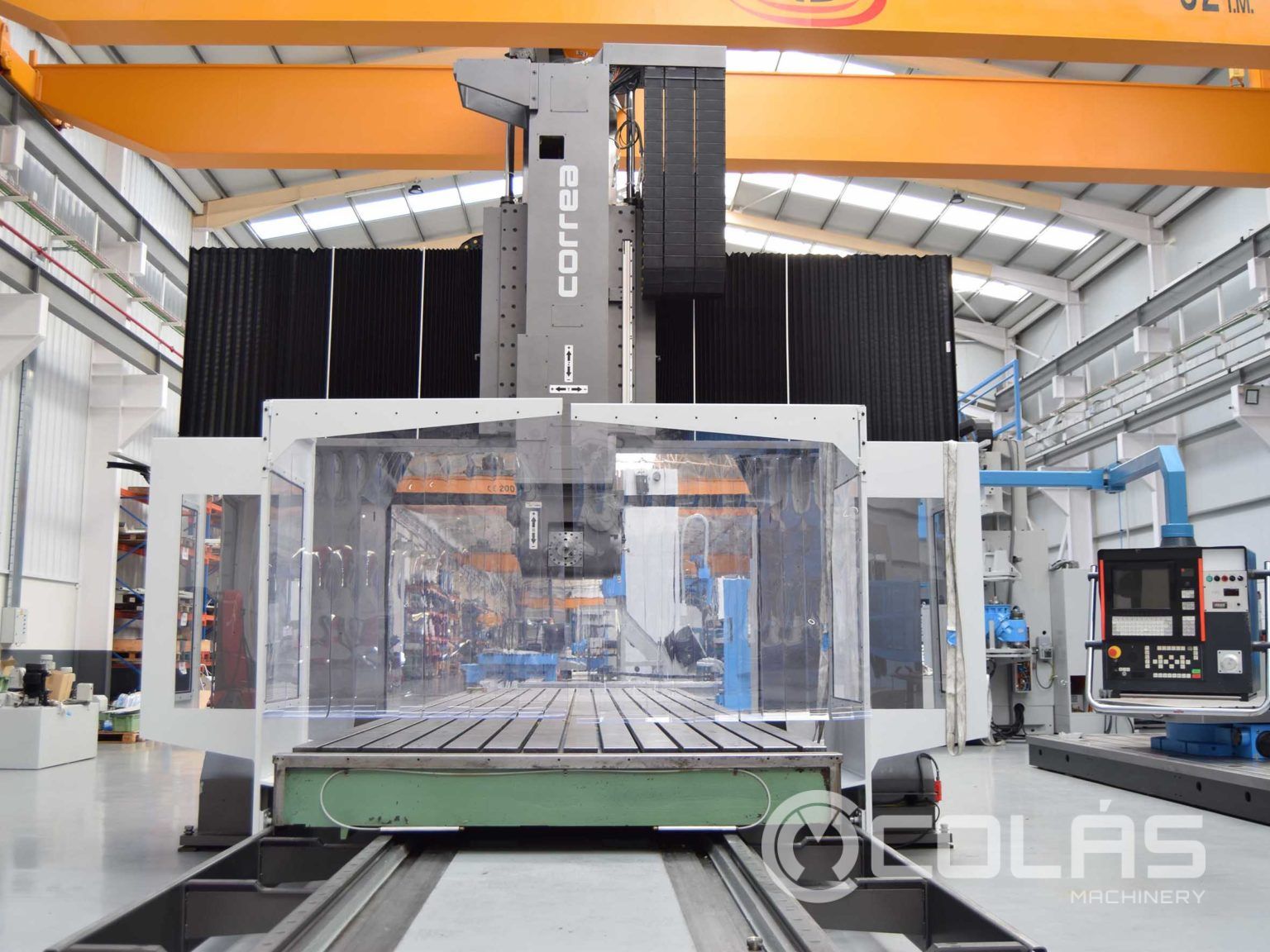

Manufacturer NICOLAS CORREA
Model FP40/80
New in Year 1999
Reconstruction Year 2020
CNC HEIDENHAIN TNC-530
Table Surface 8.000 X 2.000 mm
Longitudinal Traverse (X Axis) 8.000 mm
Cross Traverse (Y Axis 3.250 mm
Vertical Traverse (Z Axis) 1.000 mm
Distance Between Columns 2.730 mm.
Rapid Feed (X Axis) 15.000 mm/min
Rapid Feed (Y,Z Axis) 12.000 mm/min
Max. Working Feed 5.000 mm/min
Autoindex Head 4th /5th Axis INCLUDED
Speed Head 45º 4.000 r.p.m.
Main Engine Power 30 Kw.
Speed Range 2
Max. Carrying Load Table 25.000 Kg.
Machine Weight 78.000 Kg.
Portable Handwheel INCLUDED
