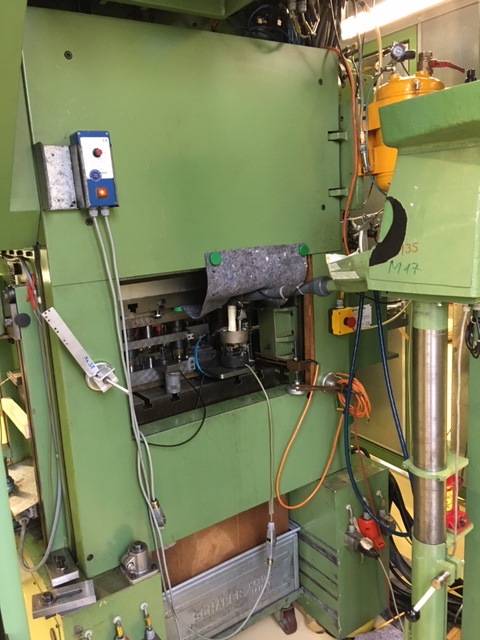

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:
  • KAISER V 40 W / 600
  • Condition:
  • Used
  • YOM:
  • 1990
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Press capacity: 40 ton
  • Ram stroke adjustable: 8 - 50 mm
  • Slide adjustment: 50 mm
  • Shut height (stroke down, adjustment up): 270 mm
  • Free frontal opening L-R: 600 mm
  • Free lateral opening F-B: 190 mm
  • Table surface area : 600 x 500 mm
  • Slide area: 600 x 400 mm
  • Hole in table: 500 x 110 mm
  • Number of strokes: 65 - 400 s.p.m.
  • Table height over floor: 1.110 mm
  • Required power: 32 kW
  • Height over floor approx.: 2.800 mm
  • Weight of machine approx.: 6,2 ton
  • 2002 a roll feeder was installed
  • Modell MWVL-200, YOM 2002
