MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HAULICK & ROOS
  • Model:

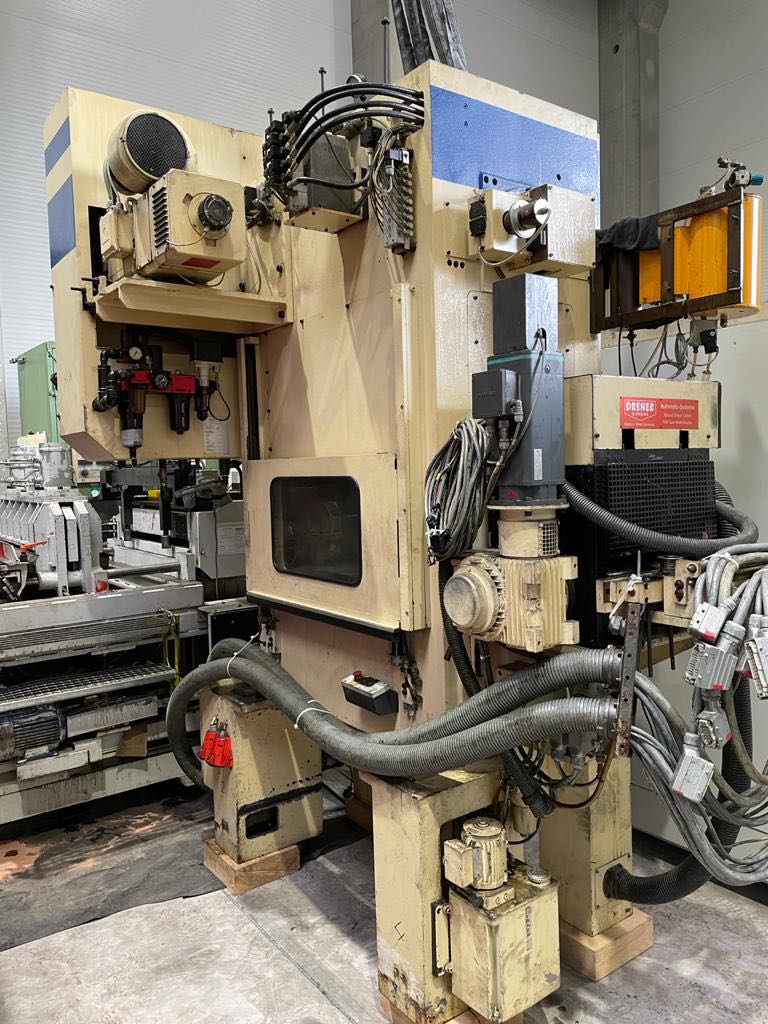

  • HAULICK & ROOS RVD 80 - 800 NS
  • Condition:
  • Used
  • YOM:
  • 1992
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Press capacity: 80 ton
  • Ram stroke adjustable: 4 -60 mm
  • Slide adjustment: 0 - 80 mm
  • Shut height (stroke down,adjustment up):310 mm
  • Free frontal opening L-R: 800 mm
  • Table height over floor: 1150 mm
  • Table surface area : 780 x 640 mm
  • Slide area: 800 x 460 mm
  • Hole in table: 690 x 170 mm
  • Number of strokes: 30 - 300 s.p.m.
  • Required power: 21 kW
  • Height over floor approx.: 2900 mm
  • Weight of machine approx.: 12 ton
  • Standard configuration:
  • Roll feeder Type WAV - RDS 2E 1125
  • Material width max. 310 mm
  • Material thickness 0,3 - 3 mm
  • Material cross section 630 mm2
  • Feeding speed 80 m/min
.
