MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Komatsu
  • Model:

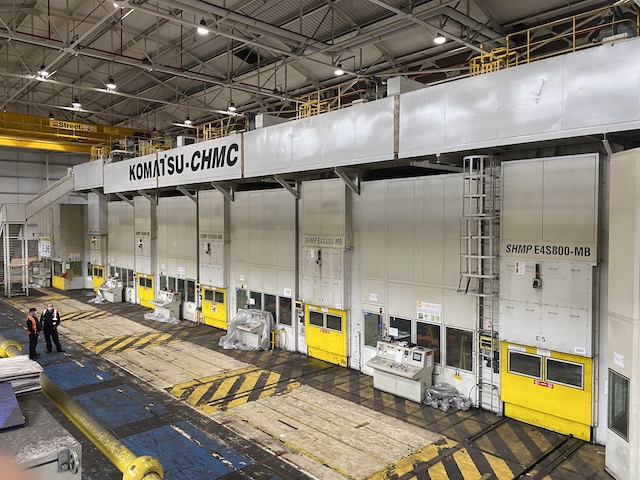

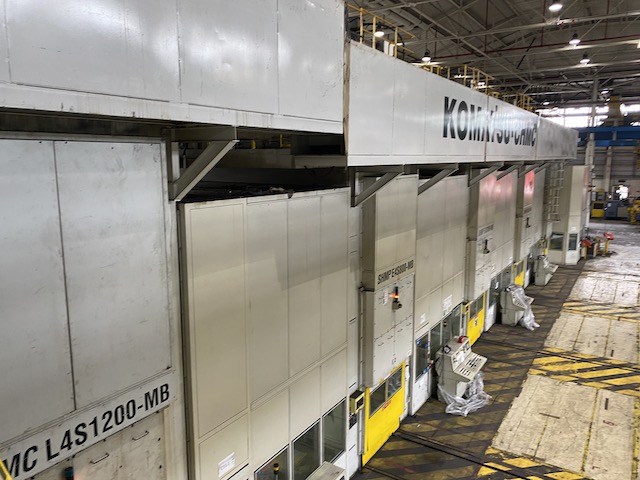

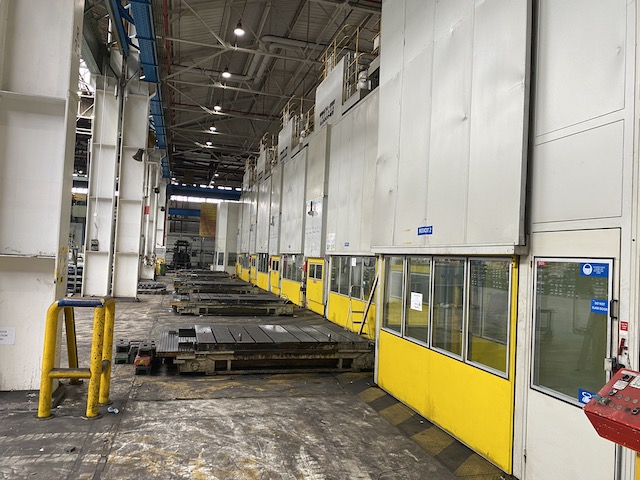

  • Komatsu L4S - 1200 MB
  • Condition:
  • Used
  • YOM:
  • 1997
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Pressure total: 1200 ton
  • Ram stroke: 800
  • Slide adjustment: 65
  • Shut height (stroke down, adjustment up): 1200 mm
  • Free frontal opening L-R: 3240 mm
  • Table surface area : 2800 x 1800 mm
  • Slide area: 2800 x 1800 mm
  • Die cushion capacity in table: 300 ton
  • Die cushion stroke: 0 - 200 mm
  • Die cushion pad area: 2200 x 1300 mm
  • Cushion pressure in ram: 170 ton
  • Cushion stroke: 150 mm
  • Number of strokes: 8 - 20 s.p.m.
  • Die weight at the ram max.: 10 ton
  • Die Weight on table max.: 20 ton

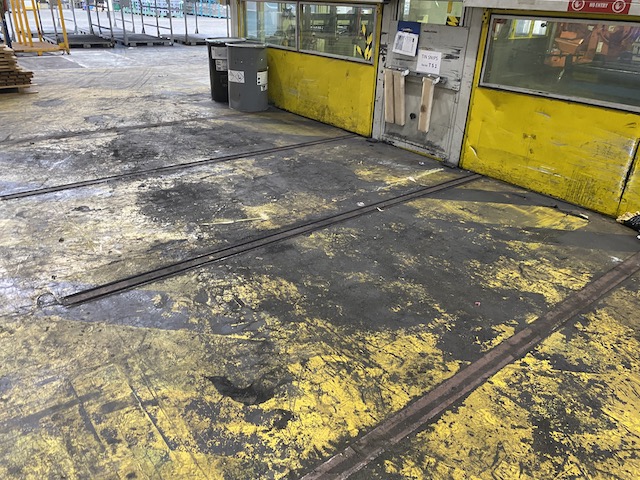

  • No. of moving bolster: 2 pcs.
  • Required power: 250 kW
  • Height over floor approx.: 10800
  • Weight of machine approx.: 289
  • Standard configuration: Link drive press

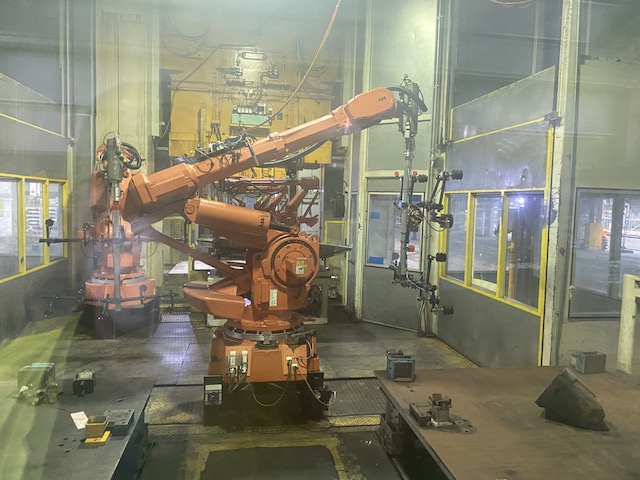

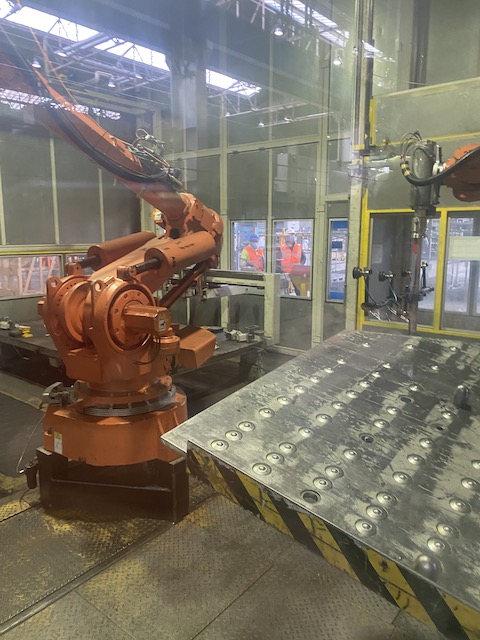

  • ABB Handling Roboter
.
