MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kaiser
  • Model:

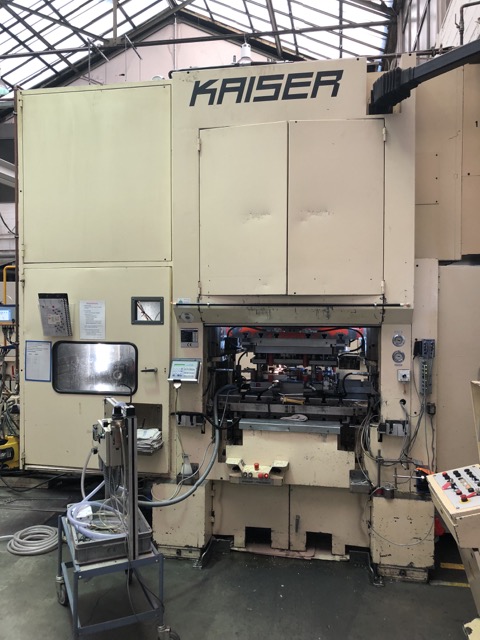

  • KAISER KSTU 1600 - 11 P
  • Condition:
  • NA
  • YOM:
  • 1993
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Press capacity: 160 ton
  • Ram stroke adjustable: 20 - 120 mm
  • Slide adjustment: 100 mm
  • Shut height (stroke down,adjustment up):550 mm
  • Table surface area : 1.250 x 900 mm
  • Slide area: 1.100 x 700 mm
  • Hole in table: 900 x 250 mm
  • Number of strokes: 20 - 150 s.p.m.
  • Table height over floor: 1.020 mm
  • Required power: 55 kW
  • Dimensions L x W x H: 3.400 x 2.300 x 3.800 mm
  • Weight of machine approx.: 25 ton
  • electro hydraulic overload system
  • full automatic stroke adjustment
  • hydraulic spindle clamping
  • ram adjustment with servo motor
+ request more information
