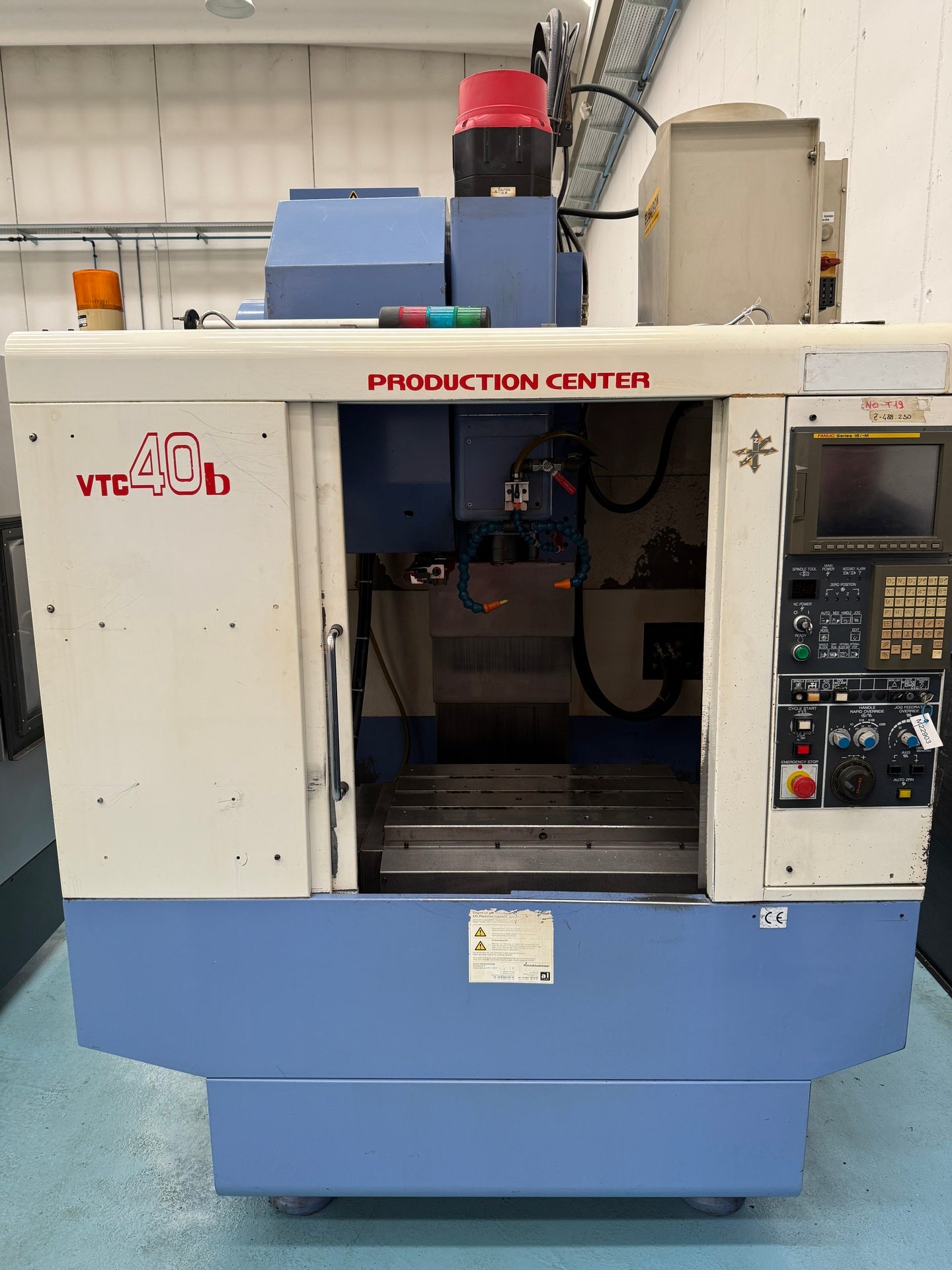

Number of axis total: 4. Table length: 700 mm. Table width: 400 mm. Longitudinal travel (X-axis): 600 mm. Transversal travel (y-axis): 400 mm. Vertical travel (z axis): 400 mm. Table load max.: 200 kg. Number of tools: 20. Tool diameter: 100 mm. Tool lenght: 250 mm. Max. tool-weight: 5 kg. Time of tool changing: 1.2 / 2.8 s. Spindle nose:: BT 40. from: 160 t/min. up to: 8000 t/min. Rapid traverse: long.: 48 m/min. Rapid traverse: transversal: 48 m/min. Rapid traverse: vertical: 36 m/min. Spindle motor: 7.5 kW. Total power required: 11 kVA. Machine's weight about: 3000 kg. Length: 2360 mm. Width: 1600 mm. Height: 2400 mm.
Table size: 130mm dia / 32 palletsCapacity L x W x H: 550 x 440 x 580mm C axis, B axisSpindle taper: BT 40 BIG PLUSSpindle speeds: 15000rpmRapid traverse rates: XYZBC: 60 x 60 x 60 x 50 x 100m/minuteNo of stations on Auto toolchanger: 240CNC Contr...
