Origin of manufacture Swiss
Net weight 1500 kg
Customs position 8458.11 20
Dimensions 1650x1050x1850 mm
TECHNICAL CHARACTERISTICS (standard execution)
Doll (Z1 axis) (+ C optional)
Max bar crossing dia. 10 mm
Max length of parts, depending on type of barrel 60/90 mm
Rotation speed of the programmable spindle 0-16000 min-1
Stopping and indexing positioned, increment 0.1 °
Maximum power of the spindle 1.1 (3.7) kW
Cannon Holder (X1 / Y1) (X2 / Y2)
Number of barrel tools (2 slides, 2 x2 axes) 2 x 4
Tools section 8 x 8 mm
Number of transverse drill / milling cutters 4
Programmable rotation speeds 0-12000 min-1
End device (X3 / Y3)
Max number of end tools 3
Programmable rotation speed 0-12000 min-1
Counter-spindle and counter-operation (X4 / Z4) (+ C optional)
Max clamping capacity 7 mm
Programmable rotation speed 0-16000 min-1
Positioning and indexing positioned; increment 0.1 °
Number of counter-operations max 4
Number of fixed or rotating spindles 4
Max rotation speed of the spindles 9000 min-1

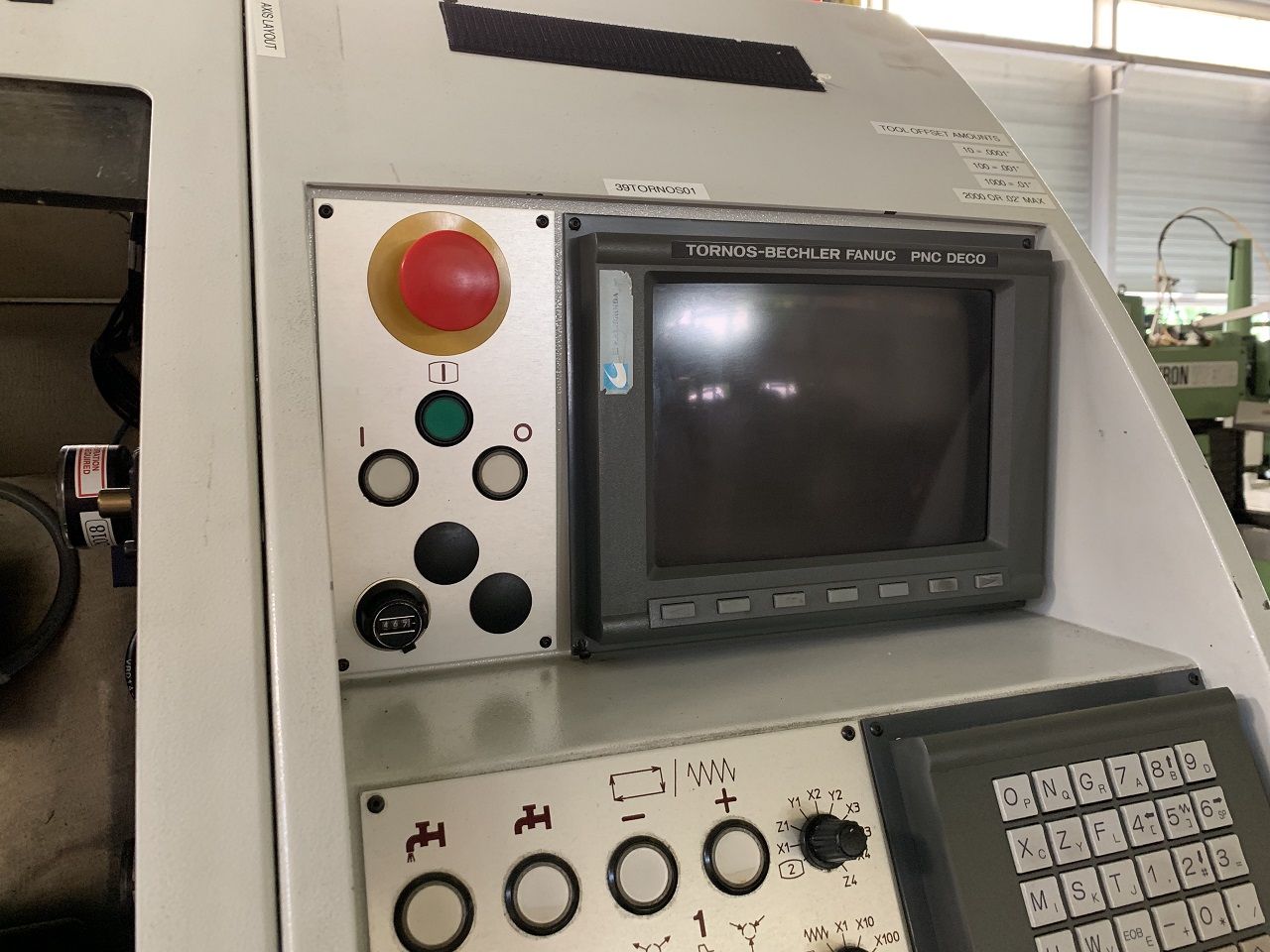

Specific numerical control Tornos-Bechler / Fanuc
Processor type 486 DX2
Number of simultaneous axes 10
Machine in 3 versions 5 axes + spindle C axis (option)
7 axes + Spindle C axis and / or C axis
counter-spindle (option)
9 axes + spindle axis C and / or axis C
counter-spindle (option)
except error or omission the technical indications are given to you without commitment
