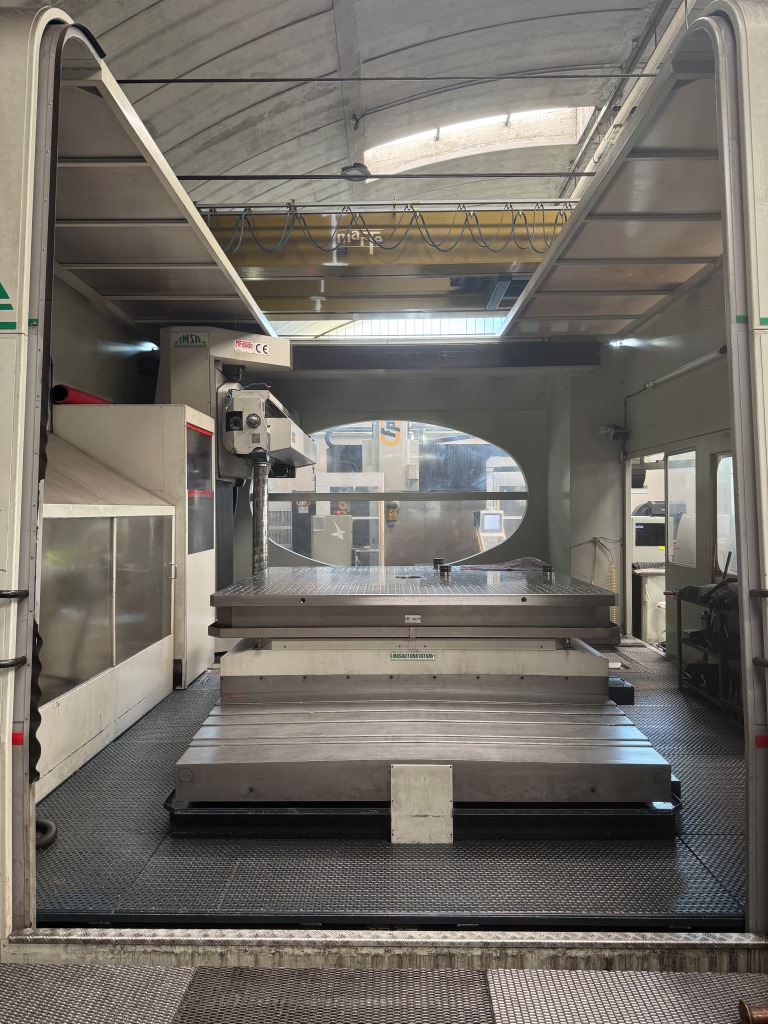

IMSA
10171
Numerical control Heidenhain 530
Longitudinal (X) 3.250 mm
Vertical (Y) 1.500 mm
Trasversal (Z) Axis thread 500 mm
Drilling depth (V) 2.000 mm
Tilting Drilling head (C) +/-20 °
Table 2000x2000 mm
Table Rotation (B) 360,000 x 0,001 °
Approach piece (W) 500 mm
USED MACHINE
KONDIA
07901
ROTOPALLET
CNC FANUC 21i-MB
STROKES:
Longitudinal X axis mm 660
Cross Y axis mm 400
Vertical Z axis mm 510
TABLE:
Table dimensions mm 660x400
FEED:
Rapide feed axis X/Y mm/min 36.000
Rapide feed axis Z mm/min 30.000
SPINDLE:
Spindle tape...
COSTA
07919
Working width mm 1350
Min/max working thickness 0,8-160 mm
Min/max work plane height mm 740-900
Abrasive belt motor power HP 16-20
Brush motor power HP 15
Feed motor power HP 2-3-4
Rubber rollers diameter mm 250
Brush diameter mm 250
Feed...
MERLI CLOVIS
09819
Height of centers over the bench 640 mm
Height of centers over the carriage 460 mm
Swing diameter on the bench 1280 mm
Swing diameter on the carriage 920 mm
Bed width 600 mm
Distance between centers 6000 mm
Spindle
Bar passage 155 ...
