MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Sodick
  • Model:
  • ERODER WIRE SODICK
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

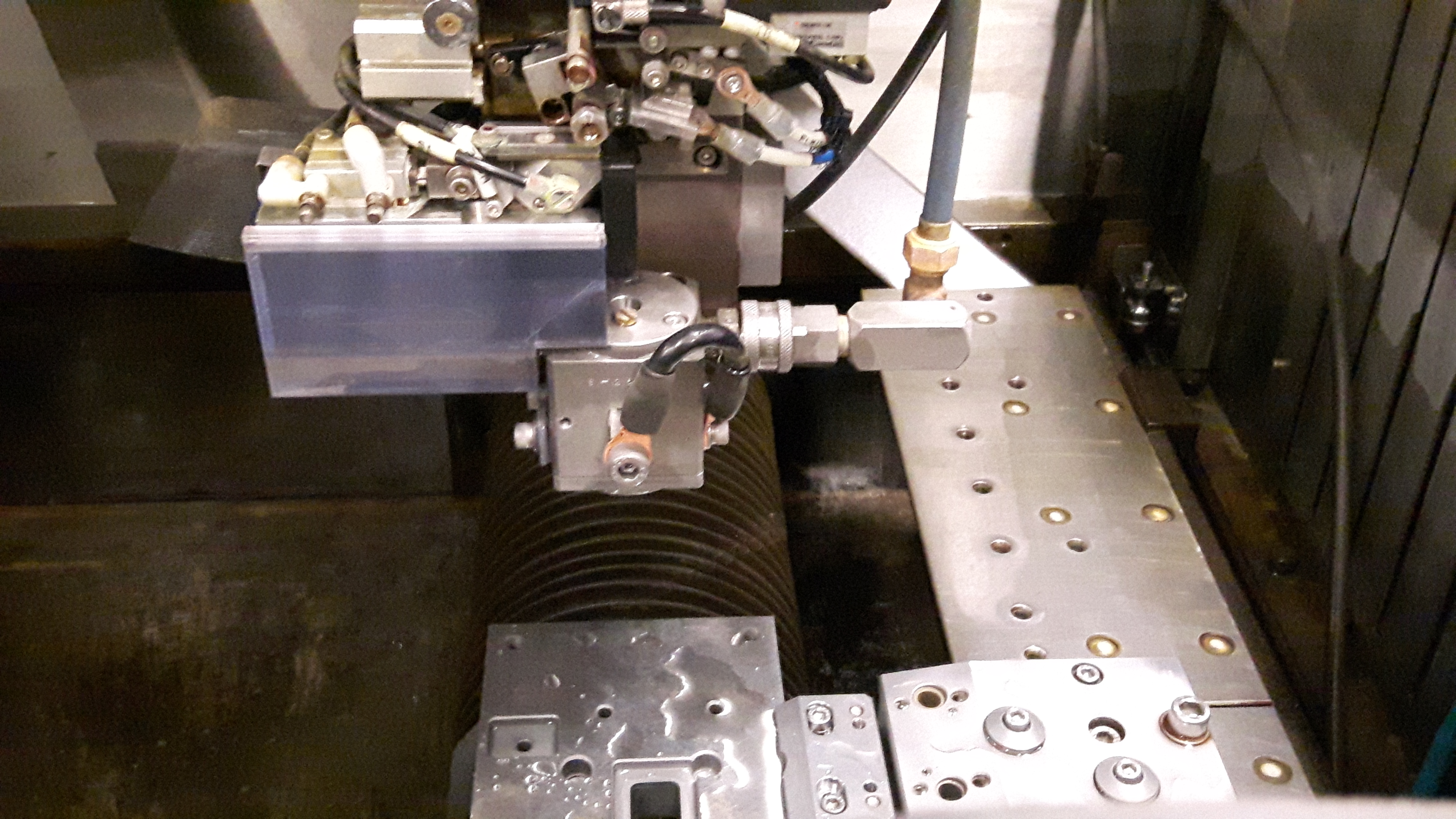

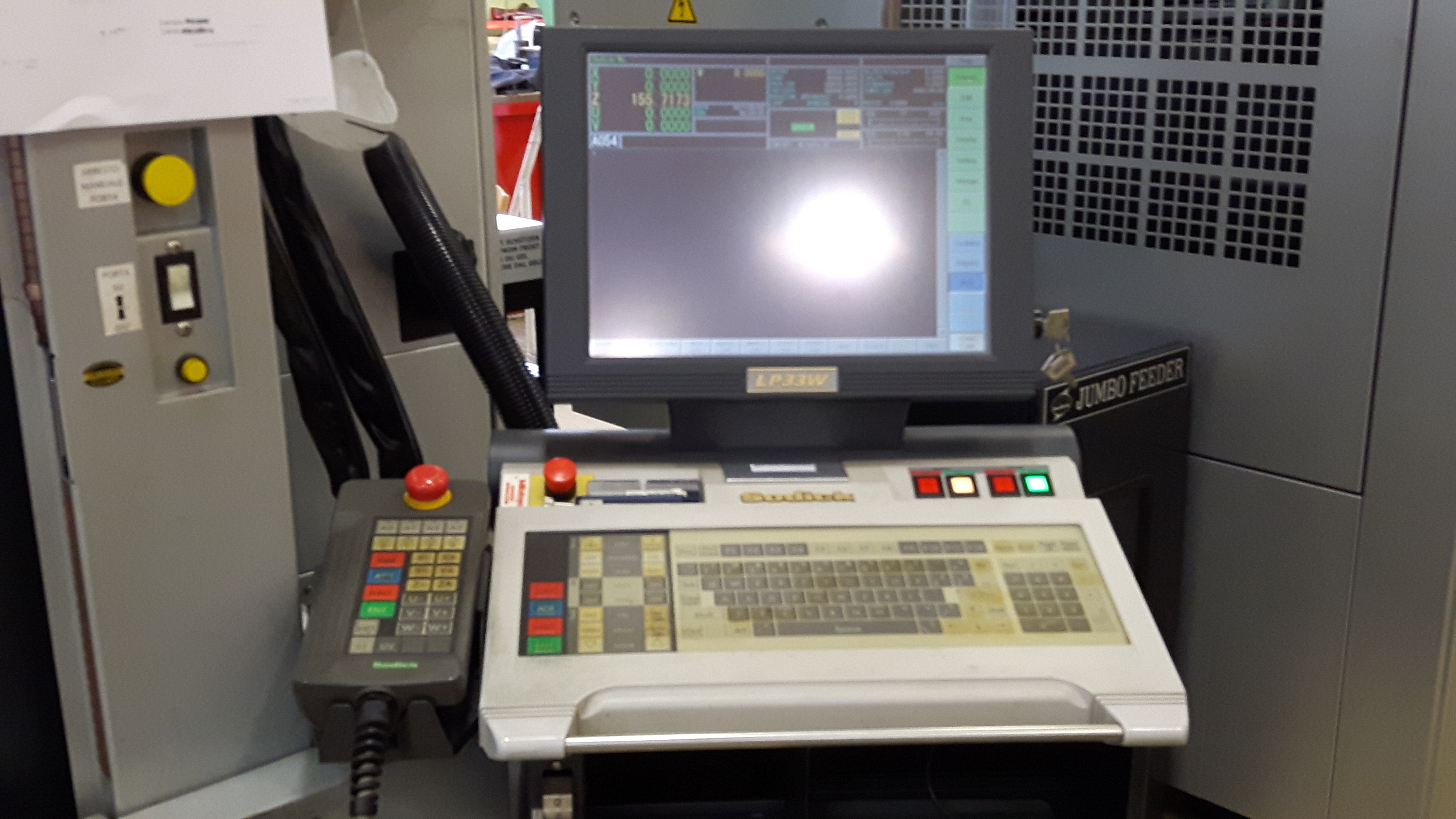

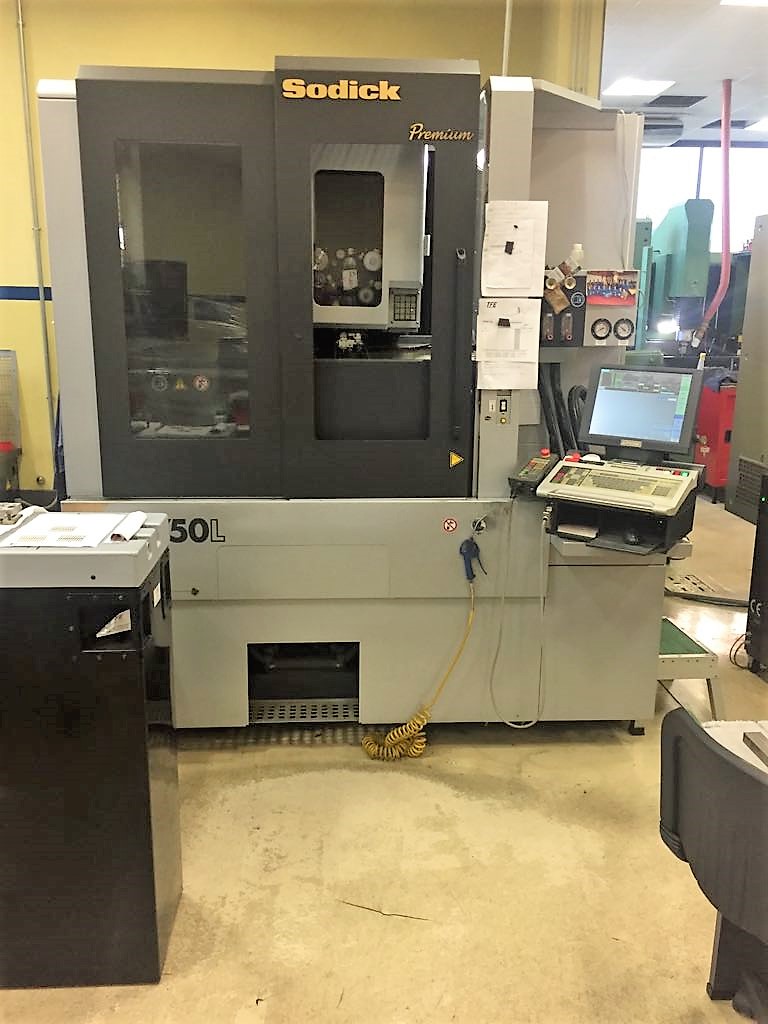

SODICK 07882 MOD. AQ 750 L PREMIUM Max piece dimensions 1050x750x400 mm Max piece weight 3000 kg Working tank dimensions 1264x973 mm Axis X mm 750 Axis Y mm 500 Axis Z mm 400 Axis U – V 770x520 mm Piece taper ( spessore 150 mm) ± 30 gradi Wire diameter 0.15 – 0.33 mm Wire tension 3 – 23 N Max wire speed 420 mm/sec Machine dimensions 2100x2860x2390 mm Installed machine space 3200x4160 mm Machine total weight 5600 kg Power installed Max 15 kVa Generator 60 Amp. Dialectic tank: -Capacity 1265 lt -Dialectic liquid filtering system: Replaceable paper filter (internal pressure) -Deionizer: ion exchange resin (18 liters) USED MACHINE
