Home > Spares & Accessories > Machine Vices Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Fanuc
  • Model:
  • FANUC ROBODRILL T21 iEL
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

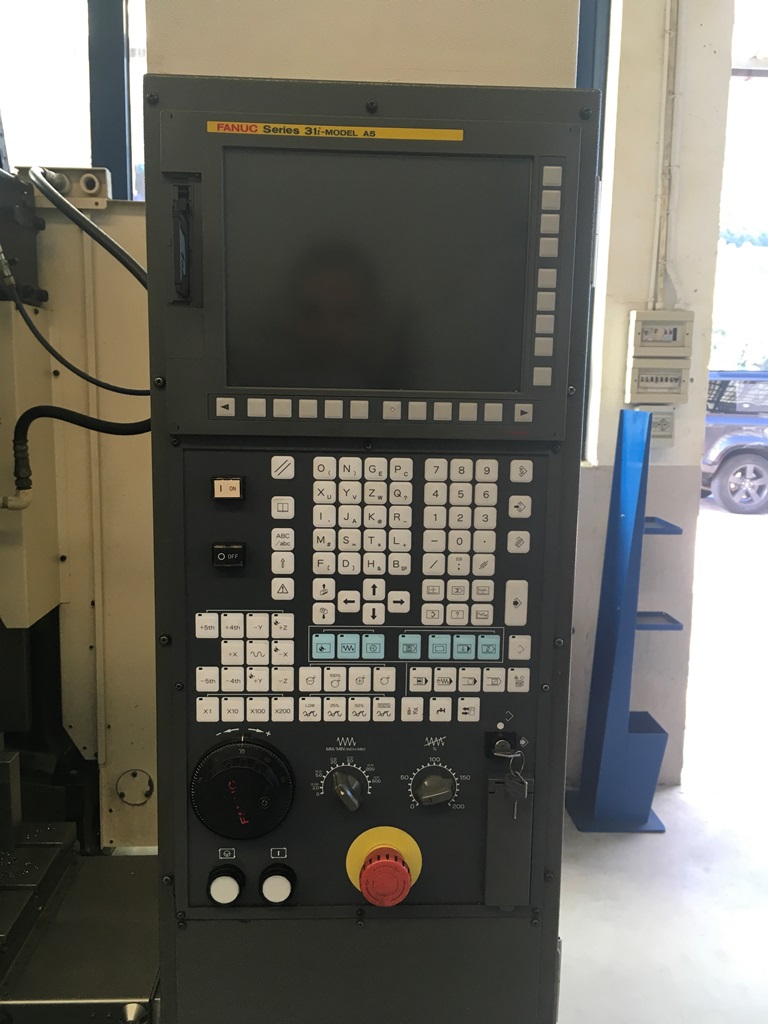

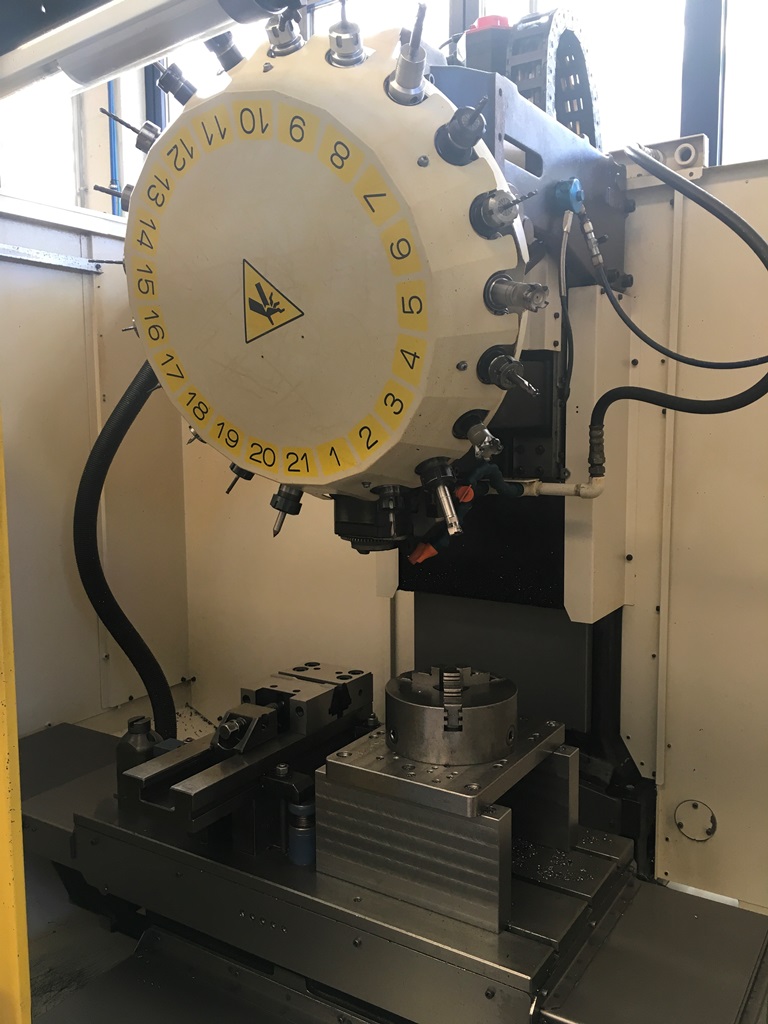

FANUC 09948 VERTICAL MACHINE CENTER CNC FANUC 31I A5 Table dimensions mm 800x400 Strokes: X mm 700 Y mm 400 Z mm 350 SPINDLE Spindle motor 5.5 /3.7 Kw Spindle nose attachment BT 30 Max spindle speed Rpm 10,000 ADVANCES Rapid 54 m/min working 30 m/min TOOL CHANGE automatic 21 positions Max. tool weight 3 kg Max. tool length mm 200 Max. tool diameter mm 80 POWER SUPPLY Three-phase voltage 10 KVA, 220 V, 50 Hz DIMENSIONS Weight kg 2200 USED MACHINE YOM 2006
