MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

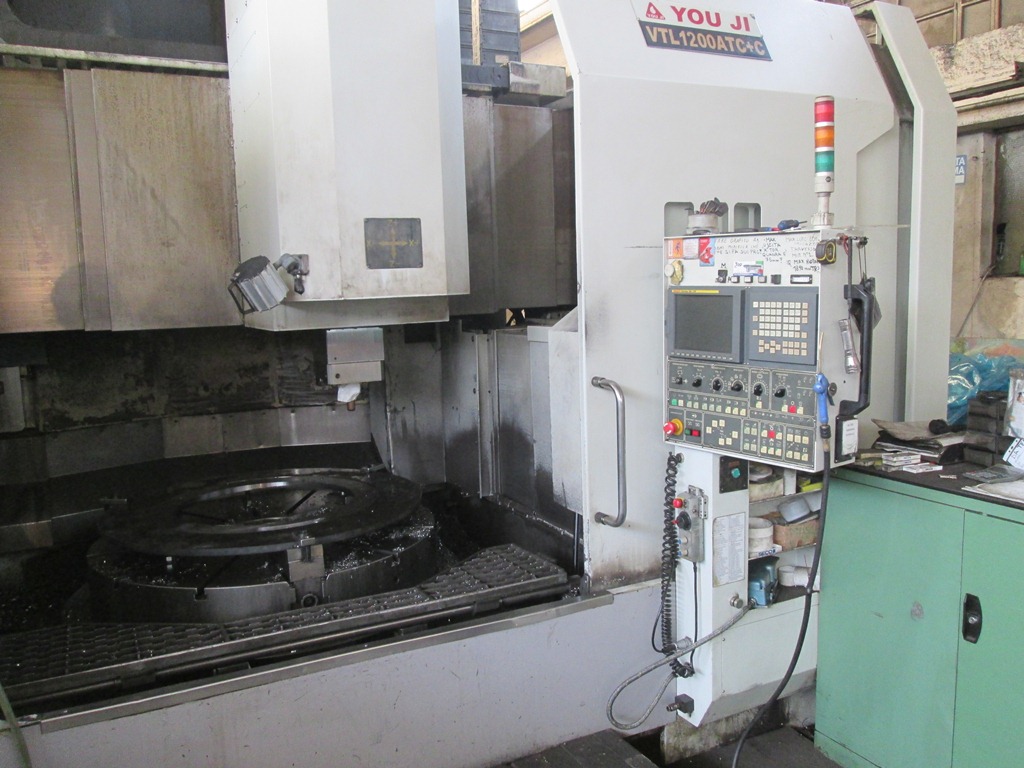

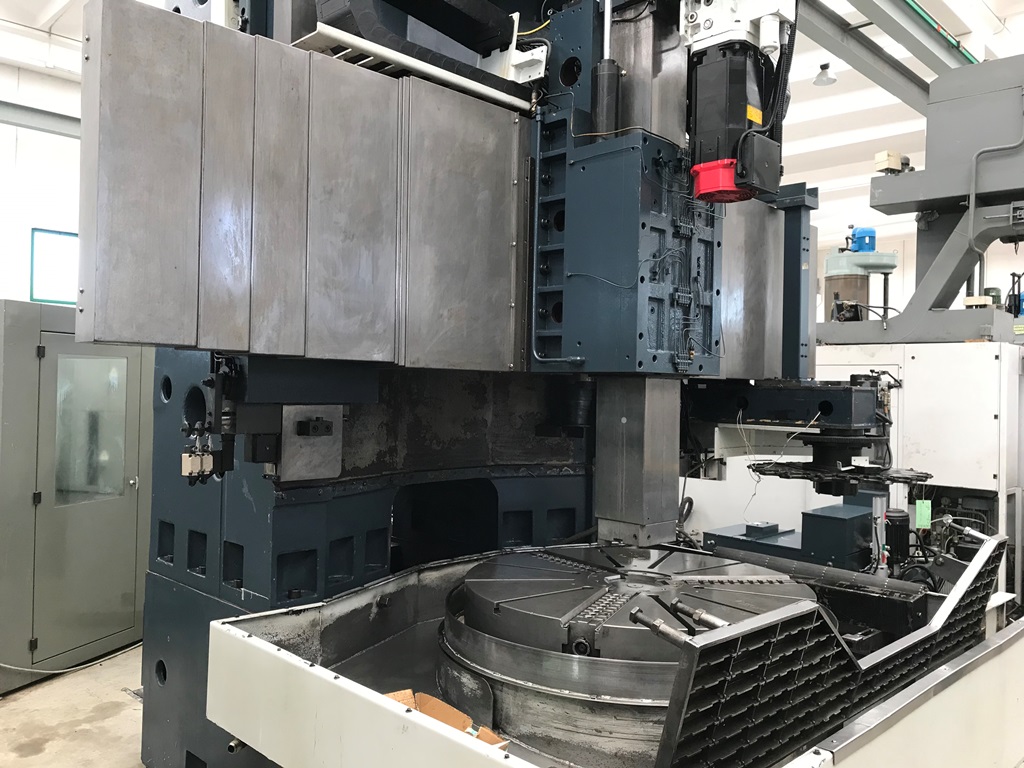

  • LATHE YOUJI VTL 1200 ATC+C
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

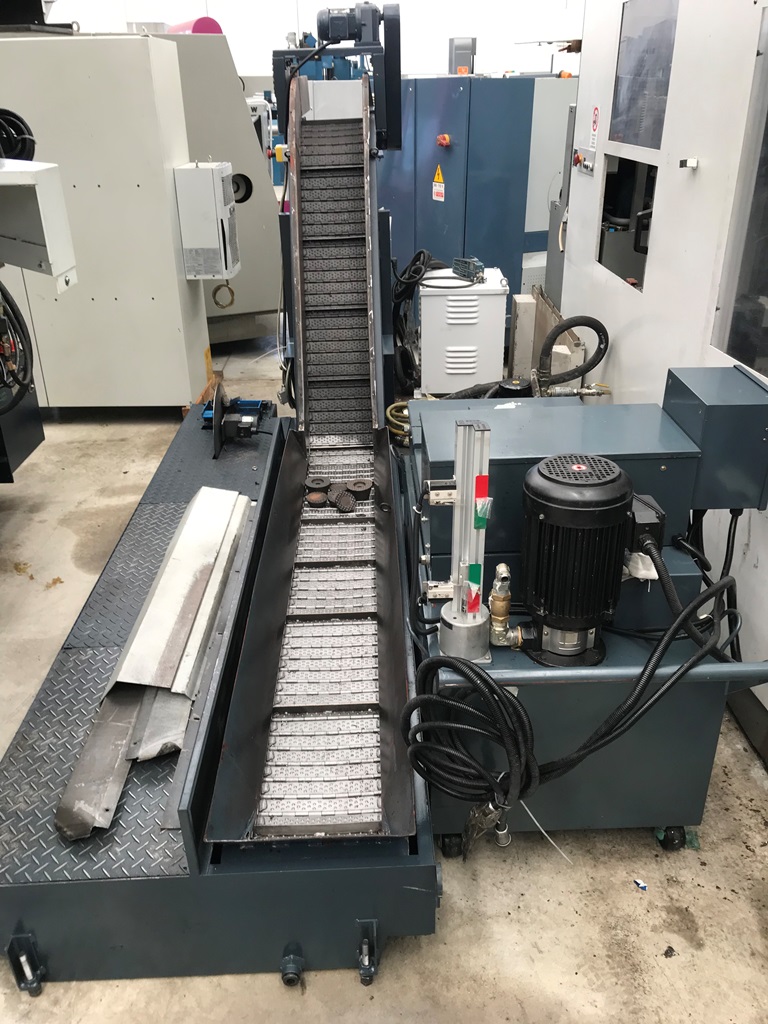

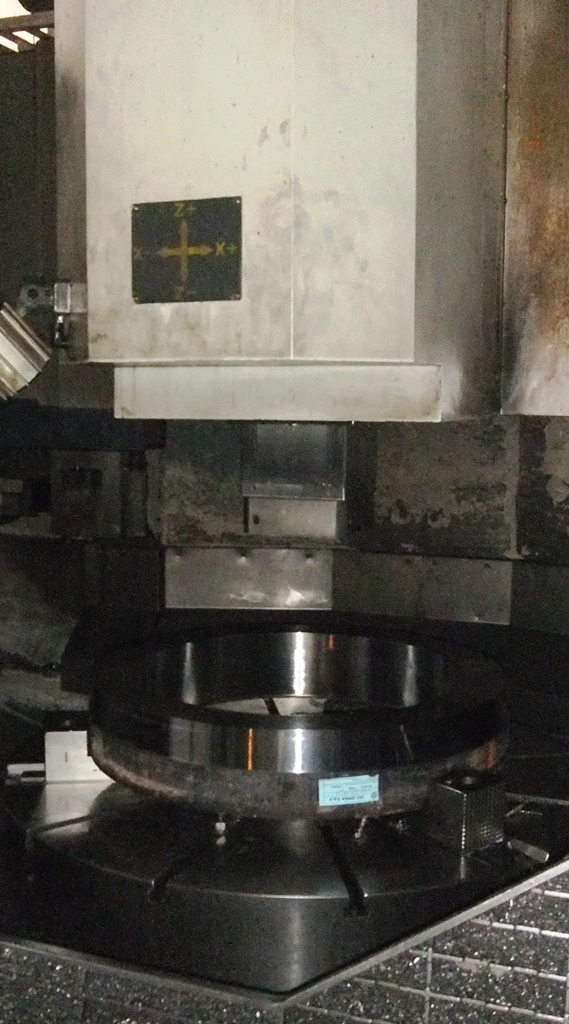

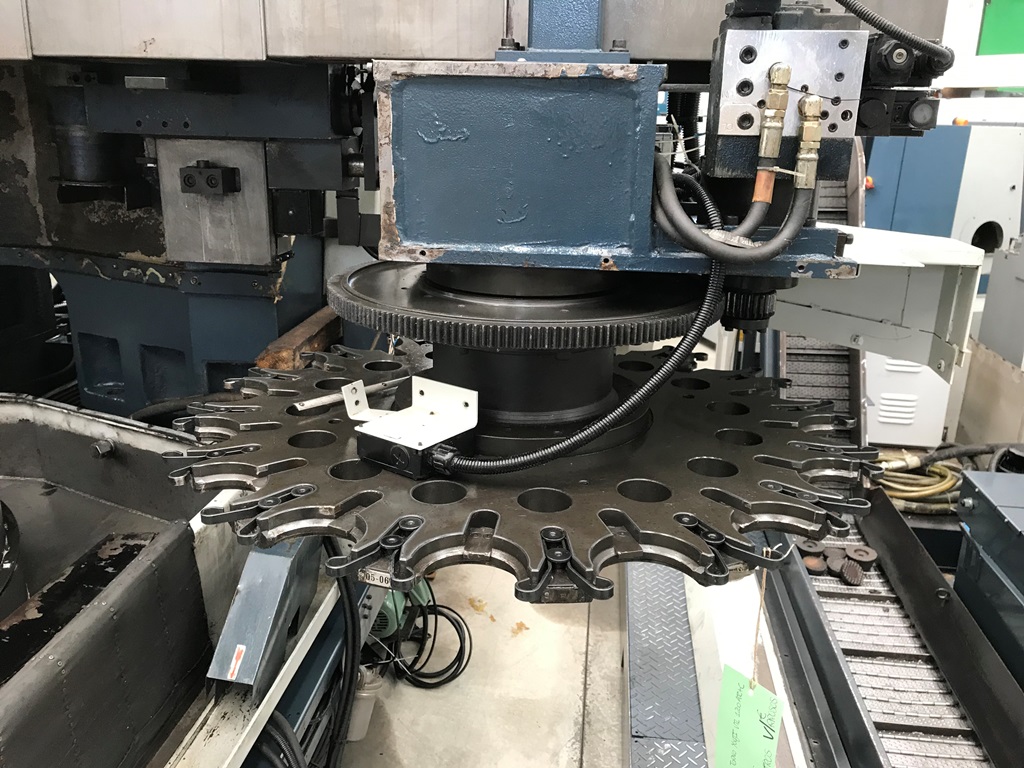

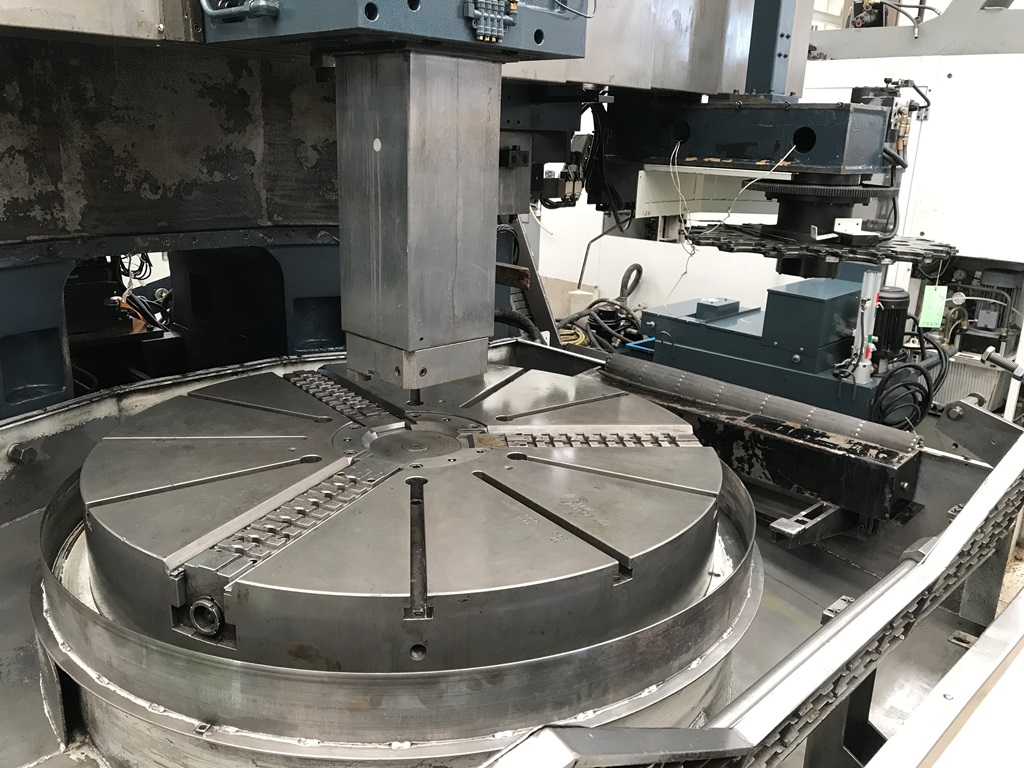

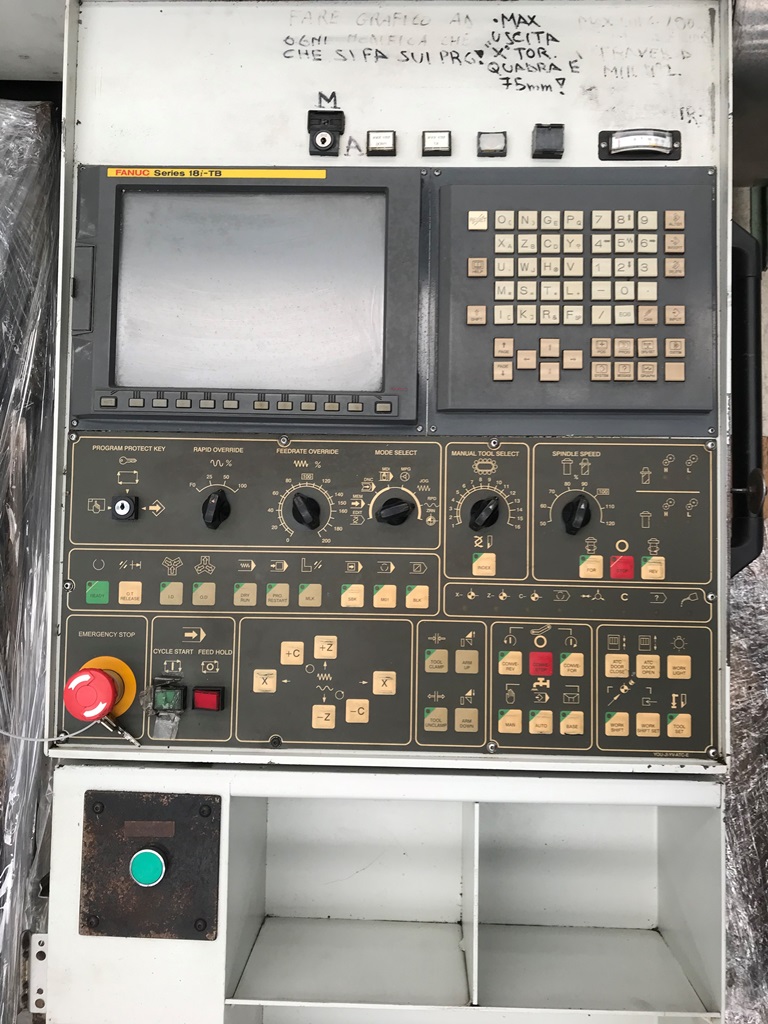

YOUJI 06710 AXIS C CNC FANUC 18 i TB WORKING AREA: -Table diameter mm 1200 -Max swing diameter mm 1600 -Max turning diameter mm 1400 -Max turning height mm 1200 mm -Max load on table Kg 5000 -Table height from floor mm 950 ROTARY TABLE: -Motor power kW 45/37 -Speed range n.2 -Speed low range rpm 1-108 -Speed high range rpm 108-350 -Max torque Nm 8200 LIVES TOOLS -Motor power kW 11/7.5 -Speed range n.2 -Speed low range rpm 1-1200 -Speed low range 1200-2400 -Max torque Nm 350 MOVABLE CROSSRAIL: -Vertical stroke mm 800 -Distance between table and Ram mm 1515 VERTICAL STROKE: -Horizontal stroke axis X mm -600/+875 -Vertical stroke axis Z (Ram) mm 900 -Section ram mm 220x220 TOOL MAGAZINE: -Tool magazine n.16 positions -Tool taper BT50 -Max load for station Kg 50 OVERALL DIMENSIONS AND WEIGHT: -Max height mm 4800 -Width mm 5100 -Depth mm 4200 -Weight Kg 34.000 -Total installed power KVA 90 EQUIPPED WITH: -Hydraulic self-centering chuck AUTOBLOK mm 1250 3 jaws with automatic control with set of 3 jaws -Hydraulic cilynder AUTOBLOK with LPS system (automatic position control) -chip conveyor -Coolant through spindle system with high pressure 10 bar -Indipendent system of coolant with paper filter -n. 8 BT 50 tool holders USED MACHINE YEAR 2008
