MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Doosan
  • Model:
  • CENTER DOOSAN MOD. VM 6500
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

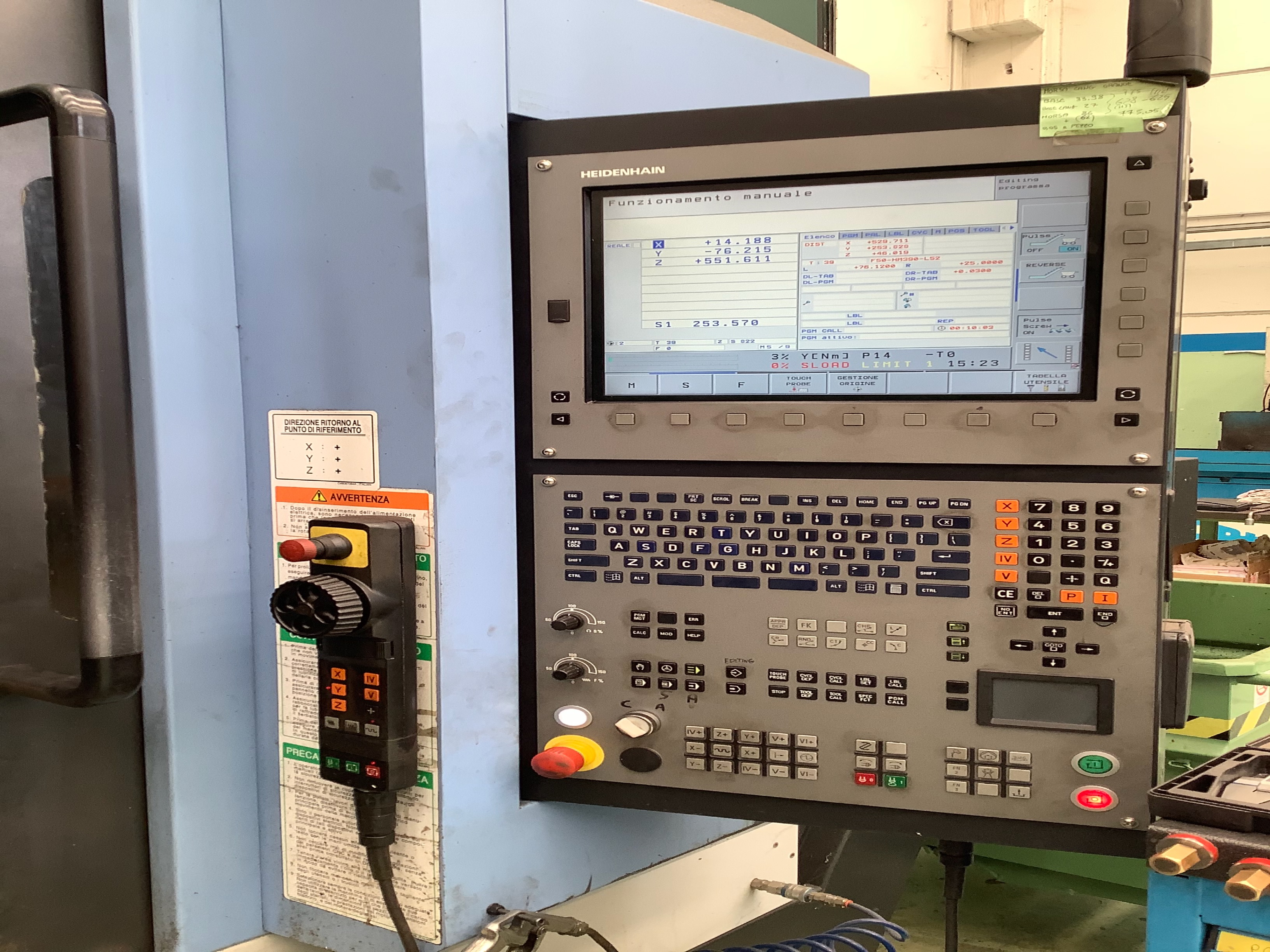

DOOSAN 09161 BOX GUIDEWAY CNC HEIDENHAIN TNC 530 CAPACITY': Distance spindle center - column mm 722 Distance spindle nose - table surface 150-775 mm SPINDLE: Spindle rotation speed rpm 60-12000 Spindle motor power (cont./40%-25%) kW 22 / 35-46 Spindle nose ISO 40 TRAVELS: X axis travel 1270 mm Y axis travel 670 mm Z axis travel 625 mm TABLE: Table size mm 1400x670 Weight allowed on the table Kg 1000 AUTOMATIC TOOL CHANGE: Tool magazine capacity, 40 places Tool size (diam.xL) mm 80-125 / 300 Tool weight Kg 8 MACHINE WEIGHT: Kg. 9000 EQUIPPED WITH: -Remote electronic handwheel -Chip conveyor -Optical lines on all axes -High pressure through the spindle 20 bar USED MACHINE
